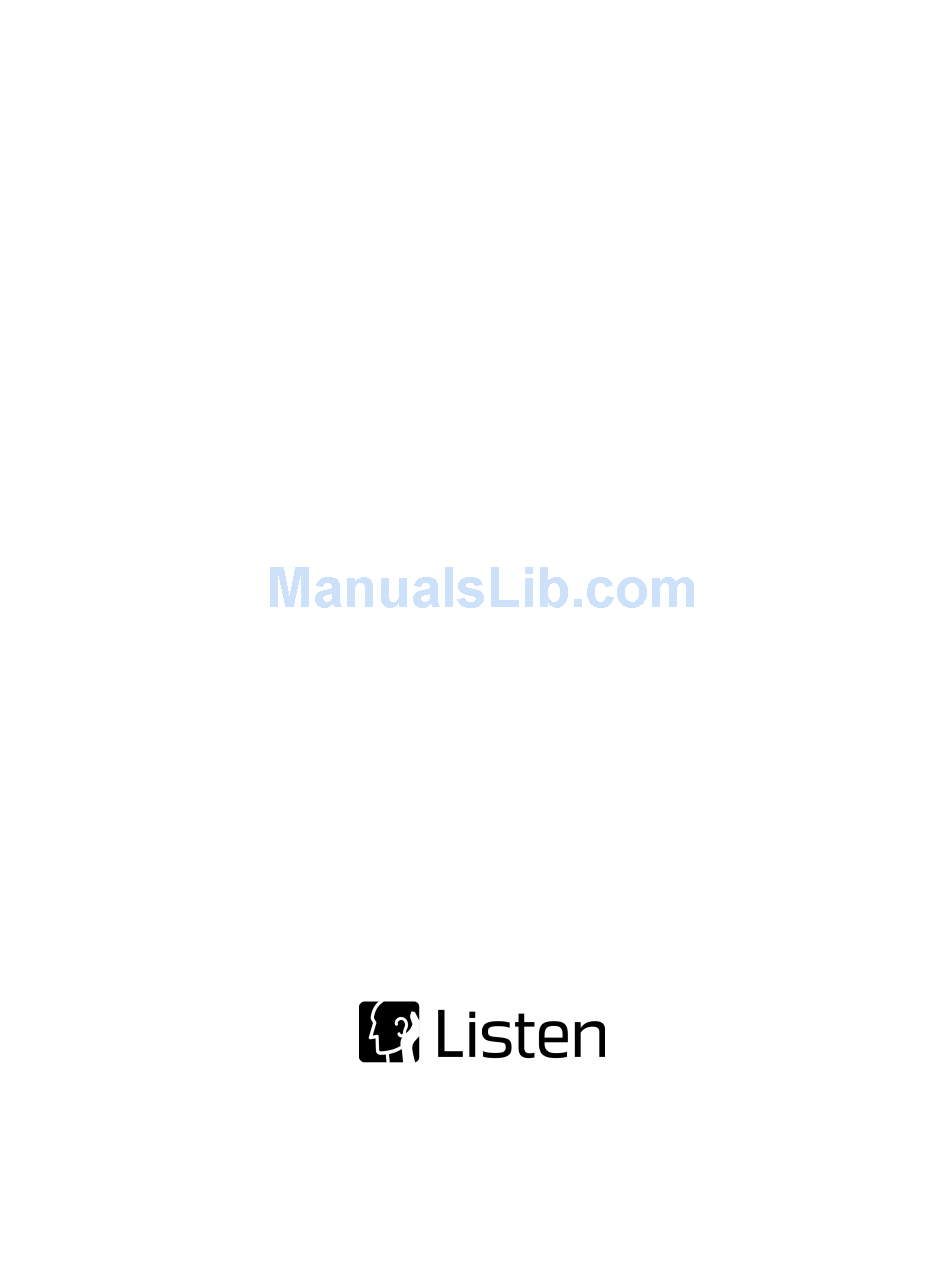

- Page 1 SoundConnect Microphone Power Supply Instruction Manual April 2015 © 2006 - 2015, Listen, Inc. Sound Measurements Make Sound Products 580 Harrison Ave, Suite 3W • Boston, MA 02118 617-556-4104 • Fax 617-556-4145 • www.listeninc.com...
-
Page 2: Safety Considerations
Special note should be made of the following: Application of Power Before turning on SoundConnect, check that it is set to match the available mains voltage and that the correct fuse is installed. Safety Symbols The apparatus will be marked with this symbol when it is important that the user refer to associated warning statements given in the User’s Manual. -
Page 3: Limited Warranty
LIMITED WARRANTY LISTEN, Inc., a Massachusetts Corporation, having its principal place of business at 580 Harrison Ave, Suite 3W, Boston, MA 02118 ("Manufacturer") warrants its SoundConnect Microphone Power Supply products (the "Products") as follows: 1. Limited Warranty. Manufacturer warrants that the Products sold hereunder will be free from defects in material and workmanship for a period of one (1) year from the date of purchase. - Page 4 Much of today’s test instrumentation uses A/D converters and data acquisition boards for converting the input signal into the digital domain. Using SoundConnect’s output attenuator and peak level meter it is easy to achieve the full performance from these boards. Three Max Output levels (1, 2, and 5 V...
- Page 5 (-14 dB), the 0 dB green LED will illuminate when the input signal with gain (if any) reaches 1.41 V (1 V Note: This is useful for adjusting the signal gain on SoundConnect to maximize the full-scale deflection of the A/D converter on the test system data acquisition board. SoundConnect Manual...
- Page 6 Service and Repair SoundConnect is designed and constructed to provide the user with many years of safe and trouble free operation. However, should a fault occur which impairs its correct functioning and operating safety, it should be immediately shut off, disconnected at the mains source and disconnected from other hardware.
- Page 7 Setting the Internal Voltage Selector Switch IMPORTANT: Before accessing the internal voltage selector switch, make sure that the power cord is unplugged from SoundConnect! 1. Remove the 2 Phillips screws on the back of 4. Note: The connector wire for the rear output the case.
-
Page 8: Specifications
Operating Temperature: 0° to 35° C Accessories Included Power cord Spare fuse User Manual Contact Information Contact the Listen office at 617-556-4104, Monday thru Friday, between 9 AM and 5 PM EST. or email: Sales - sales@listeninc.com Technical Support - support@listeninc.com ©...
