Summary of Contents for Signady SCU91T
- Page 1 User Manual SCU91T 4K Scaler Switcher (with PoH) All Rights Reserved Version: SCU91T_2017V1.0...
-
Page 2: Fcc Statement
4K Compact Scaler Switcher (with PoH) Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction only. The functions described in this version are updated till June 20, 2017. -
Page 3: Safety Precautions
4K Compact Scaler Switcher (with PoH) SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ... -
Page 4: Table Of Contents
4K Compact Scaler Switcher (with PoH) Contents 1. Introduction ............................1 1.1 Introduction to SCU91T ......................1 1.2 Feature ............................. 1 1.3 Package List ..........................2 2. Specification ............................3 3. Panel Description ..........................4 3.1 Front Panel ..........................4 3.2 Rear Panel .......................... -
Page 5: Introduction

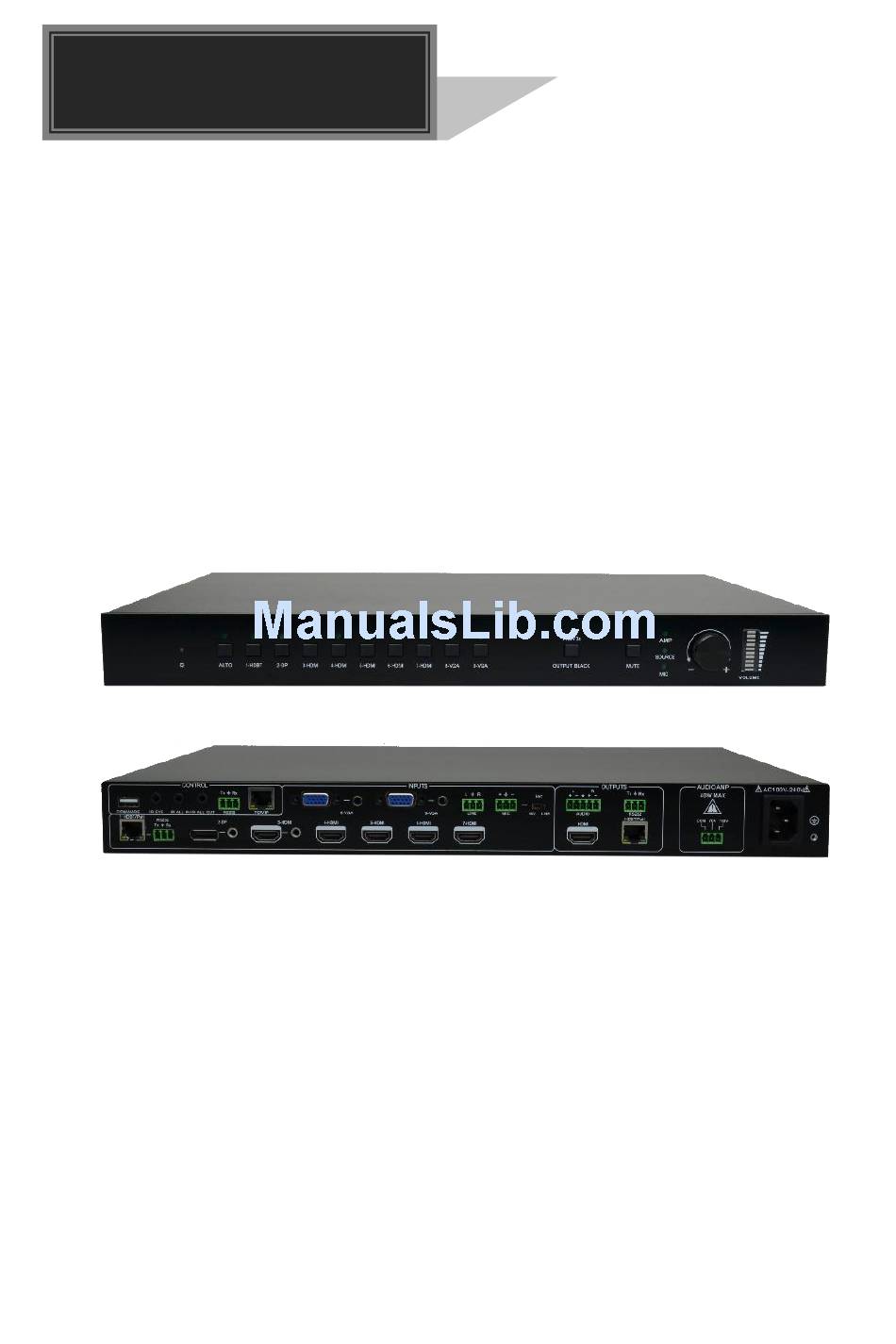

1. Introduction 1.1 Introduction to SCU91T The SCU91T is a 9 inputs multi format A/V presentation auto 4k Scaler Switcher that scales video signals to HDMI and HDBaseT outputs simultaneously. The HDBaseT output supports PoH and can connect to a compatible HDBaseT Receiver up to a maximum of 100 meters / 328 feet. -
Page 6: Package List
4K Compact Scaler Switcher (with PoH) 1.3 Package List 1 x SCU91T Scaler Switcher 2 x Mounting Ears with 4 Screws 4 x Plastic Cushions 1 x IR Remote 1 x IR Receiver Scaler Switcher 1 x IR Emitter ... -
Page 7: Specification
4K Compact Scaler Switcher (with PoH) 2. Specification Video Video Input (1) HDBaseT;(1) Display Port; (5) HDMI; (2) VGA (1) RJ45; (1) Female Display Port; (5) Type A HDMI; Video Input Connector (2) 15-pin Female VGA Video Output (1) HDMI; (1) HDBaseT Video Output Connector (1) Type A HDMI;... -
Page 8: Panel Description
4K Compact Scaler Switcher (with PoH) 3. Panel Description 3.1 Front Panel 720P 3s SOURCE LINE AUTO 1-HDBT 2-DP 3-HDMI 4-HDMI 5-HDMI 6-HDMI 7-HDMI 8-VGA OUTPUT BLACK MUTE VOLUME ① Power Indicator: Off when there is no power to the device. ... -
Page 9: Rear Panel
4K Compact Scaler Switcher (with PoH) 3.2 Rear Panel INPUTS: ① 1-HDBT/PoH& RS232: HDBaseT input port: support PoH, connect with an HDBaseT Transmitter to receive AV signal or IR/RS232 control signal. The RS232 port and that one on HDBaseT Transmitter can transmit RS232 commands each other by pass-through function. - Page 10 RS232: Serial port, 3-pin phoenix connector, connect with a control device (such as PC) to control SCU91T. TCP/IP: Ethernet port, connect PC to control SCU91T via GUI. I: AUDIO AMP: Audio output port, connect with 70V/100V constant voltage audio amplifier.
-
Page 11: System Connection
Laptop Remote 4.3 Microphone Connection SCU91T provides with one 3-level microphone input port, to accommodate different microphone input modes, including 48V phantom power mode, MIC mode & LINE mode. 48V phantom power Mode 48V phantom power input has a good frequency characteristic, high input impedance and high sensitivity. - Page 12 4K Compact Scaler Switcher (with PoH) MIC Mode MIC input has a low frequency characteristics, and wide frequency response. When switch to “MIC”, the microphone input is used for connecting with dynamic microphone. There are two different connection methods: ①...
- Page 13 4K Compact Scaler Switcher (with PoH) LINE Mode LINE input has a low frequency characteristics, and wide frequency response. When switch to “LINE”, the microphone input is used for connecting with line audio or wireless microphone output. There are two different connection methods: ①...
-
Page 14: Button Control
Rebooting device SCU91T have the ability to save the last configuration before losing power. If the last switching mode is auto-switching, once rebooted, the switcher will automatically enter auto-switching mode, then detect all inputs and memorize their connection status for future rebooting using. -
Page 15: Ir Control
4K Compact Scaler Switcher (with PoH) 6. IR Control 6.1 IR Remote Control Connect IR Receiver to the IR EYE port, SCU91T can be controlled by using the IR Remote as below. ① Enter/ exit standby mode. ② Input channel selection buttons (1~9): Select... -
Page 16: Ir Pass-Through Control
6.2 IR Pass-through Control 6.2.1 To Control Far-end Source/Display Connect an IR Receiver to IR ALL IN port on the SCU91T, and then connect IR emitter to the IR OUT ports on the HDBaseT Transmitter and Receiver, the far-end source/display can be control by their IR Remote. -
Page 17: Rs232 Control
Basic Settings: First to connect SCU91T with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. Here we take the software CommWatch.exe as example. The icon is showed as below:... - Page 18 4K Compact Scaler Switcher (with PoH) The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
-
Page 19: Rs232 Commands
4K Compact Scaler Switcher (with PoH) 7.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Software update. Update update Factory Reset to factory default. Factory reset Menu Open OSD menu. - Page 20 4K Compact Scaler Switcher (with PoH) Command Function Feedback Select embedded audio input for 2-DP DP audio1 DP audio embedded video signal. Select external audio input for 2-DP DP audio2 DP audio external video signal. Select embedded audio input for HDMI audio1 HDMI audio embedded 3-HDMI video signal.
- Page 21 4K Compact Scaler Switcher (with PoH) Command Function Feedback amp volume: xx source volume: xx Volume? Inquire audio volume. mic volume: xx Mute/Unmute Svol:xx Set the volume of source audio. source volume: xx Avol:xx Set the volume of AMP audio. amp volume: xx Mvol:xx Set the volume of MIC audio.
-
Page 22: Gui Control
4K Compact Scaler Switcher (with PoH) 8. GUI Control In addition to control SCU91T via front panel button, IR Remote and RS232 communication software. SCU91T can be controlled via GUI. It allows users to interact with SCU91T through graphical icons and visual indicators. -
Page 23: Control Menu
4K Compact Scaler Switcher (with PoH) 8.1 Control Menu Type user name: user and password: user (default setting) on the log-in interface, and then click Login to enter Control menu shown as below: Source: Click the corresponding button (1-HDBT, 2-DP, 3-HDMI, 4-HDMI, 5-HDMI, 6-HDMI, 7-HDMI, 8-VGA or 9-VGA) to select video input source, or click AUTO to enter auto-switching mode. -
Page 24: Volume Menu
4K Compact Scaler Switcher (with PoH) 8.2 Volume Menu Click Volume to enter volume menu shown as below: The volume of AMP, Source, and MIC audio can be adjusted. -
Page 25: Configuration Menu
4K Compact Scaler Switcher (with PoH) 8.3 Configuration Menu ① Click on control menu to enter setting menu shown as below: Output Resolution: Select the output resolution that you need and then click Confirm to save setting. Update: Insert the USB flash disk with EDID file/software updating file to FIRMWARE port, and then click EDID/Firmware to start update procedure. - Page 26 4K Compact Scaler Switcher (with PoH) ② Click Network to enter network setting menu shown as below: Dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are different to avoid IP conflict.
-
Page 27: Password Menu
Admin/user password can be modified as you need. 8.5 GUI Update GUI for SCU91T supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface. After that, click Administration at the source menu to get to Upload Program as shown below: Select the desired update file and press Apply, it will start upgrading then. -
Page 28: Osd Control
4K Compact Scaler Switcher (with PoH) 9. OSD Control SCU91T provides a powerful OSD operation menu, contains 3 parts: optional settings, image settings, and system setting etc. There are two ways to enter OSD menu: ① Press the MENU button on IR Remote. -
Page 29: Panel Drawing
4K Compact Scaler Switcher (with PoH) 10. Panel Drawing... -
Page 30: Troubleshooting & Maintenance
4K Compact Scaler Switcher (with PoH) 11. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality cable. Output image with white connecting cable noise. Make sure the connection is Fail or loose connection good Check with oscilloscope or No signal at the input / multimeter if there is any signal output end... -
Page 31: Customer Service
4K Compact Scaler Switcher (with PoH) 12. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. ① Warranty The limited warranty period of the product is fixed 3 (three) years.
