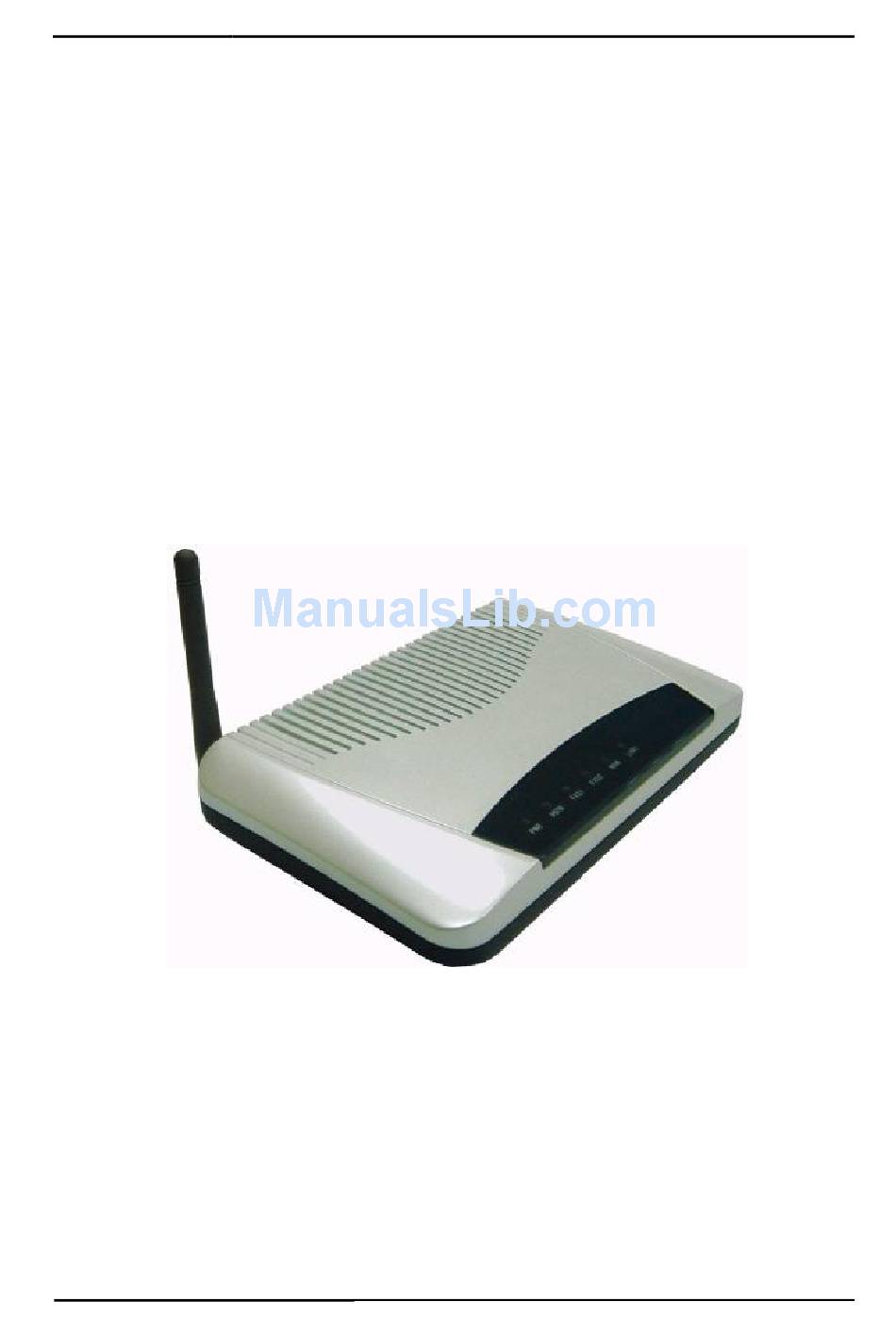

- Page 1 2/1-port FXS ATA WiFi-Router Quick User Guide 2/1-port FXS ATA WiFi-Router Quick User Guide Preliminary Copyright © All Reserved, 2007 QUG-TSIP-2512GR-R3-960604 Copyright © 2007, M/C:TSIP-2512GR-R3 Page 0...
- Page 2 2/1-port FXS ATA WiFi-Router Quick User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interence in a residential installation.
- Page 3 2/1-port FXS ATA WiFi-Router Quick User Guide WARNING! 1. Read these installation instructions carefully before connecting the 2/1-port FXS ATA WiFi-Router to its power source. 2. To reduce the risk of electric shock, do not remove the cover from the 2/1-port FXS ATA WiFi-Router or attempt to dismantle it.
- Page 4 2/1-port FXS ATA WiFi-Router Quick User Guide 1 Introduction The 2/1-port FXS ATA WiFi-Router is a SIP- based high performance WiFi IP gateway with embedded router. It is ideal for residential/SOHO or even SME VoIP communications. It can support 2 FXS ports for phone or FAX.
- Page 5 2/1-port FXS ATA WiFi-Router Quick User Guide 3 About The WiFi ATA LED Indications: There are 9 LED indicators in the router to show the Power (PWR), LAN Port4 (LAN4), LAN Port3 (LAN3), LAN Port2 (LAN2), LAN Port1 (LAN1), WAN Port (WAN), Telephone port1 (FXS1), Telephone port2 (FXS2) status.
-
Page 6: Installation
2/1-port FXS ATA WiFi-Router Quick User Guide 4 Installation Figure 4.1 The Connection of 2/1-port FXS ATA WiFi-Router at Home(1) Copyright © 2007, M/C:TSIP-2512GR-R3 Page 5... - Page 7 2/1-port FXS ATA WiFi-Router Quick User Guide Figure 4.2 The Connection of 2/1-port FXS ATA WiFi-Router at Home(2) Figure 4.3 The Connection of 2/1-port FXS ATA WiFi-Router at Office Step 1: Connect analogue phone and Ethernet cable Copyright © 2007, M/C:TSIP-2512GR-R3 Page 6...
- Page 8 2/1-port FXS ATA WiFi-Router Quick User Guide Please refer to the figure Fig.4.1 ~ 4.3 above. Then please connect one analogue phones to FXS1 port. And then use an Ethernet cable (CAT-5) to connect the WAN port to the broadband network end (e.g.
- Page 9 2/1-port FXS ATA WiFi-Router Quick User Guide Please input the username: “guest” and password: “guest”. Then click “Login” button. You also can login as an administrator by input the username: “admin” and password: “admin”. Then click “Login” button. After get in the web page, it is highly recommended to change Username and Password. You can change your username (login) name and password in System management->...
- Page 10 2/1-port FXS ATA WiFi-Router Quick User Guide After configuration, please “Save” to update the settings in the router. You can click “Factory Default” button to restore to factory default setting in System management->Reset Setting page. 6 Setup SIP Configuration Copyright © 2007, M/C:TSIP-2512GR-R3 Page 9...
-
Page 11: How To Operate The Device
2/1-port FXS ATA WiFi-Router Quick User Guide Before you place a call, you must setup SIP configuration in Telephony Setting page. Port1 is for FXS1, port2 is for FXS2. You must give number, Login ID, Password Check Proxy Enable box to enable SIP proxy function and then give proxy address in Proxy Addr field. -
Page 12: Wireless Function
2/1-port FXS ATA WiFi-Router Quick User Guide Step 1. Hook flash the phone, then you can hear the dial tone, dial the numbers you want to call and press “ ” to call out. Step 2. If you hear busy tone after hooking flash the phone, it means you can’t dial a second call now. You just need to hook down the phone.
