Summary of Contents for HD Electronic Quick-Check

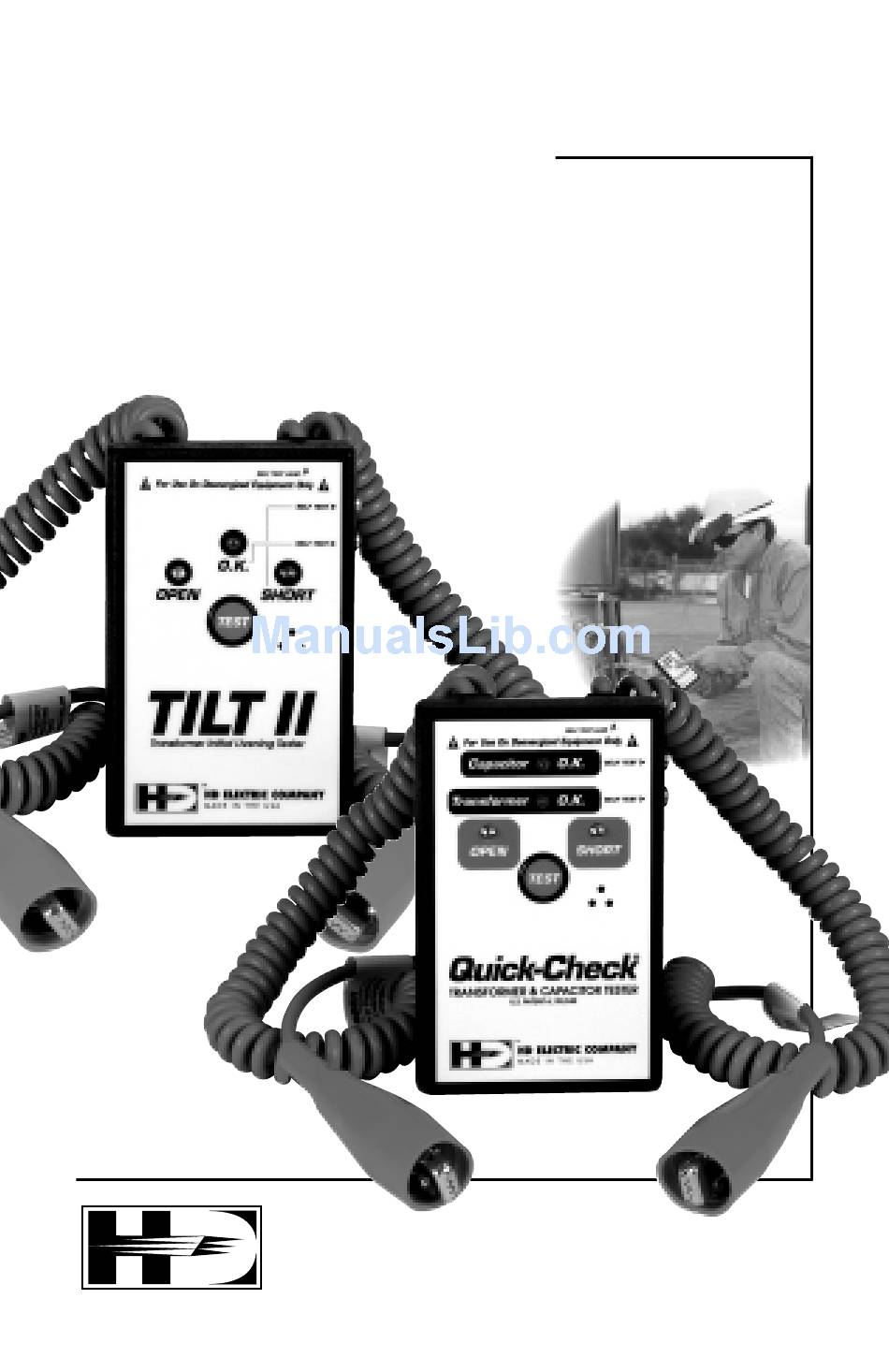

- Page 1 Instruction Manual TILTII Quick-Check ® R A N S F O R M E R A N D APACITOR ESTERS ® HD ELECTRIC COMPANY 1 4 7 5 L A K E S I D E D R I V E • WA U K E G A N , I L L I N O I S 6 0 0 8 5 U . S . A .
- Page 2 Stay clear of all primary connections while testing. The Quick-Check will not leave a significant charge on a capacitor. HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
-
Page 3: How It Works
Quick-Check tests power capacitors in almost any size. HOW IT WORKS The TILT II and Quick-Check are used in the field for testing connected transformers, their connected primary and secondary leads and the Quick-Check for power capacitors, individually or in banks, for both shorts or opens. Unlike a simple... - Page 4 CAPACITOR O.K. On a two bushing capacitor, tests from bushing to ground should show OPEN. As a quick test in the shop, the TILT II and Quick-Check can be used to screen transformers by checking both primary secondaries to ground TRANSFORMER O.K.
-
Page 5: Specifications
TESTING 3Ø TRANSFORMERS The TILT II and Quick-Check should be used only on equipment known to be deenergized. Using the TILT II or Quick-Check on the secondary side of transformers may generate high voltages on the primary side. Stay clear of all primary connections while testing. - Page 6 R A N S F O R M E R A N D APACITOR ESTERS For 3Ø transformers, the TILT II or Quick-Check test leads are connected from each phase to neutral and across each pair of phases. When all connections are...
- Page 7 For ∆ (delta) connections, test the primary and secondary sides the same as the Y (wye) except omit the connections to X0 and H0. The TILT II and Quick-Check will not detect a partially shorted transformer coil or an improper transformer ratio.
-
Page 8: Limitation Of Warranty And Liability
TESTING DISTRIBUTION line to ground TRANSFORMER OK VOLTAGE REGULATORS For typical distribution voltage regulators, test using these figures as guidelines. Both the line and load bushings tested to ground should indicate the reading shown in the load to ground line to load figures.
