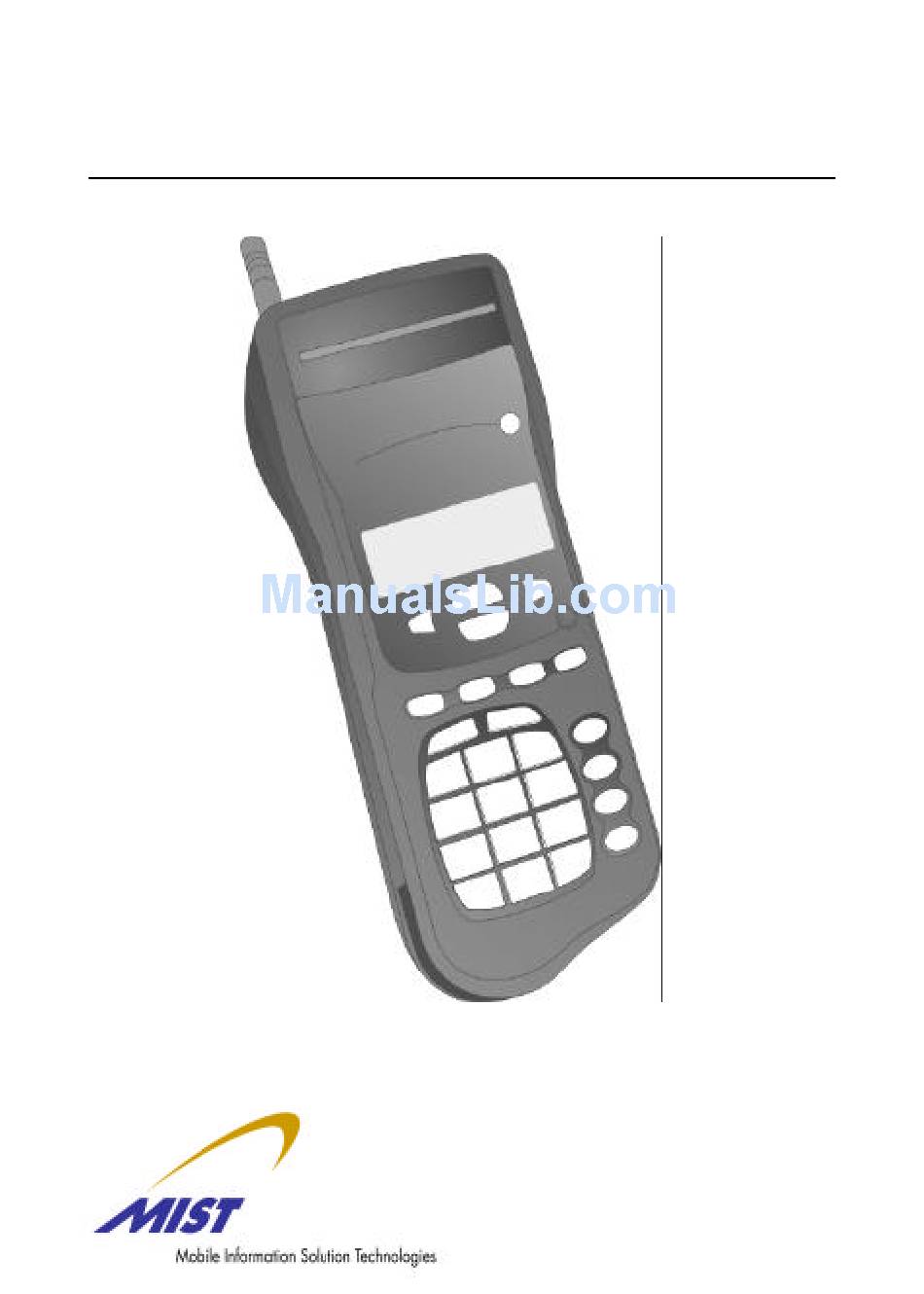

Page 1 MIST Freedom II-C (CDPD) User Manual...
Page 3 FCC compliance statement (USA) This device complies with the requirements in Part 15 of the FCC Rules for a Class B digital device. Operation is subject to the following two conditions: • This device may not cause harmful interference, and •...
Page 4 WARNING: To comply with FCC RF exposure requirements, this unit must be operated with a minimum separation distance of 33mm(1-3/8 inches) between its antenna and a person's body. The user's hand should not be placed directly next to the antenna or at locations on the unit where the antenna is connected, to ensure compliance with FCC RF exposure limits.
Page 5: Important Safety Information
Important safety information Remember to follow any special regulations governing the use of the MIST FREEDOM II-C and always switch it off in areas where radio devices are forbidden, or when it may cause interference or danger. Any safety laws and regulations pertaining to the use of cell phones and two-way radios will likely apply to your use of the POS.
Page 6 MIST is not permitted. Use only those battery types specified in this User’s Guide. The use of any other may disable the POS and may be dangerous. Failure to observe all these instructions will void the Limited Warranty, and may lead to suspension or denial of services to the offender, or legal action, or both.
Page 7: Table Of Contents
Table of Contents Introduction ..............8 At a Glance ..............9 Know your POS Device ..........11 Unpack your POS device package ......... 12 Maintenance and Safety Information ......13 Power Information ............15 Connecting to the Serial Port .......... 18 Operating the Integrated Printer ........
Page 8: Introduction
CDPD, Mobitex, and DataTAC modem. MIST's goal is to design and build POS (Point of Sales) devices with complete customer satisfaction in mind. To help ensure trouble free operation of your device, please spend a few minutes to read this manual carefully and follow its recommendations.
Page 9: At A Glance
At a Glance Front View...
Page 10 At a Glance Bottom Back View...
Page 11: Know Your Pos Device
Know your POS Device Antenna: Extend for best performance. Paper Exit: Print Receipts. Paper Feed Button: Load a new paper roll or eject paper roll from the printer. LCD: Displays all the information and status of your device. Power Key: Turns the device ON and OFF. Menu Keys: Scroll through menu features.
Page 12: Unpack Your Pos Device Package
Unpack your POS device package You should have the following items in your package: MIST If you want to purchase other accessories for your MIST FREEDOM II-C POS device, please visit our Web site www.mistwireless.com, or contact your local sales representative.
Page 13: Maintenance And Safety Information
Maintenance and Safety Information Please avoid exposure to following environment excessive heat, or direct sunlight (your device may be permanently damaged by extended exposure to direct sunlight.) excessive cold (please keep your device between 0°C and 40°C) excessive electrical noise (such as mobile phone, motors and modem.
Page 14 Maintenance and Safety Information And please avoid the following actions. Immersing the device in water. Opening the device or replace any component. (You will loose your software.) Using the device with a damaged antenna. (If your device has any problem, you must contact your local sales representative or technical support immediately.) Keep all flames, sparks, and lit smoking...
Page 15: Power Information
Power Information Battery MIST FREEDOM II-C use NiMH 7.2V, 6AA Battery Pack. (Please use only batteries provided by MIST.) Battery Installation 1. Pull the battery door downward to open. 2. Insert the battery in the device. (Ensure the metal contacts touch) 3.
Page 16 If the device will not be used for and extended time, take the battery out of the device. All rechargeable batteries have a limited life. If a fully charged battery no longer provides an acceptable performance, please replace with a new battery from MIST.
Page 17 Power Information DC Adapter MIST FREEDOM II-C can also use 9V, 1A Output Unregulated DC Adapter. *Please use only adapters provided by MIST. Use of other power sources may result in damage to your unit. Using the DC Adapter and the Internal Charger Using the DC Adapter, you can plug your POS device directly into a power supply and charge attached batteries.
Page 18: Connecting To The Serial Port
Connection Connecting to the Serial Port Plug the Serial Cable into the Serial Port on the bottom of the device, and plug the other end of the Serial Cable into the peripheral in use. * When unplugging the Serial Port from the device, please press the Release Tabs to release the hooks.
Page 19: Operating The Integrated Printer
Operating the Integrated Printer Integrated Thermal Printer MIST FREEDOM II-C integrates a thermal printer for the user to print receipt. Press Paper Feed Button (on the top of the Display) to make the printer sensor standby 60 sec for paper insert.
Page 20 Operating the Integrated Printer Insert the paper in the gap of the paper entrance. The sensor will feed the paper in the printer automatically. Make sure that the paper is overted as shown above as the thermal paper will work only in one direction.
Page 21: Accessories
Accessories MIST Inc. provides a useful accessory for your MIST FREEDOM II-C. They can help you to improve the efficiency of your work. Vehicle Charger MIST Freedom II can be charged in vehicle with a Vehicle Charger. (may not be exactly as shown)
