Summary of Contents for BARO BR-190T

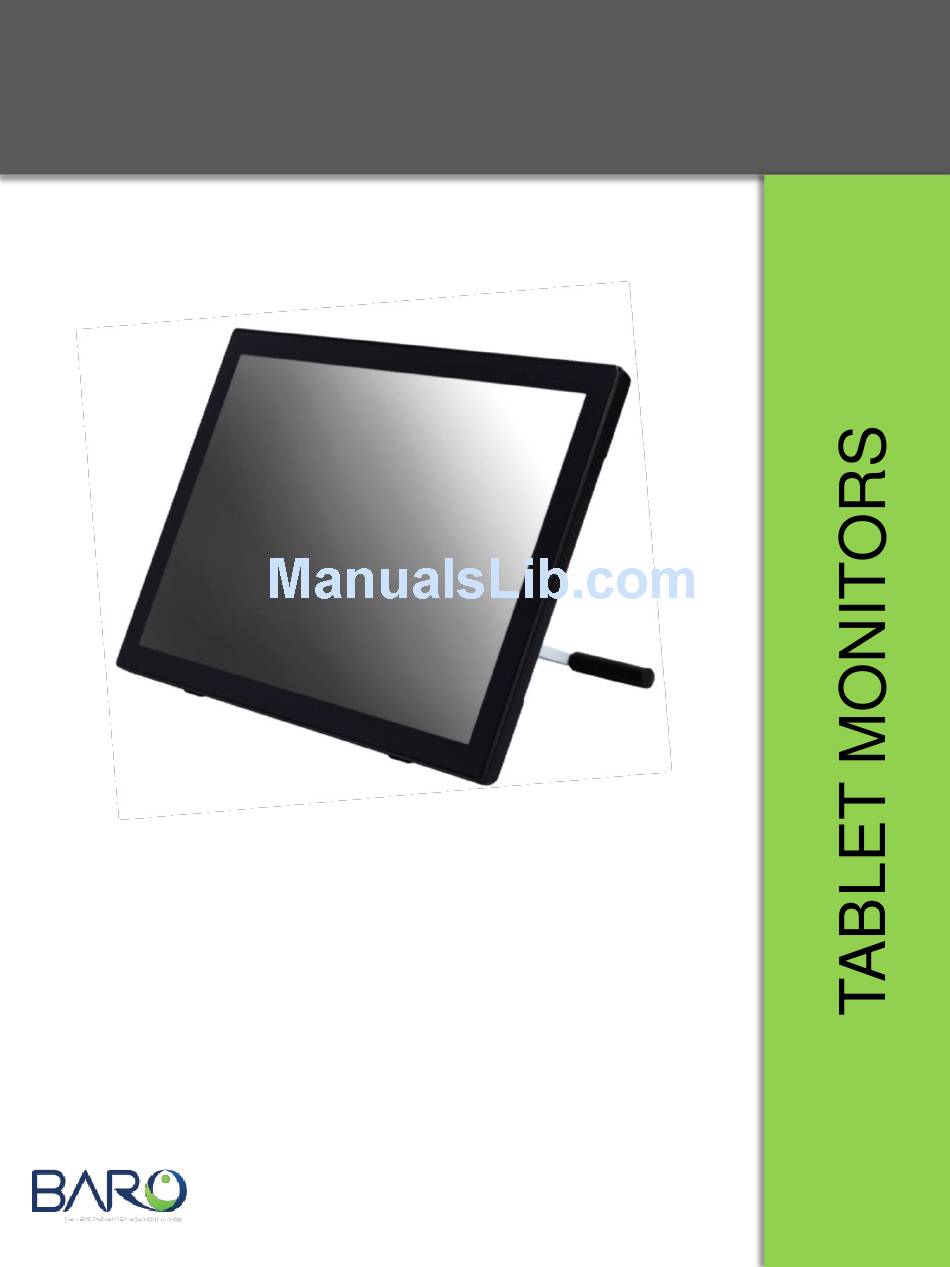

- Page 1 BARO SNT INSTALLATION MANUAL MODELS : • BR-190T • BR-220T • BR-220TC VER.1.2 2015/02/11 www.barosnt.com...
-
Page 2: Table Of Contents
CONTENTS Cautions and Warnings…………………………………………………….……...3 Unpacking………………………………………………………………..…………4 Initial Connection…..…………………………………………………….……….. 4 Troubleshooting……………………………………………………….…………...4 Pen and Driver Installation……………………….……………………….………5 Display Area Setup…………………………………….………..…….…………..7 Area Mapping / Calibration.………………………………………….…..……….8 Pen Setting……………………………………………….……………..…………..9 Additional Touch Functions…………………………….………………………..11 Tablet PC Settings…………..……………………………………………...…….14 www.barosnt.com... -
Page 3: Cautions And Warnings
Cautions and Warnings Safety Instructions: Read these instructions carefully and keep this document for future reference. Follow all warnings and instructions described in this document. CAUTION When connecting/disconnecting power: Connect the power supply to the monitor before connecting the power cord to the AC power outlet. -
Page 4: Unpacking
Unpacking Please confirm that all items were included with your monitor: 22” Tablet Monitor AC Power Cord and USB A-A Cable VGA Cable With Cap. Touch Adapter Initial Connection Connect video cable: - Confirm both the monitor and computer are powered off. - Connect a cable from one of the monitor’s video output ports to the corresponding port on the operating computer. -
Page 5: Pen And Driver Installation
Pen Driver Installation *CAUTION* It is recommended to shut down antivirus software during the installation process, as it may interfere with a full installation. 1. Open Driver CD or file and double click to start the installation on Windows or use the Mac driver on Mac based operating systems. - Page 6 3. After agreeing to the License Agreement, you may start the installation. Click “Install” to begin. 3. Once installation is complete you will be asked to restart your computer. It is highly recommended to do so after completing the installation. Select “Yes”...
-
Page 7: Display Area Setup
Display Area Setup Setup environment for Windows 7/8 To access the setup window, click Start → Control Panel → Display → Adjust Resolution. If more than 1 monitor is connected, you may change the layout and appearance of them. The tablet monitor should be selected as the main display, where the desktop is viewed. -
Page 8: Area Mapping / Calibration
Area Mapping 1. Open Windows Control Panel and click , typically found in the “Programs” category. A “Tablet” folder is also created in the “Programs” list of the Start Menu during installation, so you may also find it there. 2. Enter Mapping and set the Select the Monitor as where the touch sensor will be active. In our installation, only the tablet monitor was connected, so “Full Monitor”... -
Page 9: Pen Setting
Pen Setting 1. Select “Pen Setting” on the left panel to set pressure recognition and change pen button functions. Pressure sensitivity is set to 100 by default, and can be adjusted by using the wheel found on the right side of the window. You can use the pen and touch the monitor in the “Try Here”... - Page 10 3. Options for “Click Sensitivity can also be found in the drop down menu under “Nib Pressure Sensitivity.” In a new window the speed between double clicks and the scope of the area where double clicks take place can be adjusted. 4.
-
Page 11: Additional Touch Functions
Additional Touch Functions This section is a basic overview of the touch functions built-in to Windows 7 and 8 operating systems. Pen and Touch Click the Start icon then Control Panel and Pen and Touch. Pen Options: Use the pen to interact with items on the screen. - Page 12 Flicks: Flicks can be used to perform actions very quickly through shortcuts using the pen. Flick settings can be customized here. Use Flicks: Turn flick recognition on or off. Navigational/Editing: Select between using Navigational flicks only, or both Navigational and Editing. Sensitivity: Adjust the sensitivity for Flick recognition.
- Page 13 Handwriting: Windows has built in hand writing recognition. This enables Windows to transform your handwriting through touch into text. Automatic Learning: Over time, Windows learns from your handwriting inputs to improve its recognition accuracy. This can be set to automatic, or off. If turned off, all previously learned data will be deleted.
-
Page 14: Tablet Pc Settings
Tablet PC Settings Click the “Start” icon then “Control Panel”, followed by “Tablet PC Settings.” Click the “Other” tab. Most importantly, you should confirm the “Handedness” setting. This setting improves comfort for left and right handed users by changing the side of the pen on which menus will appear when performing a particular gesture or right click. - Page 15 Headquarters : 907-ho, 30 Songdomirae-ro, Smart Valley, Yeonsu-gu, Incheon, S. Korea 405-840 Online : http//www.barosnt.com | Office : +82-32-575-8589 | Fax : +82-32-575-8589 | Email : seunggi@barosnt.com...
