Page 1
6409 Molde Norway www.uspa.no - www.saniternorge.no post@uspa.no Thank you for purchasing this USPA product. Tel: +47 95 06 55 65 You are kindly requested to read carefully this peration manual for proper use of this appliance with due attention. Please save this manual and place in an easily accessible location.
THIS UNIT WAS MANUFACTURED FOR HOUSEHOLD USE ONLY. READ ALL OPERATING INSTRUCTIONS BEFORE INSTALLATION. Notes 1. This product should be installed according to this manual. 2. Please read this manual carefully and install properly. 3. Please save this manual and place in an easily accessible location. 4.
1 Important Safeguards 1 READ ALL INSTUCTION BEFORE USING DANGER - To reduce the risk of electric shock: 1. Do not place or store this appliance where it can fall or be pulled into a tub or sink 2. Do not place in, or drop into water or other liquid. 3.
Cautions before installation 1. NOTE THE FOLLOWING IMPORTANT POINTS 1. Do not install in a location where water might be splashed on this appliance or in a location exposed to such excessive moisture that condensation forms on the products surface. 2.

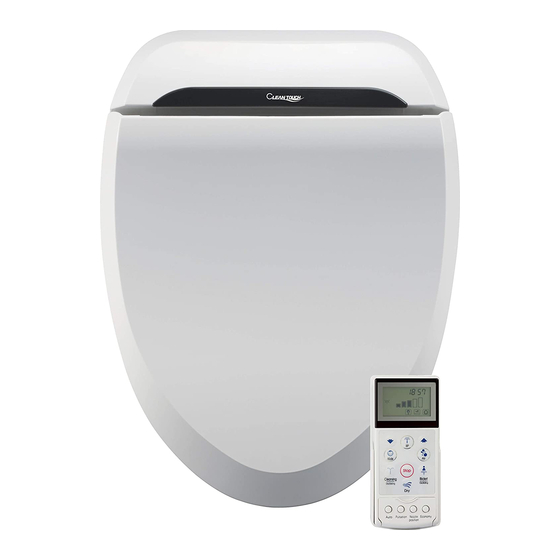

3 Identification 1. Main unit Caution label Deodorizer UB-6035R / UB-6135R Deodorizing filter unit UB-6235 / UB-6335 Nozzle for posterior Power cord Nozzle for feminine Extra operating panel Occupied sensor Splash guard Heated seat Control panel UB-6235 / UB-6220 Far infrared ray typed...
Safety Information (Danger) Please follow basic instructions DANGER to ensure the safe use of your appliance Do not use a faulty or loose Indicates a prohibited use of the appliance. electric outlet or cord. PROHIBITED Doing so may result in a short circuit, electric Indicates a required step in use of this appliance.
Page 7
Please follow basic instructions DANGER to ensure the safe use of your appliance Do not use many appliances in a power strip Do not plug or unplug with wet hands. PROHIBITED WET HANDS Doing so may result in fire or damage. It may result in injury or short circuit.
Safety Information (Warning) Please follow basic instructions Warning to ensure the safe use of your appliance. Do not step on or place heavy Do not force the lid to close objects on this appliance. Doing so may cause malfunction. PROHIBITED REQUIRED Doing so may damage the unit.
Page 9
Please follow basic instructions Warning to ensure the safe use of your appliance Do not pull out water hose for Use this appliance on a toilet only. cefully. Not doing so may result in fire, injury or electric PROHIBITED PROHIBITED Doing so may cause the water leakage.
How to use UB-6035R / 6135R Caution Air (aerated spray) - Press "Air" to use aerated wash to clean. Gentle, delicate but strong water spray will save water consumption. - Press this button again to release this function. Stop - "Cleansing" ; This function is always on.
Page 11
Do not forcefully push or pull the nozzles or bend them, It may result in failure. Temperature adjustment (water / seat) - Temperature of seat and water can be adjustable. - There are four levels, Room temp-Low-Medium-High. Identification This function is useful for public toilets when more than one unit of this product installed Nozzle cleaning To prevent interference among units, main unit and remote control should be set with the same ID.
Page 12
6 How to use UB-6235 / 6220 / 6210 UB-6335 / 6320 / 6310 Caution Be aware of not dropping a remote control in water. It may cause out of order or malfunction. All functions will be operational when the seat is occupied except Nozzle Cleaning. (aerated spray) Before operating, ensure that water tank is filled up completely.
(not sitting on the seat or not place hands on the seat sensor part) Press "Cleaning" button, posterior nozzle comes out. Press this button again, feminine nozzle comes out. (For UB-6035R, UB-6135R) Press "FR" button, posterior nozzle comes out. Press "BK" button, feminine nozzle comes out.
8 Maintenance Draining water - while not using over extended period of time. Unplug the power supply cord. Close the shutoff valve. Not doing so may cause fire. Uphold the appliance and thoroughly drain the water by unscrewing the drain bolt. Unscrew the mounting bolts.
How to install Do not plug in until installation is finished completely. Not doing so may damage the appliance. CAUTION If electric work is needed, contact to the qualified electrician or serviceman only. Remove the existing toilet lid and seat 1.
Page 16
Installation of remote control unit How to insert batteries Magnetic Magnetic Magnetic 1. Open the battery lid of remote control and insert 3 AAA batteries into battery compartment. 2. 2. Check the display appears properly. 3. Check the remote control works properly while seat is occupied. 4.
Page 17
Connecting the water hose and grounding wire Close the shutoff valve by turning clockwise. Flush the water tank completely to empty Remove the existing water supply hose from the tank. Connect one of hose from the T-valve to the water tank. Connect another flexible hose from the T-valve to the main appliance.
WARRANTY USPA Personal Hygiene Appliance Limited Warranty We warrant our products to be free from manufacturing defects under normal use and service for a period of one(1) year from date of your purchase. Only the ORIGINAL PURCHASER you may make a claim under this limited warranty.
