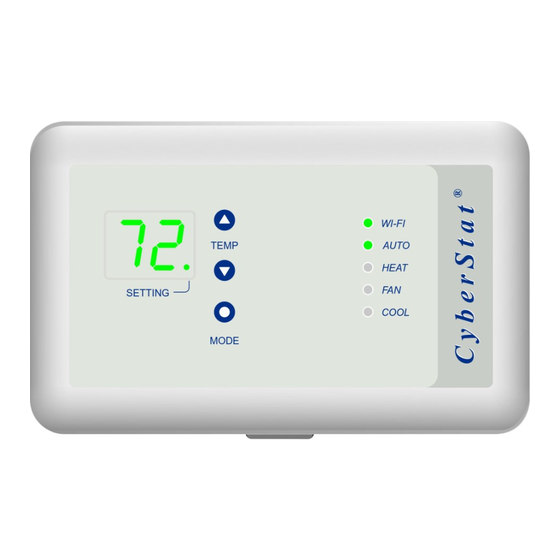

Motison CyberStat CY1201 User Manual

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

Motison

CyberStat

CY1201

Due to continuous improvement, some features and appearance may have changed

Need help?

Do you have a question about the CyberStat CY1201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Motison CyberStat CY1201

Page 1 Motison ® CyberStat CY1201 Due to continuous improvement, some features and appearance may have changed...
Page 2 Motison will replace or repair it. This warranty does not cover removal or re-installation costs. This war- ranty shall not apply if it is shown by Motison that the defect or malfunc- tion was caused by damage which occurred while the product was in the possession of a consumer.
Page 3  Internet connected through 2.4 GHz Wi-Fi (WEP/WPA/WPA2)  Monitor and control from anywhere anytime  Three independent 7 day programs + manual mode  Auto recover after power outage  Temporary and permanent hold  Auto switchover between heating and cooling modes ...
Page 4 1. Turn off the old thermostat. 2. Turn off power to the heating and cooling system. 3. Remove any locking screw and then remove the face plate. 4. Record the terminal names and corresponding wire colors below. (Depending on your system, you may not have all the wires listed here) Old Thermostat Terminal Wire Color CyberStat...
Page 5 1. Detach the back cover of CyberStat and place it on the wall. Mark the mounting hole locations with a pencil. You may want to use a level at this time. 2. Use a #2 Philips head screwdriver to screw-in the provided drywall anchors at marked locations.
Page 6 Notes on C wire: 24 V AC neutral (C wire) Make sure that C wire is 24 V AC hot connected to C terminal on the furnace. Heat You will not get stable Cool power if C wire is con- nected other terminal on the furnace.
Page 7 Furnace CyberStat 24 V AC neutral (C wire) 24 V AC hot Heat Cool Furnace side wiring to re-purpose green wire as C wire 1. Move green wire to C terminal and 2. Put a jumper across Y and G terminals Wiring option 2 for Conventional Heat and/or Cool system ...
Page 8 24 V AC hot Heat Cool 24 V AC adapter is required if you do not have a C wire. If using an external power supply, you will have two wires going to R terminal. Wiring option 3 for Conventional Heat and/or Cool system ...
Page 9 Notes on C wire: 24 V AC neutral (C wire) Make sure that C wire is 24 V AC hot connected to C terminal on the air-handler. Reversing Valve You will not get stable Compressor power if C wire is con- nected other...
Page 10 Air-Handler CyberStat 24 V AC neutral (C wire) 24 V AC hot Reversing Valve Compressor Aux Heat Air-handler wiring to re-purpose green wire as C wire 1. Move green wire to C terminal and 2. Put a jumper across Y and G terminals Wiring option 2 for Heat Pump ...
Page 11 24 V AC hot Reversing Valve Compressor Aux Heat 24 V AC adapter is required if you do not have a C wire. If using an external power supply, you will have two wires going to R terminal. Wiring option 3 for Heat Pump ...
Page 12 24 V AC hot Heat 24 V AC adapter is required with a two wire heating system. You will have two wires going to R terminal. Wiring two-wire heat-only system  Use Elk TRG2440 or similar transformer...
Page 13 Milli Volt Wire 1 Milli Volt Wire 2 24 V AC adapter is required with a Milli Volt system. You will have two wires going to R terminal. Wiring Milli Volt system  An isolated 24 V AC transformer will not interfere with Milli Volt system ...
Page 14 5. Trim and tape unused wires. Please do not leave unused exposed wires in the area. Tuck all wires such that they stay below the terminal level. 6. Attach the front assembly to the wall plate. First, hook the tabs on the top of front assembly to the slots on the wall plate then snap the bottom in place.
Page 15 Caution: Turn off power to furnace/air-handler before you open its wiring panel. CyberStat does not power up: 1. Touch the two leads of 24 V test lamp to R and C terminals of Cyber- Stat. Be careful not to short the lamp wires. If the lamp does not light up, your C wire is not connected to C terminal on furnace or air-handler.
Page 16 Tip: You could also complete this step using a smart-phone, tablet or laptop computer. See Wi-Fi setup on page 21. Configure CyberStat to work with your heating/cooling System. Press mode and up buttons simultaneously to enter configuration mode. Press up or down buttons to select a setting for current item. Press mode button again to save your selection and move on to the next item.
Page 17 Configuration item Possible settings H: HVAC System type 0: Heat Pump 1: Conventional 2: Dual Fuel L: Reversing vaLve type 0: Energized for Heating (applicable for heat pump only) 1: Energized for Cooling 1. If you have an A/C with gas furnace or heat-only or cool-only system, then select conventional.
Page 18 Fan test – Press the mode button repeatedly until the fan light comes on. The fan should turn on. Note: if you have re-purposed your fan (green) wire to be used as ‘C’ wire then this test will not work. Cooling test –...
Page 19 CyberStat is now ready to use. Press the mode button repeatedly to select an appropriate mode and the up or down buttons to set desired temperature. Operation in various modes are described below: Auto CyberStat automatically sets heating or cooling modes to maintain set temperature Heat If the room temperature goes below set temperature then...
Page 20 CyberStat can store up to with three programs for three seasons: P1 for spring/fall, P2 for summer and P3 for winter. You can access and cus- tomize these programs from your computer. P0 puts CyberStat into manual mode. To switch between programs, press and hold mode button for two sec- onds.
Page 21 1. Power Cycle CyberStat: Detach and re-attach the front cover. 2. On your laptop, tablet or smart-phone, click on the Wi-Fi icon. On the available Wi-Fi networks list, select CyberStat. 3. Open a web browser and type 192.168.1.3 in the address bar. If the page does not load, verify that your computer is still attached to Cyber- Stat access point.
Page 22 To access CyberStat from Internet (any computer, tablet or smart- phone) logon to thermostat.motison.com. To add webapp to your home screen: Logon to thermostat.motison.com and check the “remember me” box then follow steps below specific to your device. Apple devices: 1.
Page 24 Support Hours (at the time of printing) M-F: 9:00 AM - 6:00 PM ET S-S: 9:00 AM - 2:00 PM ET Motison International Inc. PO Box 12282 Lexington KY 40582 Printed in USA Rev. 04072015 Copyright © Motison International Inc.
