Tablet Oscilloscope tBook mini TO1000 Series

User Manual

Shenzhen Micsig Instruments Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TO1102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Micsig TO1102

Summary of Contents for Micsig TO1102

  • Page 1: User Manual

    Tablet Oscilloscope tBook mini TO1000 Series User Manual Shenzhen Micsig Instruments Co., Ltd.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Chart Chart Important safety information Operating your instrument 1.1 General safety summary 5.1 Gestures 1.2 Service safety summary 5.2 Oscilloscope basic operation 1.3 Terms in the manual 5.3 Optional function upgrade 1.4 Symbols on the product Chart Chart Remote control your instrument Preface...

  • Page 3: Important Safety Information

    Important safety information Chapter Safety information provides warnings and cautions that help you operate the instrument safely and keep the instrument in a safe working condition. This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.
  • Page 4 Connect and disconnect properly. Do not connect or disconnect probes or test leads while they are connected to a voltage source. Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Micsig to be suitable for the product.
  • Page 5 Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use care when lifting and carrying the product. This product is provided with a handle for lifting and carrying. Use only the Micsig rackmount hardware specified for this product. 1.1.2 Probes and test leads Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.

  • Page 6: Service Safety Summary

    Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement. Beware of high voltages. Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are important to know and understand: The maximum measurement voltage from the probe tip to the probe reference lead.

  • Page 7: Terms In The Manual

    To avoid electric shock. Do not touch exposed connections. Do not service alone. Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present. Disconnect power. To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.
  • Page 8 The following symbols may appear on the product: High Voltage Caution Refer to Manual Protective Ground(earth) Terminal Chassis Ground Ground Terminal...

  • Page 9: Preface

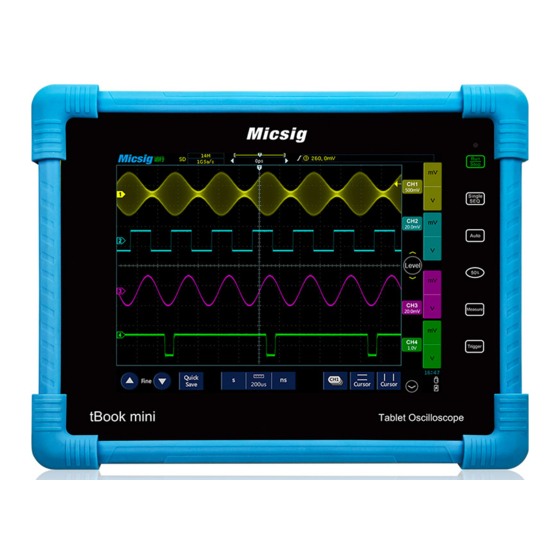

    Preface Chapter 2.1 General introduction tBook mini TO1000 series uses 8 inches industry TFT-LCD & 800*600 pixels display resolution, 2 or 4 channels, 70MHz & 100MHz & 150MHz bandwidth, 1 G Sa/s sample rate & up to 28Mpts memory depth and supports multi-touch capacitive screen, 256 intensity grading display and also supports LAN, WiFi, HDMI, USB Host, USB Device, Trigger out port and like that.

  • Page 10: Installing Your Scope

    Micsig tablet oscilloscope tBook mini TO1000 Series Power adaptor Power cord(country of origin determines specific type) Oscilloscope probes(Two probes for 2-channel models, four probes for 4-channel models) Quick-Start(Read it from the homepage of the Micsig TO1000 Series oscilloscope) BNC Cap Accessories you may ordered: Carry Strap...

  • Page 11: Input Signal Requirements

    Characteristic Description Temperature (Operating /Non-operating) 0℃ 45℃ 40℃ 60℃ Humidity (Operating Non-operating) 5%~85% / 5%~90%，25℃ Altitude (Operating / Non-operating) 3000 m / 12000 m 3.2.2 Environment requirements Description Characteristic Adapter Supply Voltage, Frequency 100VAC to 240VAC , 50Hz / 60Hz Power Adapters 12VDC *5A Standard Lithium Battery capacity...

  • Page 12: Secure (Lock) The Oscilloscope

    3.4 Secure (lock) the oscilloscope. Lock an oscilloscope to a test bench or equipment rack to prevent property loss. Attach a standard laptop security lock to the left side panel of the oscilloscope, to secure the oscilloscope to a workbench, rack, or other location. Getting acquainted with your instrument Chapter 4.1 Front panel and Rear panel...
  • Page 13 Touch button Description Run/Stop:Touch to start / Stop acquisition Single SEQ: Touchto trigger on a single waveform Auto: Touchto activate automatic waveform setup Note: Automatic setup requires the frequency of thetest signal to beat least 20Hz if thesignal is sinusoidal. Otherwise, automatic setup may fail and the quick parametermeasurement function displayed in the menu will also beunavailable.

  • Page 14: Using The Stand

    Aux out Channels Informations: Brand, Model, S / N, Manufacturer 4.2 Using the stand Pull the tilt stand upward, then you can open Tilt stand...

  • Page 15: Installing The Carry Strap

    4.3 Installing the carry strap 4.4 Powering the oscilloscope 4.4.1 Power ON When you first time to use the oscilloscope, please connect the power cord to the oscilloscope, then press the right side power button make oscilloscope forced shutdown. Power requirements: Line voltage, Line 100-120 Vac, 50/60/400 Hz Notes: Frequency, and power 100-240 Vac, 50/60 Hz100 W max...

  • Page 16: Probe Compensation

    4.5 Probe compensation Whenever you attach a passive probe(suggest to using standard accessories) for the first time to any input channel, compensate the probe to match it to the corresponding oscilloscope input channel. Follow the steps to properly compensate your passive probe(eg. channel 1 compensation) 1) Connect the oscilloscope probe to channel 1, make sure probe in good contact.

  • Page 17: The User Interface Screen

    18. Current channel controls, tap to select the current channel quickly 19. Time/Div tap s or ns to increase or decrease sweep speed (horizontal scale). Micsig tablet oscilloscope mini TO1000 Series Oscilloscope Display 20. Waveform quick save, tap quicksave to save the waveform to reference channel quickly 21.

  • Page 18: Instrument Setting (System Information, Language, Upgrade, Wlan)

    Optional: Storage 28M, Auto Range, Frequency Meter, WLAN, HDMI, High/Low pass, Vertical 500μV, Warranty (4-10) year. Language Micsig TO1000 series supports kinds of languages, standard language is simplified Chinese and English. Upgrade We support Local Upgrade, UDisk Upgrade, Network Upgrade.
  • Page 19 UDisk Upgrade 1) Downloaded upgrade package from the Micsig official website (http://www.micsig.com/html/list_60.html) 2) Put the upgrade package into U disk root directory 3) Plug into this USB to oscilloscope and select upgrade setting to UDisk Upgrade 4) Tap Upgrade icon Network Upgrade Connect to Wi-Fi, and set the upgrade setting to Network Upgrade, tap Upgrade now icon.
  • Page 20 Step 3 Step 4 Input the IP Address to your PC address bar with ftp:// You can manage any files in your PC Connect to FTP server, username and password were both ftp. 2.You can through Wi-Fi to upgrade to new version.

  • Page 21: Operating Your Instrument

    Operating your instrument Chapter 5.1 Gestures Drag Swipe Triple fingers swipe Doubie fingers drag ZOOM Global Fine Tuning Basic Operation 1. Tap screen button to active relative function 2. Tap any space of screen to exit the current menu...
  • Page 22 Swipe 1. Swipe downward / upward on the top of screen to turn 2.Swipe downward / upward on the left bottom of screen to turn on / off menu(Figure as below) on / off shortcut key (Figure as below) Swipe up on the bottom of screen to open the short cut key to get Screenshot ZOOM High capture rate...

  • Page 23: Oscilloscope Basic Operation

    Drag Triple fingers swipe (Figure as below) Put one finger on the waveform to drag for the coarse adjustment vertically or horizontally (Figure as below). Touch the top of the screen with three fingers and swipe down to turn on the ZOOM timeline directly, swipe up to close it.
  • Page 24 5.2.1 tBook mini interface...
  • Page 25 5.2.2 Turn on On/off the channel menu...
  • Page 26 5.2.3 Waveform Positioning...
  • Page 27 5.2.4 Turn On / Off main menu...
  • Page 28 5.2.5 Time base setting...
  • Page 29 5.2.6 Trigger Level setting...
  • Page 30 5.2.7 Auto...
  • Page 31 5.2.8 Auto measurements...
  • Page 32 5.2.9 Cursor...
  • Page 33 5.2.10 ZOOM...
  • Page 34 5.2.11 Save and View waveforms...
  • Page 35 5.2.12 MATH...
  • Page 36 5.2.13 Reference (REF)
  • Page 37 5.2.14 Bus Decoding...
  • Page 38 5.2.15 Screenshot...
  • Page 39 5.2.16 Mouse operation...
  • Page 40 5.2.17 Screen lock...
  • Page 41 5.2.18 View oscilloscope storage space...
  • Page 42 5.2.19 Probe compensation...

  • Page 43: Optional Function Upgrade

    5.3 Optional function upgrade Input licence code Disabled options Enabled options Step 1. Input licence code Step 2. Click install and wait to reboot...

  • Page 44: Remote Control Your Instrument

    2, The PC software only supports Win7 OS or above. 3, The PC software requires oscilloscope firmware program 6. X. 212 or above Step 1. install the PC software Download the programming from Micsig offical website then install it. Programming name: RemoteDisplaySetup. exe Website : http://www.micsig. com/Item/list.asp?id=64 Step 2.

  • Page 45: App (Android/Ios)

    Download: http://www.micsig.com/html/list_64.html Download: https://itunes.apple.com/us/app/id1277619178?mt=8 Or go App Store search “micsig” to install. There are two methods to connect your oscilloscope to the app: 1. Open your oscilloscope WALN AP and connect to your mobile phone, input the oscilloscope IP 192.168.1.254 into the app to finish connection.
  • Page 46 Connection finished * We highly recommend you connect your oscilloscope to the app through method one.
  • Page 47 Data sheet Chapter Tablet Oscilloscope tBook mini TO1000 Data Sheet Model TO1072 TO1074 TO1102 TO1104 TO1152 channels Bandwidth 70 M 10 0M 10 0M 15 0M Rise time 3.5 ns 3.5 ns 2.3 ns Real time sampling rate (1CH) 1G Sa/s...
  • Page 48 Specifications Vertical system , high pass, low pass Bandwidth limitation 20MHz Input coupling AC, GND Input impedance s 1MΩ ±1%||14.5pF±3pF Vertical resolution 8bits ＜±2% ( 1MΩ ) ⠠ DC gain accuracy ⠠ vertical scale 1mV/div to 5V/div ( 1MΩ ) ≥40dB ( 100:1 ) Channel to channel ±6div...
  • Page 49 Envelope of sampling for N times Envelope N is chosen from 2, 4, 8, 16, 32, 64, 128, 256, ∞ Trigger and decoding system Trigger mode Normal, Auto, and Single Trigger coupling DC, AC, HF reject( >50KHz ), LF reject( <50KHz ), noise reject hold off range 200ns to 10s Trigger type...
  • Page 50 Waveform measurement Cursor Horizontal Cursor, Vertical Cursor, Cross Cursor Auto measurements 23, of which up to five can be displayed on-screen at any one time. Measurements include: Period, Frequency, Rise Time, Fall Time, Delay, Positive duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot, Phase, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS.
  • Page 51 Storage format csv , wav, bin Waveform storage number Unlimited waveform storage name Support display the reference waveform quantity 4 piece screenshot Support User setting number storage Unlimited User name setting Support, soft keyboard input Flash format Comply with industry standards Interface USB2.0 interface Support USB mass storage devices, can read and write...
  • Page 52 Analog channel up to1G Sa/s TO1074 Tablet oscilloscope tBook mini, 70MHz 4 analog channels, Max sample Rate Analog channel up to1G Sa/s TO1102 Tablet oscilloscope tBook mini, 100MHz 2 analog channels, Max sample Rate Analog channel up to1G Sa/s TO1104...
  • Page 53 1300Vpk/100MHz , DP10013 Handbag Black nylon This information is subject to change without notice. 2012-2018 Shenzhen Micsig Instruments Co., Ltd. Address: 305 Block A, CLOU Building, BaoShen RD, North Area, Nanshan Science & Technology Park, Shenzhen, Guangdong, China. 518000 Web: www.micsig.com E-mail: sales@micsig.com...
