Summary of Contents for Retro 7-bit Rys MKII
-
Page 1: User Guide

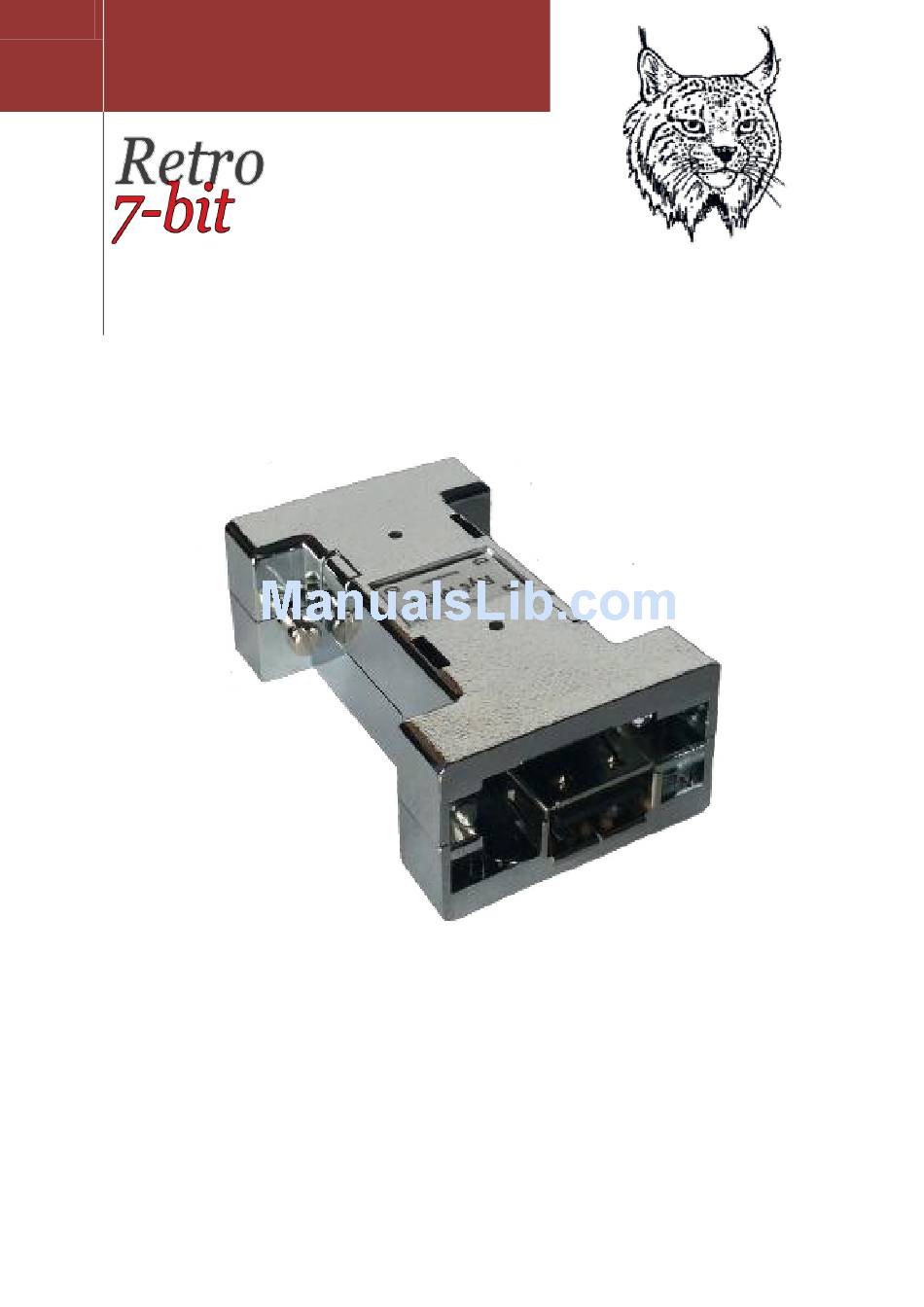

Ryś MKII adapter USER GUIDE Version 1.2 Firmware: v.20151129... -
Page 2: Operation Modes
Installation Ryś adapter has been designed for connecting to mouse/joy port of the Amiga computer. In case of some Amiga models usage of additional adapters allowing Ryś’s connection may be required. The installation procedure should always be performed with the Amiga being powered off. One should connect Ryś to the chosen port (mouse or joystick) and tightening up the holding screws. - Page 3 Function mapping in Joystick/Pad/Keyboard operation mode Joystick Keyboard 9 + 10 - operation mode switch SELECT + START - operation mode switch F1-F2 - operation mode switch Bootloader + 4 - operation mode switch F1 scheme A - left 1 - fire1 X - fire1 W - up 2 - fire2...
- Page 4 When application detects connected Ryś adapter it will enable Open Hex File button. Firmware update procedure looks as follows: One should press Open Hex File button and choose a file containing updated firmware image (which results in enabling Programming and Reset Device buttons). One should press Programming button and wait for the flashing process to complete.
