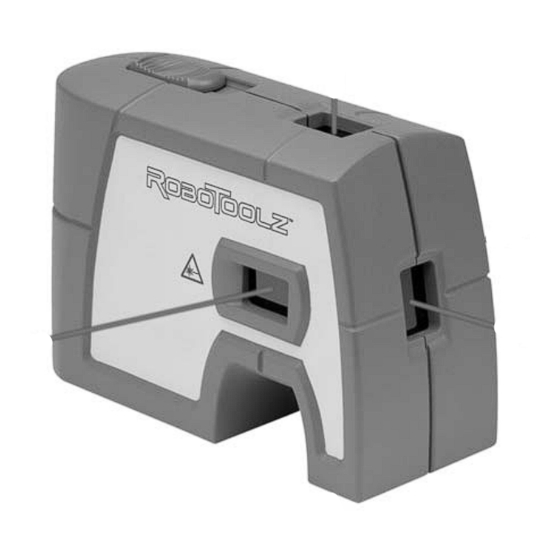

The True Measure of a Professional
Electronic Self-Leveling,
5-Beam Level, Square &
Plumb Laser Level
RT-7610-5
Láser auto-nivelante electrónico de 5 haces para nivelar,
cuadrar y aplomar
Auto-nivellant, niveau électronique à 5 rayons, Laser pour
aligner et équilibrer
User Guide
Manual Para
El Usuario
Notice D'Emploi
Toolz, 404 Villa Street, Mountain View, CA 94041
1-800-984-0404 • www.robotoolz.com
P/N 080-0022-03

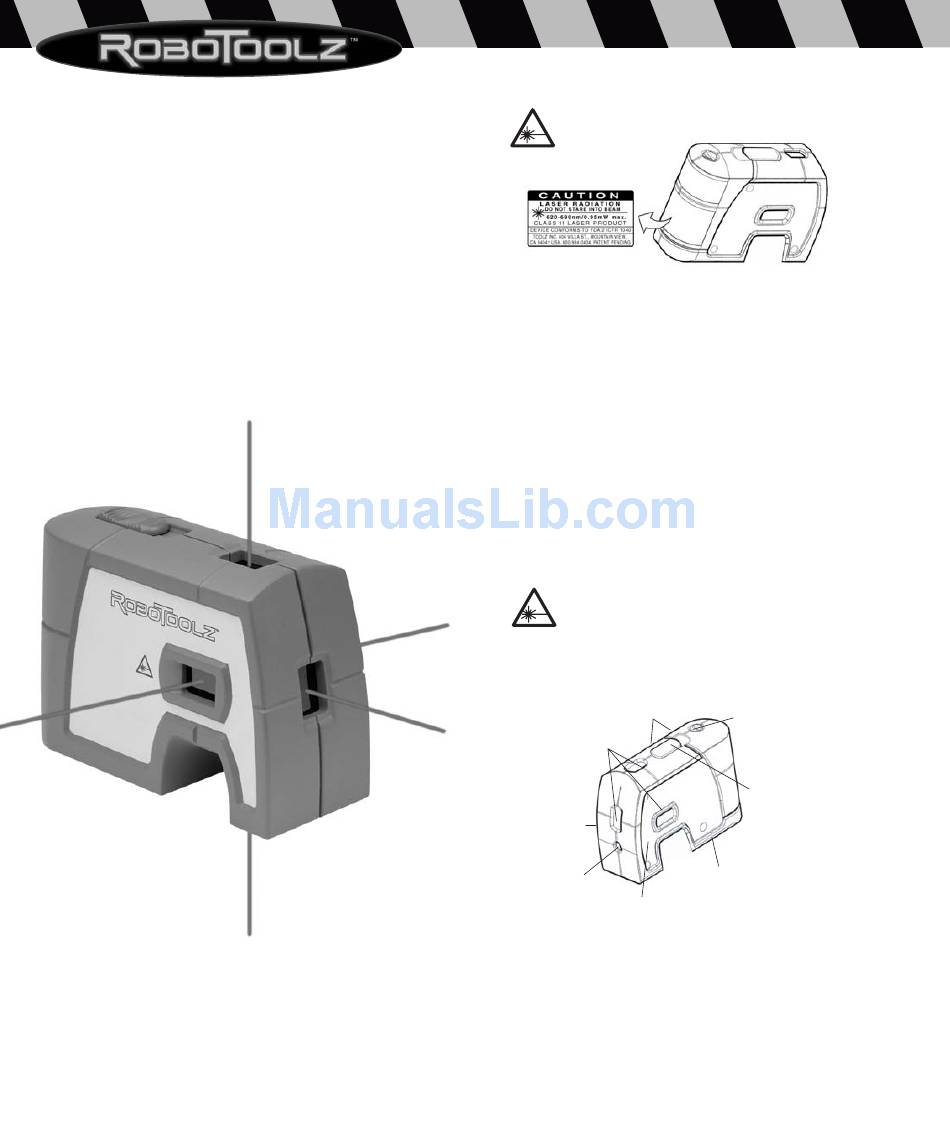

1. User safety
TM
IMPORTANT: These labels are attached to every RT-7610-5.
They are not to be removed or defaced.
CAUTION: Use of controls, adjustments or procedures other than those
specified herein may result in laser radiation exposure. Never stare directly
into beam or view directly with optical instruments.
Do not disassemble or attempt to perform any internal servicing. Repairs or
service to this device are to be performed by authorized service centers only.
Do not aim the laser beams in RT-7610-5 at others.
RT-7610-5 contains a semiconductor laser diode with a wavelength of 635
nanometers. The continuous output of any single beam never exceeds 1.0
milliwatts. RT-7610-5 complies with US FDA performance standards, 21 CFR,
Subchapter J.
2. RT-7610-5 features
calibration port
calibration port
This symbol is attached to the RT-7610-5
at every aperture.
AVOID EXPOSURE: Laser radiation is emitted from this aperture.
Rubber grip and
impact bumper
Laser
apertures
Side beam
(not shown)
Front beam
mounting to a tripod
Electronic
Self-leveling
Battery access
(depress and give
a quarter turn
counter-
clockwise)
Power
switch
5/8"x 11
threaded
insert allows
Advertisement
Table of Contents
Summary of Contents for RoboToolz RT-7610-5
- Page 1 Do not aim the laser beams in RT-7610-5 at others. RT-7610-5 contains a semiconductor laser diode with a wavelength of 635 nanometers. The continuous output of any single beam never exceeds 1.0 milliwatts.
- Page 2 Sliding 5/8" x 11 threaded mounting teries to be replaced. stud attaches to RT-7610-5 Thumbwheel Note: RT-7610-5 can be used for up to 5 hours during low battery indica tion before it will turn off completely . Using the reflective targets 5/8" x 11 •...
-
Page 3: Laser Offsets
1. Position RT-7610-5 close to the surface to be plumbed. 2. Turn on RT-7610-5. 3. Measure distance A at a point relatively close to RT-7610-5 and make a note of the distance. 4. Measure distance B at a point further away from RT-7610-5 and make a note of the distance. - Page 4 NOTE: OTHER BEAMS HAVE BEEN OMITTED FROM ILLUSTRATION FOR CLARITY. Grading Transferring points with the plumb beam 1. Position RT-7610-5 at the highest point of the surface to be graded. 1. Mark the point to be transferred (labeled A in this illustration). 2. Turn RT-7610-5 on.
-
Page 5: Recalibration Procedure
7610-5 to be placed between 50 and 100 feet away from a smooth vertical surface such as a wall. 2. Remove the two calibration plugs on the rear and side of RT-7610-5 with a flathead screwdriver. Set the plugs where they will not be lost. -
Page 6: Product Specifications
• Although RT-7610-5 is dust and dirt resistant, do not store in dusty, NOTE: OTHER BEAMS HAVE BEEN OMITTED FROM ILLUSTRATION FOR CLARITY. NOTE: OTHER BEAMS HAVE BEEN OMITTED FROM ILLUSTRATION FOR CLARITY.
