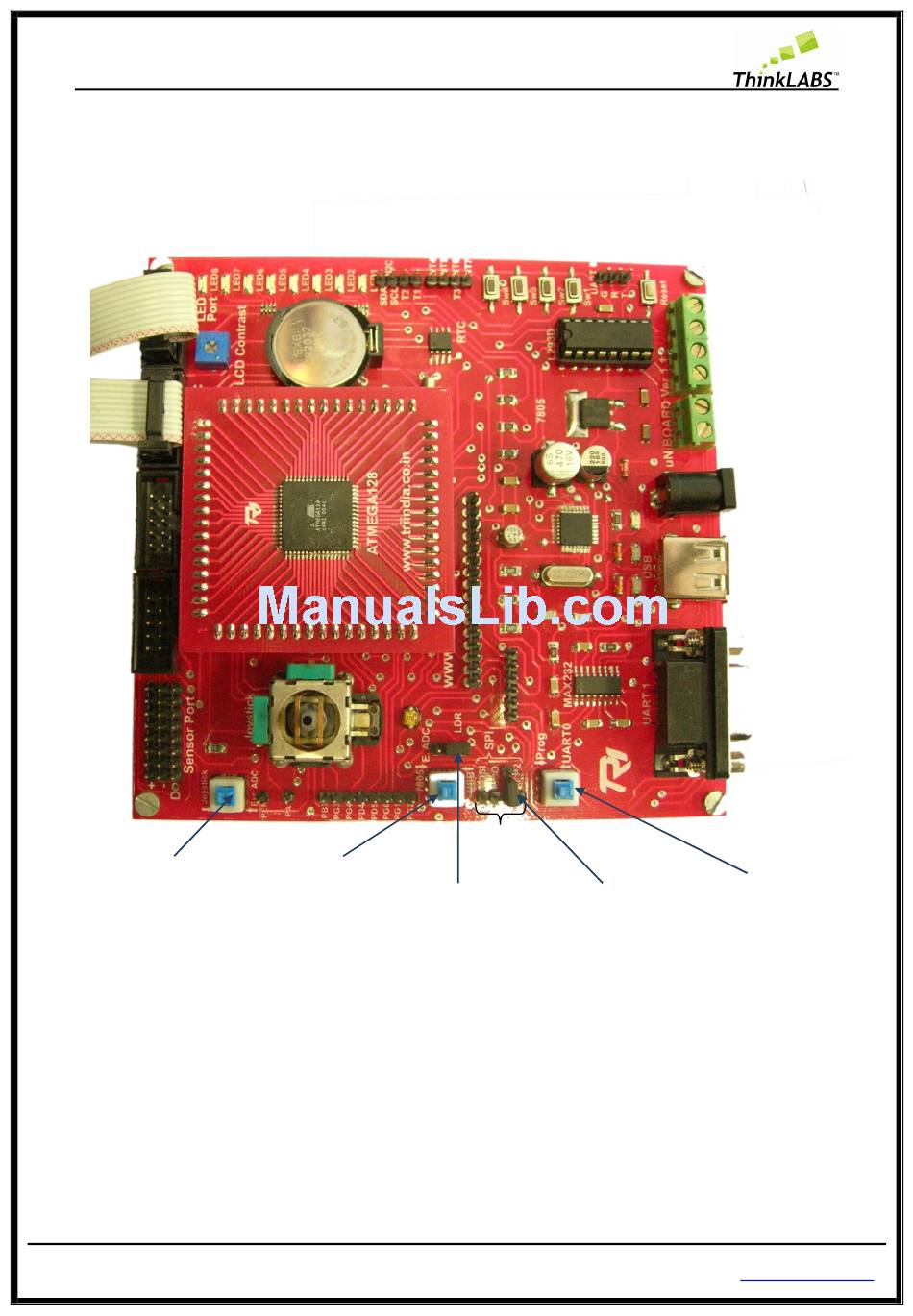

There are two jumpers on the board one for programming or SPI jumper and other one for LDR or External
ADC selection. As shown in the figure below:
Joystick/External
sensor Selection
LDR jumper
You can use them as per your application requirements. In case you are connecting external sensors at the
sensor port, you will need to change the position of the LDR jumper so as to disassociate it from the circuit
as shown below:
