NUE-PSK Digital Modem
USB Card Operator's Manual
(For use with modem software v1.34 and later)

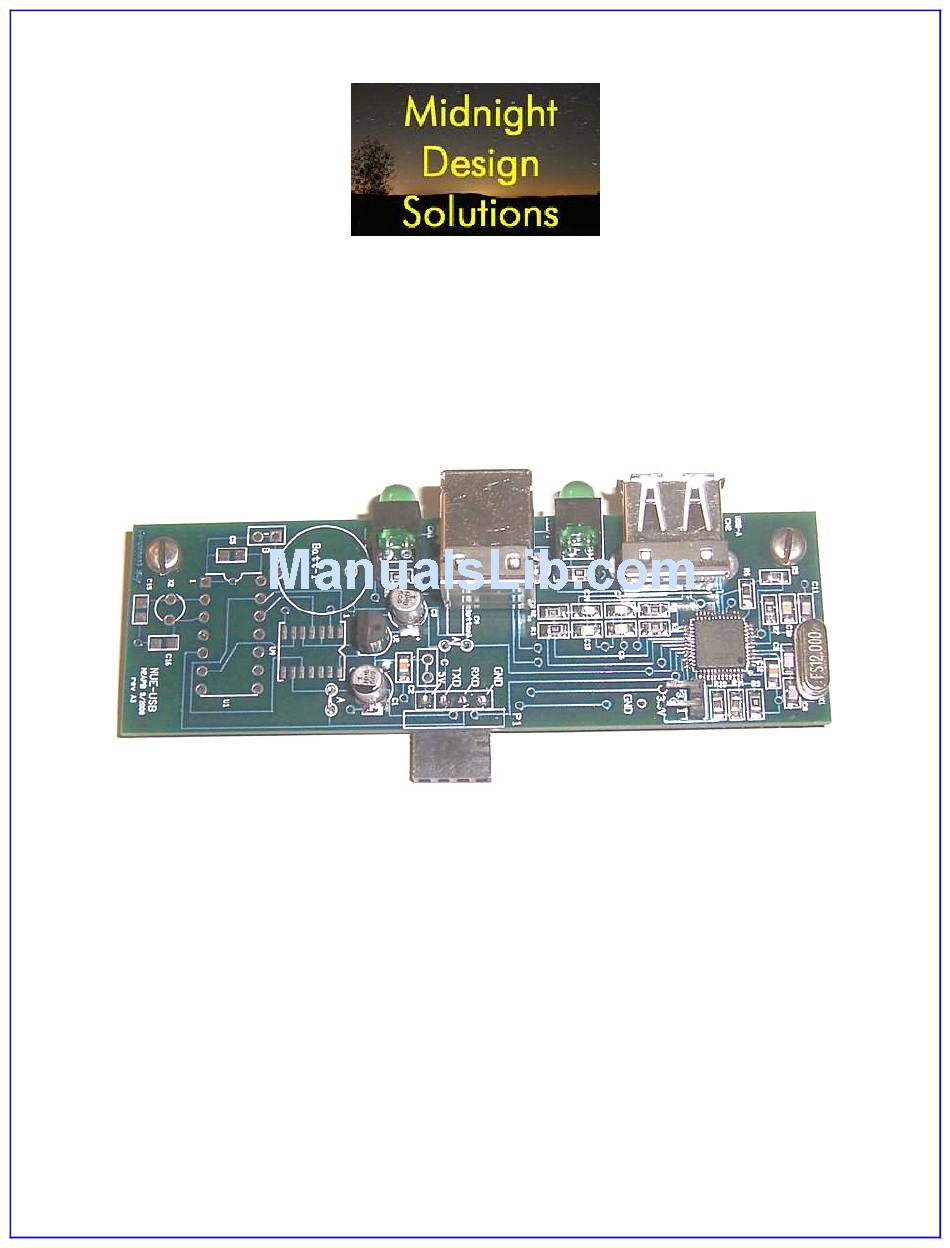

The NUE-USB Card is an optional low-cost addition to the NUE-PSK Digital modem that
increases the enjoyment and capabilities of the digital mode operating experience. The USB
Card plugs into any NUE-PSK modem to provide the ability to record the receive and transmit
QSO text to a removable USB flash memory device ("thumb drive") for archival and remote
printing. The USB Card also provides a serial connection to a PC, a means to upgrade modem
software from the thumb drive, and a port for a USB printer. Traces are present on the pc board
for custom addition of a real-time clock/calendar function ideally used for timestamping QSOs.
The modem software (v1.33c) associated with this USB Card hardware release contains
improved keyboard commands for controlling the USB card functions and a wonderfully-
revamped and consistent set of text editing commands.
NUE- USB Card Manual, ver 1.34
1
Copyright 2009, Midnight Design Solutions, LLC
Advertisement
Table of Contents
Summary of Contents for Midnight Design Solutions NUE-USB Card
- Page 1 USB Card Operator’s Manual (For use with modem software v1.34 and later) The NUE-USB Card is an optional low-cost addition to the NUE-PSK Digital modem that increases the enjoyment and capabilities of the digital mode operating experience. The USB Card plugs into any NUE-PSK modem to provide the ability to record the receive and transmit QSO text to a removable USB flash memory device (“thumb drive”) for archival and remote...
-
Page 2: Table Of Contents
PC Bootload ............................. 10 VII. Technical Support....................10 Appendix A: Schematic ..................... 11 Appendix B: Parts List....................12 Appendix C: Chassis Hole Template ............... 13 Appendix D: Engineering Changes ................. 14 NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 3: Overview
NUE-PSK Digital Modem with USB Card installed (on left side of modem board) NUE-PSK modem with the USB ports accessible on the left side of the enclosure NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 4: Technical Description
4-position SIP female header on the bottom that extends out the right side of the board to plug into the existing P4 connector. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 5: Assembling The Usb Card (From A Kit)
7) Attach the two nylon standoffs using the screws supplied. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 6: Programming The Usb Card
— This is the file that needs to be placed into the VNC1L chip (U1) on your NUE-USB card. It contains the firmware program that makes that U1 chip “smart” and able to talk to the USB flash memory devices that we plug into our card. NOTE: You must have the latest modem software (v1.34f or later) loaded on your modem in order to use the USB card. -
Page 7: Installing The Usb Card
8) Insert the modem board into the new/modified chassis and screw into place. Proper clearance for modem board controls can be achieved by biasing board to lower left while tightening top and bottom screws. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 8: Using The Usb Card
Remember, what you enter in this Insert mode is not transmitted, but it is only text that is inserted into the stream of data going to your USB flash memory device. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 9: Flash Bootload
COM port number is that used by your PC for the USB ports. Do not hit <Enter> yet until you have readied the modem side of the connection. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 10: Technical Support
NUE-PSK. You can view all the messages posted there, and if you join (for free!), you will be able to post questions and comments yourself, as well as access the files in the group. NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 11: Appendix A: Schematic
APPENDIX A: Schematic NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 12: Appendix B: Parts List
Crystal (12.000 MHz, parallel resonant) Digi-Key 631-1105-ND PC Board Spacer, nylon, hex tapped, 4-40x1/4" (PCB) Mouser 561-L4.25 Machine screw , pan slotted, #4-40x3/16" Small Parts MX-0440-03B SolderWick™ , 6" Shunt, 0.1" NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 13: Appendix C: Chassis Hole Template
APPENDIX C: Chassis Hole Templates NUE- USB Card Manual, ver 1.34 Copyright 2009, Midnight Design Solutions, LLC... -
Page 14: Appendix D: Engineering Changes
3) Ensure that a shunt (jumper) is installed on pins 4-5 of the 8-position pinheader. Bottom view of the USB card showing modifications to be made (Click photo for a larger view) NUE- USB Card Manual, ver 1.33c Copyright 2008, Midnight Design Solutions, LLC... - Page 15 NUE- USB Card Manual, ver 1.33c Copyright 2008, Midnight Design Solutions, LLC...
