Instruction Manual
P2182BA/EN
2015-11
47BA...B...
Transducer Interface
Cordless EC tool
Order no. 961494PT
For additional product information visit our website at http://www.apexpowertools.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2182BA/EN and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleco P2182BA/EN

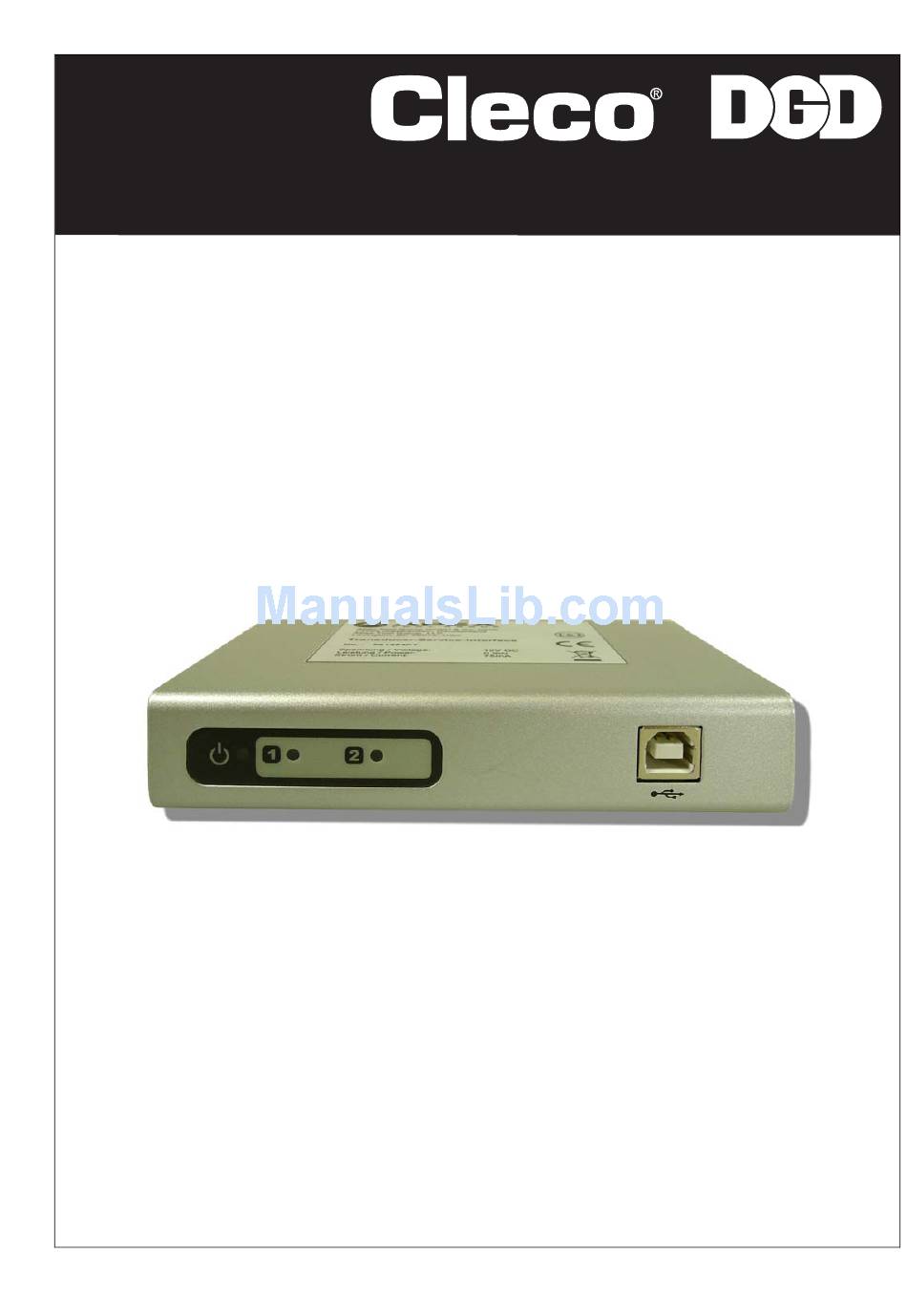

  • Page 1 Instruction Manual P2182BA/EN 2015-11 47BA…B… Transducer Interface Cordless EC tool Order no. 961494PT For additional product information visit our website at http://www.apexpowertools.eu...
  • Page 2 Apex Tool Group. DGD is a brand of the Apex Tool Group Division. P2182BA/EN 2015-11 2182a-en_Deckblatt.fm, 04.11.2015...

  • Page 3: Table Of Contents

    Installing the Transducer Interface application software Activate license Settings Functionalities Level 1 – Basic Level 0 – Limited Access level Level 2 – Unlimited Access level................16 Troubleshooting Service Technical data Disposal CE Declaration of Conformity P2182BA/EN 2015-11 P2182BA-EN_2015-11_TSI-961494PTIVZ.fm, 04.11.2015...
  • Page 4 P2182BA/EN 2015-11 P2182BA-EN_2015-11_TSI-961494PTIVZ.fm, 04.11.2015...

  • Page 5: Safety

    Do not operate the interface if the housing or USB line are damaged.   Do not use damaged power adapters. Designated use  Only ever use this interface with the power adapter provided.  Do not use it in areas where there is a risk of explosion. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 6: Items Supplied, Transport, Environmental Conditions

    With a transducer replacement, the memory chip on that new transducer can be described using the required data. These data are read by a primary (source) transducer and are then written to a secondary (target) transducer. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 7: System Layout

    Copying and editing functions are Green highlighted data can be copied (edited). Limited Access restricted Level 2 – • Unrestricted editing No restriction. Unlimited • Reset the Counter Display Red highlighted data cannot be copied/edited Access in this level either. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 8: Before Initial Operation

    Windows 2000 and higher • Running of the application program: NET Framework Version 2.0 or higher • application program Transducer Interface Version 1.0. or higher Installing drivers  Call up http://software.apextoolgroup.com/support/  Download and extract the installation package (ZIP). P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 9: Installing The Transducer Interface Application Software

    Assistant. The driver was installed successfully. Installing the Transducer Interface application software  Keep serial nr. and activation code to hand. Run AtgTransducerIn-  terface.msi. • Software is installed and a link is created in the Start menu. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 10: Activate License

    • The functionality ordered (Copy, Limited editing, Unlim- ited editing) is now enabled. The archiving code can be extended at any desired point in time thereafter. The application software can only be used at one Workstation P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 11: Settings

    Select the <Activation code>  and then install any additional activation codes you may require.  End the installation by press- ing <Close>. Functionalities Depending on the installed activation code, the following functionalities are possible: P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 12: Level 1 - Basic

    Connect source transducer  via adapter cable.  Confirm by pressing <OK>. Remove source transducer  and connect up the target transducer.  Confirm with <OK>.  Confirm message with <OK>. Confirm completion message  with <OK>. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 13: Level 0 - Limited Access Level

    • The transducer data can only be read. Level 0 – Limited Access level 5.2.1 Copy contents of transducer  Select <Read source trans- ducer>.  Connect source transducer via adapter cable. Confirm with <OK>.  P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...
  • Page 14  Confirm with <OK>.  Select <Read target trans- ducer>. Confirm message with <OK>.  • The new data record is now written to the transducer.  Confirm completion message with <OK>. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...
  • Page 15 Connect source transducer using an adapter cable.  Confirm with <OK>.  Edit the transducer data (data highlighted green). Confirm with <OK>.  Use <Write to transducer> to  accept the changed values in the transducer. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 16: Level 2 - Unlimited Access Level

    (see Windows device manager). Service NOTE In the event of repairs, send the complete interface to Sales & Service Center! Repairs may only be carried out by authorized personnel. If the interface is opened, the warranty will become void. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 17: Technical Data

    Separate the components of the packing and segregate the different materials before disposing of them. Follow the locally applicable regulations. Hand in the interface at your company collection point or return to Sales & Service Center. P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...

  • Page 18: Ce Declaration Of Conformity

    Disposal CE Declaration of Conformity P2182BA/EN 2015-11 2182b-en_1-11.fm, 04.11.2015...
  • Page 20 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements. NORTH AMERICA | SOUTH AMERICA Detroit, Michigan Louisville, Kentucky Lexington, South Carolina...
