STAINLESS STEEL
SPOT/FLOOD LIGHT
INSTALLATION & OPERATION INSTRUCTIONS
(ITEM #'S: 22040A, 22044)
IMPORTANT !
READ THESE INSTRUCTIONS BEFORE INSTALLING AND USING THIS
PRODUCT. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Description

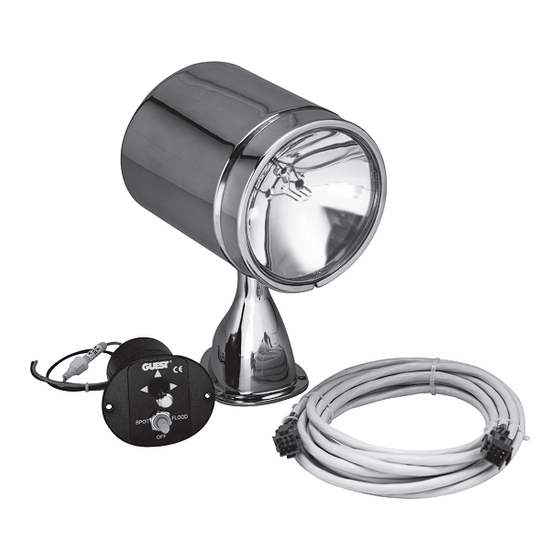

The Marinco 22040A spot/floodlight uses a high-powered, dual focus sealed beam
bulb. Its penetrating 72,000 candlepower beam can illuminate objects up to a 1/4
mile away, and its 30,000CP flood light is perfect for docking or picking up a mooring.
Constructed of stainless steel or chromed brass, it will give years of service with no
maintenance required. The model 22040A comes complete and ready to install, with
an easy-to-use "joystick" remote control system and 10 feet of control cable.
This spot/floodlight can rotate 350° and move up and down through an 70° arc. A
second control station can be installed by using an optional #22018A second station
control kit, and an additional control cable.
