Supco TA44 User Manual

TA44 User's Guide
Single Set Point Temperature Alarm With Digital Display and Remote Wireless Alarm
• REFRIGERATORS • FREEZERS • ENVIRONMENTAL CHAMBERS
The TA44T Temperature Alarm is a single point or threshold type of temperature alarm. This type of temperature alarm monitors the
temperature at the sensor probe tip and when this temperature passes above (or below) the set point, the unit will execute a preset operation.

DISPLAY

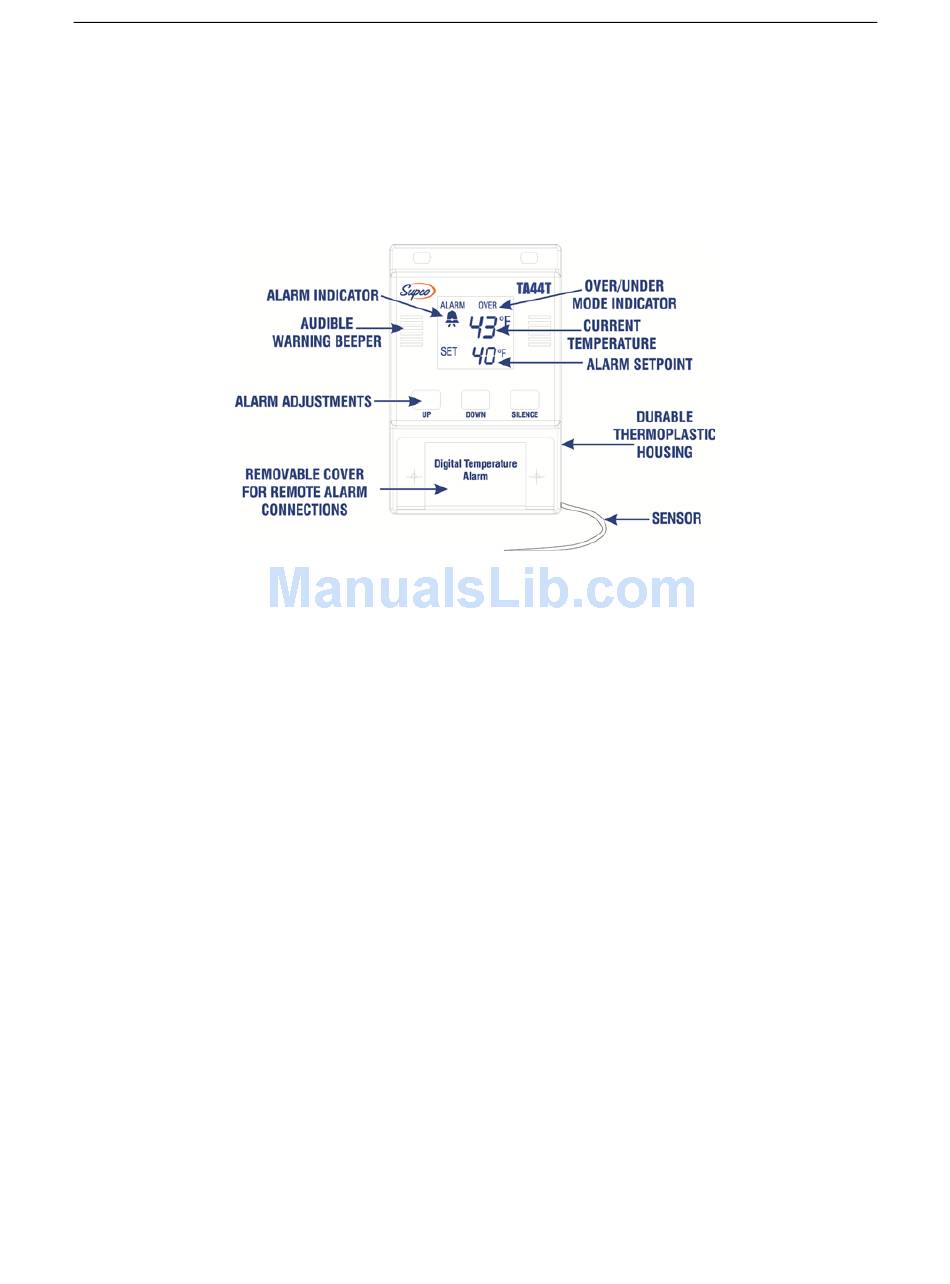

The unit's display shows the current temperature, the alarm set point temperature, the alarm state, and the mode of operation of the unit (over
temperature or under temperature alarm).
When the probe temperature reaches the set point, the unit will display its state as follows:
•
In delayed alarm state the ALARM icon and the Bell will flash.
• In the alarm state the ALARM icon and the Bell will remain solid. The Bell clapper will flash. Audible alarm will sound and the N.O.
Relay Contacts will close. The unit will transmit an alarm code to the wireless receiver, causing the remote receiver to activate its
audible alarm.
•
If the Silence button is pressed during alarm condition, the audible alarm will turn off and the N.O. relay contacts will open. The
Silence button on the TR44T does not turn off the audible alarm on the remote receiver. To turn off the audible alarm on the
remote receiver, push the remote receiver's Silence button.
NOTE: This unit also has a concealed slide switch that allows for the alarm to be activated immediately when the temperature has met the
alarm threshold, if desired.

INSTALLATION AND REMOTE ALARM OPERATION

The TA44T may be mounted to any flat surface, in any position, using the two holes provided at the top of the case or with the supplied
adhesive pads. Avoid mounting in areas of excessive humidity or temperatures outside the operating range of the TA44T.
The TA44R receiver can be located up to 100 ft (30 m) from the transmitter. To test that the receiver receives alarm messages from the
transmitter, press and hold the Silence button on the transmitter, while not in alarm condition. While the Silence button on the transmitter is
held, the receiver should sound the audible alarm. When the Silence button is released, the audible alarm on the receiver should turn off.
When the TR44R receiver sounds an alarm, this alarm can be silenced by pressing the silence button on the receiver. When the receiver
received the No Alarm signal from the transmitter, the silence state is reset, and the receiver returns to normal operation.

USING MULTIPLE TRANSMITTERS

Multiple TA44T transmitters can be used to monitor separate locations. Only a single receiver is required to receive the alarm signal from any
of the transmitters. If any transmitter generates an alarm condition, the TR44R receiver will sound the audible alarm.
Rev 030310
TA44
Designed specifically for...
...or any area where temperature change is critical.
Page 1/4
