Switek Electronics AS-7100ULS User Manual

Lcd kvm switch dual-rail series;

Advertisement

LCD KVM SWITCH
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-7100ULS and is the answer not in the manual?

Questions and answers

Summary of Contents for Switek Electronics AS-7100ULS

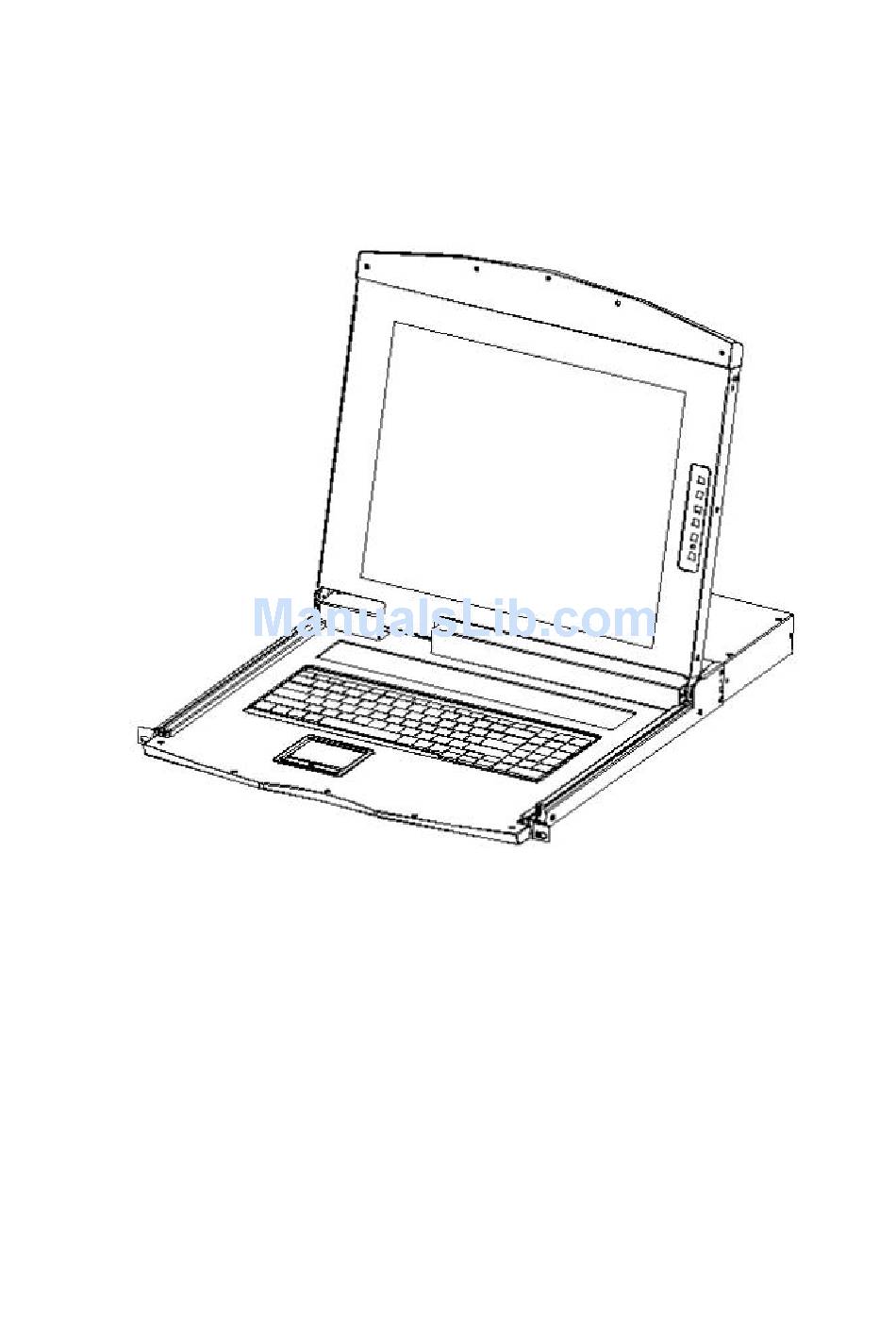

  • Page 1 LCD KVM SWITCH User Manual...
  • Page 2 LCD KVM Console User Manual Statement United States Federal Communications Commission Interference Statement This product has been tested and found to comply with FCC regulations Class B (Class B) digital device and FCC specifications Details of Section 15.These specifications are intended to be used in a commercial environment without harmful interference and to provide for the protection of regulated equipment.
  • Page 3: User Precautions

    LCD KVM Console User Manual User Precautions The manufacturer has the right to modify and alter the information, documentation and specifications contained in this manual without prior notice. Manufactures makes no warranty, express, implied or statutory, disclaims or specifically disclaims it's possibility of sale and applicability for a particular purpose. The same applies to any sold and authorized manufacturer's software described in this manual.
  • Page 4: Product Model Description

    LCD KVM Console User Manual Product Model Description Single-rail Series Configuration instructions AS-7100ULS VGA Single portKVM,17inch 4:3 LED Monitor, No OSD Menu, Can be cascaded AS-7100DLS DVI Single port KVM,17inch4:3 LCD Monitor, No OSD Menu AI-7100ULS VGA Single portKVM,17inch4:3 LCD Monitor, No OSD Menu, Can be cascaded, IP Remote Control...
  • Page 5: Dual-Rail Series

    LCD KVM Console User Manual AI-7116TLS CAT5 16Ports KVM,17inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded, Remote Control AS-9116ULS VGA 16Ports KVM,19inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded AS-9116TLS CAT5 16Ports KVM,19inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded AI-9116ULS VGA 16Ports KVM,19inch4:3 LCD Monitor, SD Menu, Demountable Structure, Can be cascaded, IP Remote Control...
  • Page 6 LCD KVM Console User Manual AI-9108TLD CAT5 8Ports KVM,19inch4:3 LCD Monitor ,OSD Menu, Demountable Structure, Can be cascaded, IP Remote Control AS-7116ULD VGA 16Ports KVM,17inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded AS-7116TLD CAT5 16Ports KVM,17inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded AI-7116ULD VGA 16Ports KVM,17inch4:3 LCD Monitor, OSD Menu, Demountable Structure, Can be cascaded, IP Remote Control...
  • Page 7: Package Contents

    LCD KVM Console User Manual Package Contents The LCD KVM switch package includes the following: Name Quantity/unit Description LCD KVM Console 1/pc The LCD kit products KVM Cables N/pc Cables quantities according to the standard Port that selected Power 1/pc If it is built-in power supply products, power built-in.
  • Page 8: Table Of Contents

    LCD KVM Console User Manual Contents User Precautions................................... 3 Product Model Description................................4 Single Slide Series................................4 Dual-rail Series..................................5 Package Contents..................................7 About this manual..................................10 Description of Terms.................................. 11 Chapter 1.....................................12 Introduction....................................12 Production Introduction..............................12 Product Features................................. 14 Hardware Requirements..............................15 Console..................................15 Computer..................................
  • Page 9 LCD KVM Console User Manual Open Way of LCD Screen ..............................49 Chapter4......................................51 OSD Operating................................... 51 OSD Introduction................................51 OSD Log in..................................51 OSD Hot Key..................................51 OSD Main Menu................................52 OSD Main Menu Title................................ 52 OSDIntroduction of Function Keys........................... 53 F1 GOTO:................................53 F2 SCAN:................................
  • Page 10: About This Manual

    LCD KVM Console User Manual About this manual This User's Guide will assist you in the effective use of the product features, including the installation, setup and operation of the equipment. You will find the following in this manual: Chapter 1 Introduction - This chapter introduces the Rack KVM device system, including its functions, features, and advantages, and describes and introduces the front and rear panel components.
  • Page 11: Description Of Terms

    LCD KVM Console User Manual Description of Terms Symbol Indicates the text information that should be entered 【】 The parentheses indicate the keys that need to be entered. For example, [Enter] means to press the Enter key. For keys that need to be entered at the same time, they are placed in the same bracket, and the keys are joined by a plus sign.
  • Page 12: Chapter 1

    LCD KVM Console User Manual Chapter 1 Introduction Products Introduction 4/8/16Ports USB/PS.2 LCD KVM Switch is a functional equipment that allows administrators to control 4/8/16pcs computers from a set of USB keyboards, mice, or a set of PS2 keyboards, mice. You can also use a single port LCD KVM switch as the computer keyboard, mouse, monitor external devices use;...
  • Page 13 LCD KVM Console User Manual individually sliding.To maximize the space in the data center, when not using the keyboard / touchpad, push it back into the rack to "hide", allowing the administrator to monitor the status of the computers in the device.
  • Page 14: Product Features

    LCD KVM Console User Manual Product Features  A group of USB console can manage 1, 4, 8 or 16 VGA or DVI interface computer  control side supports USB and PS2 two interface types of keyboard, mouse device  Can control two cascades ,cascade control up to 256 computers ...
  • Page 15: Hardware Requirements

    LCD KVM Console User Manual  controlled display screen can be zoomed non-polar function, any proportion of the size of the show Multi-window overlay technology can display multiple windows on the same remote console, and  select and control any windows. ...
  • Page 16 LCD KVM Console User Manual Computer-side DVI-I + USB (Type A)+ PS2 keyboard (purple) + PS2 mouse (green)  LCD KVM switch single port VGA cable LCD Connector DB37P Computer-side VGA + USB (Type A) + PS2 keyboard (purple) + PS2 mouse (green) ...
  • Page 17 LCD KVM Console User Manual  DVI-I + USB(Type A) + Audio KVM connection Computer connection CAT5 connection Dongle VGA + PS2 keyboard (purple) + PS2 mouse (green) CAT5 connection Dongle VGA + USB (Type A)
  • Page 18: Operation System

    LCD KVM Console User Manual Operation System Operation System Version Windows Windows 2000/XP/2003/2008/Vista/7/10 Linux RedHat 9.0 or higher Fedora and above, RHEL AS 4, RHEL 5 SuSE 10/11.1、OpenSUSE 10.2; SLES 10 SP1 Debian 3.1/4.0 Ubuntu 7.04/7.10 UNIX 4.3 or higher FreeBSD 5.5 or higher Sun Solaris...
  • Page 19: Front View

    LCD KVM Console User Manual Parts Front View According to the size of the LCD screen is divided into two styles, as shown below, the components of the description please see the figure after the serial number table describes the details. Part Function Description Upper handle...
  • Page 20: Rear View

    LCD KVM Console User Manual angle of 0-110 degrees LED screen 17 "or 19" LED LCD screen KVM Module KVM modules are free to replace and remove KVM Key panel The KVM Port manual switch function is completed by pressing the key Front mounting The LCD KVM can be installed on the cabinet posts with screws...
  • Page 21 LCD KVM Console User Manual LCD KVM 4 port CAT5 Rear View LCD KVM 8 port CAT5 Rear View LCD KVM 16 port CAT5Rear View LCD KVM 4 port DVI Rear View LCD KVM 8 port DVI Rear View According to the type of KVM ,the rear view of the product can be divided into three categories: ...
  • Page 22: Front View Of The 4: 3 Screen And 16: 9 Screen

    LCD KVM Console User Manual Front view of the 4: 3 screen and 16: 9 screen 17inch4: 3 screen 19inch 16: 9 screen...
  • Page 23: Single Slide & Dual Slide Lcd Display

    LCD KVM Console User Manual Single –rail &Dual-rail LCD Console display Single-rail LCD KVM Console Dual-rail LCD KVM Console...
  • Page 24 LCD KVM Console User Manual Dual Rail Slide View Double-rail overall rear view...
  • Page 25: Overall Dimensions Of The Lcd Kvm

    LCD KVM Console User Manual Overall Dimensions of the LCD KVM Single-rail single port KVM Console dimension:...
  • Page 26 LCD KVM Console User Manual Single –rail multi-ports KVM Console dimension:...
  • Page 27 LCD KVM Console User Manual Dual-rail LCD KVM Console dimension:...
  • Page 28: Chapter 2

    LCD KVM Console User Manual Chapter 2 Hardware Installation Stacking and Installation Precautions 1. Important safety information regarding the placement of the LCD KVM switch is listed in the appendix, please refer to it before proceeding. 2. Before installation, please make sure that all the devices connected to the power supply are turned off.
  • Page 29 LCD KVM Console User Manual 2. Slide the LCD KVM unit onto the support flange, secure the front of the switch to the front of the rack with the screws provided in the package and lock.
  • Page 30 LCD KVM Console User Manual 3.Slide the rear connecting slide bracket along the side rails until it reaches the rear of the switch. 4. Use the screws provided in this package to secure the strip to the rear of the switch. At this point, you have completed the rack mountable LCD KVM switch for subsequent use.
  • Page 31: Kvm Modules' Assembly & Removal

    LCD KVM Console User Manual KVM Module assembly & disassembly This series of LCD screen and keyboard, mouse and the rear part of the KVM part of the components can be demolished separation, this design allows you to change the KVM components, or KVM components damaged KVM components dismantled after the return to the manufacturer for repair and replace.
  • Page 32 LCD KVM Console User Manual 2. Remove the KVM assembly and the captive screws on the side brackets as shown to separate the KVM assembly from the front LCD assembly. 3.Please note the connector between the KVM module &LCD during the Removal and installation, or it may damage the connection interface and equipment function failure.
  • Page 33: Removal Of The Keyboard Module

    LCD KVM Console User Manual Disassembly of the Keyboard Module If you need to replace the LCD module part of the keyboard or repair this part, can also be demolished according to the following diagram. 1.The LCD KVM placed in the rack and fixed, the LCD panel turned up, revealing the keyboard, the mouse's operating surface.
  • Page 34: Expansion Module Installation

    LCD KVM Console User Manual 3. Pull the keyboard from the limit slot gently, find the connection side of the USB interface, remove the USB from connection side, the keyboard could be taken out. Thus completing the demolition of the keyboard module.
  • Page 35 LCD KVM Console User Manual with the dealer to buy our products supporting the IP module for equipment upgrades and expansion, the operation method is simple and quick, can quickly enhance the integrated management of KVM Application ability. 1. find the rear of the device, expansion slot outside the blank position for installation, you need to prepare a screwdriver for removal and installation tools.
  • Page 36 LCD KVM Console User Manual 2.Remove the extended IP module and push it gently into the recess in the mounting module cavity as shown. 3.After pushing the IP module to the bottom, fix the IP module with the two screws that have been removed before.
  • Page 37: Single Device Installation

    LCD KVM Console User Manual Single Device Installation Note:Before the installation, make sure that the equipment is powered off. To prevent damage to the equipment during installation, make sure that all the devices installed are well grounded.  VGA port KVM module installation To install a single-level KVM, refer to the following online diagrams (numbered in the order of steps on the online graph) and do the following: 1.Plug your USB keyboard and mouse into the USB console port on the back panel of the switch.
  • Page 38 LCD KVM Console User Manual  CAT5 port KVM Module Installation To install a single-level KVM, refer to the following online diagrams (numbered in the order of steps on the online graph) and do the following: 1. Plug your USB keyboard and mouse into the USB console port on the back panel of the switch. 2.Use a set of CAT5e / 6-wire connectors to plug into any available CAT5 Port on the switch.
  • Page 39 LCD KVM Console User Manual  DVI port KVM module installation To install a single-level KVM, refer to the following online diagrams (numbered in the order of steps on the online graph) and do the following: 1. Plug your USB keyboard and mouse into the USB console port on the back panel of the switch. 2.
  • Page 40: Installation Of Single Port Lcd Kvm Switch

    LCD KVM Console User Manual Installation of Single Port LCD KVM Switch...
  • Page 41 LCD KVM Console User Manual Single-port LCD KVM switch choose KVM cables to connect instead of multi-port use KVM module, divided into two kinds: VGA and DVI according to the port type.  VGA Single port LCD KVM...
  • Page 42: Cascade Device Connection

    LCD KVM Console User Manual  DVI single port LCD KVM Switch Note:Connect the DP37 port to the corresponding port on the back of the LCD, and then connect the video port of the other end to the video port of the computer. Then connect the port of PS2 or USB to the corresponding keyboard and mouse port of the computer, then power the computer and the LCD KVM switch.
  • Page 43 LCD KVM Console User Manual  CAT5 Port LCD KVM Switch Cascade In switch cascade mode, the keyboard, mouse and computer connections and stand-alone connection is the same, this part will not repeat them, the number part of the description is as follows: 1.The cascade KVM switch, have two connection methods, the use of USB KVM conversion module cable or PS2 KVM conversion module cable and a switch to the next level to connect.
  • Page 44 LCD KVM Console User Manual The connection diagram is shown in the following figure (CAT5PortLCD KVM Switch Cascade).
  • Page 45 LCD KVM Console User Manual VGALCD KVM Switch Cascade CAT5LCD KVMSwitch Cascade...
  • Page 46: Chapter3

    LCD KVM Console User Manual Chapter3 Basic Operation Hot Plug The KVM switch supports hot-plug, removing and removing components by unplugging the cables connected to the computer's port without shutting down the switch. To make the hot swap function work properly, follow these steps: Hot –...
  • Page 47: Osd Menu Screen Selection

    LCD KVM Console User Manual KVM switch button located in the top of the keyboard operating area, divided into three blocks, from left to right in order is the online indicator display area, Port switch to select the display area, Port switch digital button area.
  • Page 48: Hotkey Selection

    LCD KVM Console User Manual controlled computer. "No display" means the LCD screen has been powered off. KVM OSD Menu operation  (Refer to the OSD Operation chapter for more information.) Hotkey Selection This product offers four hotkey switching methods: 【SCRLL】+【SCRLL】+【NUM】...
  • Page 49: Open Way Of Lcd Screen

    LCD KVM Console User Manual Open Way of LCD Screen  When using, the LCD assembly can be unlocked from the side track by the handle of the upper part of the LCD unit. After unlocking, the LCD module can be pulled out from the slide rail. (Refer to the diagram above for operation) ...
  • Page 50 LCD KVM Console User Manual AUTO LOCK UNLOCK  The screen will automatically pull out the slide after the brake lock device to prevent the random sliding LCD screen components to bring the instability and may cause damage to the user collision.After the brake lock is activated, the LCD screen will limit the operation of pushing the slide rail.If you want to do the push-in operation of the LCD module, the unlocking action must be done first, and the unlocking switch is on both sides of the slide rail.
  • Page 51: Chapter4

    LCD KVM Console User Manual Chapter4 OSD Operation OSD Introduction OSD (On Screen Display), provides a menu driven interface to handle the computer switching procedure to provide instant access to any computer on the installation. OSD Log in The OSD function provides a two-level (administrator / user) password mechanism. The factory default setting is no need to login password authentication, so you are the first time to open the OSD main menu, no need to enter the login password to enter the OSD main menu screen for the corresponding operation.
  • Page 52: Osd Main Menu

    LCD KVM Console User Manual OSD Main Menu Active OSD, following picture will be shown on the screen:  【F1】 --- 【F6】 at the bottom of the screen is the function setting of OSD menu, and corresponding operation and setting of corresponding function by keyboard. ...
  • Page 53: Osdintroduction Of Function Keys

    LCD KVM Console User Manual OSD Function OSD functions are used to configure and control the OSD. For example, you can: rapidly switch to any port; scan selected ports only; limit the list you wish to view; designate a port as a Quick View Port; create or edit a port name;...
  • Page 54: F2 Scan

    LCD KVM Console User Manual F2 SCAN: The "SCAN" function allows you to perform automatic port scanning of the connected computers. Users can switch ports in order to view the corresponding port computer status.  The SCAN function can automatically scan from current selected port, the scan interval can be set by users.
  • Page 55: F4 Qv

    LCD KVM Console User Manual F4 QV: QV function can select port as Quick View. Move the highlight bar to a port, press [F4], an icon of up triangle appears. Press [F4] again, the icon disappears. F5 EDIT: EDIT function creates or edits the name of a port. Press [F5], a pink edit box will appear on the screen. Input name, and then press [Enter], the port is set a name and it will also appear on the screen.
  • Page 56: Osd Activating Hotkey

    LCD KVM Console User Manual To change your settings: 1. Move the highlight bar to an option, press 【Enter】to enter a setting option. 2. After selecting an item, the sub-menu and the further options provided will appear. To select it, double-click the mouse or move the selection column to the option, and then press the [Enter] key, an icon will appear.
  • Page 57: Switch Hotkey

    LCD KVM Console User Manual SWITCH HOTKEY It provides you with four hotkey combinations: 【SCRLL】【SCRLL】【NUM】、【CTRL】【CTRL】【NUM】、【ALT】【ALT】【NUM】、 【SHIFT】【SHIFT】【NUM】You can use the keyboard 【↑】 【↓】 to move cursor to select, and then press 【Enter】 key to save. The default is to use 【SCRLL】 【SCRLL】 【NUM】 as the OSD menu start hotkey.
  • Page 58: Channel Display Duration

    LCD KVM Console User Manual CHANNEL DISPLAY DURATION Time the tip window last. Options are following: 1.3 SECOND The tip window lasts for 3seconds 2.ALWAYS ON The tip window always on the screen. CHANNEL DISPLAY POSITION Position of the tip window. A small blue window appears on the screen.
  • Page 59: Set Password

    LCD KVM Console User Manual Duration for scanning one port. Options are 3 seconds, 5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds. Move the highlight bar to an option and press [Enter] to select it. SET PASSWORD Set new password.
  • Page 60: Lock Console

    LCD KVM Console User Manual input 【 N】 key, and then press 【 Enter】 to confirm the cancel operation, or keyboard input 【Esc】 directly back. LOCK CONSOLE You cannot switch or scan after you lock the console (including switch by push button on the panel or OSD).
  • Page 61: Appendix

    LCD KVM Console User Manual Appendix Safety Instruction In General  This product is for indoor use only.  Please read all the instructions for future reference.  Follow all the warnings and instructions on the device.  Do not place this equipment on any unstable surface (such as cart, stand, table, etc.). If this equipment falls, it will cause serious damage.
  • Page 62: Rack Mounting

    LCD KVM Console User Manual  The function of the device is obviously changed  The machine can’t be operated normally as instructed by the operating instructions.  Adjustment only for the control functions covered by the operating instructions, and other inappropriate operations may cause damage, requiring more qualified personnel to perform repairs Cabinet Installation ...
  • Page 63: Product Specifications

    LCD KVM Console User Manual Specification VGA Series LCD KVM Switch Specification Function 4 口 8 口 16 口 Connectors Direct Cascade(Max) Port Selection OSD Menu, Front Panel Hot-Key, Hot-key, Remote Control IP (Optional) Console Video 17”\19”\19”Wide LED Screen Connectors Keyboard 1 x USB Type A Female Mouse...
  • Page 64 LCD KVM Console User Manual CAT5 Series LCD KVM Switch Specification Function 4 口 8 口 16 口 Computer Direct Connections Cascade(Max) Port Selection OSD Menu, Buttons, Hot-key, Remote Control IP (Optional) Console Video 17”\19”\19”wide-screen LCD Monitor Connectors Keyboard 1 x USB Type A Female Connector Mouse 1 x USB Type A Female...
  • Page 65 LCD KVM Console User Manual DVI Series LCD KVM Switch Specification Function 4 口 8 口 Connectors Direct Port Selection OSD Menu, Buttons, hot keys Console Monitor 17”\19”\19”Wide-Screen LCD Monitor Port Keyboard 1 x USB Type A female Mouse 1 x USB Type A female Connectors Expansion 1 x USB Type A Famale (Prepositive port for Keyboard, mouse)
  • Page 66: Lcd Module Specifications

    LCD KVM Console User Manual LCD Module Specifications Function 17inchLCD module 19inchLCD module 19inchwide-screen LCD module LCD Screen Size 17inch4:3 19inch4:3 19inch16:9 Display Ratio Assembly LCD Screen SXGA TFT-LCD Wide AHVA TFT-LCD Type Viewing Area 337.920(H) × 270.336(V) 376.32 (H) x 301.056 (V) 408.96(H) x 230.04(V) Resolution 1280*1024@60HZ...
  • Page 67: Warranty Conditions

    LCD KVM Console User Manual Warranty Conditions The Company shall not be liable for damages up to the amount paid by the Customer for the Products. In addition, the Company does not assume any direct, indirect, special, incidental or consequential damages resulting from the use of this product or the enclosed CD-ROM, documentation, etc…;...
