Summary of Contents for Nikkai 4.3 inch Touch Screen
-
Page 1: User Manual

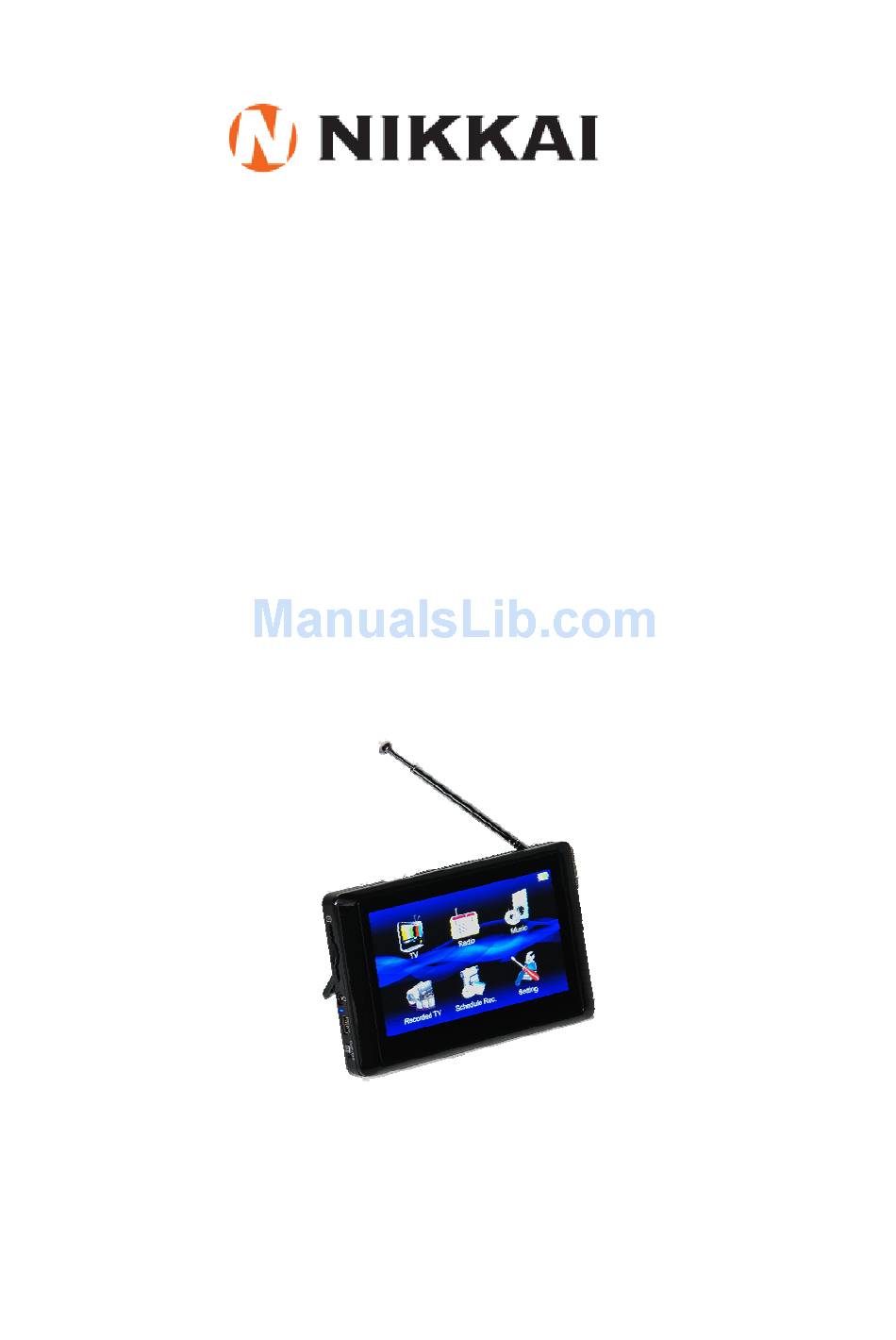

User Manual 4.3” Touch Screen Digital TV Order Code : A59KB... -
Page 2: Table Of Contents
Table of Contents Precaution ................... 3 Getting Started................4 I.1. Supplied Accessories ............... 4 I.2. Parts and Controls................4 Start by Menu ................6 III. Quick Guide for First-time User ............7 ... -
Page 3: Precaution
Precaution On Safety Do not use wet hands to pull out the plug. It may cause electrical shock. If the player does not work, please pull out the plug for safety. Contact us for further technical support. Before moving the player, please make sure the power adapter is disconnected from the wall outlet. -
Page 4: Getting Started
Getting Started Supplied Accessories I.1. Please check the following accessories are included in the package: ○ Power Adapter x 1 ○ Portable Antenna x 1 ○ Pouch x 1 ○ IEC to MCX Adaptor Parts and Controls I.2. Front Side [1] LCD Panel [5] Power Indicator [2] Speaker... - Page 5 Rear Side [1] Built-in Antenna [2] Speaker [3] Back Holder [4] Battery [5] Portable Antenna Connector...
-
Page 6: Start By Menu
II. Start by Menu This is the home menu screen. You can highlight the DVB-T TV mode, the DVB-T Radio, Recorded Playback mode, the Music Playback mode, the Schedule Recording mode and the System Settings. To enter DVB-T TV mode Radio To enter DVB-T Radio mode Music... -
Page 7: Quick Guide For First-Time User
III. Quick Guide for First-time User General Start III.1. Step 1: Charging the device: 1. Connect the power adapter to the DC power-in jack. 2. The charging indicator will be turned on as RED light. 3. After the battery is full, the charging indicator will be changed to BLUE light. - Page 8 Step 3: Now you can sit back and enjoy your mobile TV. Note: after few seconds, the OSD will disappear automatically. To show it again, touch the screen anywhere. Step 4: Quick channel switch 1. Press on the button to activate channel list. 2.
-
Page 9: Iii.3. Tv Recording
TV Recording III.3. ETV 430 support DVB-T TV recording during DVB-T watching. The section below will explain you how to quickly record your favorite TV program into a SD Card. Step 1: Insert a SD card to the card-slot Step 2: Start recording 1. -
Page 10: Iii.4. Dvb-T Radio Listening
DVB-T Radio Listening III.4. Step 1: Entering DVB-T Radio 1. On Home page, press icon by pressing your finger directly on the icon. Step 2: Channel scanning 1. Upon the first time usage, a “Setup Wizard” will appear as bellow: 2. - Page 11 Step 5: Press button or button to switch between available channels. Step 6: Activate DVB-T TV Menu 1. Press on the button to activate DVB-T menu. Step 7: Return to Home Page 1. Press on the button to return to Home page.
-
Page 12: Iii.5. Music Listening
Music Listening III.5. ETV-430 allows you to play mp3 format audio file. The section below will explain you how to quickly play a music file stored on SD Card. Step 1: Entering Music Listening 1. On Home page, press icon by pressing your finger directly on the icon. - Page 13 Step 3: Press button to play previous music file or button to play next music file. Step 4: Press button to pause music playing. Press button to continue playing. Step 5: Return to music file browser 1. Press icon to return to music file browser. Step 6: Activate Music Menu 1.
-
Page 14: Iii.6. Recorded Tv Watching
Recorded TV Watching III.6. ETV-430 allows you to record the TV program to a SD card while watching the TV. The section below will explain you how to quickly play recorded program files. Step 1: Entering Recorded TV 1. On Home page, press icon by pressing your finger directly on the icon. -
Page 15: Iii.7. Recording Schedule
Step 4: Press button to do fast forwarding. Press button to do fast-rewarding. Step 5: Press button to pause recorded-TV playing. Press button to continue playing. Step 6: Return to recorded-TV file browser 1. Press icon to return to recorded-TV file browser. Step 6: Activate recorded-TV Menu 1. - Page 16 1. On Home page, press icon by pressing your finger directly on the icon. Step 2: Creating new schedule 1. Press on [Add new] button to create new schedule. 2. Choose preferred channel by touching the channel name. 3. Press on [More] button to show the detail schedule of the preferred channel.
- Page 17 NOTE: the diagram below shows the flow of recording schedule. [Add new] [More] [Cancel] [OK]...
- Page 18 Step 3: Delete existing schedule. 1. On the information window, press the [Delete] button to delete the corresponding schedule. Step 4: Return to Home Page 1. Press [X] icon to return to Home page. NOTE: 1. Please ensure SD Card had already been plugged into SD Card slot before the scheduled time.
-
Page 19: Technical Settings
Technical Settings System Settings IV.1. This is the system settings menu screen. Users can adjust the display setting, time setting, region/language setting, proceed to a software upgrade, reset system setting. IV.1.1. Display Setting To set up the aspect ratio, adjust brightness and to switch on/off the auto backlight function. -
Page 20: Iv.1.3. Region & Language
IV.1.3. Region & Language To set up the OSD language and DVB-T regional settings. 1. Choose desired language setting by pressing the buttoned current language setting. 2. Choose desired DVB-T regional setting by pressing the buttoned current country setting. 3. Press button exit “Region/Language”. -
Page 21: Iv.1.5. Reset Default
IV.1.5. Reset Default Select the item to reset all system settings to default values at manufacture time. DVB-T TV/Radio Menu IV.2. After entering the DVB-T TV or Radio service, press button to make the menu appear. Here you can have access to the program list, the channel management, the automatic channel search, the audio settings, the channel... -
Page 22: Iv.2.2. Channel Management
3. Press [X] button to exit. b. Program Schedule 1. Choose any desired date by touching the available date. 2. Press the desired program name brief information. 3. Press return “Program List” page. c. Program Description 1. Press [X] button to return to “Program Schedule”... -
Page 23: Iv.2.3. Channel Search
4. Press [Move Up] to move the channel up in the sequence. 5. Press [Move Dn.] to move the channel down in the sequence. 6. Press [X] button to exit. IV.2.3. Channel Search To search the available channels automatically. 1. Adjust the country setting by pressing the buttoned current country setting. -
Page 24: Iv.2.5. Channel Information
IV.2.5. Channel Information To display the channel broadcasting parameters and signal information. 1. Press [X] button to exit. IV.2.6. Antenna Selection To choose to receive DVB-T broadcasting either via built-in antenna or external antenna. 1. Press on the desired antenna setting twice to change the setting. -
Page 25: Iv.2.7. Subtitle
IV.2.7. Subtitle To activate or deactivate the subtitle function. 1. Adjust DVB Subtitle by pressing buttoned current subtitle setting. 2. Adjust teletext subtitle pressing the buttoned current Teletext Subtitle setting. NOTE: at one time only one setting can be activated either it DVB Subtitle or Teletext Subtitle. -
Page 26: Trouble Shooting Q&A
V. Trouble Shooting Q&A Most of the troubleshooting issues can be easily solved. The common cases and their respective solutions are listed in the table below. If the problem persists, please contact the after sales service. Problem Possible Reason Solution battery totally Connect the unit to an external power... -
Page 27: Specification
VI. Specification Antenna Built-in rod Antenna (UHF and VHF band reception) Antenna Type Support external antenna input (MCX type) Display Panel Type / Resolution 4.3” Color TFT-LCD / 480RGB(W) x 272(H) pixels Brightness / Contrast 300 nits / 550:1 Display Ratio 16:9 (Horizontal) / 125 (Vertical)
