Summary of Contents for Puralytics Shield 1500

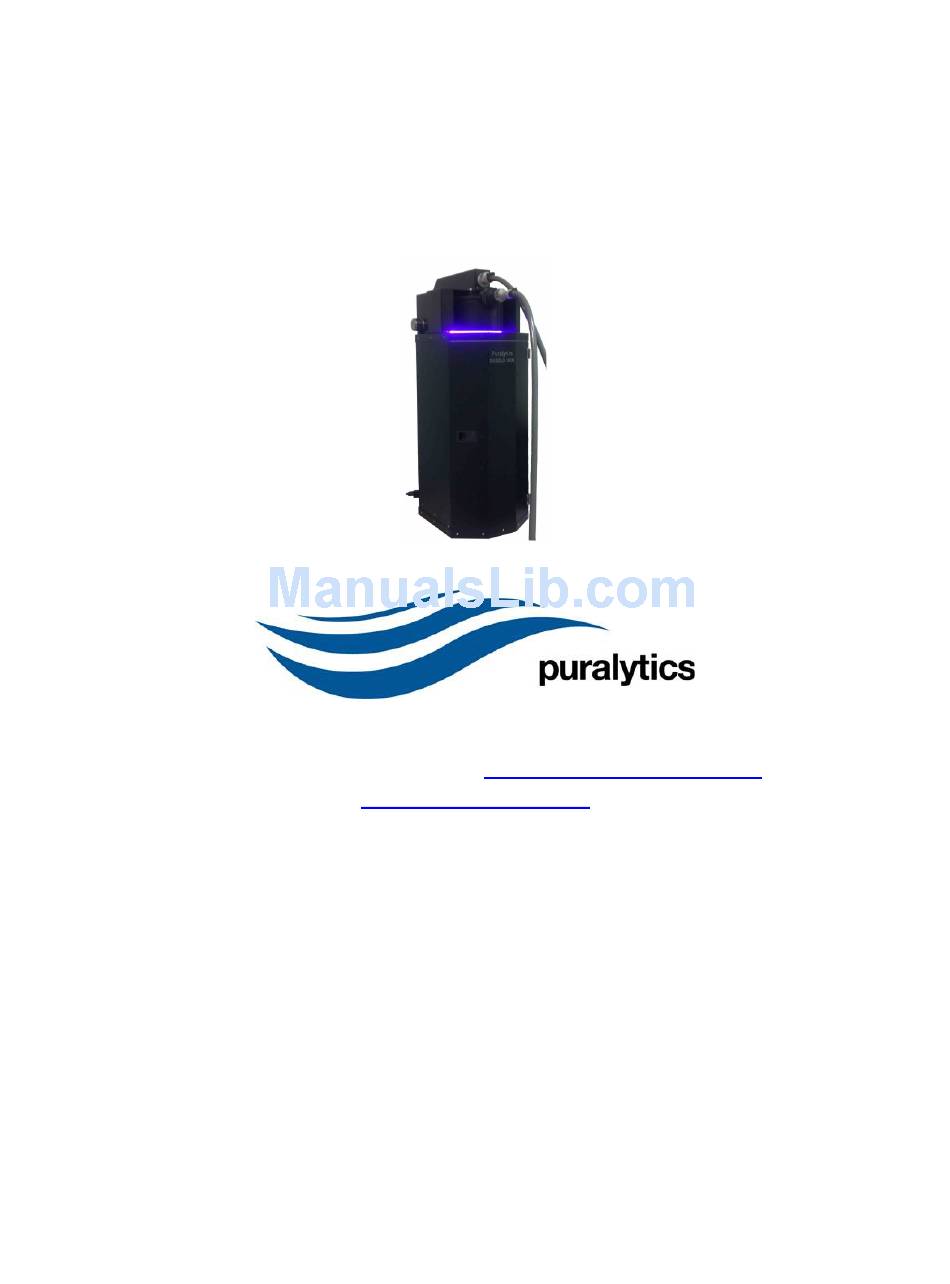

- Page 1 Shield 1500 Photochemical Water Purification System Installation, Operation and Maintenance Manufactured in the USA by: 2827 SE 75 Avenue, Hillsboro, OR 97123 USA t. +1.503.616.2652 | e. support@puralytics.com www.puralytics.com Copyright © Puralytics – 2017 All rights reserved.
- Page 2 Shield 1500 Owner’s Manual CONGRATULATIONS, You have purchased a Puralytics Shield 1500 Photochemical Water Purification System. By purchasing this system, you have taken the first step in ensuring the safety of your water supply. Your Shield 1500 system uses advanced nanotechnology and is designed to provide you with years of trouble- free operation with minimal maintenance required.
-
Page 3: Table Of Contents
Accessory and Replacement Parts List ....................8 Safety Instructions ......................... 9 Facility Requirements ......................... 11 Chapter 1: System Overview ....................12 Chapter 2: Installing Your Shield 1500 ................14 Unpacking and System Inspection ....................14 Water Connections ............................. 16 System Setup ............................16 Electrical Connections ............................ -
Page 4: Symbols
(WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center. All occurrences of “Shield 1500” within this document refer to the “Shield 1500” system. DOCXXX Rev 1 ©Puralytics 2017... -
Page 5: Parts Of The System
Shield 1500 Owner’s Manual Parts of the System Access Door Sump with 20- inch NanoMesh Cartridge Figure 1. System with access door open DOCXXX Rev 1 ©Puralytics 2017 Page 5... -
Page 6: Parts Of The System
Shield 1500 Owner’s Manual Parts of the System Wall Mount Bracket Water Outlet Connection Pressure Release Button Water Input Connection UVC Lamp UVC Lamp Status Light Figure 2. Top views of Shield 1500 DOCXXX Rev 1 ©Puralytics 2017 Page 6... - Page 7 Shield 1500 Owner’s Manual Parts of the System Power Switch Power Receptacle AC Fuse Figure 3. Side view of Shield 1500 base DOCXXX Rev 1 ©Puralytics 2017 Page 7...
-
Page 8: System Components
• AC Fuse (beyond the spare already included in the fuse holder; see Chapter • Adpating/additional hose/pipe fittings; hose/pipe A Puralytics pretreatment system is required in most situations to provide filtration and ion exchange/softening. The pretreatment system is not addressed in this guide. -
Page 9: Safety Instructions
– refer to an authorized service facility. 7. Do not operate the Shield 1500 system if it has a damaged power cord or plug, if it is malfunctioning, or if it has been dropped or damaged in any manner. - Page 10 Circuit breaker must not exceed the power cord current rating (e.g., 15A for North American NEMA 5-15P). 12. Some blue light will be visible outside the Shield 1500 during normal operation. THIS BLUE LIGHT IS NORMAL (when water is flowing) AND DOES NOT POSE AN EYE HAZARD TO THE USER.
-
Page 11: Facility Requirements
Shield 1500 Owner’s Manual Facility Requirements The Shield 1500 water treatment system is designed to kill pathogens and remove a wide range of organic contaminants present in the water as well as decrease the concentration of heavy metal contaminants. Shield 1500 Product details are as follows: •... -
Page 12: Chapter 1: System Overview
Shield 1500 Owner’s Manual Chapter 1: System Overview The Puralytics Shield 1500, shown in Figure 4 represents the state of the art in photochemical water purification. Five independent photochemical processes act synergistically to remove organic chemicals, heavy metals, and microbiological contaminants from process water at flow rates up to 3.9 liters per... - Page 13 Figure 6. Water Ports The Shield 1500 contains an Access Door, as shown in Figure 7, to allow the user to access the sump and its 20-inch NanoMesh Cartridge located within the compartment for maintenance –...
-
Page 14: Chapter 2: Installing Your Shield 1500
Shield 1500 Owner’s Manual Chapter 2: Installing Your Shield 1500 Unpacking and System Inspection The Shield 1500 water treatment system is shipped in a protective box. On receipt, inspect the box for damage indicating mishandling during shipment. If such damage... - Page 15 Shield 1500 Owner’s Manual Inspect the Shield 1500 for signs of mechanical damage. If damage is observed, photograph the damage and contact Puralytics. Before turning on the Shield 1500, open the access door and remove the foam supporting the sump.
-
Page 16: Water Connections
Shield 1500 Owner’s Manual System Setup Place the Shield 1500 on a stable surface or wall mount the system where it is to be installed. Hardware for wall mounting the Shield 1500 is not provided, but the holes at the top of the mounting bracket allow many hardware choices. -
Page 17: Electrical Connections
AC power at voltages within the range of 100-240VAC RMS and frequencies within the range of 50-60 Hz. The fuse shipped in the fuse holder of the Shield 1500 is suitable for operation with supplied electrical AC power at voltages in the customer’s anticipated range. -
Page 18: Chapter 4: System Operation
Shield 1500 Owner’s Manual Chapter 4: System Operation The Shield 1500 is designed to operate with a minimal amount of operating supervision or maintenance, providing the water quality meets input requirements are met (see Facility Requirements section). Operating Procedures 1. Make sure the water fittings are connected to Shield 1500 as detailed under the “Water Connections”... -
Page 19: Chapter 5: Cooling Fan Maintenance
Shield 1500 Owner’s Manual Chapter 5: Cooling Fan Maintenance Introduction A cooling fan is provided on the underside of the unit to maintain optimal power supply to the LEDs by the LED power supplies. The fan operates whenever the unit power is on providing an auditory reminder that the unit (and UVC lamp) is powered. -
Page 20: Chapter 6: Uvc Lamp Use And Maintenance
An LED indicator light, located on the end opposite of the easy off end cap (depicted in Figure 14), provides visual indication of germicidal lamp operation and should be illuminated during the Shield 1500 operation. This indicator light does not, however, indicate the level of ultraviolet intensity or transmission through the water. - Page 21 Shield 1500 Owner’s Manual • At installation, • Quarterly after cleaning and • After lamp replacement. DOCXXX Rev 1 ©Puralytics 2017 Page 21...
- Page 22 Shield 1500 Owner’s Manual UVC LAMP REMOVAL OR REPLACEMENT The Shield 1500 has been designed such that the UVC Lamp can be serviced without removing the sheet metal cover of the Shield 1500. 1. Disconnect power to Shield 1500 and disconnect both the water input and output connections.
- Page 23 9. Reinstall lamp, following the steps in “UVC LAMP INSTALLATION OR REPLACEMENT” section. WARNING: Germicidal ultraviolet rays are harmful to eyes and skin. Do not restore power to the Shield 1500 until the UVC lamp and easy-off end caps have been properly reinstalled. DOCXXX Rev 1 ©Puralytics 2017...
-
Page 24: Chapter 7: 20-Inch Nanomesh Cartridge Maintenance
Always disconnect the water supply and completely drain the sump if it will be subjected to temperatures below the freezing point of water. 20-inch NanoMesh Cartridge Replacement 1. Disconnect power to Shield 1500 and disconnect both the water input and output connections. 2. Depress the red pressure-relief button on the top of the unit to relieve the pressure inside the canister. - Page 25 (socket diameter will now allow reversal of the leads). Close access door. WARNING: Do not restore power to the Shield 1500 until the sump and LED leads have been properly reinstalled. DOCXXX Rev 1 ©Puralytics 2017...
-
Page 26: Chapter 8: Other Maintenance
Chapter 8: Other Maintenance Introduction Beyond ordinary regular maintenance items, some additional maintenance may arise. If not found in this manual, contact Puralytics for additional assistance. Power Input AC Fuse Replacement 1. Disconnect power to Shield 1500. 2. Locate the power input module (described above and shown in Figure 5).
