Summary of Contents for Anyload LCT100

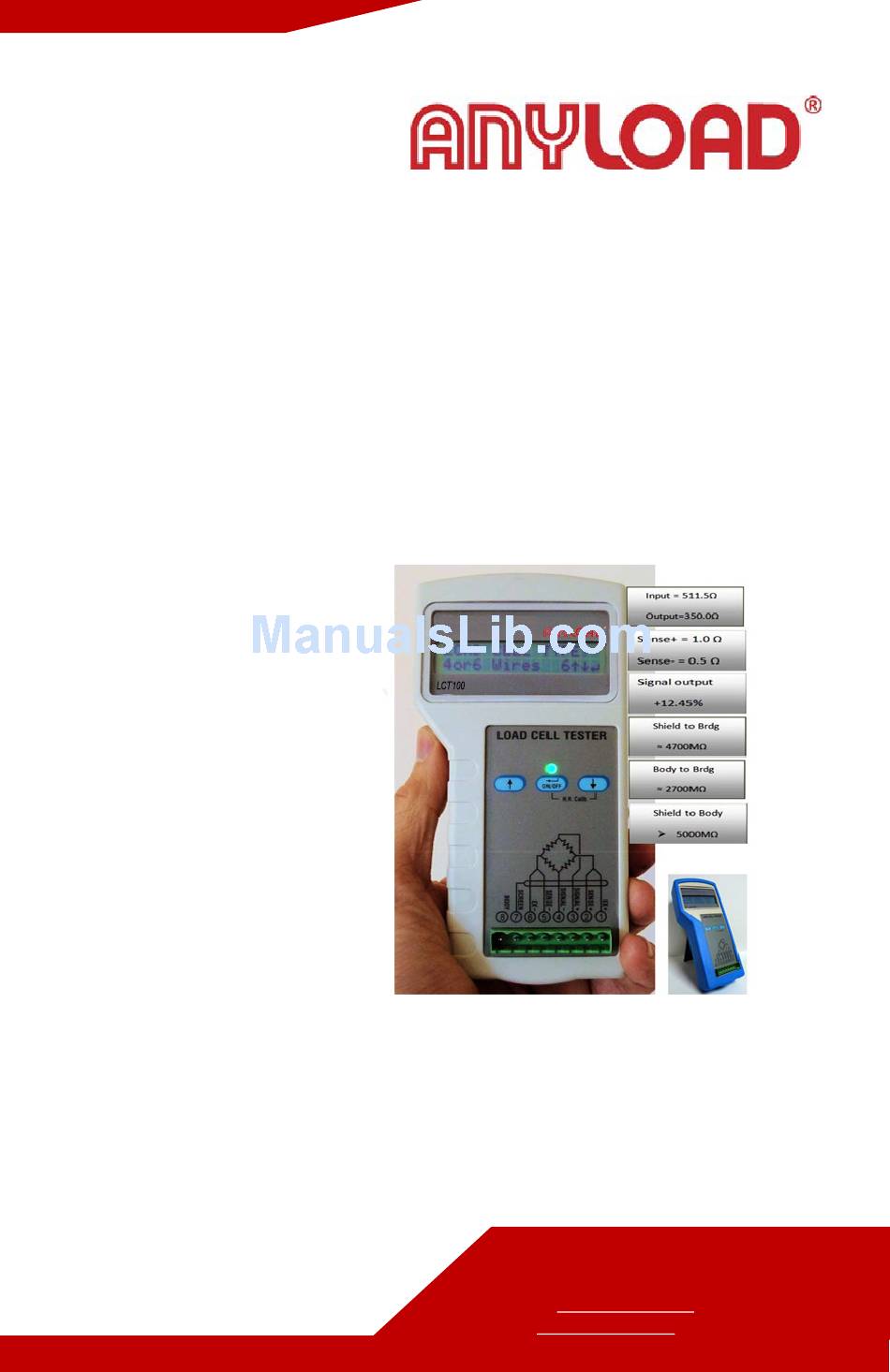

- Page 1 LCT100 Load Cell Tester User’s Guide (v1702) Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com...
- Page 2 L/C capacity. For example: applying 10Kg on a 100Kg load cell will show of 10% Note: To save the battery the unit will shut off after 6 minutes ANYLOAD LCT100 Load Cell Tester User’s Guide (V1702)
- Page 3 As a result, the scale may provide unstable readings, zero drifting, error reading, non-linearity etc. The LCT100 is the only measuring tool required to perform the tests either on site or in the lab. Before you start, make sure to have the Load cell spec and the cable color code (usually you get it with the load cell, or it can be downloaded from the manufacture web site).
- Page 4 Load Cell separately. Note: there is no need to remove the load cell from the scale. 4. If all results seem to be in range, you may check for scale linearity, by choosing Continuous mode (Gain) on the LCT100 and applying various weights on the scale. Understanding the LCT100 results:...
