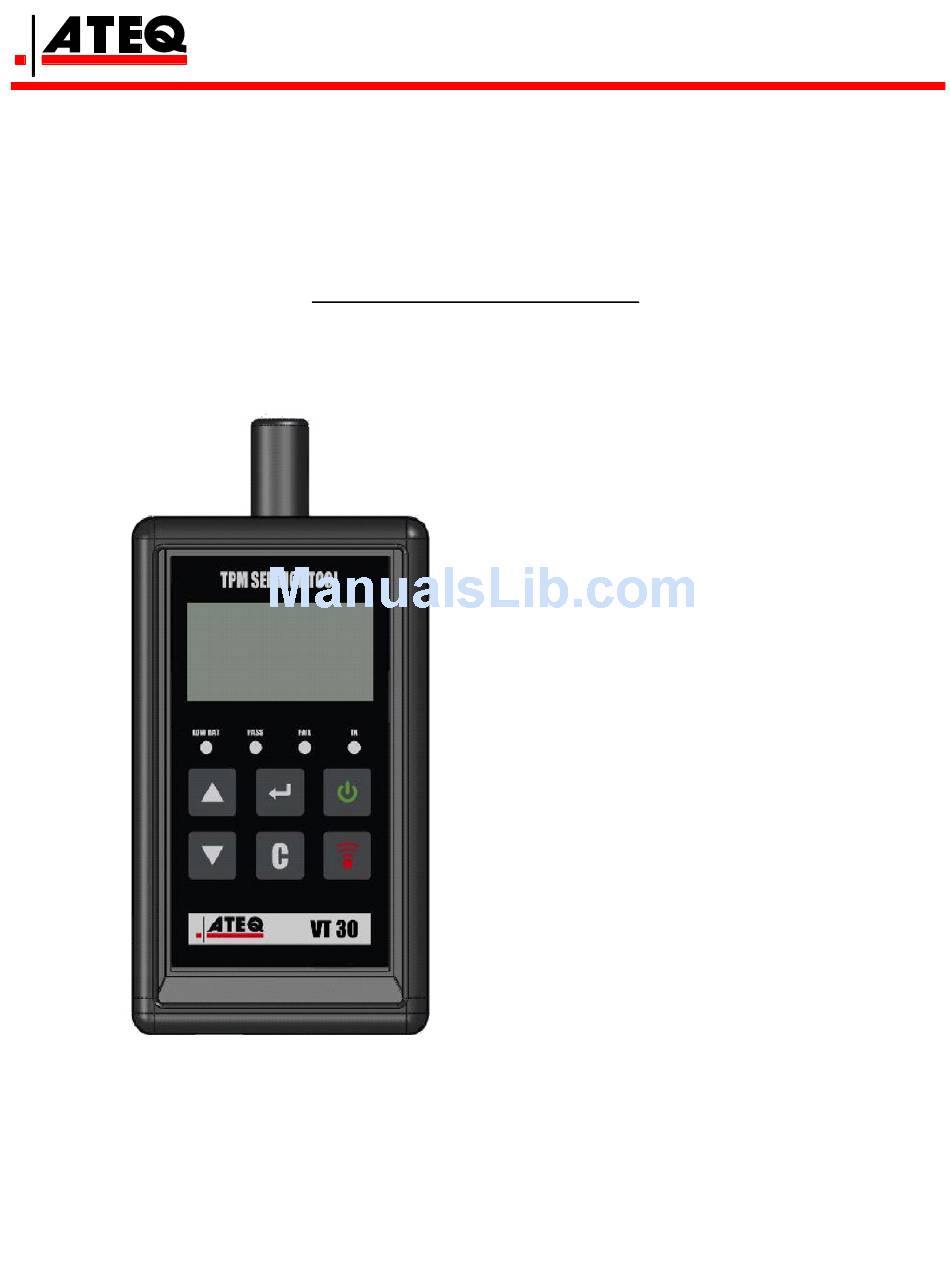

- Page 1 Quick Reference Guide VT30 TPM SERVICE TOOL VT30 Version: MJC-1409-US2 QRG3814d...
-
Page 2: Table Of Contents
A3 - USB connector – page 4/10 Section B - UPDATE THE TOOL B1 - Install WebVT software – page 5/10 B2 - VT30 boot mode – page 5/10 B3 - Update the tool – page 6/10 Section C - TRIGGERING SENSOR(S) C1 - Testing a TPM Sensor –... -
Page 3: Section A - General Description

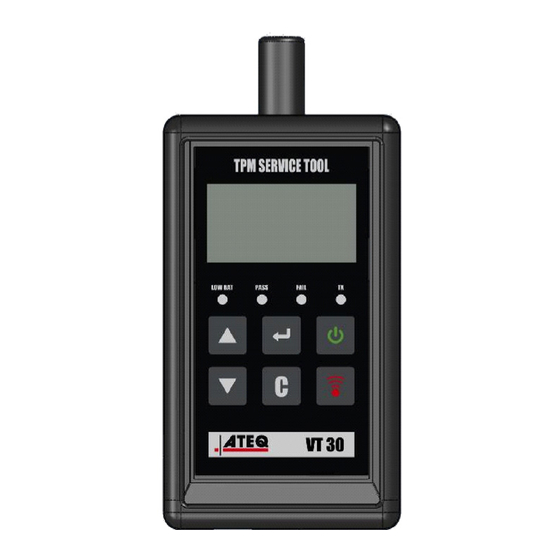

The instrument interacts with the smart valves to assist technicians service Tire Pressure Monitor Systems (TPMS). VT30 is capable to trigger all known sensors. A1 - FRONT FACE LF Antenna... -
Page 4: A2 - Power Supply
A2 - POWER SUPPLY The VT30 device operates with 9 Volts batteries 6LF22 / 6LR61 types, standard or rechargeable. Replace the battery or charge the rechargeable battery when low bat light is flashing Please recycle the batteries do not put them in the dustbin. -
Page 5: Section B - Update The Tool
Note: to order annual update software part number, please see your dealer for availability and pricing. B2 - VT30 BOOT MODE To update the tool with the WebVT software, you must put the VT30 into boot mode. Step 2 – Device off, press and hold the BOOT 0010084 V1.04... -
Page 6: B3 - Update The Tool
B3 - UPDATE THE TOOL BOOT 0010084 V1.04 USB : DISCONNECTED Step 1 – Put the device into boot mode. S/N:K300-14000 Step 2 – Connect the USB cable from BOOT 0010084 V1.04 USB : CONNECTED your PC to the device. The device S/N:K300-14000 confirms the connection. -
Page 7: Section C - Triggering Sensor(S)
SECTION C - TRIGGERING SENSOR(S) C1 - TESTING A TPM SENSOR Step 1 – Select the "VEHICLE MAIN MENU SELECTION" menu and confirm selection >VEHICLE SELECTION RKE TEST with the key. SETTINGS Step 2 – Select the vehicle brand on the VEHICLE SELECTION screen by using the keys... - Page 8 Step 5 - The tool will vibrate/beep after receiving the sensor information. The tool will display the sensor ID, pressure, CHRYSLER LEFT FRONT 6FF79 32.24 PSI and sensor state of the valve that is 78°F 1.0 g triggered. If the tool does not receive the BAT:OK 315 MHz (C) MENU...
-
Page 9: C2 - Results Description
78°F 1.0 g pressure Tire internal BAT:OK 315 MHz temperature (C) MENU ( ) NEXT (T) START Sensor's battery status Note: The VT30 will identify the sensor information that is transmitted. Not all sensors transmit every piece of information shown.
