Fire Pro FP510V User Manual

Smoke Alarm Device User Manual
Model number: FP510V
Thank you for purchasing our smoke alarm device. Please take
a few minutes to read the user's manual thoroughly and
familiarize yourself and your family with its operation. And
save it for future reference.
Diagram 2 will help you determine the correct location of safety
products that will help make your home a safer place.
Diagram 1
Product Specifications:
POWER: built-in DC3V(CR123A) Lithium battery

(battery not replaceable)
OPERATION CURRENT:<8uA

(alarm)
ALARM VOLUME: >85dB(A) at 3 meters

ALARM SENSITIVITY: 0.130-0.200dB/m

SILENCE TIME: approx. 10 minutes

SMOKE ALARM DEVICE SOUND PATTERN:

ISO8201(BI 0.5s - pause 0.5s – BI 0.5s – pause 0.5s – BI
0.5s – pause 1.5s, with the red LED flash, repeat this alarm
pattern.)
COMPLY WITH: AS3786:2014

Description:

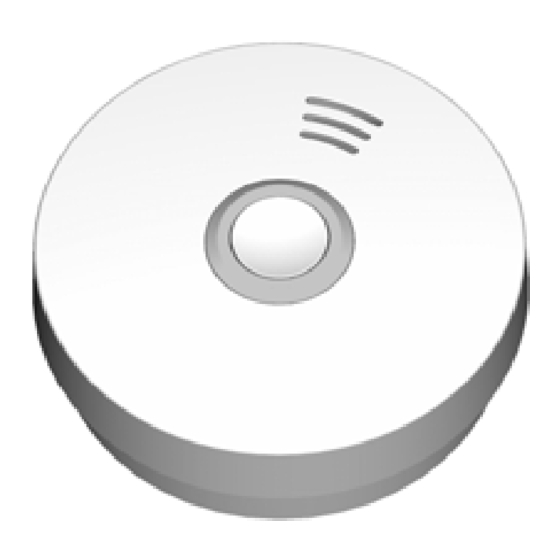

The unit is a photoelectric smoke alarm device. With the
photoelectric technology, it is more sensitive to detecting slow
smolder fires which general thick, black smoke, a little heat and
may smolder for hours before bursting into flames. The smoke
alarm device does not contain the radioactive material which is
harmless to the environment.
The smoke alarm device should be installed in every room
(except the bathroom and kitchen), and every other area of the
home, making sure the people in the home will be able to hear
and respond to the alarm sound. For minimum protection, you
should fit an alarm respectively for the hallways, living room,
bedrooms and child rooms, each unit shall be placed in the
middle of the ceiling of each room to protect.
Typical single storey dwelling with recommended:
Ref：ST508E
AS 3786:2014
Lic.SMK40627
SAI Global
(standby), <70mA
Install a smoke alarm device on the ceiling or wall inside each
bedroom and in the hallway outside each separate sleeping area.
If a bedroom area hallway is more than 30 feet long, install a
smoke alarm device at each end. If there is a basement: install a
smoke alarm device on the basement ceiling at the bottom of
the stairwell.
Typical multi-storey dwelling with recommended protection.
Install a smoke alarm device on the ceiling or wall inside each
bedroom and in the hallway outside each separate sleeping area.
If a bedroom area hallway is more than 30 feet long, install a
smoke alarm device at each end install a smoke alarm device at
the top of a first – to- second floor stairwell.
Important Safety Information:
1: The test button accurately tests smoke alarm device functions.
Do not use any other test method. Test smoke alarm device
weekly to ensure proper operation.
2: If you're sure it isn't a really alarm, open windows or fan the
air around smoke alarm device for silence it
3: Observe and follow all local and national electrical and
building codes for installation.
4: This smoke alarm device is designed to be used inside a
single family only. In multifamily buildings, each individual
living unit should have its own smoke alarm devices. Do
not install in non-residential buildings. And this smoke
alarm device is not a substitute for a complete alarm system.
5: Install a smoke alarm device in every room and on every
level of the home. Smoke may not reach the smoke alarm
device for many reasons. For example, if a fire starts in a
remote part of the home, on another level, in a chimney,
wall, roof, or on the other side of a closed door, smoke may
not reach the smoke alarm device in time to alert household
members. A smoke alarm device will not promptly detect a
fire except in the area or room in which it is installed.
6: Smoke alarm device may not alert every household member
every time. The alarm horn is loud in order to alert
individuals to a potential danger. However, there may be
some circumstances where a household member may not
hear the alarm (i.e. outdoor or indoor noise, sound sleepers,
drug or alcohol usage, the hard of hearing, etc.). If you
suspect that this smoke alarm device may not alert a
household member, install and maintain specialty smoke
alarm devices. Household member must hear the alarm's
warning sound and quickly respond to it to reduce the risk
of damage, injury, or death that may result from fire, If a
household member is hard of hearing, install special smoke
