Summary of Contents for Fieldbook F1

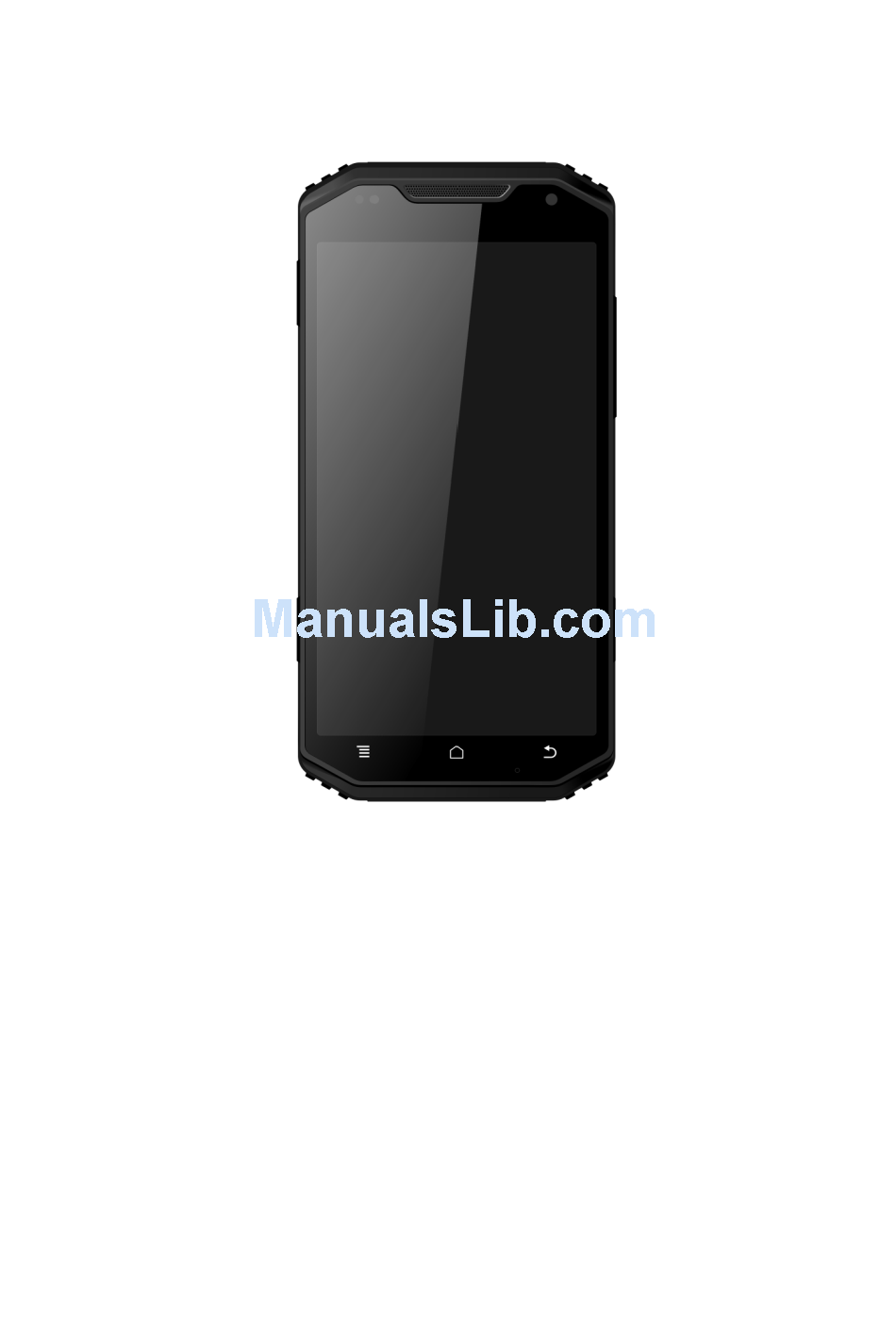

- Page 1 Fieldbook F1 Getting Started Manual Getting Started Manual Page 1 of 16...
-
Page 2: Security And Performance
Security and performance 1、It is strictly prohibited to use sharp objects to touch, and blow mobile phone screen, do not use cell phones to immerse in deep water, so as not to damage the mobile phone waterproof function. 2、Please don't put mobile phones in high temperature environment (high temperature will cause the battery heat), otherwise it may cause fire or explosion. - Page 3 help or service provider. Statement: 1、The company reserves do not make advance notice of the right products to improve the performance of the company's products reserves the final interpretation. The company is committed to improve the quality of the products, and constantly introduce updated version, so the instruction and the function of the products contained or a slightly different design, specification, please refer to your mobile phone, such changes will fail to notice additionally, please forgive me.
- Page 4 Started to use your phone： Power on: Press and hold the power key button for 3 seconds Power off: Press and hold the power key button for 3 seconds, select ‘power off’ in the menu option. Power Key Volume Key Front camera Receiver Rear camera...
- Page 5 Insert the SIM Card and T-Flash card ： 1. Remove the back cover: Loosen the screws on the back side – to rotate both the screws anti-clockwise until open the bake cover as shown in Jig-1 Jig-1 2. Take off the back cover: Remove the back cover by lifting it up from the bottom part as shown in Jig-2 Jig-2 3.
- Page 6 shown in Jig-3 Jig-3 4. Insert T-Flash card: Open T-Flash card holder and insert T-Flash card into the slot, then close T-Flash card holder as shown in Jig-4 Getting Started Manual Page 6 of 16...
-
Page 7: T-Flash Card
Jig-4 5. Insert the back cover: Insert the back cover and rotate four screws clockwise to lock the back cover as shown in jip-5 Jig-5 Attention: Please power off the phone before plug in or pull out the SIM card. T-Flash card：... -
Page 8: Home Screen
Using of touch screen: Single Click: To select an icon. For example, click dial to open the keypad which will be displayed on the screen. Double Click: To zoom-in or zoom-out. For example, to zoom-in or out of a photo, click twice when viewing a photo or browsing on the internet. - Page 9 Status Bar Message Board ◆ Create shortcuts and screen Click the main screen and then Pop-up list of application. Hold and click the application icon which you want to add a shortcut. Interface white transparent box will pop up analog screen area. Drag the application icon to the area you want to place, release the hand that add.
- Page 10 ◆ Add widgets Long press the blank screen, pop-up screen Tap the widget button to jump to the widget interface, long press to add widgets, the interface will pop up white transparent box simulation screen area, drag the application icon to be placed area, release the hand that the addition is complete.
-
Page 11: Set Wallpaper
◆ Set wallpaper Long Point Home screen pop-up "wallpaper" and "widgets" button. Click the "wallpaper" button to enter the setup screen wallpaper. Slide the bottom of the screen wallpaper zoom view can be switched wallpaper. After Select to set wallpaper, Click "Set wallpaper" that wallpaper setting is completed. As shown the following figure: ◆... -
Page 12: Manage Applications
Location, Data connection, Flashlight, HotKnot , Audio profiles . As shown the following figure: ◆ Manage applications Install applications: Enter Settings -> Storage -> Default write disk (You can select "Phone storage" and "SD card") -> Slide down the screen to find the "Downloads" button-> Click to go to (Locate the installation software (.APK), then follow the instructions step by step installation) Uninstall application: Enter Settings->Apps->Downloaded, then will be able manage and remove installed applications. - Page 13 Extend the battery life: Some functions may use up more power, which eventually shorten the battery life. You could: Close all the wireless connection when not in use Bluetooth, WLAN or GPS. Reduce the brightness and shorten the screen timeout to save battery, or press power key to shut down the screen when the phone is not in use.
-
Page 14: Troubleshooting
Troubleshooting 1、My phone is frozen or cannot switch on Try pressing the reset button on the left side of the phone. 2、 My phone cannot connect to a network or “No service” is displayed Try connecting in another location. Verify the network coverage with your operator. 3、... -
Page 15: National Restrictions
National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country restrictions Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 MW... - Page 16 SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Before a new mobile phone is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g.
