Summary of Contents for Lumantek ez-LINE VM16

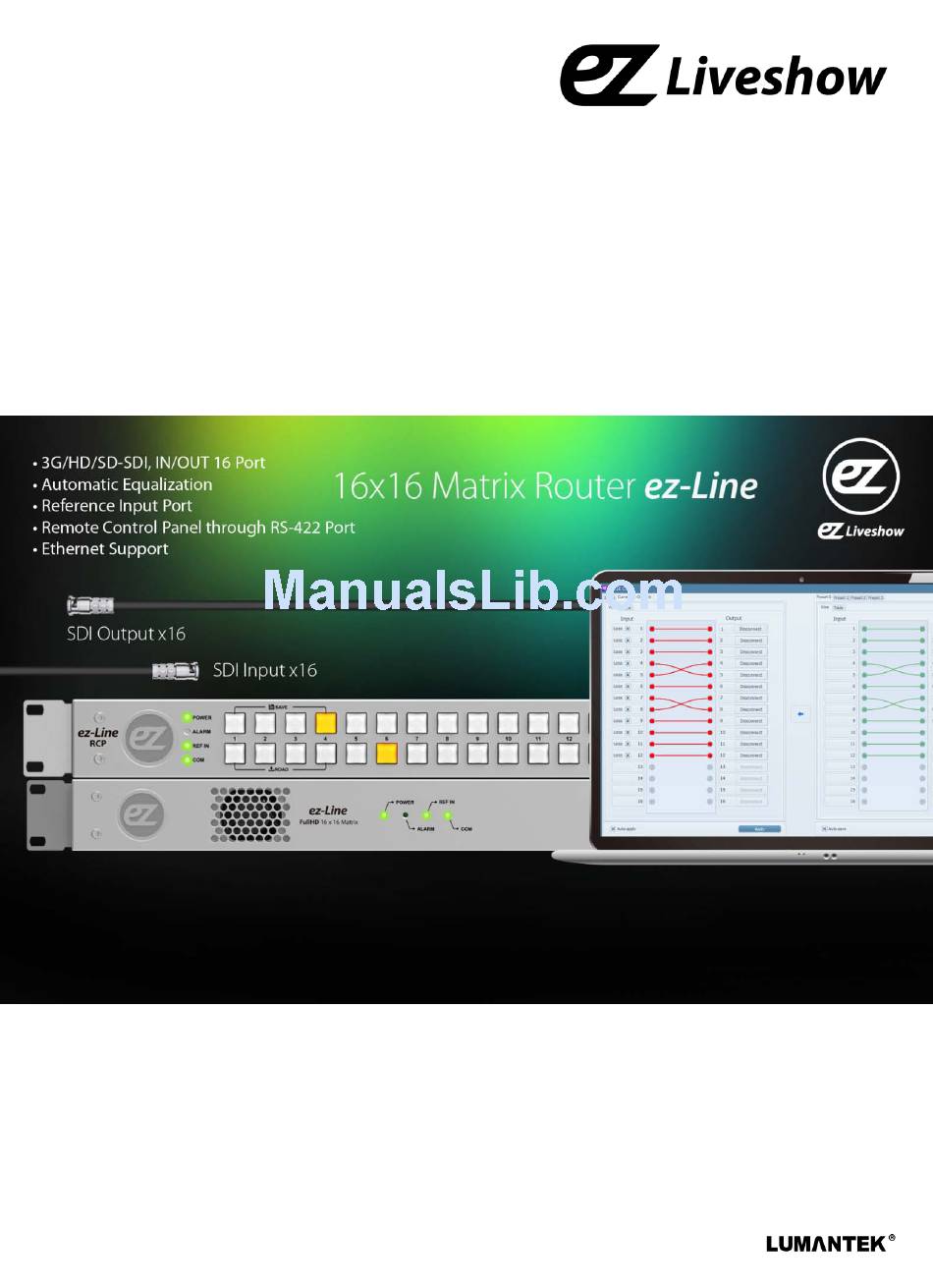

- Page 1 VM16 / Manual Updated July. 2016 By LUMANTEK manual ez-LINE VM16 FullHD 16x16 Matrix Router (SD/HD/3G-SDI)
- Page 2 This document contains information that is proprietary to LUMANTEK.CO., LTD. The information in this document is believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights to third parties resulting from its use.
-
Page 3: Installation Precautions
Avoid wearing loosened clothes or accessories during installation/Operation. Avoid any unnecessary actions that may damage/harm system or personnel. Do NOT open the system unless advised by Lumantek representative. Lumantek takes no responsibility on units with broken RMA seals. Power Precautions Please check cable overload before connecting the system to the power supply. -
Page 4: Table Of Contents
VM16 : Manual Contents 1. Introduction ------------------------------ 2. VM16 System Information --------------- 2.1 VM16 Main Frame Interface ----------- 2.2 VM16 RCP Interface --------------------- 2.3 Product Components ------------------- 2.4 System Operation ----------------------- 3. Specifications ----------------------------- 4. Communication Protocol ---------------- 4.1 Transport Packet Structure.-------------- 4.2 Transport Procedure---------------------... -
Page 5: Introduction
VM16 : Manual 1. VM16 (FullHD 16x16 Matrix Router) Introduction ez-line (VM16) is a SDI Matrix Router which support SD/HD/3G-SDI. it consists of 16 Input and 16 Output Ports. This equipment can be controlled with USBS 2.0, RS422, Ethernet port via the communication protocol. -
Page 6: Vm16 System Information
VM16 : Manual 2. VM16 Interface 2.1 VM16 Main Frame Interface < Front > Power Switch ① Status LED ② ① LED Status POWER : Indication of power input, Green light indicates power on. ALARM : Red light will turned on if there is error on internal communication. -
Page 7: Vm16 Rcp Interface
VM16 : Manual 2.2 VM16 RCP Interface < Front > ② SDI IN ⑤ PANEL Lock ④ SHIFT ① Status LED ③ SDI OUT ⑥ LOAD/SAVE ① Status LED - POWER : Green light will turned on when the power is on. -
Page 8: Product Components
VM16 : Manual 2.3 Product Components - Basic Components ① VM16 Main Frame ② POWER CABLE - Optional RCP ① Remote Control Panel... -
Page 9: System Operation
VM16 : Manual 2.4 Product Operation 1) UI connection using RS422 or USB2.0 Communication ① Run EXE file -double click on “ “ ② Select RS422 Tab ③ PC COM recognition. Disabled if recognition failed. ④ Press “Connect” ⑤ Device Information and Network Setting will be updated when communication is connected. - Page 10 VM16 : Manual 2) UI connection using Ethernet Communication ① Run EXE file -double click on “ “ ③ Setting for default IP address. ② Select Ethernet Tab. ④ Press “Connect” ⑤ Device Information and Network Setting will be updated when communication is connected.
- Page 11 VM16 : Manual ⑥ Communication failure lead to “No response from device” message on screen. Connect through RS422 communication check IP address and change to desired IP address. 3) Changing IP address using RS422 Communication.. ① Run EXE file -double click on “...
- Page 12 VM16 : Manual 4) Setting for Input/Output S/W UI ① Using RS422 or Ethernet communication, connect to device UI. ② Select Current In-out Link Tab. ③ Input/Output setting is set by dragging mouse from input to output or output to input.
- Page 13 VM16 : Manual 5) Load and Save feature for input/output settings ① Use RS422 or Ethernet communication to connect the equipment and S/W UI ② Support up to 4 Preset settings. (below showing Preset 0 setting) ③ Input/output setting is set by dragging mouse from input to output or output to input.
- Page 14 VM16 : Manual 6) RCP Connection Using RS422 or Update Port ① VM16 Main Frame RS422 setting ② VM16 RCP (Remote Control Panel RS422 setting ③ VM16 Main Frame and RCP are connected by Direct Cable.
-
Page 15: Specifications
VM16 : Manual 3. Specification Data Input SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16 Reference Input: B.B , TRI (BNC 75Ω) x1 Data Output SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16 Connections Remote Control: RS-422 (RJ45)x1 Ethernet: Ethernet Support (RJ45)x1... -
Page 16: Communication Protocol
VM16 : Manual 4. Communication Protocol 4.1 Transmission Packet Structure It can communicated with common serial terminal software and Command based ▶ communication, also using checksum to allow error detection. Index Index Space Command/ Space Parameters Space Check Carriage... -
Page 17: Parameter List
VM16 : Manual 4.3 Parameter List Category Parameter List # Input Channel Category 0: SDI Input 1 1: SDI Input 2 2: SDI Input 3 3: SDI Input 4 4: SDI Input 5 5: SDI Input 6 6: SDI Input 7... -
Page 18: Command List
VM16 : Manual 4.4 Command List Command Description Set command for 16 outport associated 16 inport set_cfg_all Param1~Param16, refer to Input Channel List get_cfg_all Get command for 16 outport associated 16 inport Set command for specified 1 outport associated 1 inport... -
Page 19: Response/ Notification List
VM16 : Manual 4.5 Response/ Notification List Response/ Description Notification Communication success error_too_short Communication failure: checksum digit is short Communication failure: checksum parameter is not right, error_bad_checksum checksum digit is too long. error_checksum Communication failure: checksum value is not right... -
Page 20: Appendix
VM16 : Manual 5. Appendix Appendix A checksum_dis AFBC u m _ 99 107 Decimal : 1298 = hexadecimal 0x0512 0 + A = A 5 + A = F 1 + A = B 2 + A = C...
