Model:
PSW-70300A

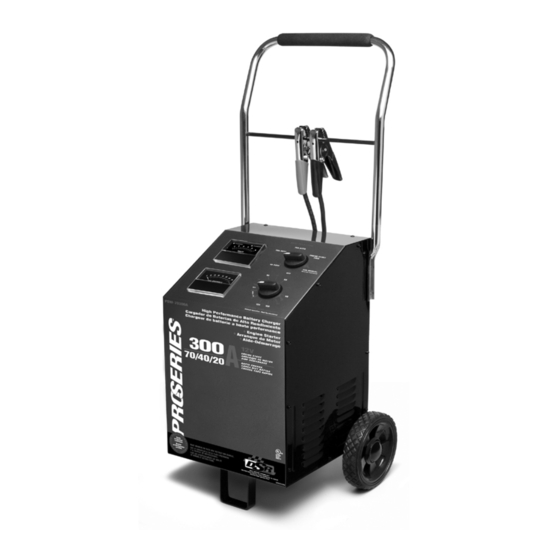

Automatic Battery Charger
Voltage: 12
Amperage : 4, 20, 40, 70
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual
will explain how to use the battery charger safely and effectively. Please read and follow these
instructions and precautions carefully.
OWNERS MANUAL
Advertisement
Table of Contents
Related Manuals for Proseries PSW-70300A
Summary of Contents for Proseries PSW-70300A
- Page 1 Model: OWNERS MANUAL PSW-70300A Automatic Battery Charger Voltage: 12 Amperage : 4, 20, 40, 70 PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively. Please read and follow these...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................3 PERSONAL SAFETY PRECAUTIONS................3 ASSEMBLY INSTRUCTIONS ..................4 GROUNDING AND AC POWER CORD CONNECTIONS ..........5 CONTROL PANEL ......................5 OPERATING INSTRUCTIONS ..................6 CALCULATING CHARGE TIME ..................8 MAINTENANCE AND CARE ..................9 TROUBLESHOOTING ....................9... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING – RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE CHARGER. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS It is important to fully assemble your charger before use. Follow these instructions for assembly. Item PARTS TOOLS NEEDED (2) axle brackets 3/8" wrench (for mounting foot) (1) axle with pin holes 5/16" wrench (for mounting wheels) (2) wheels 1/4"... -
Page 5: Grounding And Ac Power Cord Connections
GROUNDING AND AC POWER CORD CONNECTIONS This battery charger is for use on a nominal USING AN EXTENSION CORD 120 volt circuit and has a grounded plug. The use of an extension cord is not The charger must be grounded, to reduce recommended. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS WARNING: A spark near battery may cause 6. Position yourself and the “negative post battery explosion. extension” cable as far away from the battery as possible, and connect the CHARGING A BATTERY IN THE VEHICLE NEGATIVE (BLACK) charger clamp to 1. - Page 7 DESULFATION MODE 5. Crank the engine until it starts or 3 seconds pass. If the engine does not start, wait 3 If the battery is left discharged for an minutes before cranking again. NOTE: extended period of time, it could become During extremely cold weather, or if the sulfated and not accept a normal charge.
-
Page 8: Calculating Charge Time
USING THE ALTERNATOR 2. Set the charge rate switch and the timer PERFORMANCE TESTER to the OFF position. This battery charger has a built-in alternator 3. Plug the charger’s AC power cord into the tester that displays an estimate of the AC power outlet. -
Page 9: Maintenance And Care
MAINTENANCE AND CARE A minimal amount of care can keep you • Coil the input and output cords neatly when battery charger working properly for years. storing the charger. This will help prevent accidental damage to the cords and charger. •... - Page 10 PROBLEM POSSIBLE CAUSE REASON/SOLUTION The charger is making Circuit breaker is cycling. The settings may be wrong. an audible clicking Check the charger settings. sound. Battery is defective. Have the battery checked. Shorted battery cables Check for shorted cables or or clamps.
