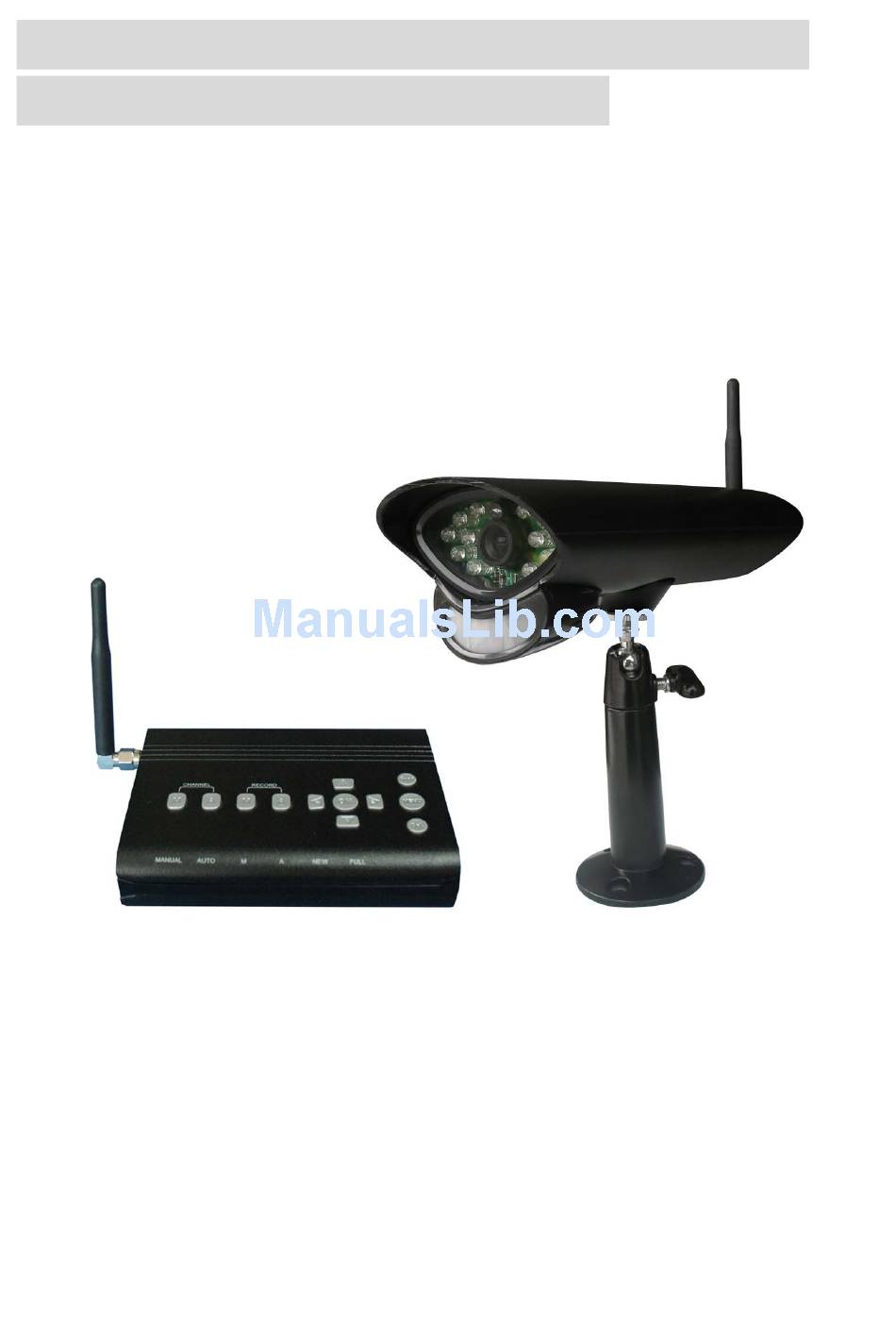

- Page 1 DIGITAL WIRELESS CAMERA SYSTEM WITH SD CARD RECORDING INSTRUCTION MANUAL MODEL: CR6324...
-
Page 2: Camera Features
Features • Digital wireless technology provides excellent image quality and clarity • Interference free, secure and private signal ① • Up to 300ft wireless transmission range • SD card recording • Safety warning feature notifies you when out of range ②... -
Page 3: Wireless Receiver
Wireless Receiver 1. Receiver Antenna – receives signals from the camera(s). Adjust the antenna to vertical position for better signal reception. 2. DC 9V Power Input – Connect the included DC 9V power adaptor to power the receiver. 3. A/V Out Port – Connect the included A/V cable to view video on a TV or monitor, or record to a VCR/DVR. -
Page 4: Wireless Receiver Installation
Menu –Press to access the receiver menu. Press the button again to exit. OK – In viewing mode, press to enter playback interface for recorded videos. Navigation/OK – Use the buttons to control the receiver in Quad Mode, Menu Mode and Playback mode. -
Page 5: Wireless Camera
Wireless Camera Front & Side Controls 1. Camera Antenna – Sends signals to the receiver. 2. AC Adaptor Jack – Plug the AC adaptor to the jack for camera’s power supply. 3. Wall Mounting Bracket – Use the bracket to mount the camera on a wall or other flat surfaces. -
Page 6: Installation Warnings
Installation Warnings Aim the camera(s) to best optimize the viewing area: Select a location for the camera that provides a clear view of the area you want to receiver, which is free from dust, and is not in line-of-sight to a strong light source or direct sunlight. -
Page 7: Remote Control
Remote Control The remote control is supplied to operate the receiver. It includes all the operations of the buttons on the receiver upper cover. Quad – Press Quad button to view the images in quad mode. Press (Channel) A, (Channel) M or Quad button again to exit from quad mode. -
Page 8: Viewing Mode
Viewing Mode 1. Signal Indicator – The signal indicator shows the strength of the signal being received from the camera. Signal Indicators: 2. Recording Indicator – When the receiver is recording, the red indicator ●REC will be shown on the LCD screen. -
Page 9: Sd Card Recording
SD Card Recording The system is designed for SD card recording. You can manually record the video at your desire or the receiver records when there is motion detected by the cameras. Before recording, you need to insert a SD card to the SD card slot. The system can support the size of up to 16GB SD card. Recording Mode Auto Recording Press (Record) Motion button on the remote control or (Record) A button on the receiver to set the... -
Page 10: Record Menu
Accessing Menu System The functions of the Menu button and navigation buttons/Enter button on the remote control are the same as the navigation buttons/OK button on the upper side of receiver. In this section we take the remote control as example to show the menu operation. Press the Menu button on the remote control to enter menu system. -
Page 11: Pairing Menu
- Schedule Record: Set the schedule recording time for each day. Time can be set from 00:00 to 23:59. Then select the menu ON to enable schedule recording. - Overwrite: Decide whether to cover the initial recorded files when SD card is full of memory. Pairing Menu The system comes with camera(s) that have already been paired. - Page 12 - AV Out: Select the TV system when outputting the video/audio to TV, DVR/VCR or other viewing/recording devices. - Format: Select Yes to format the SD card. After formatting, all the data stored in the SD card will be deleted. Note: Be cautious to use this function.
-
Page 13: Camera Pairing
Camera Pairing The system comes with camera(s) that have already been paired. These cameras will communicate with the receiver once powered on. The pairing function assigns each camera to a different channel on the wireless receiver (up to 4 cameras), and is necessary for configuring additional cameras. NOTE: It is highly recommended to pair the cameras to the receiver before permanently mounting the cameras. -
Page 14: Troubleshooting
Troubleshooting If you have problems with the system, there is often a quick and simple solution. Please try the following: Problem Solution 1. Check all connections to the camera. Make sure the adaptor is plugged in. No picture from a camera 2. -
Page 15: Appendix #1 - System General Specifications
Appendix #1 – System General Specifications Operating Frequency Range 2.400GHz~2.483GHz TX Power 14dBm RX Sensitivity -81dBm Type of Spread Spectrum Used FHSS Type of Modulation Used GFSK Data Rate 2Mbps Communication Range 100m Line in Sight Appendix #2 - Receiver Specifications Resolution H: 480 RGB, V: 234 A/V Output Resolution/ Frame Rate... - Page 16 Dimension 175mm x 156mm x 32mm Environment Rating IP56 Regulation Compliance FCC/ CE RoHS Compliance Camera Housing Material Aluminum FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
