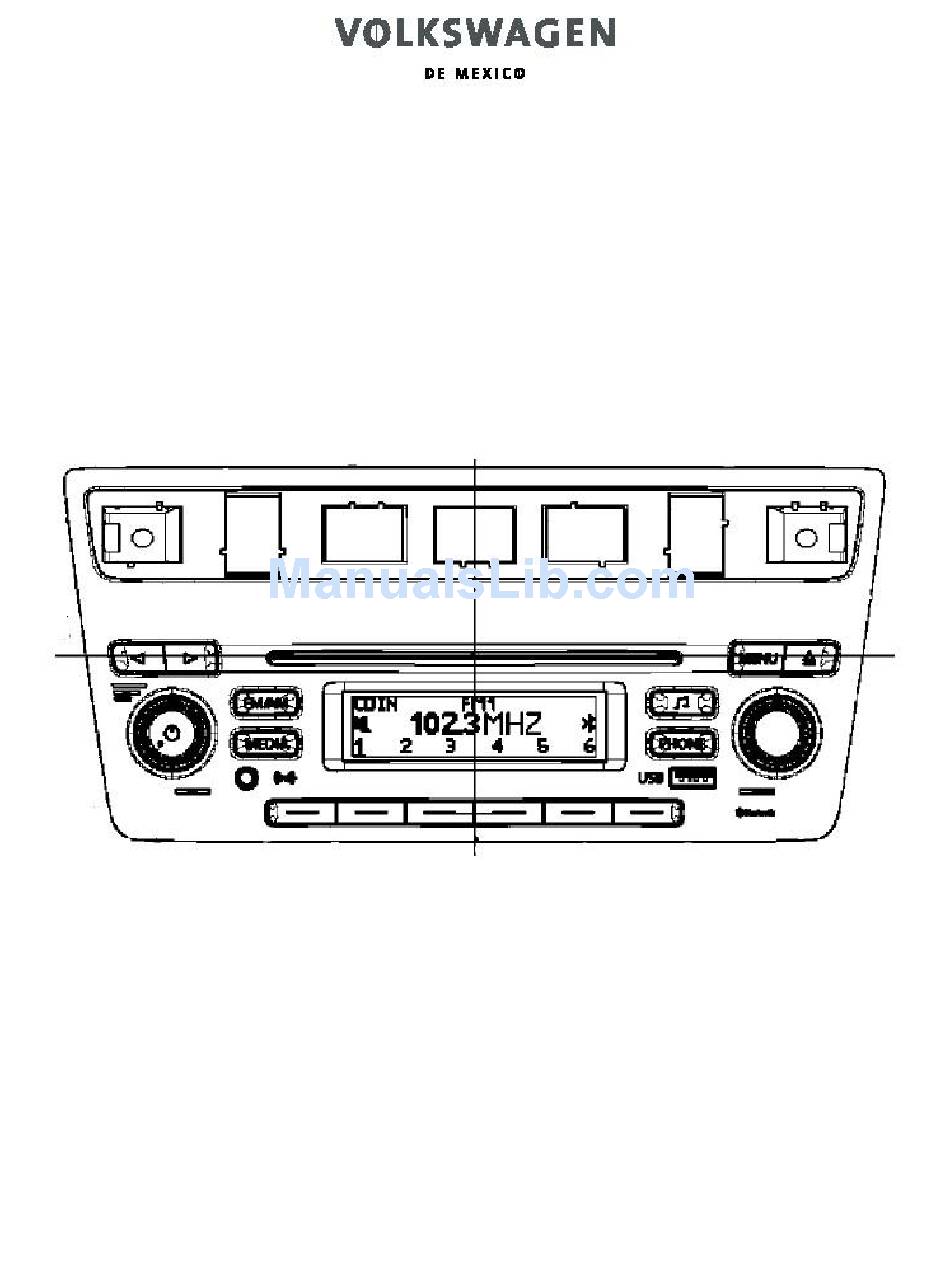

5U0 035 152
User Manual
Prepared by Hector Gomez
HMI/ VWM DTEE / 52-222-2307414
DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011
Page 1 of 65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5U0 035 152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Volkswagen 5U0 035 152

  • Page 1 5U0 035 152 User Manual Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 1 of 65...

  • Page 2: Table Of Contents

    Contents 1. Anti-theft coding 2. Factory Mode (code bypass mode) 3. Radio ON/OFF 4. Radio Volume Adjustment 5. FM/AM Operation 6. MEDIA Operation 7. CD Operation 8. CD-MP3 / USB Operation 9. AUX Operation 10. BT AUDIO Operation 11. iPod Operation 12.

  • Page 3: Anti-Theft Coding

    1. Anti-theft coding Role of radio coding Removing the unit from the vehicle (for example, if you take your vehicle to the dealership for service and requires disconnecting the battery) will be necessary to recode the radio manually. If you install the radio in another vehicle, the recode also must be restored manually.
  • Page 4 Incorrect numeric code If you have accidentally entered a wrong number, “CODE 1 SAFE” will appear blinking in the display, then “CODE 1 1000”. You can repeat the process again. The number of attempts will be displayed. If you accidentally re-enter a wrong number again, “CODE 2 SAFE” will appear fixed on screen. The unit will be blocked per 1 hour.

  • Page 5: Radio On/Off

    3. Radio ON/OFF Push left encoder to switch radio ON/OFF. Without ignition key inserted (Kl.30: ON, Kl.15 & Contact S: OFF), push left encoder may switch on radio to work per 30 minutes, after 30 minutes, radio will power off automatically. Each time radio turns on, radio’s audio is started immediately (in the LSM) and user can do any adjustment.

  • Page 6: Radio Volume Adjustment

    4. Radio Volume Adjustment Rotating left encoder may adjust radio volume level; radio will display the volume level bar per 5 seconds. Rotate clockwise, increase radio volume; Rotate anti-clockwise, decrease radio volume. For FM/AM modes: rotate the volume 0 will mute the radio’s sound, restricted function: all of FM / AM modes with exception of volume adjustment.

  • Page 7: Fm/Am Operation

    5. FM/AM Operation 5.1 Band Selection Non Radio mode, short press HKbutton may switch to FM 1 (if radio turns on first time) or LSM. Short press [FM / AM] button repeatedly will select bands in the following order: FM1FM 2FM ASAMAM ASFM 1. If the user is listening a station at moment to change the band FM, this station is kept without change trough the band changes.
  • Page 8 AM preset memories. Display will show “INITIAL AS” during the process. The stations will store in the soft key buttons 1 to 6 since lower to higher frequency. Radio display will show 1 to 6 in the bottom line. Function is repeatable for any number of times. All presets have to be prepared with real stations.
  • Page 9 By Initial Auto Store, for FM/AM AS level, the preset stations are completely same as by Auto Store. For FM2, if the stations are =< 6, then FM1 is copied to FM2. If the stations are > 6, then FM1 and FM2 are treated as one FM level. If none station is found, radio will display “NO STATION"...
  • Page 10 SCAN indication is blinking 1.5 seconds (750ms on/750ms off) in the display during the scanning. 5.6 Manual Tune Rotating theright encoder may manually tune radio frequency. Rotate clockwise, increase the frequency. Rotate anti-clockwise, decrease the frequency. 5.7 Preset Stations List Function not necessary.

  • Page 11: Media Operation

    6. Media Operation It is possible to connect to the radio the following devices additional to CD player operation: • USB memory or iPod • AUX connection • Bluetooth audio device (A2DP/AVCRP profiles) Radio is in FM mode and previous mode was CD, and the CD inserted in the slot. Short press HK button and then the radio audio source will change to CD mode;...
  • Page 12 If CD / USB / IPOD /SD card has not files, radio will display NO FILE per 2 seconds and radio reverts to LSM. If CD / USB / IPOD /SD card has files, but they are not supported by radio, radio will display NOT SUPPORT per 2 seconds and radio reverts to LSM.
  • Page 13 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 17 of 65...

  • Page 14: Cd Operation

    7. CD Operation 7.1 CD insertion At moment to insert CD, the display will show READING all of the time until radio is ready to play and then changes to active CD mode. During reading process, volume adjustment and any other functions are not allowed; radio is muted.
  • Page 15 7.3 CD Mode Select Non CD mode, short press HK button may switch to CD mode if it was the LSM and then plays the inserted CD. If CD was not LSM, short press SK 1 [ ] button and then plays the CD inserted. 7.4 Track Up/Down Rotating right encoder or short press left/right arrow button may select the previous or next track to play.
  • Page 16 Keep pressed left/right [ ] arrow buttons may fast rewind or fast forward, release button will cancel fast playing action. Fast rewind operation in the first track of the CD must stop at the beginning of this track and resume normal operation;...
  • Page 17 Cancel the scanning is short press the right encoder during the 10 seconds of track playing (playback remains in this track). If current track play time 3 sec, short press button during scanning, radio will cancel the scanning and will play the previous track. If current track play time >...
  • Page 18 If the CD TEXT has not information, radio will not display any indication. Each time short press SK 1 [] button will change according to the information showed, the title, artist or album name must be scrolled if name length is large, radio will display “TITLE, ARTIST or ALBUM” and show the underline of INF, it means INFO function has been activated, after 15 seconds the information will revert to title indication and will delete the underline of INF.
  • Page 19 8. CD-MP3 / USB Play Operation 8.1 CD-MP3 / USB Mode Select Select CD MP3 / WMA mode is same as 7.3 CD Mode select Select USB MP3 / WMA mode is same as 6. Media operation 8.2 CD-MP3 / USB / SD card indications In the upper line, display will show the mode to play: CD or USB.
  • Page 20 Short press SK 2 [] button may switch to next folder; short press SK 4 [ ] may switch to previous folder. The radio will show the Folder and file numbers per 2 seconds and then shows the file name. 8.5 File/Folder List Short press SK 5 [] button to enter file/folder list, radio will display all the available files and folders.
  • Page 21 Playback order of tracks The root directory of the source is recognized as folder F0. 8.6 Fast Forward/Rewind Long press HK buttons may fast rewind or forward play current file, release button will cancel fast play operation. Fast rewind operation in the first file of current folder must stop at the beginning of this file and resume normal operation;...
  • Page 22 8.7 MIX play Short press in sequence SK 3 [ ] button will switch in order: MIX Folder -> MIX All -> MIX OFF. Radio must play randomly all of the tracks in the folder / CD / USB, once all the tracks have been played, a new random track list must be generated.
  • Page 23 In the "one folder" condition: "F+/F-" "RPT" "RPT F" "MIX F" "MIX A" are required 8.8 Scan Play Enable scan play function with short press the right encoder. Radio will scan all the files of current folder and subfolders, each file will be played for 10 seconds. Radio will stop scan function automatically after all the files of current folder and subfolders have been played 1 cycle.
  • Page 24 The 3 short press [ ] button will disable repeat function, revert to normal play. If select to repeat file/track, radio will repeat the playing of current file/track, it means if reach the end of file/track, radio will play this file/track from beginning. If select to repeat folder, radio will continue playing all of the files/tracks in current folder, it means if reach the end of last file/track in the current folder, radio will play the first file/track in the current folder.
  • Page 25 8.11 Scroll Display ID3 Radio will display the file ID3 information automatically, in case ID3 is long: scrolling complete information one time 5 seconds showing only part of information scrolling complete information one time and so on. ID3 will convert automatically from minuscule to capital letter. For example: ANDREA BOCCELLI VIVO POR ELLA display scrolling complete information: ANDREA BOCCELLI VIVO POR ELLA (one time) display shows only part of information: ANDREA BOCCE LLI (per 5 seconds)
  • Page 26 8.12 Pause Rotate the volume 0 will pause the music, restricted functions: all of Media mode with exception of volume adjustment, muted speaker icon appears in the center line of display at the left side; resume music playback when increases the volume again, radio will display the volume level bar per 5 seconds (Bluetooth icon is not showed during volume bar indication).

  • Page 27: Aux Operation

    9. AUX Operation 9.1 AUX Mode Select Select AUX mode is same as 7. Media operation 9.2 AUX operation If there is an AUX connection, radio will display “AUX”. The function allowed in this mode is volume up/down only. Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 31 of 65...

  • Page 28: Bt Audio Operation

    10. BT AUDIO Operation (BT EDR 2.4GHz) 10.1 BT AUDIO Mode Select Select BT AUDIO mode is same as 7. Media operation 10.2 BT AUDIO operation If there is a BT AUDIO connection, radio will display “BT AUDIO”. In case of cell phones with AVRCP 1.3 or higher, radio display will show immediately the title.

  • Page 29: Ipod Operation

    11. IPOD Operation 11.1 IPOD Mode Select Select IPOD mode is same as 7. Media operation 11.2 IPOD indications After IPOD is connected to radio and read out, radio will play from the position where IPOD was connected. The initial status can be: IPOD play in playlists, artists, albums, songs, genres, composers or audio books. Per example, these are some examples of IPOD indications.
  • Page 30 11.3 Track Up/Down Short press HK [] buttons or rotate clockwise/counterclockwise the right encoder may select the previous or next file to play. If rotate knob continuously users can fast skip the tracks, the max fast skip track number is 5, and the 2 actions in 25 ms, it will be regard as 1 action.
  • Page 31 There is a triangle to indicate there is an upper level. Rotate the left encoder may decrease/increase radio volume level, radio display remains without change (browse track list), display will not show the volume bar. 60 seconds no action, short press left arrow button in the parent directory or long press right encoder will exit the browse list.
  • Page 32 11.7 MIX play Radio must play randomly all of the files in the current category, once all the tracks have been played, a new random track list must be generated. Short press SK 3 [ ] button, display will underline MIX, it means MIX function has been activated. Radio must play randomly all of the tracks in the CD, once all the tracks have been played, a new random track list must be generated.
  • Page 33 Cancel the scanning is short press the right encoder during the 10 seconds of track playing (playback remains in this track). If current track play time 3 sec, short press button during scanning, radio will cancel the scanning and will play the previous track. If current track play time >...
  • Page 34 BYEΨωφ .MP3 For some strange characters, radio will display “*”; example: BYE****.MP3 11.11 Scroll Display ID3 Same performance as section 8.11 Scroll Display ID3. 11.12 Pause Rotate the volume 0 will pause the music, restricted functions: all of Media mode with exception of volume adjustment, muted speaker icon appears in the center line of display at the left side;...

  • Page 35: Phone Operation

    12. Phone Operation 12.1 Bluetooth Operation Conditions Kl,15 Contact S Radio Bluetooth OFF/ON 12.2 Phone Operation Non Phone mode short press HK [ ] button will switch to Phone menu, it does not interrupt the current audio output. 12.3 Bluetooth Pairing. Case 1: no cell phone paired to radio.
  • Page 36 After user selects SK 1 [YES] in the radio and also in the device, pair is completed. If no action after 60 seconds, radio will switch to previous BT menu. If cell phone connects to radio, radio will display cell phone name, it must be scrolled if name length is large, BT icon and the indication “CONNECTED” per 2 sec;...
  • Page 37 Radio will disconnect the current cell phone and waiting for new phone cell. Pairing process will same as 12.3 Bluetooth Pairing, case 1. Radio will replace the new paired cell phone by the seldom used phone which latest time was earliest. And in the following case, NOKIA 5310 will be replaced by new phone.
  • Page 38 Rotate theright encoder to select the phone to be deleted; short press right arrow button or right encoder may select the phone focused on by the cursor (small filled triangle). Radio will display a slide bar if there are more than 4 phones.
  • Page 39 If cell phone connects to radio, radio will display cell phone name, BT icon and the indication “CONNECTED” per 2 sec; 5 sec timeout, radio will exit the BT menu display and reverts to LSM. The current audio output must remain without change.
  • Page 40 If the call ends or short press SK 6 [ ] or HK [ ] button, radio will switch back to LSM. 12.7 Redial a call In phone menu, short press SK 1 [ ] button Radio will display the latest 15 phone calls (answered phone: <; dialed phone: >; missed phone: !) and phone calls must be scrolled if name or number length is large;...
  • Page 41 If the dialed phone is rejected, radio will revert to previous mode. If the call is answered, radio will switch to active call mode. 12.9 Incoming Call In any mode, a phone call is coming, the radio will display the phone number of the call (total number will be fully displayed) or contact name.
  • Page 42 12.12 Call end During an active phone call, short press HK [ ] button or SK 6 [ ] button to end the current call and then revert to LSM. 12.13 Private / Handsfree - talking mode switch During an active phone call, short press SK 1 [ ] button, talking mode will be switched between private and handsfree.
  • Page 43 Short press SK 3 [] button again, microphone will be enabled. The display indication “MIC” stop the flashing and the MIC indication underline will be deleted. 12.15 Bluetooth ON operation While Kl.15 and contact-S are OFF, the Bluetooth function is OFF, only after Contact-S is ON, the Bluetooth function can be connected to a cell phone.
  • Page 44 Case 2: Kl.15/contact-S are OFF, radio is in FM mode, cell phone (SAMSUNG E628) was connected to radio in the last time when Kl.15 was ON. ] button, radio will display “IGNITION OFF” per 2 sec. and also output a beep sound. Short press HK [ After Kl.15 is switched ON (enable Kl.15) radio display will display “CONNECTED”...
  • Page 45 Cell phone located far from radio, users turn off cell phone Bluetooth function, and radio will display DISCONNECTED per 2 sec. ] button, the “IGNITION OFF” will be displayed per 2 sec., If Kl.15/contact-S are OFF, short press HK [ radio will also output beep sound.

  • Page 46: Audio / Setup

    13. Audio / Setup 13.1 Audio Setting Short press HK [ ] button will enter audio setting menu. Users may adjust audio parameters via rotating the right knob or short press button to decrease levels or short press button to increase levels. Rotate the left knob may decrease/increase radio volume level, radio display remains without change (audio setting menu), display will not show the volume bar.
  • Page 47 •<TREBLE> Treble setting range: -9 to +9 •<BALANCE> Balance setting range: L9 to R9 •<FADER> Fader setting range: F9 to R9. Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 51 of 65...
  • Page 48 •<EQ> Equalizer setting range: USER => ROCK => POP => CLASSIC => JAZZ => USER Note: values to be used: EQ setting Volume Bass Middle Treble (dB) (dB) (dB) (dB) Default (or as user defined these values) Rock Classic Jazz During the adjustment, no action for 5 seconds or short press HK [ ] button will exit the audio setting menu.
  • Page 49 13.2 SETUP Short press HK [ ] will enter setup menu, Bluetooth icon is not showed in this mode. Users may select the item and rotate right knob to adjust the value or short press button to decrease levels or short press button to increase levels.
  • Page 50 •<PDC-VOL> PDC-VOL setting range: 0 => 1=> 2 => 3 => 0 Note: the user can adjust the PDC-VOL level in four steps: ATTENUA. 0 = without attenuation ATTENUA. 1 = low attenuation (volume 13) ATTENUA. 2 = mid attenuation (volume 7) ATTENUA.

  • Page 51: Mfl Key Function Short Description

    14. MFL key function short description These features are based according to Highline-Kombi-MMI (PQ35x, PQ46x, T5-GP) Version 1.4 (MJ2009) dated 29.03.2007; MIB-G_BAP-MSCs_Audio_V1.03.pdf, MIB-G_Audio_FSG_Bedatung_P30DF31_MJ2013_v1.06_F.pdf All the functions are done with left control panel of steering wheel, if the vehicle is equipped with right control panel of steering wheel, no action is done.
  • Page 52 If short press once in tuner, CD, MP3, USB, BT AUDIO, IPOD modes, radio will seek up or track up. If long press, radio will perform target seek up or fast forward in track. 6. Dial Voice Short press this button, radio activates communication channel to make a call in voice dialing mode, user needs to follow instructions from cell phone.

  • Page 53: Mfa Indications

    15. MFA indications. Radio information such as tuned station, CD track and volume are displayed when radio is turned on and the board computer screen is active. Information regarding telephone calls and cell phones are also displayed in the remote display. These indications are based according to Highline-Kombi-MMI (PQ35x, PQ46x, T5-GP) Version 1.4 (MJ2009) dated 29.03.2007.
  • Page 54 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 58 of 65...
  • Page 55 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 59 of 65...
  • Page 56 16. OPS Indications OPS information is displayed when radio is turned on and if radio is OFF when OPS mode is activated then radio must be turn ON while OPS indications are active. Bluetooth icon is not showed in this mode. The indications shown in this document are the required for this radio.

  • Page 57: Diagnostic Mode

    17. Diagnostic Mode In case of Diagnose over CAN, the display only will show “DIAG ON”. Bluetooth icon is not showed in this mode. Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 61 of 65...

  • Page 58: Software Update

    19. Software Update While radio is powered on, insert USB or SD card, USB or SD card has software update file plus other files. Radio will switch to software update mode if long press more than 5 sec SK [1] and [5] buttons. Bluetooth icon is not showed in this mode.

  • Page 59: Radio Display Per Vehicle

    20. Radio display per vehicle Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 1 DIN MIB-G LAM X1.8 / 11/10/2011 Page 65 of 65...
