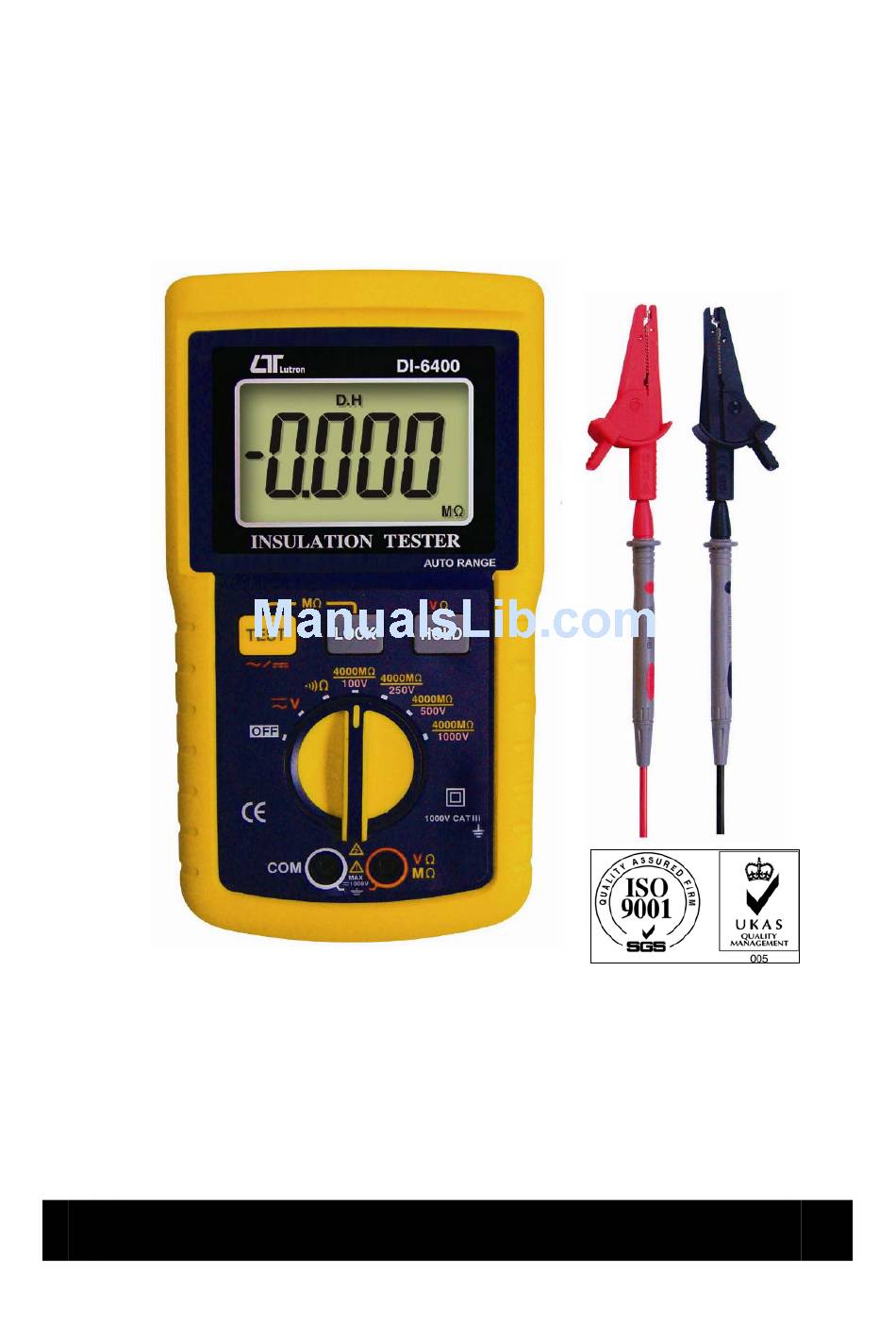

multi-function + auto-range, CATIII 1000V
ACV/DCV/OHMS/4 to 4000 M ohm, 100V, 250V, 500V, 1000V
INSULATION TESTER
Model : DI-6400
Your purchase of this INSULATION TESTER marks a step
forward for you into the field of precision measurement.
Although this INSULATION TESTER is a complex and delicate
instrument, its durable structure developed. Please read the
following instructions carefully and always keep this manual
within easy reach.
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-6400 and is the answer not in the manual?

Questions and answers

Summary of Contents for LT DI-6400

  • Page 1 + auto-range, CATIII 1000V ACV/DCV/OHMS/4 to 4000 M ohm, 100V, 250V, 500V, 1000V INSULATION TESTER Model : DI-6400 Your purchase of this INSULATION TESTER marks a step forward for you into the field of precision measurement. Although this INSULATION TESTER is a complex and delicate instrument, its durable structure developed.
  • Page 2 Caution Symbol Caution : * Risk of electric shock ! Caution : * Do not touch the input terminals & the test lead's pins during the measurements. * Mega ohm range, do not apply external voltage to input terminals at any time. * ACV &...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 2-1 General Specifications.......... 1 2-2 Electrical Specifications........3 3. FRONT PANEL DESCRIPTION........4 3-1 Display...............4 3-2 Function/Range Switch........4 3-3 Dc Adapter Input Socket........4 3-4 RS-232 Output Socket.........4 3-5 Input Terminal........... 4 3-6 Hold Button............4 3-7 Test Button............

  • Page 4: Features

    1. FEATURES * Digital display, easy and correct read-out. * Auto-range and multi-function for insulation measurement of 4/40/400/4000 MΩ ( 100 V, 250 V, 500 V, 1000 V ). * Insulation measurement with auto discharge function, safety. * Build in the ACV & DCV & OHMS measurement function. * Precision 400 ohm &...
  • Page 5 Sampling Time 0.4 second. 4000M ohm Max. approx. 4.0 second. Respond Time Zero Adjustment Automatic adjustment. Over-input Indication of " - - - - " . Operating Temp. 0 to 50 ( 0 to 122 ℃ ℉ Operating Less than 80% R.H. Humidity Power Supply 1.5V AA ( UM-3 ) battery x 8 PCs,...

  • Page 6: Electrical Specifications

    Meg ohm ( Insulation ) Range Accuracy Resolution ± ( 3% + 5d) 1 K/10 K/0.1 M/1 M ohm 4/40/400/4000 M ohm < 2000 M ohm (100V/250V/500V/1KV) ± ( 5% + 5d) 2000 M ohm ≧ < 4000 M ohm...

  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Function/Range Switch 3-3 DC Adapter Input Socket 3-4 RS-232 Output Socket 3-5 Input Terminal 3-6 Hold Button 3-7 Test Button 3-8 Lock Button 3-9 Battery Cover/Compartment...

  • Page 8: Precaution & Preparations For Measurements

    4 Connect test alligator clips into circuit under test. Note : * A continuity beeper is equipped. If the measured resistance < approx. 4 ohm, the beeper sounds will be generated. * If want to delete interior impedance of test-lead, you can short them then press "...

  • Page 9: Meg Ohm Measurement(Insulation Measurement)

    5-2 Meg OHM Measurement ( Insulation Measurement) * Do not touch the input terminals & the test lead's pins during the measurements. * Do not apply external voltage to input terminals at any time. 1) Connect the RED test plug into " MΩ terminal " ( 3-5, Fig. 1 ) Connect the BLACK test plug into "...

  • Page 10: Acv/Dcv Measurement

    LOCK mode * The exciting voltage just generate to the test terminals continuously. 1) Press " LOCK " button ( 3-8. Fig. 1 ) once the display will show " LOCK " symbol. 2) Press " TEST " button once, the meter will sound " bi-bi-bi " warning voice ( about 3 seconds ) then start the measurement, then the meter will sound "...

  • Page 11: Measuring Consideration For Meg Ohm Testing

    6. MEASURING CONSIDERATION FOR Meg OHM TESTING 1) The amount of time during which the test voltage applied will also affect the reading. With good insulation, the measured value of insulation resistance will slowly increase is applied typically. This is due to dielectric absorption effect of the applied DC voltage on the bulk insulation resistance.
  • Page 12 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word = 0D D1 &...

  • Page 13: Battery Replacement

    8. BATTERY REPLACEMENT * Remove test leads before open the battery cover ! * Risk of electric shock ! 1) When the upper left corner of LCD display show " ". It is necessary to replace the battery. However in-spec measurement may still be made for several hours after LOW BATTERY INDICATOR appears before the instrument becomes inaccurate .

  • Page 14: The Address Of After Service Center

    9. THE ADDRESS OF AFTER SERVICE CENTER 0704-DI-6400...
