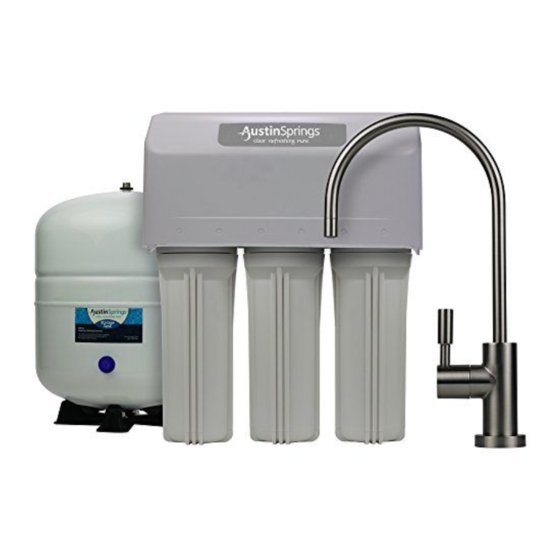

- Page 1 Reverse Osmosis Water Filter System Model: AS·RO·75 Owner’s Manual – Installation and Maintenance...
-
Page 2: Table Of Contents
With your Austin Springs Reverse Osmosis filter you have delicious filtered water Table of Contents right from your tap Once installed keep this owner’s manual for reference as it has both installation and maintenance information Before Installation Inspect the package... - Page 3 Parts Included Helpful Tips Before You Begin Prior to installation, we’ve listed out a few helpful tips to help the install go smoothly TIP #1: The AustinSprings RO features Quick-Connect fittings To Connect: 1 The system comes with 5 tubes (red, 2 black, yellow and blue); confirm that each tube has a flat end if not…...
-
Page 4: Installation Diagram
TIP #2: Compression fittings easily create a water-tight seal Installation Diagram 1 Slide the Brass Nut and then the small White Collar onto the end of tubing This overview provides a visual for how the system 4 colored tubes are connected between water source and the RO system 2 Push the White Insert into the open end of tubing Water Feed Adapter... -
Page 5: Step 5: Tank Shut-Off Valve (Tsv)
Installation Steps Step 3: Install Drain Saddle Step 1: Connect the Water Feed Adapter The Water Feed Adapter can convert to larger and smaller pipe threads. (Tip #4) 1 Choose a convenient spot for installing the drain saddle and tubing Installing on a horizontal portion of the drain pipe will minimize dripping noise 1 Turn off the cold-water supply by locating the valve under the sink Confirm it is off by turning the sink faucet... -
Page 6: Step 6: Reverse Osmosis Membrane
Step 6: Install Reverse Osmosis Membrane Step 8: System Start Up 1 Organize tubing and check each for kinks Turn Tank Shut-Off Valve to “OFF” Have a towel ready to catch leaks 2 Keep the tubing to the RO membrane inlet unattached , flush the first three stages into (Step 6) a bucket until the water runs clear Then re-connect the tubing to the RO membrane... -
Page 7: System Maintenance
RO SYSTEM MAINTENANCE Stage 4: Replace every 2 – 3 years or sooner if TDS level starts increasing. Check the TDS level at least once a month to monitor the system performance The rejection rate This RO system is designed with ease of use and low maintenance in mind If you change the filter should be above 90% Reverse osmosis membrane usually (NSF/ANSI STANDARD 58 for RO water filter) -
Page 8: Troubleshooting Guide
Troubleshooting Guide The filter housing is leaking. High TDS level in RO water. First check that all filter cartridges are sitting The RO system should produce a TDS rejection upright inside the canisters If so, then check rate of about 85-95% Check the following: that the O-ring is in place It should fit snug, not •... - Page 9 AustinSprings 1609 Shoal Creek #200, Austin, Texas 78701 866-238-5855 • www.AustinSprings.com Manufactured in Facility 2 How to reach us Phone: 866-238-5855 Office Hours: Monday-Friday 9:00 a m - 5 p m CST Technical Support Hours: Monday-Friday 9:00 a m - 5:00 p m CST AS·RO·75 - OM - 20170901...
