Clef Audio PureSINE-1000se Owner's Manual

Ac line conditioner & stabilizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PureSINE-1000-se
O
W
N
E
R
M
A
N
U
A
L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureSINE-1000se and is the answer not in the manual?

Questions and answers

Summary of Contents for Clef Audio PureSINE-1000se

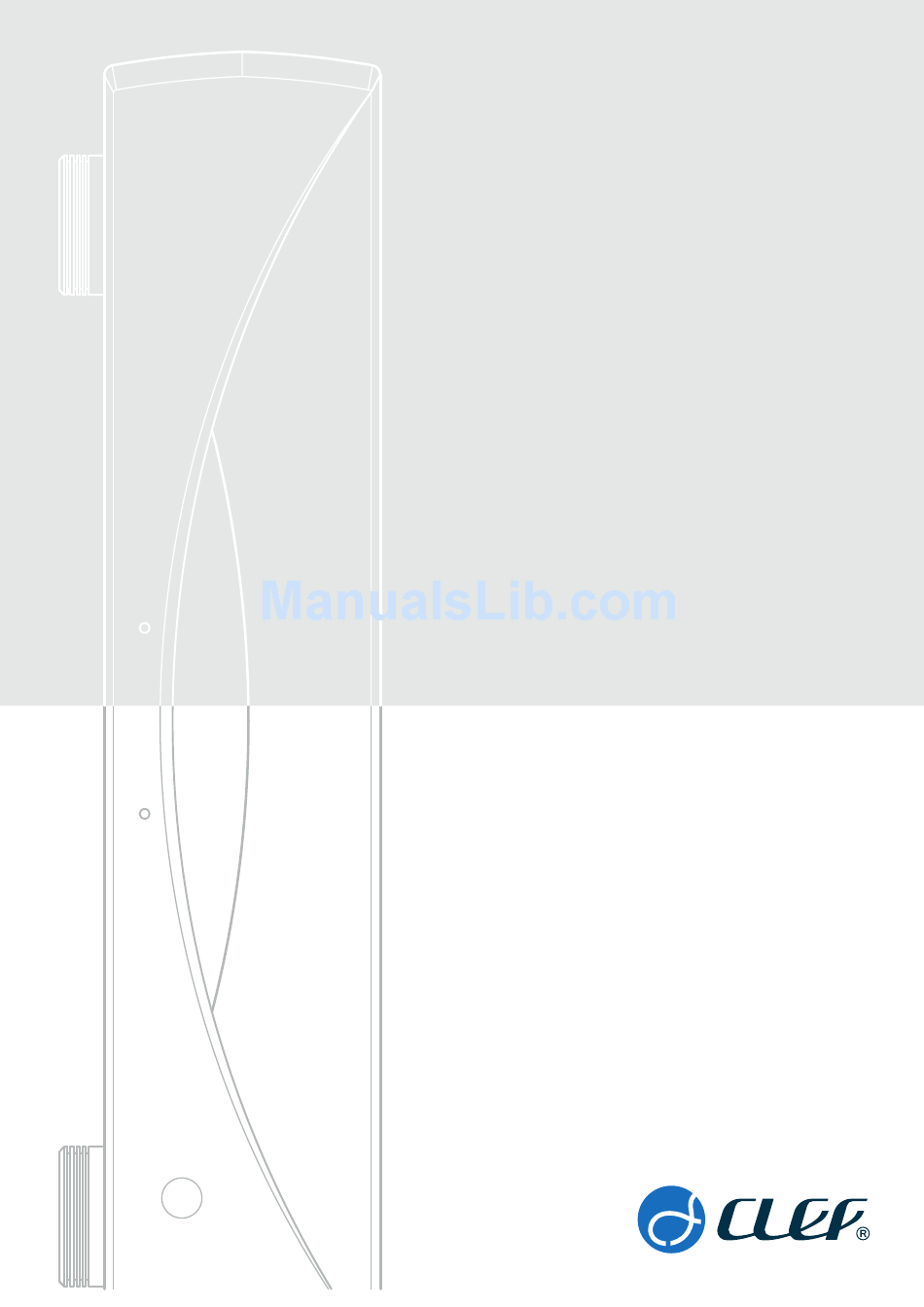

  • Page 1 PureSINE-1000-se...
  • Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Please read all instructions and precautions carefully and completely before operating your PureSINE-1000. ALWAYS disconnect your entire system from the AC mains before connecting or disconnecting any cables, or when cleaning any component. This product must be terminated with a three-conductor AC mains power cord that includes an earth ground connection.
  • Page 4 From all of us at Clef Audio Thank you for choosing our product.

  • Page 5: Table Of Contents

    Table of Contents Unpacking ........... 6 Installation Considerations .

  • Page 6: Unpacking

    Unpacking DO NOT attempt to lift or move the PureSINE-1000 without adequate assistance. Failure to follow the procedures Warning! included in this section may result in personal injuries and/or product damage. DO NOT attempt to lift the PureSINE-1000 while bending at Caution! the waist.

  • Page 7: Installation Considerations

    PureSINE-1000se or reduce airflow through the PS-1000 • DO NOT place the PureSINE-1000se on a thick rug or carpet or cover the PureSINE-1000se with a cloth, as this might prevent proper cooling. If the PureSINE-1000se is placed on the floor, use a thick piece of tempered glass to provide firm support and proper ventilation.

  • Page 8: Power Requirements

    For best performance, make sure power is connected to the AC mains connector at all times. During normal operation, do not use the power button (on the rear panel) to power off the PureSINE-1000se. Instead, use the on/off button to place the PureSINE-1000se into standby.

  • Page 9: Special Design Features

    Special Design Features Thank you for purchasing the PureSINE-1000se. The Puresine-1000se is designed to focus on AC line correction on both waveform and voltage level. The PS-1000se output is very low distortion Sinewave, less than 0.8% distortion, which is very close to ideal AC line waveform.

  • Page 10: Protections

    Press On/Off button again to turn on PureSINE-1000se but please make sure the the load is less than 5A or 1000VA. Over Temperature In some case that PureSINE-1000se is placed in bad ventilation area, Protection the internal temperature may be too high. The circuit will shutdown PureSINE-1000se, wait until the unit cool down and press On/Off button to resume operation.

  • Page 11: Front Panel

    Indicator LOGO Indicates the operating state of the PureSINE-1000se. 1.1 Dimly lit Indicates that the PureSINE-1000se is in Standby. 1.2 Fully lit Indicates that the PureSINE-1000se is powered “on.” On/Off Button Places the PureSINE-1000se into standby mode and takes the PureSINE-1000se out of standby mode.

  • Page 12: Rear Panel

    Plug the supplied power cord into this connector and plug the other end into electrical outlet. Power (Breaker) Switch Press this switch to "RESET" side to start PureSINE-1000se in standby mode. The indicator logo on front panel will dimly lit. Pure SineWave AC Outputs These duplexes supply stabilized 230 Volts Pure-sinewave output.

  • Page 13: Care & Maintenance

    • Use a soft, lint-free cloth to remove dirt and fingerprints from the PureSINE-1000se exterior surface. Do not use a cloth made with steel wool or metal polish. If needed, this cloth can be dampened with isopropyl alcohol. Do not dampen the cloth with Benzene, acetone-based cleaners, and other commercial cleaners.

  • Page 14: Specifications

    Specifications Rated input voltage: 196-240 V AC Spike Protection Modes: L-N, N-G, L-G Spike Clamping Voltage: 800 V peak @ 3,000 amps, 275 VAC RMS Response time: 1 nanosecond Maximum surge current: 13,000 amps (8 x 20 mS pulse) Maximum spike energy: 1,440 Joules total Noise attenuation: >10 dB @ 10 kHz, >46 dB @ 100 kHz, >100 dB @ 1-10 MHZ...
  • Page 15 Dimension, PureSINE-1000se CLEF AUDIO 89mm PureSINE-1000se Ground Phase 324mm 432mm BREAKER 15A 230V PureSINE-1000se Designed and Manufactured by CLEF-AUDIO COMPANY LIMITED Bangkok THAILAND 104mm www.clef-audio.com CAUTION! PURE SINEWAVE OUTPUTS ALARM ON/OFF TOTAL 1,000WATTS MAXIMUM AC 230V 50Hz, 15A MAX...
  • Page 16 Clef Audio Company Limited 33/83 Soi Narknivas Narknivas Rd. Ladprao Bangkok 10230 THAILAND Telephone: (662)-932-5981, (662)2-932-5982 Fax: (662)-932-5982 Email: info@clef-audio.com Website: www.clef-audio.com...
