Summary of Contents for Zuli Smartplug
- Page 1 SMARTPLUG USER GUIDE...
- Page 2 TA B L E O F CO N T E N T S Welcome The Hardware Setup Features Zuli Presence Introduction Calibration Settings FAQs Specifications Safety Other...

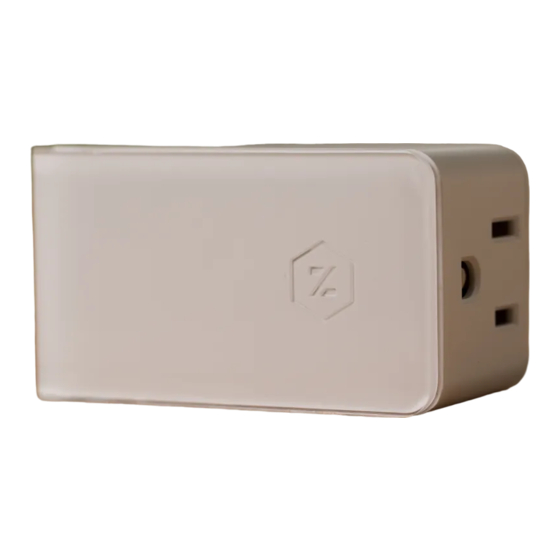

- Page 3 The Zuli Smartplug is Bluetooth Smart enabled and can be controlled from an iPhone (4s or later) and iPod Touch (5 or later). Each Zuli Smartplug gives you on/off control of appliances, dimming control of lamps, energy usage monitoring, scheduling and, Zuli Presence, which adapts to your preferences as you move throughout your home.
- Page 4 Button: Physical On/Off learn more. switch and used for factory reset (page Prongs: Plug this end Vent: This is a heat into any 120V North vent for the dimming American outlet to circuit. DO NOT STICK power the Smartplug. ANYTHING INSIDE.
- Page 5 Training Videos Dropbox folder. Access the folder any time to view videos on how to use Zuli. We’ve also linked them throughout this document for you. If you have additional questions at any time, please contact Zuli Support by visiting support.zuli.io or...
- Page 6 Zuli App so you can get started. Create Account If this is your first time using Zuli, you will need to create a user account. Open the app and tap “New Account.” Enter your name, your email address and create a...
- Page 7 SETUP 2. Take the tour and create a place Tour After you’ve set up your account, the app will offer you a quick tour of the app. The Tour is a great way to familiarize yourself with some of the features and nomenclature of the app menu. Create a Place ...
- Page 8 SETUP 3. Plug in Smartplugs and Scan Select “Start Scanning”. Follow the on-screen instructions on the Zuli app to select the Room, device name, and icon. When prompted, select if the device is an electronic device, non-dimmable light or dimmable light.
- Page 9 SETUP 4. Set up Additional Smartplugs After you’ve set up your first Smartplug, the app will default to Room view. To set up more Smartplugs, tap the menu button (top left corner) to open the main menu. Once there, tap “Add Devices”...
- Page 10 FE ATURES On/Off Schedule Energy Settings: Change plug settings Global controls Room change Change Place/Room name and color Add devices: Nest Thermostat...
- Page 11 For On/Off control, simply tap the circle to the right of the device name. A connection indicator may appear for a second or two when the Smartplug changes state (from on to off or from off to on). Click here to see the On/Off feature in action.
- Page 12 DO NOT SET UP non- To brighten your light, tap and dimmable devices to hold on the circle and drag it be dimmable with the clockwise. Zuli App. This could have catastrophic consequences for Click here for more on how your non-dimmable to Dim.
- Page 13 FE ATURES Energy To view Energy usage of a device, tap the Energy icon and see your kWh, estimated monthly bill, active usage time, and an estimate of your carbon use. See more about Energy here.
- Page 14 Select Schedule in the features section and tap “Add Event.” You can customize what you’ d like the Smartplug to do and when. Select time, daily repeat options, an event name and then tap done. You’ll then see the scheduled event listed under that device’s Schedule. Edit or add events as you please.
- Page 15 FE ATURES Settings Tap the Settings tab to change the following: Name of device Device Icon Type of device (remember never to select “Dimmable Light” unless the light is in fact, dimmable) Delete plug You can also see the firmware version, which will help our support staff...
- Page 16 FE ATURES Global Controls There are two types of Global Controls: Room and Place: Room Global Controls can control On/Off and Dim for all Smartplugs in a Room. Swipe down from the Room Screen to get this option. Place Global Controls can control On/Off...
- Page 17 FE ATURES Room Change Want to change rooms? Easy. Just tap the top right icon which will bring up a list of rooms on the right- hand side of the app. Select which room you’ d like and then your dashboard will change to the other room.
- Page 18 ‘Room’/ ‘Device’ names, colors and icons. - video. “Add Devices,” which allows you to add new Smartplugs and 3rd Party Devices to Zuli. “Settings” - Account and legal info. “Support” - A direct channel to our Support portal at support.zuli.io.
- Page 19 FE ATURES Add Devices: Nest thermostat Tap left menu > “Add Device” > “Nest Thermostat” and then follow the instructions on the screen to add a Nest device. More information in the video here.
- Page 20 Zuli Presence is able to adapt to your movements in order to turn on lights as you walk in them, shut off devices in rooms you’re not in to save you energy, as well as shut off...
- Page 21 Z U L I PR ESEN CE: C A LI BRATION Zuli Presence Requires Calibration In order to learn the unique layout of your home, Zuli Presence requires calibration of the Smartplugs through a quick, two-part process. Start by tapping “Menu” > “Presence” > “Select Room”...
- Page 22 Below, you’ll see this progression of someone going through Zuli Presence calibration. The first step will include facing each wall of the room while standing in the center of that room. Then, the app will ask you to walk around your room, and then you are all done with that Smartplug.
- Page 23 FREQU ENTLY A SK ED QUE STIONS At Zuli, we strive to make sure all of our customers have the tools necessary to set up and use our products successfully the first time. We’ve designed the Zuli Smartplug and Zuli...
-
Page 24: Specifications
This mode identifies that the plug is powered properly, but has not been setup and added to a place. You should only see this mode if you are setting up a Smartplug for the first time. Blinking White: Currently Setting Up This mode identifies that you are currently setting up this plug in the Zuli App. - Page 25 Output: 120V / 60Hz / Resistive 1800W / • • Bluetooth Smart. Incandescent 600W / Electronic Ballast 240W. • Zuli app available for free on the App •Dimming Output: 120V / 60Hz / 2A / 240W. Store℠. • Works with Bluetooth® Smart.
- Page 26 Unplug from the wall and remove your light or appliance from the Smartplug. Hold down the button on the side of the Smartplug, then plug it in to your powered outlet while continuing to hold the button. If done correctly, you will see the Logo blinking red.
- Page 27 OT H ER Warranty Zuli offers a one year limited warranty. For more information, visit www.zuli.io/warranty. Terms and Conditions Please visit www.zuli.io/TermsandConditions to view the terms you agree to by purchasing the product and downloading the app. Privacy Policy Please visit www.zuli.io/privacy to view Zuli’s privacy policy.
