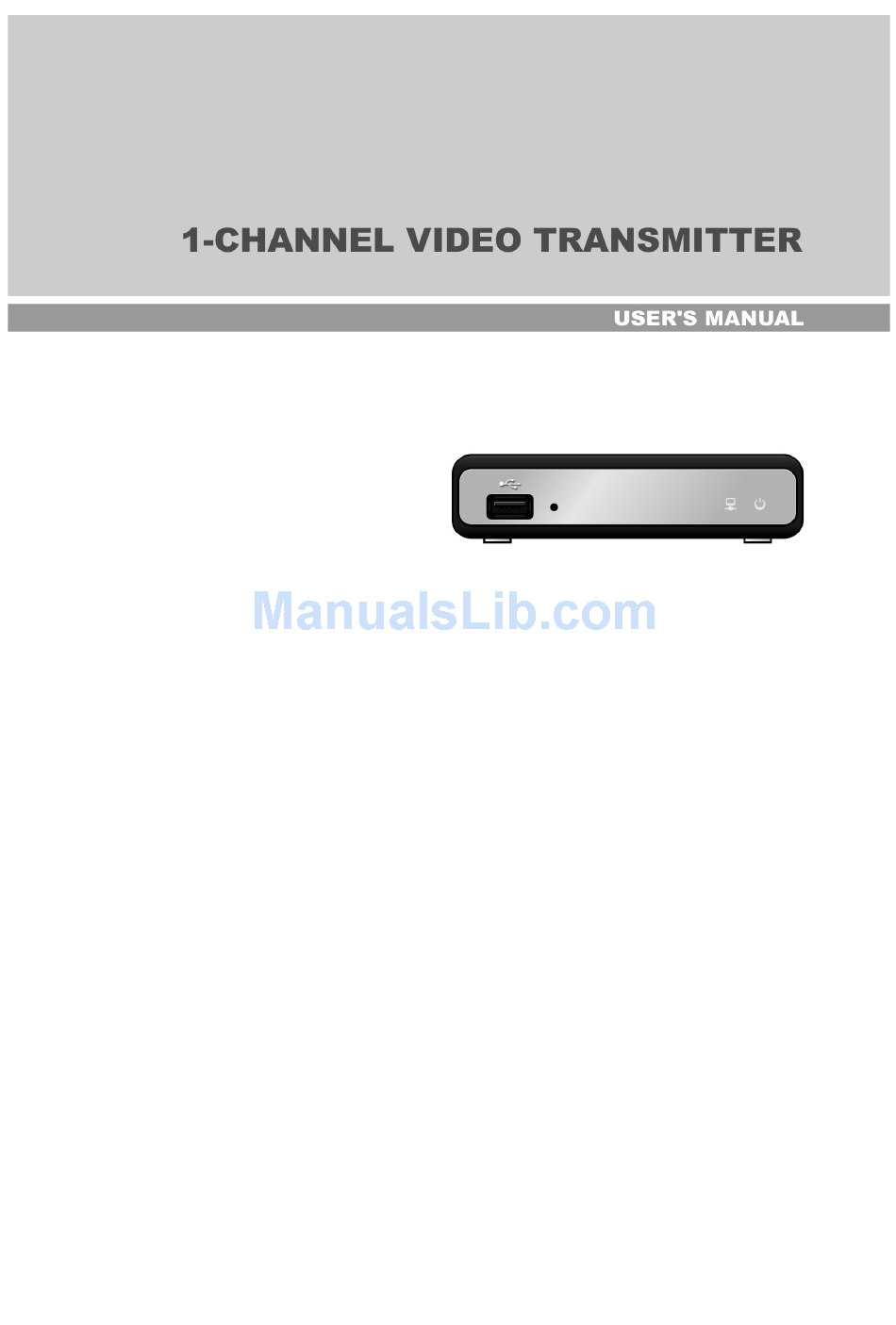

Summary of Contents for Aras CTINT1000
- Page 3 One-Channel Video Transmitter WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 4: Important Safeguards
User’s Manual Important Safeguards 1. Read Instructions 13. Damage requiring Service All the safety and operating instructions should be read before the Unplug this equipment from the wall outlet and refer servicing to appliance is operated. qualified service personnel under the following conditions: A. -
Page 5: Table Of Contents
One-Channel Video Transmitter Table of Contents Chapter 1 — Introduction ................... 1 1.1 In This Manual..................1 1.2 Features ....................1 1.3 Typical Applications ................2 Chapter 2 — Installation ..................5 2.1 Package Contents ................... 5 2.2 Front Panel ....................5 Factory Reset .................. - Page 6 User’s Manual 4.4 Video ..................... 24 Camera ....................24 Live Monitoring ..................24 Webcasting ................... 25 4.5 Audio ..................... 25 Input/Output ..................25 4.6 Event ..................... 26 Alarm In ....................26 Motion Detection ................... 26 Video Loss .................... 27 Video Blind .................... 28 System Event ..................
-
Page 7: Chapter 1 - Introduction
One-Channel Video Transmitter Chapter 1 — Introduction 1.1 In This Manual This manual is intended for users of the one-channel network video transmitter and includes instructions for using and managing the transmitter on the network. 1.2 Features This network video transmitter compresses live video from analog cameras and transfers the video over Ethernet connections. -
Page 8: Typical Applications
User’s Manual 1.3 Typical Applications Remote Monitoring (I) Remote Monitoring (II) - Page 9 One-Channel Video Transmitter Remote Recording Webcasting...
- Page 10 User’s Manual Control Center...
-
Page 11: Chapter 2 - Installation
One-Channel Video Transmitter Chapter 2 — Installation 2.1 Package Contents Network Video Transmitter DC Adapter (12V) Power Cord Installation CD (INIT, RASplus) User’s Manual (This Document) RASplus User’s Manual Rack-mount Kits 2.2 Front Panel USB Port Factory Reset Switch Network LED Power LED USB Port: Connect a USB flash drive to upgrade the software. -
Page 12: Rear Panel
User’s Manual 2.3 Rear Panel Network Port Audio Out Audio In Video In Video Termination Resistance Switch RS485 Port DC 12V Out Alarm Output Alarm Input Power In Network Port: Connect a Cat5 cable with an RJ-45 jack. Refer to Chapter 3 – Operation & Basic Configuration;... -
Page 13: Init Program Installation
One-Channel Video Transmitter CAUTION: The network connector is not designed to be connected directly with cable or wire intended for outdoor use. WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET. - Page 14 User’s Manual 5. Click Next. 6. Select Everyone to allow all users logged onto the computer with any user account to run the program, or Just me to allow only the user who is logged onto the computer with the current user account. Then, click Next. 7.
- Page 15 One-Channel Video Transmitter 9. Clicking Close completes the installation.
-
Page 16: Chapter 3 - Operation & Basic Configuration
User’s Manual Chapter 3 — Operation & Basic Configuration After installing the INIT software, you will find the shortcut icon on the desktop. Run the program by double clicking the icon. The following Main screen appears, and you can connect to a transmitter and change its settings. -
Page 17: Lookup
One-Channel Video Transmitter 3.1 Lookup You can find transmitters that are networked via LAN or WAN. When the transmitter is networked via LAN, you can find it in the lookup list. When the transmitter is networked via WAN, you can find it by entering the transmitter’s IP address. -
Page 18: Setup
User’s Manual 3.2 Setup You can change a transmitter’s settings. Select a transmitter to change settings and click the Setup icon on the Main screen. The Setup menu appears. You can also display the Setup menu by selecting a desired transmitter and clicking the right mouse button on the Main screen. NOTE: The Multiselection option for selecting transmitters is not available for IP address Setup, Video Setup, Camera/Audio Setup, Remote Setup and WebGuard. - Page 19 One-Channel Video Transmitter Drawing Mode Setup: Click to select drawing mode for the monitoring screen in the setup screen. Normal Drawing: Depends on the CPU performance of your PC and displays image in low speed (Dib Draw Mode). Fast Drawing (Default): Displays images in normal speed (Direct Draw Mode). Fast Drawing (YUV420/RGB32): Depends on the performance of the video card installed in your PC and displays images in high speed (Direct Draw Mode).
-
Page 20: Camera/Audio Setup
User’s Manual NOTES: If the image cannot be displayed properly because of your PC’s specifications, lower the drawing mode level during Drawing Mode Setup. When you select the Fast Drawing mode during Drawing Mode Setup, the drawing speed might decrease when the monitoring screen is not located on the primary monitor. Depending on the type of video card installed in your PC, the Overlay Drawing mode may not be supported during Drawing Mode Setup. -
Page 21: Remote Setup
One-Channel Video Transmitter NOTES: The Color Control adjustments are not meant to correct an improperly set camera. You will not be able to control a PTZ camera if it is not correctly connected to the RS485 port. See Chapter 2 — Installation; 2.2 Rear Panel Connectors, RS485 Port and the PTZ camera manufacturer’s manual for configuring the RS485 connection. -
Page 22: Test
User’s Manual A list of selected transmitters is displayed. Click the Start button, and the current settings of the listed transmitters are saved as .dat files named after the name and MAC address of each transmitter in the designated folder. The Status field displays the result as Success or Fail after completing the procedure and the reason for the failure is displayed in the Remarks field. -
Page 23: Factory Reset
One-Channel Video Transmitter A list of selected transmitters is displayed. Clicking the Start button starts the soft reset process for the listed transmitters. The Status field displays the result as Success or Fail after completing the procedure and the reason for the failure is displayed in the Remarks field. Factory Reset You can return all settings of transmitters to the original factory settings. -
Page 24: System Log
User’s Manual Click the Select File button and select the desired upgrade file. Click the OK button. A list of selected transmitters is displayed. Clicking the Start button starts upgrading the listed transmitters. The Status field displays the result as Success or Fail after completing the procedure and the reason for the failure is displayed in the Remarks field. -
Page 25: Chapter 4 - Remote Setup
One-Channel Video Transmitter Chapter 4 — Remote Setup Remote Setup allows you to change all settings of the transmitter. (You can also change the settings by using the RASplus program.) Select a transmitter to change settings and click the Setup icon the Main screen. -
Page 26: System
User’s Manual 4.2 System You can change a transmitter’s system information, import or export all settings, and add users or groups. When you click the System menu on the Remote Setup screen, the current System settings are displayed on the right side of the screen. -
Page 27: User/Group
One-Channel Video Transmitter User/Group User/Group: Click the buttons to change the settings for a group or a user allowed to control the transmitter remotely. Add Group: Click to add a group. Enter the desired group name and set authority levels for the group to control the transmitter remotely. -
Page 28: Ip Address
User’s Manual IP Address Type: Select the type of network configuration. Manual: Select when the transmitter is using a static IP address for network connection, and set up LAN parameters manually. DHCP: Select when the transmitter is networked via DHCP (Dynamic Host Configuration Protocol). Click the OK button, and a temporary IP address is automatically assigned to the transmitter. -
Page 29: Port
One-Channel Video Transmitter NOTES: You will need to get the IP address or domain name of the DVRNS server from your network administrator. You can use the domain name instead of IP address if you set up the DNS server during the IP Address setup. -
Page 30: Video
User’s Manual Network bandwidth limit: Check the box to limit the network bandwidth and set the desired maximum bandwidth. NOTES: If you want to use the time synchronization, DVRNS and Email sending functions, the IP addresses of the time server, DVRNS server and the SMTP server must be allowed when you allow or block connection to the transmitter in the Allow List or Deny List. -
Page 31: Webcasting
One-Channel Video Transmitter Webcasting You can stream live video from the transmitter to a website. Copy the HTML Code displayed on the screen and paste it in your web page code. NOTE: To use the webcasting service, you must check the Allow Anonymous Login option during 4.2 System –... -
Page 32: Event
User’s Manual 4.6 Event You can set up event detection and actions to be taken. When you click the Event menu on the Remote Setup screen, the current Event settings are displayed on the right side of the screen. Alarm In Check the Alarm In box to set up an alarm-in event. -
Page 33: Video Loss
One-Channel Video Transmitter Motion Zone: Click the Setup… button and a motion detection zone setup screen appears. Define the area of the image that you want to set up a motion detection zone by using the motion detection zone icons. (Select) or (Clear): Click to select or clear blocks for motion detection. -
Page 34: Video Blind
User’s Manual Video Blind Check the Video Blind box to set up a video blind event. When the transmitter detects that more than 70% of a camera is blinded by anything, it considers the video blind as an event. Sensitivity: Adjust the sensitivity for the video blind. Activation Time: Adjust the duration that a video blind should last to be considered a video blind event. -
Page 35: Event Action
One-Channel Video Transmitter Event Action You can set up event actions to notify the event detection when the transmitter detects events. Alarm Out: Check the box to activate alarm out. Type: Select the type of alarm-out device. Dwell Time: Select the alarm-out dwell time. An alarm out is activated for the preset dwell time after detecting an event. -
Page 36: Chapter 5 - Web Monitoring
User’s Manual Chapter 5 — Web Monitoring You can monitor live video images from the transmitter on the web browser program, WebGuard. Computer system requirements for using WebGuard are: ® ® ® ® ® ® Operating System: Microsoft Windows 2000, Microsoft Windows XP or Microsoft Windows... - Page 37 One-Channel Video Transmitter NOTES: ® ® When running WebGuard in the Microsoft Windows Vista operating system, it is recommended that you start Internet Explorer with elevated administrator permissions. Click the right mouse button on the Internet Explorer icon and select the Run as administrator option from the context menu. Otherwise, some functions of WebGuard might be limited.
- Page 38 User’s Manual Alarm-Out Control: Click to control an alarm out device at the remote site. Save Image: Click to save the current image as a bitmap or JPEG file format. Setup: Click to set up the image drawing mode and OSD display. You can adjust the display speed by changing the image drawing mode, and select OSD information to be displayed on the screen.
-
Page 39: Appendix
One-Channel Video Transmitter Appendix LED Indicators LED Status Description Unlit No power connected to the unit. Flicker The unit is booting. Power LED The unit is operating. The unit is connected to a network. Network LED Flicker The unit is upgrading the software. sequentially Power LED &... -
Page 40: Map Of Screens
User’s Manual RS485 Connector Master Unit Slave Unit TX+/RX+ – TX-/RX- Map of Screens INIT Program... - Page 41 One-Channel Video Transmitter Remote Setup...
-
Page 42: Specifications
User’s Manual Specifications VIDEO Signal Format NTSC or PAL (auto detect) Input Composite: 1 input, 1 Vp-p, switch-terminating, 75 Ohms Input Resolution Composite: 720x480 (NTSC), 720x576 (PAL) Compression MPEG-4, M-JPEG (Four levels) NTSC: 704x480, 704x240, 352x240 Compression Resolution PAL: 704x576, 704x288, 352x288 Frame Rate (Live/Recording) NTSC: 30 ips/30 ips @ 4CIF (Dual streaming) (images per second)
