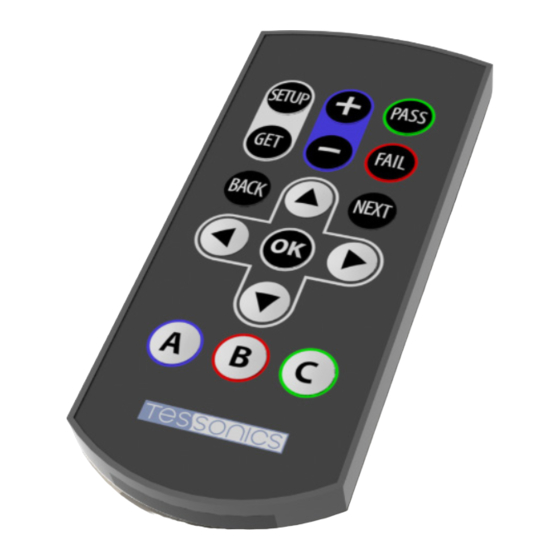

- Page 1 RSWA Remote Control User’s Manual Tessonics Inc. 1983 Ambassador Dr., Remote Control – Part No: R03-R1 Windsor, Ontario N9C 3R5, Canada Receiver – Part No: R03-R2 www.tessonics.com...
-
Page 2: Setting Up The Remote
Setting Up the Remote The package contains the remote and the receiver module. When the remote is shipped, the battery is insulated by a protective film. Pull the film out to make the remote operational. To start using the remote, power on the RSWA unit and wait until it boots up. Plug the USB receiver into the USB port on the right hand side of the RSWA unit. -
Page 3: Replacing The Battery
Button Assignments Button Description Setup Perform Setup procedure Get RSWA measurement Increase/decrease the diameter of the circle Pass/Fail Make a decision on weld quality PASS SETU P Next Move to next weld or unit – Back Exit from menu or dialog FAIL Confirm selection in menus and dialogs Up and down cursor keys;... -
Page 4: Fcc Information
CAUTION: Changes or modifications not expressly approved by Tessonics Inc. could void the user’s authority to operate this device. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
