Summary of Contents for Power first 3410957

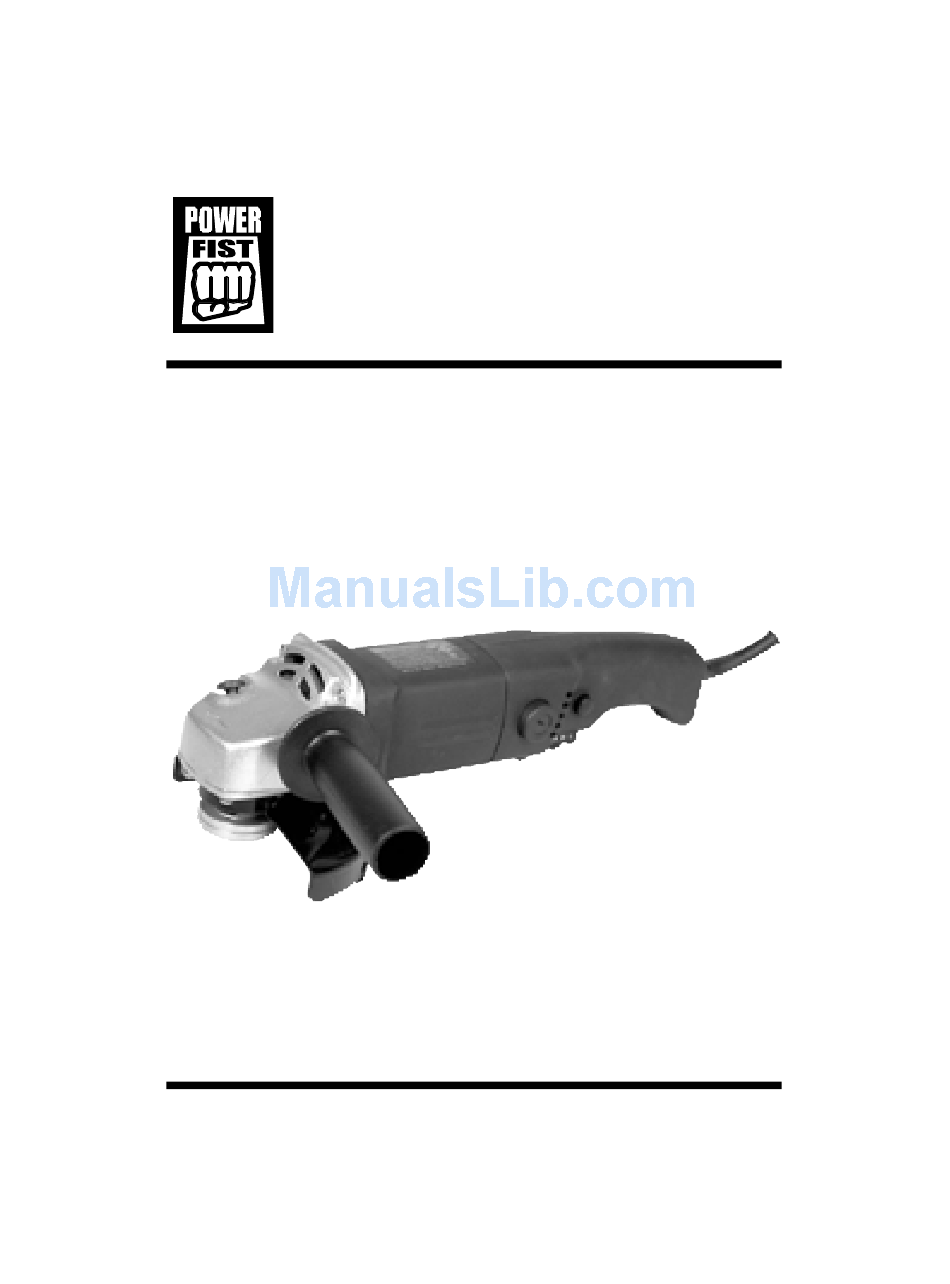

- Page 1 5" 3410957 Angle Grinder Assembly and Operating Instructions...
- Page 2 Safety Warning: Read all instructions. Failure to follow safety rules can result in personal injury or property damage. General Safety Rules • Keep work area clean, cluttered areas and benches invite accidents • Avoid dangerous environments. Do not use power tools in damp or wet locations •...
- Page 3 Tool Use and Care • Do not force the tool, it will do the job better and safer at the rate for which it was designed. • Use the right tool, do not force a small tool or attachment to do the job of a heavy-duty tool.
- Page 4 Safety Rules for Grinders • When using grinding wheel attachments, the guard must always be attached to the tool and positioned for maximum safety, so the least amount of wheel is exposed from the side of the tool being used. •...
- Page 5 • Do not grind or sand near flammable materials, as they could be ignited with sparks from the wheel. • When sanding, do not use oversized sanding discs. Larger sanding pads can cause snagging or tearing of the disc, or recoil of the tool.
-
Page 6: Operating Instructions
Operating Instructions Slide On-Off Switch with Lock • The switch can be locked in the “on” position, a convenience for long grinding operations. • To operate the grinder without locking it on, press the switch button forward to the “on” position. When you release pressure on the switch, the button will switch to the “off”... -
Page 7: Grinding Operations
Grinding Operations Wheel Guard Installation Warning: The wheel guard must be attached when using disc- grinding wheels. Always keep wheel guard between you and your work while grinding. • To attach the wheel guard, disconnect tool from power source. Be sure that the wheel guard is in place for grinding. -
Page 8: Maintenance
Grinding Tips • Efficient grinding is achieved by controlling the pressure and keeping the angle between wheel and workpiece at 10° to 15°. If the wheel is flat, the tool is difficult to control. If the angle is too steep, the pressure is concentrated on a small area, which could burn the work surface. -
Page 9: Technical Specifications
Bearings • After about 300-400 hours of operation, or at every second brush change, the bearings should be replaced. Bearings that become noisy due to heavy load or very abrasive material cutting, should be replaced immediately to avoid overheating or motor failure. Cleaning Warning: To avoid accidents, always disconnect the tool from the power supply before cleaning or performing any...
