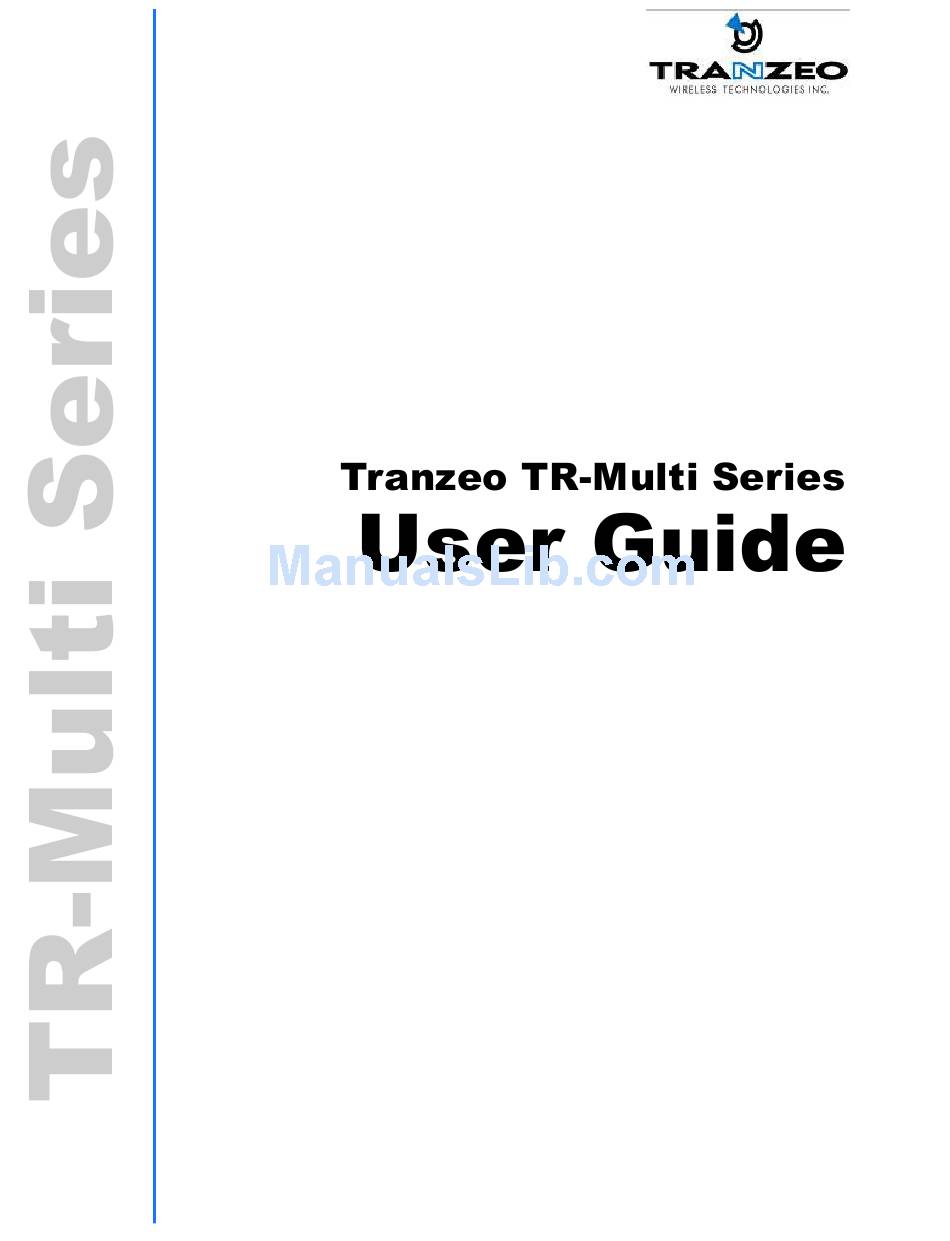

  • Page 1 Revision: 1.0 Firmware: 2.10 Date: 7/06/06...
  • Page 2 Document Revisions: Version 1.0 June 9, 2006 Tranzeo Wireless Technologies Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Toll Free Number: 1.866.872.6936 T echnical Support: 1.888.460.6366 General Inquiries: info@tranzeo.com Local Number: 1.604.460.6002 Sales: sales@tranzeo.com Fax Number: 1.604.460.6005 T echnical Support: support@tranzeo.com...
  • Page 3: Safety Information

    Tranzeo Wireless Technologies Safety Information Safety Information FCC and IC Compliance This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. T hese limits are designed to provide reasonable protection against harmful interference when the device is operated in a residential environment.
  • Page 4: Safety Instructions

    • If the ground is to be attached to an existing electrical circuit, turn off the circuit before • attaching the wire. Use the Tranzeo Power over Ethernet (POE) adapter only with approved T ranzeo • models. Lightning Protection The key to lightning protection is to provide a harmless route for lightning to reach ground.
  • Page 5: Table Of Contents

    Best Practices....................2-6 Chapter 3: Configuration............3-1 Connecting to the Radio ...................3-1 Changing the IP Address - Windows XP ............3-1 Changing the IP Address Using the Tranzeo Locator.........3-2 Login into the Configuration Interface .............3-3 Information Page ....................3-4 CPE Setup M enu....................3-5 Wireless Settings ..................3-5...
  • Page 6 Tranzeo Wireless Technologies Table of Contents Network Configuration...................3-13 Router M ode....................3-14 DHCP Configuration .................3-15 IP Routing....................3-16 Quality of Service ..................3-17 Port Forwarding..................3-18 Port Filtering....................3-19 Appendix A: Grounding and Lightning Protection Information ... A-1 Appendix B: Product Specification..........B-1 Appendix C: Protocol List ............C-1 Appendix D: Common TCP Ports ..........
  • Page 7: Chapter 1: Overview

    Tranzeo Wireless Technologies Chapter 1: Overview Chapter 1: Overview Introduction The T R-Multi Series radios, the T R-Multi-N and T R-Multi-2, are advanced customer premises equipments (CPE) that offer the dual band capabilities of 802.11b and 802.11a within one unit. These integrated, dual band/antenna radios allow for quicker installs where they can be configured in either 2.4 GHz or 5 GHz...
  • Page 8: Product Description

    Tranzeo Wireless Technologies Chapter 1: Overview Product Description The LEDs, ports and product information are located at the back of the T R-Multi Series radio, as shown in the picture. Ethernet ports LED Panel indicators Studs for the boot Serial number...
  • Page 9: Chapter 2: Hardware Installation

    Power Supply Only use the power adapter supplied with the T R-Multi Series radio. Otherwise, the product may be damaged and will not be covered by the Tranzeo warranty. TR-Multi Series This document is intended for Public Distributio n 19473 Fraser Way, Pitt Meadows, B.C.
  • Page 10: Installing The Ethernet Cable

    Tranzeo Wireless Technologies Chapter 2: Hardware Installation Installing the Ethernet Cable Step 1: Insert the strain relief, without the cap nut, into the port opening of the boot cover. Step 2: Using a 3/4” wrench, tighten the strain relief until it touches the boot cover.
  • Page 11 Tranzeo Wireless Technologies Chapter 2: Hardware Installation Step 5: Place the gasket—with the adhesive side facing up—over the 4 studs around the port of the radio. Flatten the gasket ensuring there are no gaps. Remove the backing. Step 6: Plug the Cat 5 cable inserted in the boot cover into the port.
  • Page 12: Mounting The Radio

    Tranzeo Wireless Technologies Chapter 2: Hardware Installation Mounting the Radio Step 9: Attach the mounting bracket to the pole using the U-bolt. Secure the U-bolt with the lock washers and the nuts. Align if necessary, and then tighten the nuts enough to prevent any movement.
  • Page 13: Connecting The Radio

    Tranzeo Wireless Technologies Chapter 2: Hardware Installation Connecting the Radio Step 12: Connect the Cat 5 cable from the radio into the RJ-45 jack marked “ CPE” on the POE adapter. The POE adapter is not weather- proof and should be installed indoors.
  • Page 14: Best Practices

    Tranzeo Wireless Technologies Chapter 2: Hardware Installation Best Practices Follow these practices to ensure a correct installation and grounding. Always try to run long Cat 5 and LMR cables inside of the mounting pole. • This helps to insulate the cable from any air surges.
  • Page 15: Chapter 3: Configuration

    Tranzeo Wireless Technologies Chapter 3: Configuration Chapter 3: Configuration The T R-Multi Series radios can be configured through an HTML configuration interface, accessible using any Internet browser. T he configuration interface allows you to define and change settings, and also shows information about the performance of the device.
  • Page 16: Changing The Ip Address Using The Tranzeo Locator

    The Tranzeo Locator is a utility that allows users to quickly change the IP address of the Tranzeo radios. It sends out a broadcast on the network and displays a list of other T ranzeo radios connected, from which you can configure the IP address for your device.
  • Page 17: Login Into The Configuration Interface

    Tranzeo Wireless Technologies Chapter 3: Configuration Login into the Configuration Interface After defining the network settings, follow these steps to login into the Tranzeo Configuration Interface. 1. Open your Internet browser (Internet Explorer, Netscape, or Firefox). 2. In the address bar, type http://192.168.1.100.
  • Page 18: Information Page

    Tranzeo Wireless Technologies Chapter 3: Configuration Information Page This is the first window of the configuration interface. It shows the main menu and information about the device settings, like wireless, network, and security settings. The menu is divided in four sections: CPE Setup Menu •...
  • Page 19: Cpe Setup Menu

    Tranzeo Wireless Technologies Chapter 3: Configuration CPE Setup Menu In this section you would be able to configure wireless and administrative settings for the T R-Multi Series radio. Wireless Settings This window displays the wireless configuration of the device. The Service Set Identifier (SSID) is the name that Primary SSID: identifies a specific wireless LAN.
  • Page 20 Tranzeo Wireless Technologies Chapter 3: Configuration Is the maximum output power of the radio. Power Cap: Select the country from where the device is operating. Country: Setting an incorrect country may be considered a violation of the applicable law. Select the gain of the antenna used. This information...
  • Page 21: Administrative Settings

    Tranzeo Wireless Technologies Chapter 3: Configuration Adm inistrative Settings Use this section to upgrade the software, change your password, and define SNMP parameters. Enter the location of the software update file or Upgrade Software: Browse to locate it in your computer. Click Upgrade Software .
  • Page 22: Security

    Tranzeo Wireless Technologies Chapter 3: Configuration Security In this section you can configure both basic and advanced security settings for your device. Basic Security Settings In this window you can define WEP parameters. WEP provides security by encrypting data so that it’s protected when transmitted from one point to another.
  • Page 23: Advanced Security Settings

    Tranzeo Wireless Technologies Chapter 3: Configuration Advanced Security Settings In this window you can enter WPA parameters. WPA provides a higher level of security, enhancing the security features of WEP. Check to turn on WPA. Enabled: Select the level of encryption.
  • Page 24: Status

    Tranzeo Wireless Technologies Chapter 3: Configuration Status This section displays information about the status and performance of your radio. Most options and information cannot be modified in this section. AP List This window displays information about the access points associated with the CPE and the connection statistics.
  • Page 25: Statistics

    This window contains three tabs: T X, RX and INT. TX and RX values are useful to ISPs and other users. T he INT (internal) statistics are intended for use by Tranzeo Wireless T echnical Support. You can click onto each speed level and see how the traffic breaks down. In the T X statistics, there should little to no Tries at Series 2, 3 or 4.
  • Page 26 Tranzeo Wireless Technologies Chapter 3: Configuration UMAC Statistics The UMAC functions occur in the unit’s processor. T he UMAC statistics are likely the most useful for radio troubleshooting. This window breaks down the statistics into clean and failed packets. The failed packets should be less than 10% in a normal operating environment. In the T X statistics, there should be little to no Retransmits at Series 2, 3 or 4.
  • Page 27: System Performance

    Tranzeo Wireless Technologies Chapter 3: Configuration System Performance This window shows information about the memory usage and the CPU. Many browsers do not allow infinite refreshes of a page through scripts, so this window may stop updating. If it does, simply change the refresh rate to another value to restart the process.
  • Page 28: Network Configuration

    Tranzeo Wireless Technologies Chapter 3: Configuration Network Configuration In this window you can control the network configuration of the device. First, you must define if your radio will operate as a bridge or router. The content of the window varies slightly depending on your selection.
  • Page 29: Router Mode

    Tranzeo Wireless Technologies Chapter 3: Configuration Router Mode The following features are available if you select Router mode in the Network Configuration window. From this window you can access specific windows to configure the DHCP Server, QoS, Static Routes, Port Filtering, and Port Forwarding. If the feature is available, it will appear like a link.
  • Page 30: Dhcp Configuration

    Tranzeo Wireless Technologies Chapter 3: Configuration DHCP Configuration This window shows the configuration of the DHCP server. IP Parameters Enter your subnet mask in this field. Subnet Mask: Indicates the first address in the DHCP pool. Address Starting from: Indicates the number of addresses in the DHCP pool.
  • Page 31: Ip Routing

    Tranzeo Wireless Technologies Chapter 3: Configuration IP Routing This window is intended for those users who have a strong understanding of IP routing. Here you can see the System Routes, create your User Routes, and set the Default Route. Be careful when making changes since misconfiguration could result in serious network problems and even the loss of functionality.
  • Page 32: Quality Of Service

    Tranzeo Wireless Technologies Chapter 3: Configuration Quality of Service Configuration (QoS) In this window you can use the QoS features and set rules to prioritize the traffic. This is the maximum speed of the uplink (from the Uplink Speed: source to the destination). T he order and size of traffic is determined based on this value.
  • Page 33: Port Forwarding

    Tranzeo Wireless Technologies Chapter 3: Configuration Port Forwarding This feature allows the radio to forward requests for certain ports to devices behind a router. For example, you have a web server on a private IP that you want to be accessible to the world. You can forward all requests on port 80 to 192.168.1.2.
  • Page 34: Port Filtering

    Tranzeo Wireless Technologies Chapter 3: Configuration Port Filtering This feature allows the radio to block requests to and from devices behind the router. A list of the devices filtered appears at the bottom of the window. Click to apply the rules enabled from the Filter list.
  • Page 35: Appendix A: Grounding And Lightning Protection Information

    This radio exceeds International Standard IEC 61000-4-5 when properly grounded. For a copy of the full testing report, see Report Number T RL090904 - Tranzeo Surge Protection board located on the Tranzeo website (www.tranzeo.com). Is lightning damage covered by the warranty? No.
  • Page 36 Tranzeo Wireless Technologies Appendix A Where to ground the device? This radio must be grounded at the pole and at the POE. This is because the radio is between the exterior antenna and the POE ground. See the examples below.
  • Page 37 Tranzeo Wireless Technologies Appendix A Grounded POE In this case, the surge will be picked up by the Cat 5 cable and since the POE is grounded, the route for the surge is through the POE to ground. Mounting Pole...
  • Page 38: Appendix B: Product Specification

    Tranzeo Wireless Technologies Appendix B Appendix B: Product Specification " %& ' # $ %( ' # )*+% ) , +1 - ( 0$ + - ( " #$ % & ' ( ( ' )* ! ! 4 - ( .
  • Page 39: Appendix C: Protocol List

    Tranzeo Wireless Technologies Appendix C Appendix C: Protocol List 6 ? ! 4 * 8 H F F > + < + 8+5J ' 8! = - 5 J < < ' 9 8 8 : ? ! 4 <...
  • Page 40 Tranzeo Wireless Technologies Appendix C ) ! K ) : 558 H 4 ) 8! - ! - ! > ! 4 > ! ! 4 < 6 @ 8' 6 @ 8' 8' ' 8' 8' 8' H K 8@ &...
  • Page 41: Appendix D: Common Tcp Ports

    Tranzeo Wireless Technologies Appendix D Appendix D: Common TCP Ports Visit http://www.iana.org/assignments/port-numbers for a full list of well known port numbers. ' L ' > 6 > 6 4 H ; & F > % & * ? - <...
