Summary of Contents for LinQTab LQMWP
-

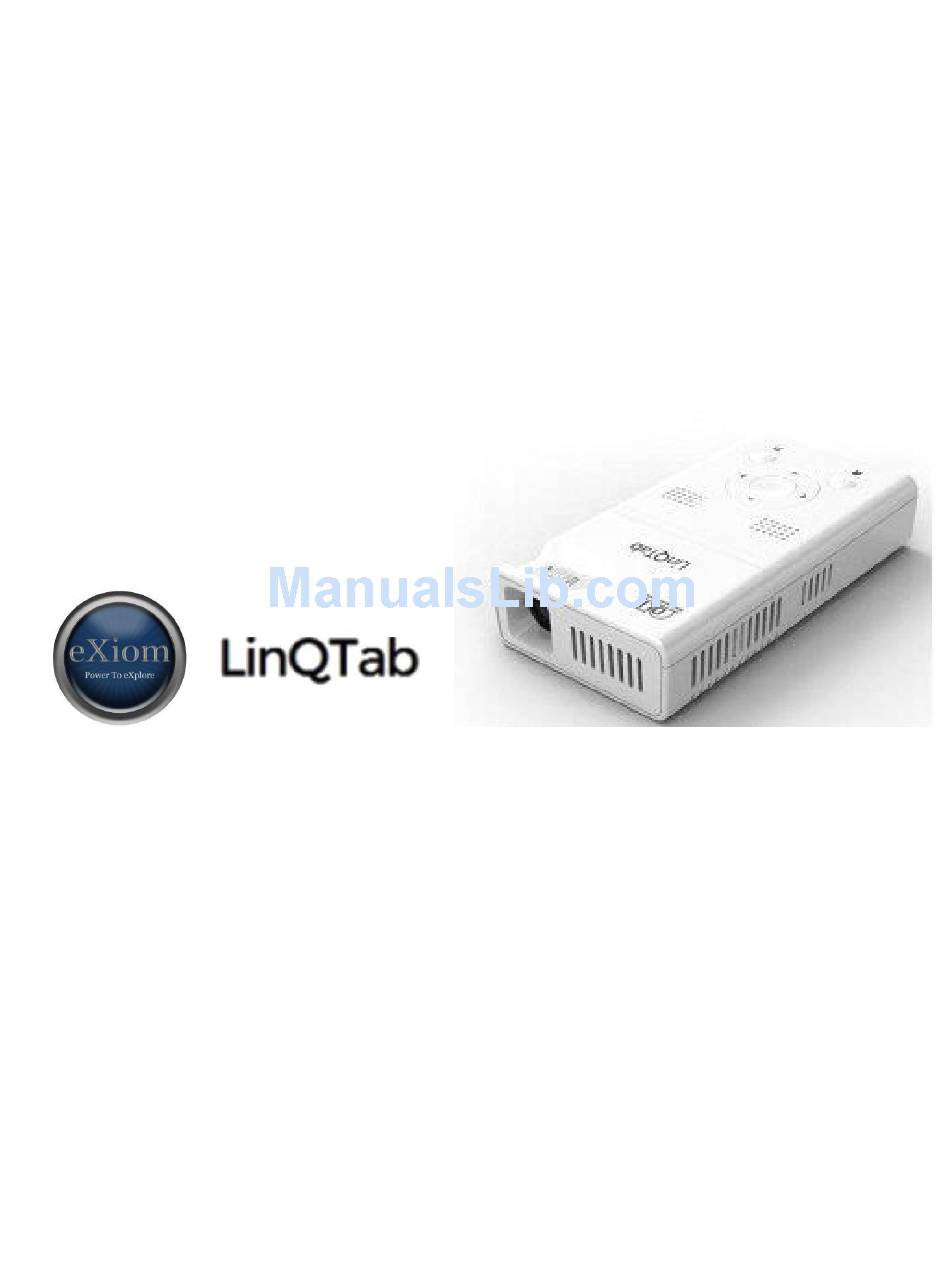

Page 1: Table Of Contents Lqmwp - Mini Wifi Projector Quick Start Users Guide
LQMWP Mini WiFi Projector Quick Start Users Guide... -
Page 2: Table Of Contents
Table Of Contents LQMWP – Mini WiFi Projector Quick Start Users Guide ................... 1 Table Of Contents ..............................2 Important Notice ............................... 3 LinQTab - LQMWP Mini WiFi Projector Features: ....................4 LinQTab - LQMWP Mini WiFi Projector Safety Precautions: ................4 About the Lithium Polymer Rechargeable Battery: .................... -
Page 3: Important Notice
Any product that has been tampered with will be ineligible for return or refund. The LinQTab Mini WiFi Projector is ready to go for both your next business presentation and for your entertainment needs at home or when traveling. Before starting to use the LinQTab Mini WiFi Projector is, please... -
Page 4: Linqtab - Lqmwp Mini Wifi Projector Features
Audio and Video display High capacity and removable lithium polymer battery LinQTab - LQMWP Mini WiFi Projector Safety Precautions: Please don't aim the projection at somebody's eyes or an animal’s eyes. Please keep it away from rain and direct sun. -
Page 5: Packing List
Packing list: Please check that all the accessories are accurately in listed, if something is missing, please contact the point of sale immediately. LinQTab - LQMWP Mini WiFi Projector Quick Start Users Guide LQMWP Power Adapter LI-PO rechargeable battery ... -
Page 6: Product Features, Controls And Connections
Projector Lens And Front View: In the images below you will find the LQMWP – Mini WiFi Projector features and controls pointed out for the projector lens and the front view where most of the projectors operation controls are present. -
Page 7: Side And Back View
Side And Back View: In the images below you will find the LQMWP – Mini WiFi Projector features and controls pointed out for the side and back views of the device. -
Page 8: Connectors View
Connectors View: In the image below you will find the LQMWP – Mini WiFi Projector features and available connections pointed out for the bottom view of the device. -
Page 9: Lqmwp - Mini Projector Controls
Direction (four way) Direction Switching OK or Confirmation Enter or OK Focus Adjust the Projectors Focus LQMWP – Mini Projector Input / Output Ports: PORT FEATURE VGA Input VGA input for Laptop or Desktop Computer connection DC Input 12 volt DC Adapter Input Headphone 3.5 mm Stereo Headphone Output... -
Page 10: Lqmwp - Mini Projector Infrared Remote Control
For Business Presentations or Entertainment use an infrared remote control allows you to control your LinQTab LQMWP Mini WiFi Projector from a distance. Ensure that the infrared remote receiver on the bottom of the device is not blocked to ensure that your remote functions correctly. -
Page 11: Lqmwp - Mini Projector Infrared Remote Control Button Functions
LQMWP – Mini Projector Infrared Remote Control Button Functions: All the controls you will need during a Business Presentation or for Entertainment use are included on the Infrared Remote Control included with you LinQTab Mini WiFi Projector. BUTTON FUNCTION Directions... -
Page 12: Operating The Linqtab Mini Wifi Projector
Operating The LinQTab Mini WiFi Projector: Now that you are familiar with the LinQTab Mini WiFi Projector controls and features you are ready to explore and experience all this device has to offer. Basic operation: Powering ON and OFF: Before you can use the LinQTab Mini WiFi Projector you must first install the battery and charge the unit fully. -
Page 13: Focus
Focus: The LinQTab Mini WiFi Projector can display media on whatever surface you wish, however for the best quality we suggest you find the white wall with smooth surface and place the projector with its projector lens facing the wall. Once in the Powered ON mode you can adjust the focus manually until to get a clear and bright shot. -
Page 14: Home Menu
Home Menu: Power on and adjust the focus manually, then when the system is started select the Home button to get to the Home Menu. The home menu contains several icons to access functions and settings: Micro SD card, USB disk, HDMI & MHL, VGA and Settings. -
Page 15: Home Menu - Micro Sd Card And Usb Disk
Home Menu - Micro SD card and USB disk: Click on the Micro SD card or USB disk icon, below screen comes out. 1) Photo: Choose using the Direction Buttons and enter 2) Music: Choose using the Direction Buttons and enter 3) Movie: Choose using the Direction Buttons and enter 4) Text: Choose using the Direction Buttons and enter Photo Projection... - Page 16 Text Projection After selecting Text on the Home Menu, select the text you wish to display by using the direction buttons on the remote control or the projector itself, and click on it for display. Text Projection Options: Last page, next page, last file, next file, stop, etc. Text lists: All files store in a line or a row.
-
Page 17: Home Menu - Hdmi & Mhl
Home Menu – HDMI & MHL: Select to go to the Home Menu using the Home button on the remote control or the projector. Once on the main menu select and click on the HDMI & MHL icon. The projector will now source signals via the HDMI connection from other external devices. -
Page 18: Home Menu - Settings
Home Menu – Settings: Select to go to the Home Menu using the Home button on the remote control or the projector. Once on the main menu select and click on the Settings icon. The projector will now display a list of parameters that you can set up and change. -
Page 19: Battery
Recharging The Battery: Please charge the battery to full volume before using the LinQTab Mini WiFi Projector for the first time. The led light indicated will display in red when the projector is recharging; Once the charging is complete, the led light becomes dark. -
Page 20: Battery Status
Battery Status: Click on the setting icon at the Home Menu and then select the information column to check the battery status and the length of time remaining to use. When the battery runs out of power, the projector will shut down automatically. The working time for the battery is related with the system's multimedia performance, quantity of tasks operated at one time and the frequency of same Operations, as well as the sound volume level. -
Page 21: Maintenance
PH value mixed together to clean the case. Note: Do Not use wax, alcohol, benzene, dilution liquid and/or other chemical solutions to clean the LinQTab Mini WiFi Projector. All these materials may cause damage to the case and/or the LinQTab Mini WiFi Projector. -
Page 22: Appendix A - Product Specifications
Appendix A - Product Specifications: View Crystal Clear Images and Videos LQMWP – LinQTab Mini Projector Model No. Portable palm sized projector Powered by DLP Technology with 100 Lumens Main Features Blur free high quality projection Up to 80 inches... -
Page 23: Appendix B - Questions And Answers
Appendix B - Questions and Answers: SYMPTOMS SOLUTION Power On Failed 1. Not enough battery power is available to turn on the projector. Connect the power adapter to recharge the battery. The led indicator light will illuminate in red while it is recharging. 2.
