XmaX HUD is an intelligent navigation product; it provides HUD navigation, Bluetooth hand
free telephone, OBD vehicle status information check functionalities. XmaX HUD can project the
navigation information (road name, direction, distance etc.) and vehicle status information
(speed, rotation speed, fuel consumption, etc.), incoming call, messages on a HUD screen in front
of the driver, which greatly improve the user's safety and convenience when driving.

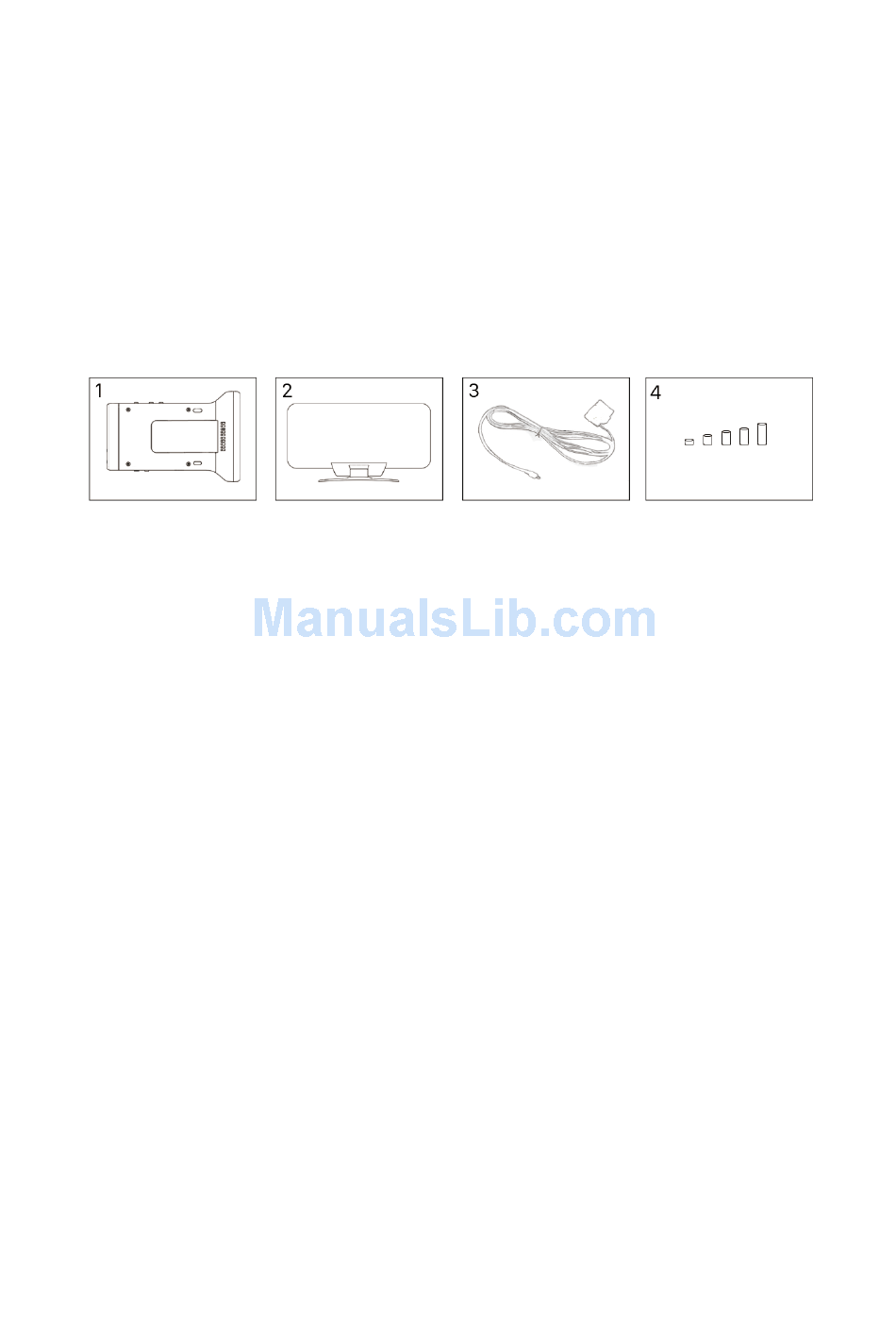

A Packing List
1.HUD device×1
2.Imaging glass and base×1
3.OBD plug and power line×1
4.Pieces of pad
User Manual of XmaX HUD
Advertisement
Summary of Contents for Cooldrive X1
- Page 1 User Manual of XmaX HUD XmaX HUD is an intelligent navigation product; it provides HUD navigation, Bluetooth hand free telephone, OBD vehicle status information check functionalities. XmaX HUD can project the navigation information (road name, direction, distance etc.) and vehicle status information (speed, rotation speed, fuel consumption, etc.), incoming call, messages on a HUD screen in front of the driver, which greatly improve the user's safety and convenience when driving.
-
Page 2: C Brief Instruction
B Part C brief instruction 1. Connect to device Connect the OBD cable to the OBD interface in the car, and the other end is inserted into the OBD port ⑨of HUD device. 2. Turn on the power Fix the HUD device on the sun visor by using clip⑤, and then switch the power key ⑦to turn on the power. -
Page 3: D Xmax App Introduction
Open the APP, turn on Bluetooth and search the HUD device names as XMAX-HUD-01, click and connect it, after it is connected successfully, you can see the Bluetooth status icon on HUD screen. 5. Navigation In the APP, you can search the destination, route and then start the navigation. The navigation information is automatically projected onto the glass screen. - Page 4 2). Location ： Click the icon to locate the user’s current place, click again the icon change ，the direction of the map will change according to the direction of the mobile. There is a menu bar in the bottom of the homepage, including four menu items: Search, Route, Vehicle Status and More.
- Page 5 Send a message to number: command “Send a message to number 1382-3434-321”. 4). Reply a message When receiving a message, can say command – “check”. Reply message: command – “Reply”. 4. Search destination and navigate Click to enter search page. There are three search options: 1).
- Page 6 After selecting a destination, the APP will come back to the map page; the destination will be displayed on the map along with other information such as the distance. Click the Favorites icon , user can save the destination to the favorites or add the place in the map.
- Page 7 Click “Start”, the navigation will be launched.
- Page 8 Before navigation please ensure that the Bluetooth has been connected successfully, if it not connected, the APP will prompt the user to connect the Bluetooth device, the user can choose to connect the product XMAX-HUD-01. After user selected the HUD device, APP will connect to the device and then start navigation. 5.
- Page 9 7. Real time vehicle status check After connecting the Bluetooth device and OBD, click " " to enter the real-time vehicle status check page, the page displays the real-time driving data of the current vehicle, including the current speed, rotating speed, fuel consumption, battery voltage, throttle opening, engine load, coolant temperature, Average fuel consumption, other information.
- Page 10 8. More Click will display more menu items: 1.“Add a place to map” : add a place to the map data, user can input the category, name, address of the place and then save it. 2.“Share My Location” : User can share a place with others by SNS. 3.“Download Maps”...
-
Page 11: Fcc Statement
E Precautions 1. This product belongs to HUD navigation device with the mobile phone navigation APP and OBD wiring. 2. The HUD screen of the device is on high temperature in continues fully working condition and the cooling fan will work and have sound. 3. - Page 12 -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
