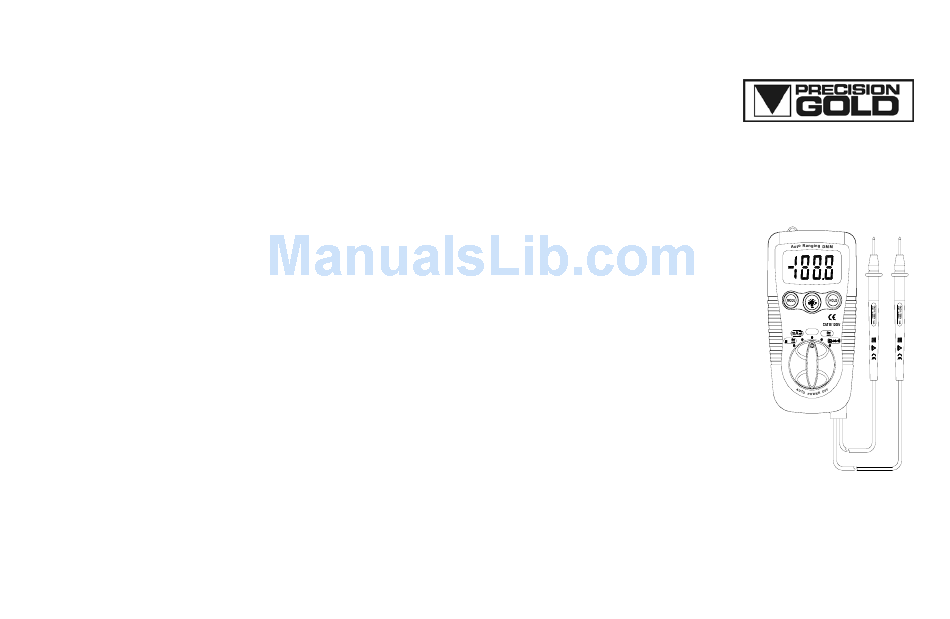

- Page 1 Instruction Manual 3-in-1 E Tester Model: N73BZ...
- Page 3 Features • 3½ digit (2000 count) LCD display • Built-in non-contact AC voltage detector plus flashlight • Double moulded housing • CATIII 1000V • 200mA/500V resettable fused current inputs and overload protection on all ranges • Autoranging with auto power off Safety International Safety Symbols This symbol, adjacent to another symbol or terminal,...
- Page 4 Use great care when making measurements if the voltages are greater than 25Vac rms or 35Vdc. These voltages are considered a shock hazard. Always discharge capacitors and remove power from the device under test before performing diode, resistance or continuity tests. Remove the battery from the meter if the meter is to be stored for long periods.
- Page 5 Specifications Electrical Specifications: Function Range Accuracy ±(0.5% rdg + 3d) DC Voltage 200mV, 2V, 20V, 200V, 600V ±(1.2% rdg + 3d) AC Voltage 2V, 20V ±(1.0% rdg + 8d) 40-400Hz 200V, 600V ±(2.3% rdg + 10d) DC Current ±(2.0% rdg + 8d) 200µA, 2000µA 20mA, 200mA AC Current...
-
Page 6: Ac/Dc Voltage Measurements
Two 1.5V AAA Batteries: Operating Temperature: 0 C to 40 C (32 F to 104 Storage Temperature: C to 50 C (14 F to 122 Weight: 145g Size: 104 x 55 x 32.5mm Standard: IEC61010 CAT III 1000V Pollution degree II, CE Approved Operation AC/DC VOLTAGE MEASUREMENTS... -
Page 7: Resistance Measurement
NOTE: 0.2A/500V fast acting resettable fuse current inputs and overload protection on mA, µA ranges. No replacement required. RESISTANCE MEASUREMENT WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords. -
Page 8: Auto Power Off
Non-Contact AC Voltage Measurements: WARNING: Risk of electrocution. Before use, always test the voltage detector on a known live circuit to verify proper operation 1. Hold the probe tip near to the electrical supply. 2. If AC voltage is present, the detector light will illuminate. NOTE: Electrical cable often gets twisted. -
Page 9: Replacing The Battery
REPLACING THE BATTERY 1. Undo the screw and remove the bottom cover. 1.5V AAA 2. Replace the old batteries with 2 new batteries (Order Code L42AL). 3. Replace the bottom cover and tighten the screw. REPLACING THE FUSE 1.Disconnect the test leads from the meter. 2.Remove the test leads holder and top cover screw. - Page 12 Notice to customers This symbol on the battery indicates that the battery is to be collected separately. The following apply only to users in European countries. • This battery is designed for separate collection at an appropriate collection point. Do not dispose of as household waste •...
