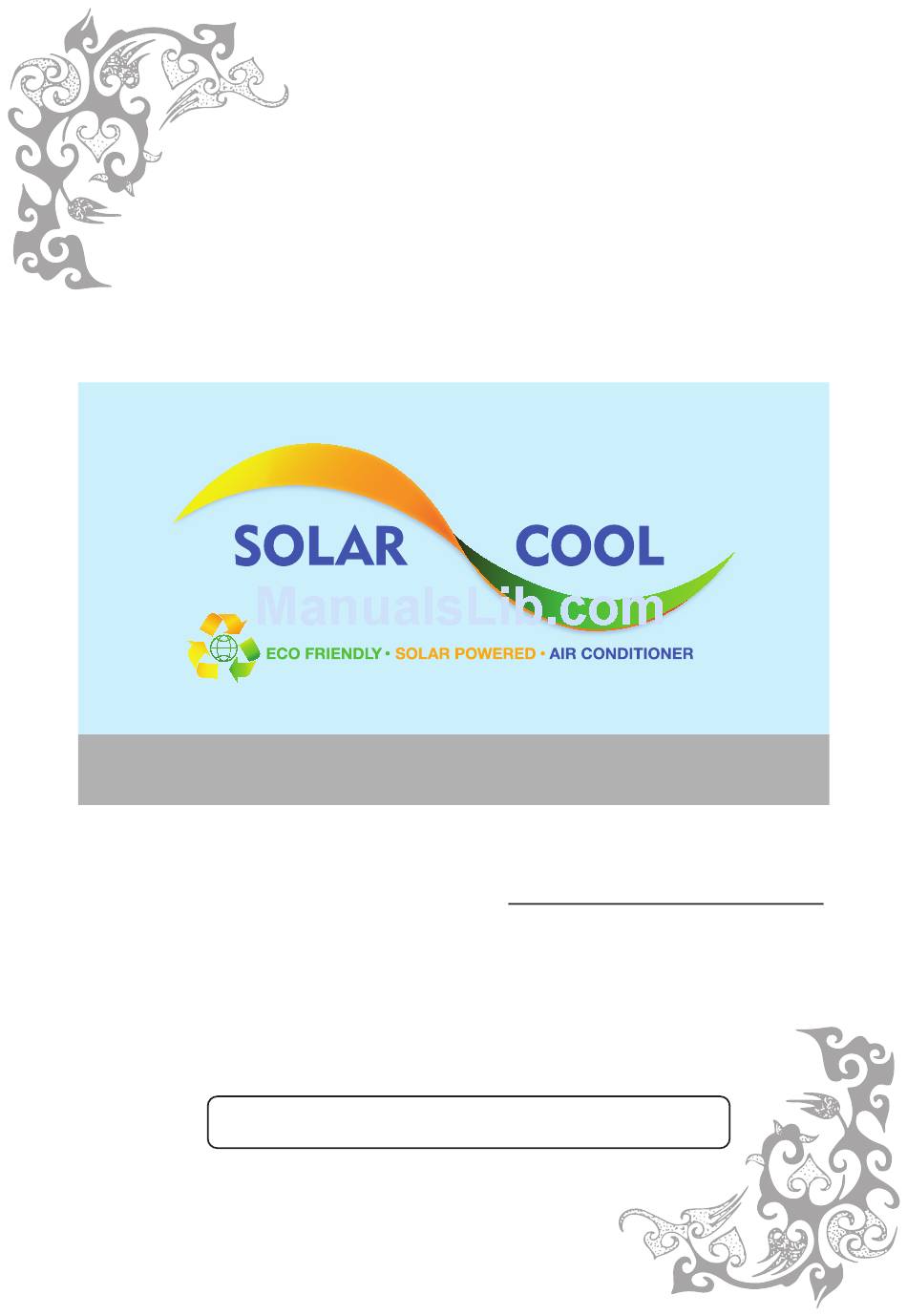

- Page 1 OWNER'S MANUAL S C A I R C O N D I T I O N E R S Thank you for selecting Solar Cool air conditioner. Please read this manual carefully before operation and keep it for further reference.
- Page 2 INDOO R UNIT SCI-12G O UT DO OR UNI T SCO-12G...
-
Page 3: Table Of Contents
CONTENTS Operation and maintenance Notices for operation ........1 ■ Notices for use ........3 ■ Names and functions of each part ■ ......5 Operation of wireless remote control ■ ......6 ■ Emergency operation ........14 ■ ........15 Clean and care Troubleshooting ■... -
Page 4: Operation And Maintenance Notices For Operation
Operation and maintenance-notices for operation ★ ★ Earth: The ground Be sure to pull out the power ★ Select the most appropriate tem- plug and turn off the DC current be connected! perature. breaker of the solar power circ- uit when not using the air cond- itioner for a long time. - Page 5 Notices for operation ★ The airflow direction can be adjusted appro- ★ If the supply cord is damaged, it must be replaced priately. At operating, adjust the vertical airflow by the manufacturer or its service agent or a direction by adjusting the louvers of upward/do- similarly qualified person in order to avoid a wnward direction.
-
Page 6: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on F º... -
Page 7: Working Temperature Range
Notices for use Anti-cool wind function: In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within 2 mins): 1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature. Introduction of DC solar power management The out-door unit can handle DC solar power input besides AC power input. -
Page 8: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑶ ⑴ ⑸ ⑺ ⑷ ⑹ Air out The icons displayed: ⑵ ：Cool ：Dry ⑴ Power cord ：Heat Power Remote controller ⑵ ： ：Set temp. ⑶ Front panel ⑷ Filter ⑸... -
Page 9: Operation Of Wireless Remote Control
Operation of wireless remote controller Name and function of wireless remote controller Note: Be sure that there are no obstructions between receiver and remote control; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 10: Operation Of Wireless Remote Controller
Operation of wireless remote controller Name and function of wireless remote controller Note: Be sure that there are no obstructions between receiver and remote control; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 11: I Feel Button
Operation of wireless remote controller Name and function of wireless remote controller This wireless remote control is universal, and it could be used for many units, some buttons of this control which are not available to this unit will not be described below. TIMER ON TIMER ON button... - Page 12 Operation of wireless remote controller Name and function of wireless remote controller ), Sleep 2 ( ● Sleep 3 ( ) and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted. Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status ●...
- Page 13 Operation of wireless remote controller Name and function of wireless remote controller (3) Under the initial presetting temperature 21℃～27℃, after Sleep function started up, the temperature will decrease 1℃ in every hour, after 2 ℃ decreased, this temperature will be maintained. (4) Under the initial presetting temperature 28 ℃～30℃, after Sleep function started up, the temperature will decrease 1℃...
- Page 14 Operation of wireless remote controller Guide for operation - general operation 1. After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3.
- Page 15 Operation of wireless remote controller ★ About lock Press buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times. If the keyboard is unlocked, the mark will disappear. ★...
-
Page 16: Changing Batteries And Notices
Operation of wireless remote controller Changing batteries and notices 1.Slightly to press the place with , along the arrowhead direction to push the back cover of wireless remote controller. (As shown in Fig 1.) 2.Take out the old batteries. 3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity. -
Page 17: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective button for the users ,who are not accustomed to the light at sleeping. Get the displayer indicator light on: When setting the light function,the mark will ● display on the remote controller screen by pressing this button. -
Page 18: Clean And Care
Clean and care Caution Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric ● shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ●... - Page 19 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 20: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 21 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
- Page 22 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
-
Page 23: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installation, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts. - Page 24 Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
-
Page 25: Installation Dimension Diagram
Installation dimension diagram Installation Drawing Space to the ceiling 15cm Abov Space to the wall 15cm Above 15cm Above Space to the wall 300cm Above Above Air outlet side Space to the floor The dimensions of the space necessary for proper ●... -
Page 26: Install Indoor Unit
Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage. -
Page 27: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●... -
Page 28: Install Outdoor Unit
Install outdoor unit Electric wiring Disassemble the handle on the outdoor unit right side plate. Take off cord anchorage. Connect and fix power connect Handle cord (for cooling and heating unit,connect and fix power connect cord and signal control wire)to terminal block. Fix the power connection cable with cord anchorage, N (1) (for cooling and heating unit, use the cord anchorage... - Page 29 Install outdoor unit Air purging and leakage test 1. Connect charging hose of manifold valve to charge end of low pressure valve (both high/low pressure valves must be tightly shut). 2. Connect joint of charging hose to vacuum pump. 3. Fully open handle handle of Lo manifold valve. 4.
-
Page 30: Install Pv-Module
Install PV-Module PV-Module Characteristics Electrical Characteristics Open - Circuit Voltage (Voc) 33.4V Optimum Operating Voltage (Vmp) 26.2V Short - Circuit Current (Isc) 8.12A Optimum Operating Current (Imp) 7.63A Maximum Power at STC (Pmax) 200Wp Operating Temperature -40ºC to +85ºC Maximum System Voltage 600V DC Maximum Series Fuse Rating 20AMPS... -
Page 31: Mechanical Installation
Install PV-Module Mechanical Installation 1. Mechanical Installation of PV-modules should be operated by professional solar photovoltaic installation guides or reputable solar installer or systems integrator. 2. SC do not provide any mechanical installation guide of PV-modules, as a result, SC will not provide any instructor or after service for the problems of mechanical installation of PV-modules. - Page 32 Install PV-Module Assembly of PV-wire 1.The PV-wire should be single-pole, double insulated solar cable, the length of which is due to the distance from PV-modules to outdoor unit of AC, the recommended conductor cross section is AWG12, and it should accord with UL4703. 2.
- Page 33 Install PV-Module Introduction Photo Recommended tool Step1 Strip cable insulation. Stripping L = 6-7,5 mm. Take pliers:PV-AZM-1.5/6 care not to cut individual strands. Interchangeable blade: PV-M-AZM-156 Crimping pliers: Step2 Open and hold PV-CZM-19100 clamping clip (K).Insert contact in the appropriate cross-section range of the crimping tool.
- Page 34 Install PV-Module Step4 Insert the stripped cable until the insulation comes into contact with the crimping insert. Close crimping tool completely. Check crimp. Step5 Push the crimped contact into the socket resp. plug insulator until it engages. Pull lightly on the lead to check that the metal part has engaged.
- Page 35 Install PV-Module Step8 Plug the coupling together until they engage. Check correct engagement by pulling on the coupling. Step9 Compress the two snapin springs (X) by hand or with the PV-MS tool and separate the coupling. PV-SSH4 Step10 Plugging: Mount the plug connection until it engages.
-
Page 36: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause insufficient cooling(heating) capacity. test? Is heat insulation sufficient? It may cause condensation and dripping. -
Page 37: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig. - Page 40 Owner’s Manual COUNTRY STAR SDN BHD 437305 H www.solarcoolairconditioner.com Product improvement, specification and appearance in this manual are subject to change without prior notice . Owner’s Manual 66129923440...
