Summary of Contents for ApoDx Technology DxPatch

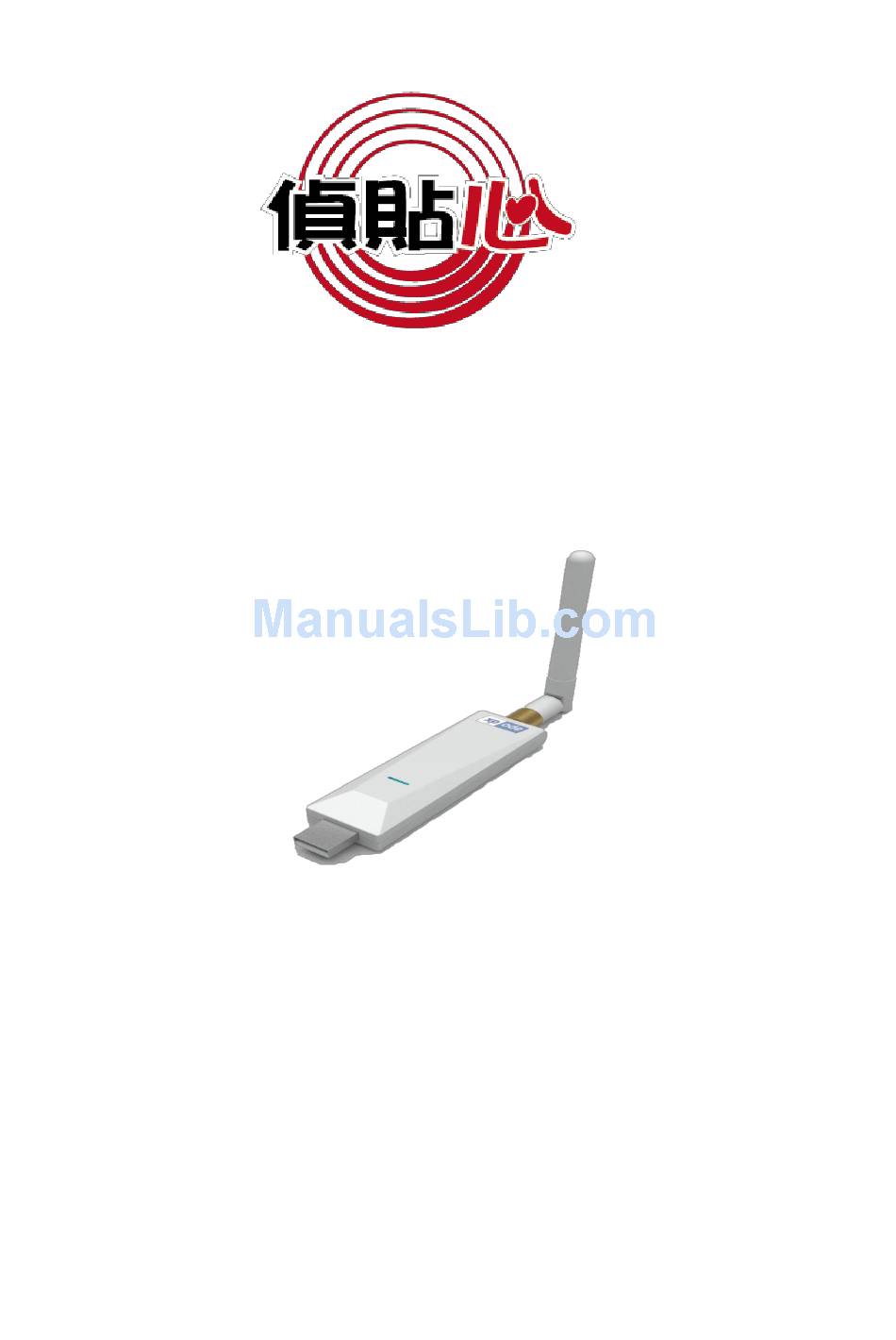

- Page 1 “DxPatch” Receiver User Guide ApoDx Technology, Inc. Version 1.0 Read and follow instructions in the manual before using the product...
-
Page 2: Table Of Contents
Table of content DxPatch Warnings and Cautions ......... 5 Product Introduction ..........7 Suitable age ............. 7 Item List ..............7 Product Appearance ..........8 Manual Instruction ..........11 Data Transfer ............14 Troubleshooting ............. 14 Maintenance and Storage ........15 Manufacture and Medical company information .... -
Page 3: Dxpatch Warnings And Cautions
Declaration of title The manual provides some information of the device for users. Without the written consent of ApoDx Technology, Inc., the ownership of the content cannot be used for purpose, duplication, or disclosure. DxPatch Warnings and Cautions The signs and their implications are as follows。... -
Page 4: Fcc Statement
Do not use this product under the following hazardous conditions: 1. During defibrillation 2. During MRI examination 3. Exposed to high electromagnetic sites 4. In high pressure environment, such as hyperbaric oxygen chamber, near ultraviolet germicidal lamp, and oxygen tent. The product comply with the IEC/EN 60601-1 standards. - Page 5 radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver.
- Page 6 party responsible for compliance could void the user’s authority to operate the equipment. IC Statement This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 7: Product Introduction
1. Product Introduction “DxPatch” Receiver, a wireless to signal receive and work direct with “DxPatch Electrocardiograph/Phono Recorder” (Model:8ZP7). 2. Suitable age DxPatch Electrocardiograph/Phonocardiograph recorder is a portable electrocardiogram for adults over the age of 18. 3. Item List “DxPatch” Receiver ... -
Page 8: Product Appearance
4. Product Appearance Front Antenna (adjust antenna to stabilize swinging of signal) Signal USB plug (Only for connecting “DxPatch”) 8 of 18... -
Page 9: Manual Instruction
5. Manual Instruction DxPatch Receiver is connected to USB plug of the computer contained Holter Setup software. 2. Once the signal starts to blink red light, it indicates that it has connected with “DxPatch”. This product should be used with “DxPatch... - Page 10 7.2 Wireless Starting DxPatch Receiver is connected to USB plug of the computer contained Holter Setup software. Open the Holter Setup. Chose COMMUNICATE. Key in the ID number, CH number and name. Confirm the information and then click the Connect.
- Page 11 ECG and then the product will start to blink the orange light. The Holter Setup will close after the product is started. If users need to start the other Dxpatch, please click the Holter Setup and repeat these steps. 13 of 18...
-
Page 12: Data Transfer
6. Data Transfer Use Micro-USB cable to connect from DxPatch (shown in image) to the PC to begin data transferring. Make the location of PoGo Pin insert in the mistake- proofing slots. Use the USB plug of the base to connect with the computer. -
Page 13: Maintenance And Storage
8. Maintenance and Storage Maintenance (1) Before use, clean the skin with either 75% alcohol or water to the affix location. Wait till its dry then attach to patient. (2) Do not use alcohol or detergent to clean the product. - Page 14 Warranty Dear user, Thank you for purchasing the Holter recorder product. By using this product you are able to record and monitor for a long duration of physiological signals. If you have any concern, please contact your local dealer. This product provides the following warranty: 1.
- Page 15 iv. Product was damaged due to improper usage. Non-defective product due to the factors of warranty coverage will depend on the company’s maintenance standards fee. (5) Return policies i. When returning the product, please contact the customer service in advance and the reason for returning the product.
- Page 16 Appendix Warranty Card DxPatch Electrocardiograph/ Company Stamp Phonocardiograph Recorder 8ZP7 Model No: Name: Company (Business only): Sex: Age: Phone: - Cell Phone: - Address: E-mail: Purchase Date: The warranty card is subject to the sales agents or the company stamp and fill in the dates is not effective.
-
Page 17: Manufacture And Medical Company Information
Manufacture and Medical company information Manufacture: ApoDx Technology, Inc. entrust the manufacture to Leadtek Research, Inc. Manufacture location: 5F, No.2, and 5F, No.4, Aly. 11, Ln. 327, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Medical Company: ApoDx Technology, Inc.
