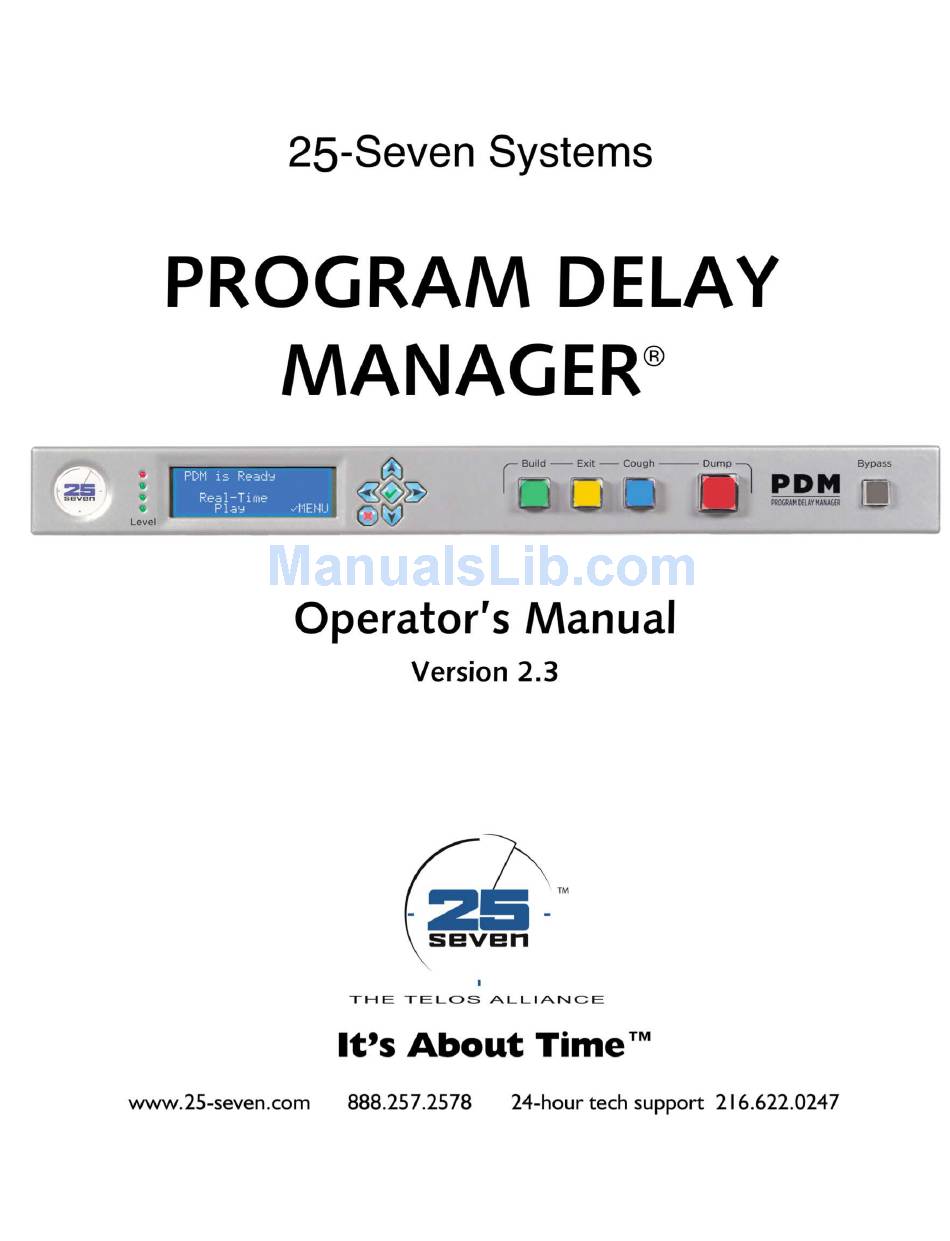

25-Seven Systems program delay manager Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the program delay manager and is the answer not in the manual?

Questions and answers

Summary of Contents for 25-Seven Systems program delay manager

  • Page 2 WARNING: : To reduce the risk of electrical shock, do not expose the chassis to rain or moisture. There are no user-serviceable parts in the Program Delay Manager. If repairs are necessary, contact Customer Service at 888-257-2578 (toll-free), or write to info@25-seven.com.

  • Page 3: Table Of Contents

    For more Information Warranty Close-ups Some parts of this manual explain how Program Delay Manager works ““under the hood””. We’’ve set these in a san-serif face. You don’’t need to read these sections to operate or install the system…… but they’’re interesting, and understanding them will help you use the system better.

  • Page 4: About This Manual

    About this Manual These pages will help you get the most out of the Program Delay Manager™ (PDM). •• The first pages describe PDM’s basic concept and operation: if you’re looking at a unit that’s already installed in a rack, they may be all you need.
  • Page 5 You will need to give PDM a network connection and access to an e-mail system, since PD-Alert uses Internet e-mail. But it doesn’t need a separate computer to run: all necessary functions are built into PDM. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 6 •• Flexible remote control: Use GPIO (buttons, relay closures, or TTL), secure Web interface, RS-232, IP •• packets, or Axia/Livewire GPIO functions are fully assignable by the user. •• Requires Livewire version of PDM. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 7: Basic Operation

    PDM’s delayed output. Other installation possibilities are covered later in this manual. You can change which mode gets activated easily, at any time, from the front panel LCD or remotely from a Web browser. See page 22. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 8 For extra safety, you can also connect one of PDM’s GPIOs (page 27) to keep your phone system off-air until enough delay has been built for a smooth Dump, or to light a “delay unsafe” warning for producers. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 9 …press and hold the blue COUGH button. While you’re holding it down, PDM will con- tinue to send delayed audio to the transmitter. But it won’t store any new audio coming 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 10 . Some operators call this function roll out or wait and exit. Even if you’ve set the system to exit by speeding up, you can access this no-speed-change mode at any time: 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 11: Operating Modes

    After you press EXIT, press and hold down COUGH, and then wait. Watch the LCD screen. When it gets close to Delay 1.0s, release COUGH and start talking again: PDM will smoothly transition to real-time mode. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 12: Cough Mode

    (from before COUGH was pressed) still goes to the transmit- ter. The degree of slowdown, delay memory limit, and Dump seconds can all be set from the front panel. So can other important parameters. Instructions start on page 19. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 13: Exit Modes

    Exit by Compression You can use this mode to exit delayed mode without talent ever having to pause. •• Talent presses EXIT and keeps on talking. PDM keeps recording audio into memory. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 14 “over” might get passed to the transmitter. Pressing BYPASS instantly switches PDM’s output to real-time and erases PDM’s memory. That’s why you want to press it right after talent’s last word reaches the out- put. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 15: Alternate Build Modes

    •• If the file isn’t the same length as the Delay Size, PDM will still join delayed audio when the file finishes. But it will subtly speed up or slow down the out- put as needed, to achieve the preset Delay. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 16: Delay And Speed Selections

    They also don’t rely on deleting pauses, so they can be used on audio with continuous energy, such as musical performances or background crowds at events. PDM’s algorithms excel at speech, and won’t destroy your talents’ delivery. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 17: Front Panel

    Occasionally, you may need to do software updates or other system-level maintenance (page 55). Put the unit in Bypass mode, or remove it from the signal chain, before beginning these operations. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 18: Detailed Operating Instructions

    After you turn off Bypass mode, the “ready” screen appears. This screen also appears after you exit a delay. You may also see a brief Waiting for audio stream message while PDM initializes its audio hard- ware. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 19: General Menu Procedures

    Any changes you just made in the menu system are cancelled, and PDM returns to its normal operating screen. Depending on which menu you’re in, you may need to press a few times to see the Confirmation  screen. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 20: Pdm’'S Front Panel Menus

    Sensitivity settings. Some adjustment options don’t appear in specific hardware versions. Axia Source and Destination menus don’t apply to PDM-XLR versions. Audio connections and levels aren’t used on the PDM-Livewire version. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 21 In other words, the setting means a +14 dBu signal would read 0 dBFS—the maxi- mum allowable digital signal—and standard line level is 10 dB less than that, or –10 dBFS. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 22 Max Delay ¨ Î to set a limit up to 99 seconds for the Delay Size function noted immediately above. This is to prevent operators from ac- cidentally setting unrealistic delays. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 23 The factory default is 7, which takes about two minutes to fully build an eight-second delay. That’s sub- tle enough to be imperceptible to most listeners. There’s a discussion of Build Speed on page 8. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 24 Note: In previous PDM software, the System Menu also included RS-232 and External Clock Offset. These functions now appear only on the Web interface (page 35). Leaving the screen lit at all times can shorten the life of the LCD’s backlight. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 25 We recommend you make these settings from PDM’s front panel, rather than using its GUI from a re- mote network computer, so you don’t accidently change something that’ll break the connection. Nu- meric IP addresses should be set only from the front panel. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 26 Time/Date and Time Zone manually (page 24) before enabling this feature. The list itself is currently at http://tf.nist.gov/tf-cgi/servers.cgi. If NIST has moved it from that location, use the search box on their home page, www.nist.gov, to find “Internet Time Service”. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 27 PDM function, as listed on the following chart. The same function can be assigned to multiple inputs or outputs, if you require two or more isolated circuits for it. GPIO †† FUNCTION INPUT SETTING OUTPUT SETTING None None Nothing Assigned Build BuildTrig Build button 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 28 For example, a momentary pulse on a GPIO Build input will start building the •• delay, just as if you’d tapped the BUILD button. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 29 Connect a mic’s tally signal to the input, and use its output to keep the recorder on whenever the mic is on the air… regardless of how much delay is in use. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 30 This may take a few minutes depending on the connection and how much adjustment is required. •• Sync PDM’s clock is now synchronized with the remote server’s. There’s more about heat control in the section on Installation, page 50. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 31: Graphical User Interface / Web Remote

    Network Address Translation Router. Most routers have the ability to forward port requests from spe- cific IP addresses. Some routers call this feature Virtual Servers. See your router’s instruction manual for details. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 32 When you first log in, this page appears by default. If you’re on another page, you can get here by clicking the tab at the top of the GUI. FRONT PANEL 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 33 Window. This opens a new window in your browser, with a small but fully functional front panel interface. Mini-Window. (Nominal size is 370 x 165 pixels, but you can resize it on your browser’s screen.) 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 34 These small front panels are displayed in the order you entered them. To change their order, or delete particular machines: •• close the multi-PDM Window in your browser, •• click multiple front panel windows again, •• enter desired addresses in the new order. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 35 Click on the tab at the top of the GUI, and your browser changes to look CONFIGURATION like this: Top part of Configuration page; there’s more on the next page of this manual. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 36 Bottom part of Configuration page, continued from previous picture. PDMs with Axia / Livewire software will have a few additional entries; see page 58. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 37 PDM’’s slave output stays in sync no matter what you do. For example, if you DUMP and delete 8 seconds of programming, the studio clock instantly jumps back 8 seconds. If PDM is building a delay by slowing the output, the clock slows down to match. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 38: The Pd-Alert System

    PDM doesn’t receive e-mails; it only sends them. So it doesn’t need an incoming “POP” server. Also, PD-Alert does not support the SASL [Simple Authentication and Security Layer] protocol, so you won’t be able to use web mail services like Gmail. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 39 3.1 MB Uncompressed WAV 120 KB 212 KB High Quality MP3 Assuming PDM is set for 8 second delay, 8 second dump increment, and 5 seconds each of before- and after-context. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 40 The log lists PDM’s recent attempts to send PD-Alert e-mails. If a message has been successfully sent, it displays each recipient’s address, the type of PD-Alert sent, and the This sometimes happens because of a typing error, or if an address is obsolete. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 41 If you click on any File name, PDM will play its audio through your browser. You can also transfer these files to your computer by right-clicking (Windows) or control- clicking (Mac) on the file name, and using your browser’s “Save Linked File” command. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 42 OnAir files are an exact copy of what gets sent to the transmitter. So if PDM was slowing down the audio after a dump to rebuild a delay, you’ll hear the effects of that expansion 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 43 That can be literally hundreds of files, probably more than any station will ever need. To protect your own sanity when using PDM’s navigation or selection screens, we recommend deleting files that are no longer in use. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 44: Serial / Parallel Remote Control

    GPIO functions, and continuously report PDM’s operating status. Standard serial or IP-based connections Data and control lines appear on a male DB-25 connector in both RS-232 and RS-485 formats, as well as over a network. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 45 ASCII 10 (decimal) or OXOA (hex). Note that Carriage Return (ASCII 13) is ignored by the system. trigger <argument> <LF> works the same as sending “down <argument> <LF> up <same argu- ment> <LF>”. But it sure is easier. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 46 PDM releases the COUGH button up Cough<LF> !<LF> PDM starts a DUMP event trigger Dump<LF> !<LF> That is, PDM’s memory now has enough audio to cover at least one complete dump. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 47 Output Events you want reported. xxxx is the serial number of that specific PDM. You can use this to verify the proper system is being ac- cessed in facilities with multiple units. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 48 EmptyTrig PDM is exiting a delay Exiting Flag point n has been reached Flag1...Flag8 Memory has just been completely filled FullTrig PDM output is muted Muted BUILD button is flashing* BuildLamp 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 49 These choices all appear on the CONFIGURATION section (page 36). Only one input can feed data at a time, but multiple devices can be listening to delayed data on the outputs. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 50: Installation

    XLR versions of PDM are normally fed by the Program output of a talk studio. Their output gets sent to the air chain, master control, or network as appropriate. The talent and producer should listen to the console’s Program output, rather than the delayed 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 51: Rear Panel

    PDM sees an intermit- tent or weak digital input signal. Do not connect, remove, or change a digital input signal while PDM is on the air. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 52: Digital Output

    Analog and digital XLR inputs and outputs are wired to bypass relays. In the event of a power failure, incoming audio is connected directly to the outputs. PDM powers up in bypass. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 53 / LED remote. Or use just the opto-isolator connections without pins 8 and 20 for interface to other equipment. DB-25 pinouts shown in bold. indicates individual DB-25 pins for separate GPIO in- puts and outputs; see chart below. Other pulse lengths may be available; contact customer support. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 54 Input 1 Input Common NC — No internal connection Serial Port RS-232 The RS-232 pins are configured as a computer DTE port, similar to the Comm 1 jack on desktop computers. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 55: Axia / Livewire Configuration

    •• Feed PDM with any signal available on your system •• Send its full-quality output to any available input (or multiple inputs at the same time) •• Control PDM directly from selected Axia consoles 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 56: Network Setup

    PDM in Pathfinder’s configuration controls. If Pathfinder doesn’t know Axia has recommendations for using PDM’s GPIO with Element consoles, to make the operator experi- ence as seamless as possible. Contact them for instructions. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 57 Contact your system administrator. Livewire Audio Channels 25-Seven Systems follows Livewire conventions for source and destination. These channels may only be set from PDM’s front panel LCD interface. Open the Network menu on a Livewire-equipped PDM, and select the Axia menu choice.
  • Page 58 CONFIGURATION described on page 35, Axia equipped PDMs have the options in the following screen- shot. Again: we’ve followed Axia’s standard for signal names, to keep setup as simple as possible. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 59 In4=Build Out4=BuildLamp In5=None Out5=DumpReady You also have to configure the console itself, so messages are properly sent to PDM. You’ll need a computer connected to the Livewire network, and a browser. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...
  • Page 60 About the Bypass button In standard XLR analog/digital versions of PDM, the Bypass button takes PDM out of the signal chain. Hardware relays connect PDM’s analog and digital inputs to its out- 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 61: Troubleshooting

    B Subnet. Try changing the Network Mask setting to 255.255.0.0 •• Does your Pathfinder router software know PDM is on the network? You may need to add PDM as a listed device within Pathfinder. 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 62: Software Updates And Factory Access

    Updates 25-Seven Systems is constantly working to improve our products. Please check in with us for the latest software release information. Users running PDM version 1.5 or higher can self-install emailed versions of the latest firmware using a hidden, web-based utility from a networked computer.

  • Page 63: Specifications

    Measured in all modes, using analog connections; expect even better results with digital input and output. For more Information 25-Seven Systems 1241 Superior Avenue East Cleveland Ohio 44114 USA Toll-free 888/257-2578 Main office 216/241-7225 Tech support 216/622-0247 anytime web: www.25-seven.com email: info@25-seven.com 25-Seven Program Delay Manager Version 2.3 Manual April 2013...

  • Page 64: Warranty

    25-Seven Systems, A Telos Alliance Company (hereinafter “25-Seven” and “we” or “us”) warrants Program Delay Manager (“PDM” and “the unit”) to be free from defects in ma- terial and workmanship for a period of one year from the date of receipt by the end- user.
