Summary of Contents for Rapid Tool RT-60

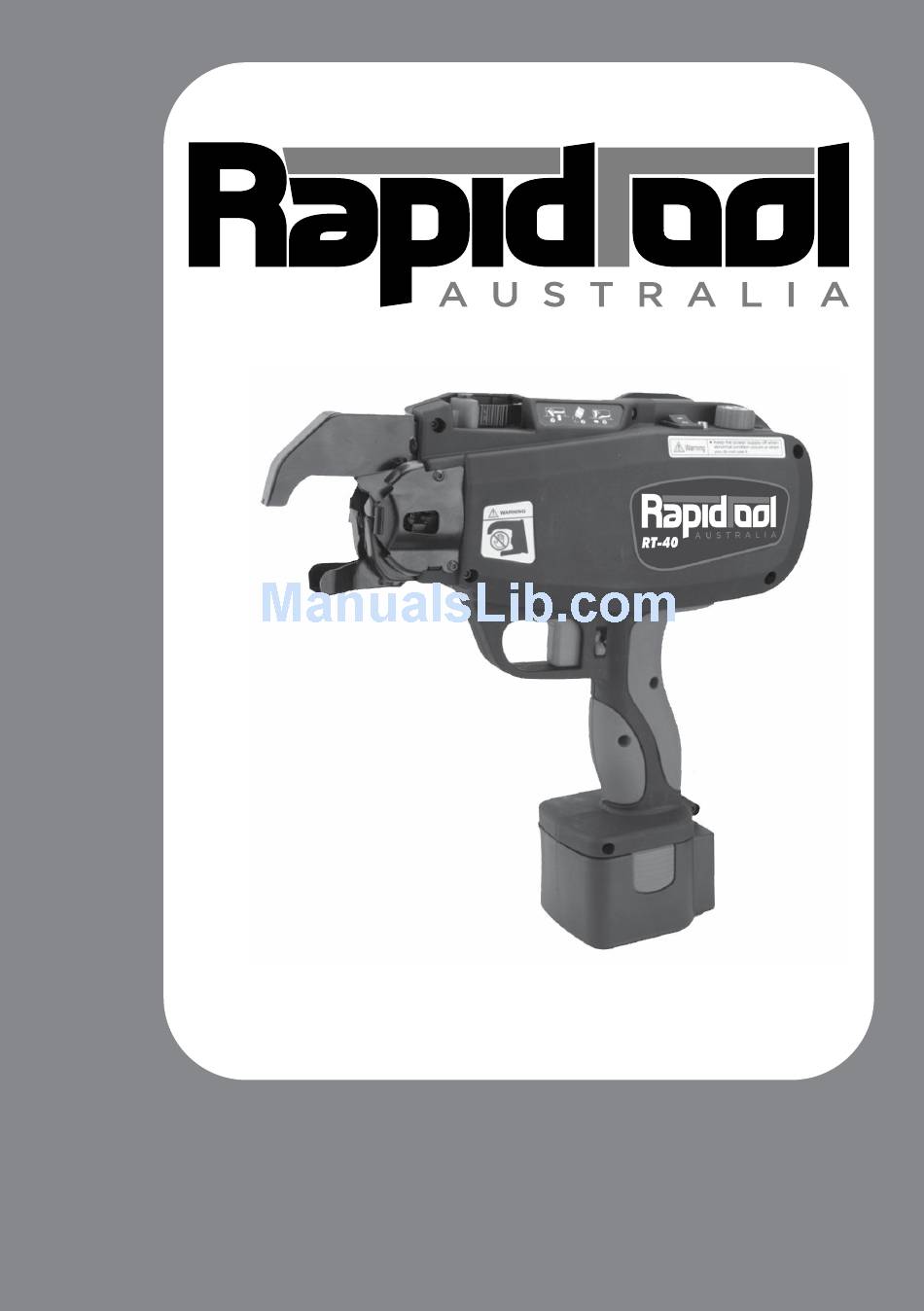

  • Page 1 RT Series REBAR TIE MACHINE User’s Guide...
  • Page 2 6. Never attempt to service machine (other than general maintenance procedures outlined in Maintenance section). Contact supplier if issues arise. 7. Only use Rapid Tool approved spare parts and accessories with machine. 8. Ensure power is switched off when not in use.
  • Page 3 Machine Parts Wire Guide Reel Lever Reel Holder (Pin Centered Reel Stay Behind Reel Stay) Power Switch Feeding Gear Alarm Light Tension Control Dial Feeding Gear Lever Machine Arm Machine Mouth Safety Lock Trigger Battery...
  • Page 4 3. Maintenance General maintenance items below are not covered in machine warranty. Allen Keys have been provided to assist in general maintenance. Always switch power off and safety lock on before performing maintenance. Cleaning Ensure machine is cleaned after use to prevent debris from blocking tie mechanism openings (can use compressed air).

  • Page 5: Machine Operation

    4. Machine Operation Total Tie Diameter Range Model RT-40 RT-60 Total Tie Diameter Range (mm) 4-40 30-60 Tying Procedure 1. Ensure power is on, safety lock is off and feeding gears are closed in contact with wire. 2. Hold machine mouth over reinforcing at 45˚ to reinforcing direction (never attempt to tie diameters outside of the prescribed diameter range in table above).
  • Page 6 RAPID TOOL AUSTRALIA Leading distributor of specialist construction tools & equipment www.rapidtool.com.au...

This manual is also suitable for:

Rt-40

Table of Contents
