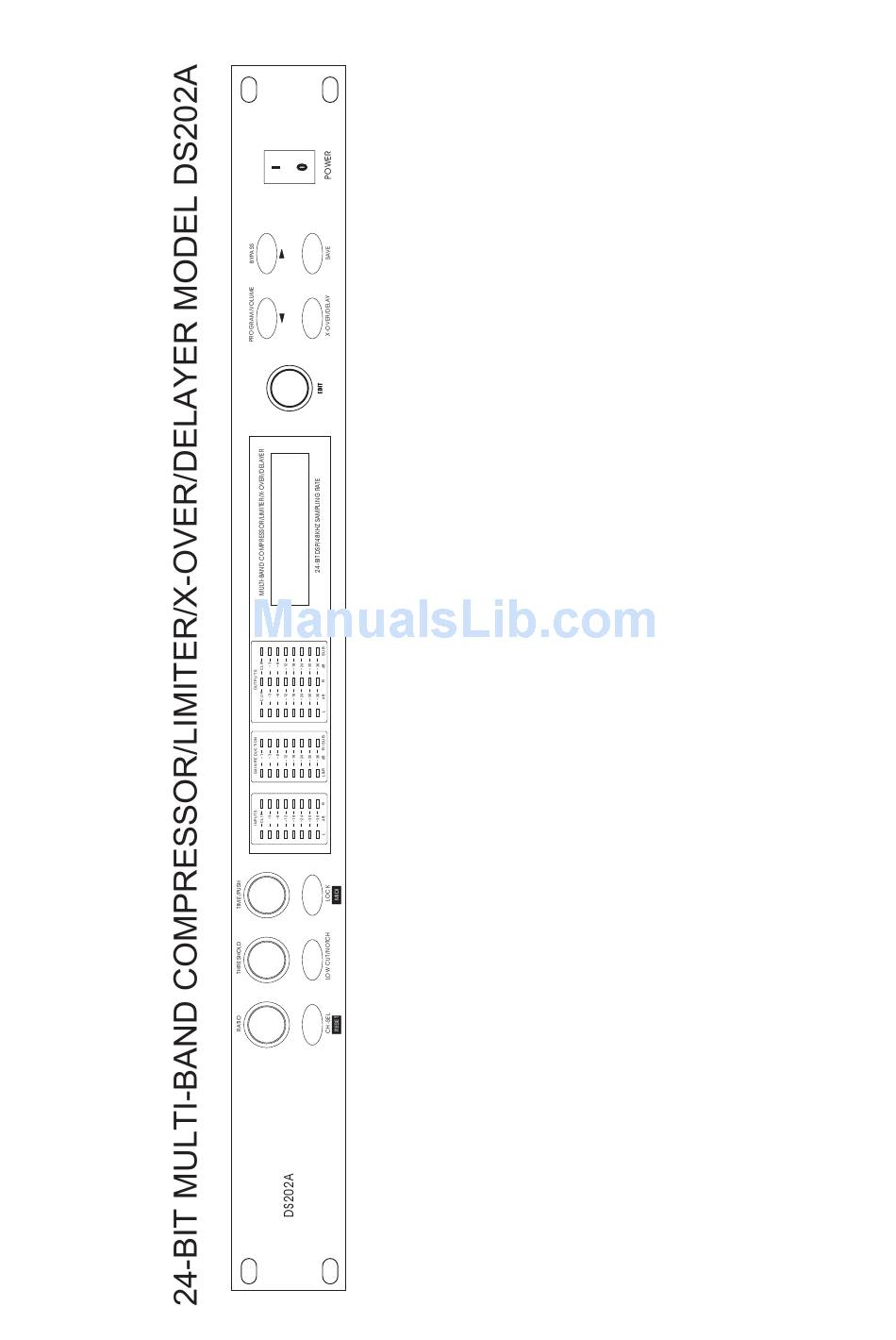

- Page 1 INSTRUCTION MANUAL...
- Page 2 The DS202A fits into a standard 19" rack unit of space (1 3/4"). Allow at least an additional 4" depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and ventilation.
- Page 3 DS202A RATIO THRESHOLD TIME/PUSH PROGRAM/VOLUME BYPASS DS202A POWER CH-SEL LOW CUT/NOTCH LOCK X-OVER/DELAY SAVE RESET MIDI 24-bit S-D,A/D,D/A,48kHz sampling rate Compressor/limiter 3 kinds of output mode -- 2 inputs, 2 outputs -- 2 inputs, 2 outputs + sub -- 2 inputs, 3 outputs Notch and low cut filter to improve the noise 20 programs.
- Page 4 RATIO THRESHOLD TIME/PUSH PROGRAM/VOLUME BYPASS DS202A POWER CH-SEL LOW CUT/NOTCH LOCK X-OVER/DELAY SAVE RESET MIDI 1.RATIO: adjust the compression ratio 2.THRESHOLD: adjust the compression threshold 3.TIME: adjust the constant time and push it to select different parameters 4.EDIT: turn it to edit the parameters 5.CH-SEL/RESET: select channel/system reset...
- Page 5 Instruction: 1.Directly-selected encoders, for example, RATIO,THRESHOLD and TIME encoders, are adopted for convenient operation. Turn encoder 1 to adjust the compression ratio ,and " " indicates the change of the value (as fig.1) .The adjustment range:"1.00 Limit". 01 Stereo Comp Lch Ratio 1.00 Fig.1...
-
Page 6: System Reset
2.CH-SEL-Press it shortly to select the channel to be adjusted ,and the Corresponding information is showed on the left-bottom of the LCD. Under the mode of "Stereo Comp","Lch" and "RCH"can be selected; Under the mode of "Mono Comp+Sub"or "Two Brand Comp", three channels "Lch", "Rch"and "Sub", can be selected. - Page 7 01 Stereo Comp Lch Volume -30dB Under the mode of "MONO COMP+Sub"or "Two Band Comp", press " PROG/VOL" Fig.10 for about two seconds to select the level ratio of the input subwoofer from left and right Channels. The adjustment range of"Sub/Left":"OFF 100%",step:10%; The adjustment range of"Sub/Rch":"OFF 100%",step:10%.
- Page 8 Note: In the case of Mono and Crossover compression, the crossover frequency of the High Pass and the Low Pass is adjusted simultaneously in order to ensure the frequency response. 8.SAVE-First press it to enter the editable stage. As the first 3 programs have been preset by factory and can not to be edited again, the editable programs for the user can only start from No.04 (as fig.14).The max sequence number:20 Lch Ratio 1.00...
-
Page 9: Rear Panel
REAR PANEL INPUT LEVEL INPUT LEVEL OUTPUTS 2 INPUTS 2 OUTPUTS 1 INPUTS 1 SERIAL NUMBER DATE CODE SUBWOOFER OUTPUTS 1. MAIN CONNECTOR/FUSE HOLDER/VOLTAGE SELECTOR: Before you connect the unit, please make sure that the displayed voltage corresponds to your Mains supply. Please note that the AC voltage selection is defined by the position of the Fuse Holder. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Analog Inputs Connectors XLR and 1/4" jack Type RF filtered, servo balanced , 20kOhms unbalanced Impedance 40kOhms balanced, 20kOhms unbalanced Nominal Operating Level -20dB to +4dB Analog Outputs Connectors XLR and 1/4" jack Type Electronically servo-balanced output stage Impedance 66kOhms balanced, 33kOhms unbalanced System specifications...
