Summary of Contents for Datastrip DSV2+Turbo

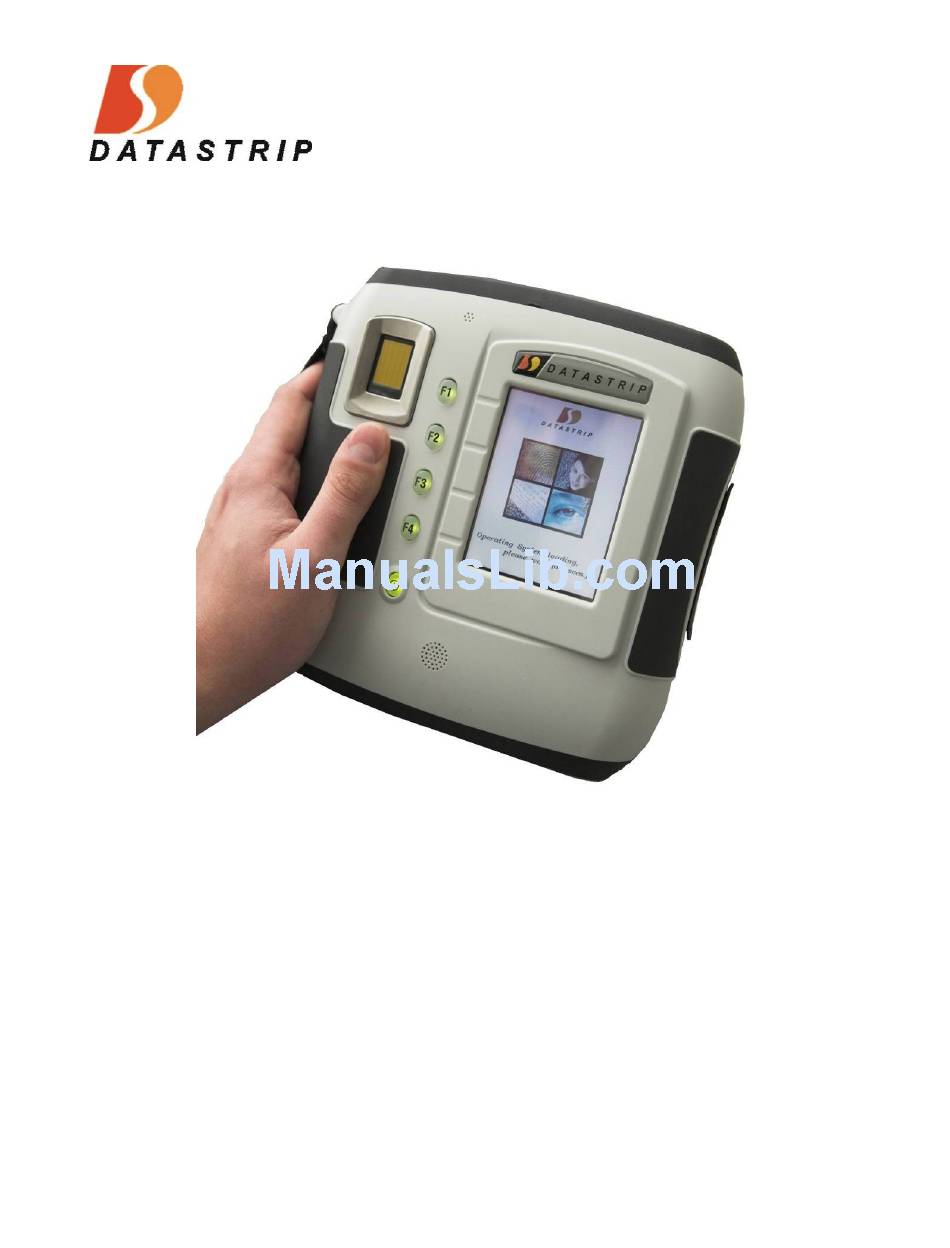

  • Page 1 T urbo DSV2+ User’s Manual GSA Approved – NIST FIPS 201/SP 800-76 Compliant Part Number 4207-00008-109_0A...

  • Page 2: Copyright Notice

    Datastrip) reserve the right to change options, features, specifications, policies, pricing and availability at any time. Datastrip is not liable for errors or omissions in any product related documentation, specifications or software. Datastrip makes no claims of suitability for any particular application. Datastrip will not be held liable for direct or indirect damages or other losses due to loss of data, reliability, or performance issues relating to Datastrip-provided equipment or software.

  • Page 3: Table Of Contents

    Smart Card Reader & Scanner Demo (SuperViewer.exe) ............. 18 PIV Card and CHUID Verifier (DatastripPIVCard_CHUIDVerifier.exe) ......21 Digital Still Camera Demo (DsVerifyStillCameraTest.exe)............ 23 Scanner (PA & SW) Test Demo (DsVerifyScanTestAsync.exe)..........24 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 4 8.1.1 DSV2+ Software Update Procedure - Using CF card in external slot ..........31 8.1.2 DSV2+ Software Update Procedure – Using Datastrip FTP site............31 Loading Scanner Firmware Updates..................32 Loading Smartcard Firmware Updates ................... 32 Loading Digital Still Camera Firmware Updates..............33 Loading PIC Firmware Updates....................
  • Page 5 Turbo DSV2+ User Manual, Version 1.09 Appendix C: Scanner Information................... 48 17.1 Scanner Settings........................48 Turbo 17.2 DSV2+ -PA Product Specifications ................. 51 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 6: Overview

    Images from this sensor can be used for a variety of card holder ID validation purposes, including extraction, matching, and storage of fingerprint minutia templates. Turbo Figure 1: DSV2+ Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 7: Unpacking & Inventory

    AC adapter. No external standalone charger for batteries is required. Please refer to Section 5. 0 “Battery Charging and Replacement”, for additional instructions and safety information. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 8: Hardware Features

    Red flash System Warning: Batteries Green Red alternating Batteries are very low and should be charged as soon very low as possible (50% 50%) Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 9: Lcd, Touch Screen, Fingerprint Sensor & Indicators

    ID validation purposes, including extraction, matching, and storage of fingerprint minutia templates. Datastrip supports fingerprint matching algorithms from a variety of the industry leading vendors such as: Cogent, Bioscrypt, Identix, Motorola, and NEC.

  • Page 10: I/O Port Access

    LCD screen, on the same side of the unit as the Smart Card slot. The typical maximum operating range is 30 mm. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 11: Serial Port

    User Manual, Version 1.09 4.5 Serial Port The DSV2+ contact pins in the bottom endcap provide one external serial port available for interfacing to a host computer or other external equipment via the Datastrip Docking Station. 4.5.1 Serial Port Electrical Specifications •...

  • Page 12: Digital Still Camera Installation Instructions

    Step 3 – Attach the camera housing to the DSV2+ using the two captive screws. Step #1 Step #2 Step#3 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 13: Battery Charging And Replacement

    When replacing the battery, ensure that the battery wiring is tucked in, out of the way of the mating surfaces for the rear-cover. Replace the battery cover and tighten the fasteners (do not over-tighten). Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 14 DISPOSAL: Always consult and obey all international, federal, provincial/state, and local hazardous waste disposal laws. Certain jurisdictions require recycling of this spent product. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 15: Basic Operation

    Go to the Control Panel, select Display and under the “Backlight” tab adjust the slider control then click the “OK” button. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 16: Input Panel / Keyboard

    User Idle + the time to go to System Idle + the time to go to Suspend. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 17: Battery Gauge

    4. An error beep sounds each time the warning message pops up. Main & Backup Batteries Main Battery=No external power Level=Good, State=Charging Level=Very Low Battery Gauge Very Low Good Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 18: Safe Boot Mode

    Datastrip DSVII SDK (sold separately). 7.1 Software Version Utility (DsVerify2About.exe) This utility reports the OS Version, the versions of all Datastrip specific drivers and components, software license settings, the unit serial number, and the HW Configuration. To run this utility: •...
  • Page 19 “Use GUI Buttons” box and return to the Main Screen. The GUI buttons “Photo”, “Text, and “Fingerprint” will be displayed above the windows. • Clicking on the “Datastrip” logo button will bring the application back to the Main Screen.
  • Page 20 Only one symbology at a time can be selected. • Select the type of ‘symbol’ that the DSV2+ will Find and Decode from this screen. The choices are Datastrip, OCRB, PDF417 or Barcode. Datastrip: Datastrip2D and 2DSuperscript two-dimensional...

  • Page 21: Piv Card And Chuid Verifier (Datastrippivcard_Chuidverifier.exe)

    If either error condition is met the application will display an error message on top of the Activity Log Window and notify the operator of a non acceptable PIV card. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 22 The Con Button- The Con or Configure button is used to setup the configuration for acceptance of a PIV card based on the following fields: • FASC-N • Agency Code • Organization Code Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 23: Digital Still Camera Demo (Dsverifystillcameratest.exe)

    “Settings”-> “Control Panel” -> “System”, select the “Memory” tab, then slide the memory allocation bar to the left until approx. 3456 KB is allocated to storage memory. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 24: Scanner (Pa & Sw) Test Demo (Dsverifyscantestasync.exe)

    See Decoder Screen options below. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 25 The Scanner (DSP) Find and Decode of the symbology specified. • Upload Found Image to Mem The image found by the Host Processor (SH4) is uploaded to memory. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 26: Epassport Icao Viewer (Icao Viewer.exe)

    Access Control" (BAC) where the key is comprised of data contained on the document itself. ICAO Viewer Application The Datastrip ICAO Viewer application is a dialog-based application created to demonstrate ePassport scanning and decoding. The ePassport is first scanned to read the Machine Readable Zone (MRZ) at the bottom of the ePassport.

  • Page 27: Data Capture Enrollment Application (Datacapture,Exe)

    PC. You Must Have a Digital Still Camera installed for this application. New Record: Enter the User Data; Name, Doc #, Date, Location, Type. Record Composer: Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 28: Iclass Card Demo (Iclassreadwritesample.exe)

    The IClassReadWriteSample application is used to enroll and later verify user information on HID IClass Smart Cards. This sample uses a PC/SC driver developed by Datastrip to operate with an HID OEM-150 Smart Card reader when it is present in a system. It captures both...
  • Page 29 User Manual, Version 1.09 Note: Datastrip loads a default key on new units that allows iClass cards with a default key to be used. Secure keys can only be obtained through HID or the iClass card distributor can load the key when you buy iClass cards.

  • Page 30: Fingerprint Capture Utility (Dsverifyfpcapturetest.exe)

    SDK for developer use. 7.11 DsVerify Registry Install Utility (DsVerifyRegInst.exe) This application registers all of the Datastrip specific components of the DSV2+ that are needed to read/write Smart Cards, scan documents, operate the Fingerprint sensor, and so forth. It is typically run after a software update to registers the components in sequence and reports any errors if it doesn’t succeed.

  • Page 31: Loading Software And Firmware

    • CAB files located on \Storage Card 2, \Storage Card, and USB thumb drives • CAB files loaded directly from the Datastrip corporate FTP server, (requires a Datastrip supplied) username and password that accesses a pre-determined account.

  • Page 32: Loading Scanner Firmware Updates

    Only ScardFw versions 6.32 or later can be updated. Verify the version of your SCardFw by running the DsVerify2About Utility. The procedure for updating the smartcard firmware is as follows: Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 33: Loading Digital Still Camera Firmware Updates

    • Double tap the latest release e.g. “PIC_FW_V401.hex” to select it. • Click the button “Update PIC Firmware”. • Reboot to complete update. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 34: 9. Dsv2+ Turbo -Sc Product Specifications - Gsa Fips-201 Compliant

    EN 55022:1998 & EN 55024:1998 R&TTE: Compliance under EN 300330 & EN 301489-03 NRTL: TÜV Rheinland of North America, Inc. Regulatory Markings: CE, TÜV NRTL (Canada &US). Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 35: Regulatory Compliance Statement

    • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modification to Datastrip DSV2 not expressly approved by the party responsible for assuring compliance could void the user's authority to operate the equipment in a safe or otherwise regulatory compliant manner.

  • Page 36: Fingerprint Algorithms And Support

    LED Plug in the AC power adapter to charge the battery AS SOON AS POSSIBLE flashes RED once Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 37: Available Parts, Supplies, And Accessories

    13. Available Parts, Supplies, and Accessories The following replacement parts and supplies are available through the technical-support contacts, or through your authorized Datastrip reseller. Please contact Datastrip or an authorized reseller for a complete list of options, accessories, pricing, and availability information.
  • Page 38 Vehicle Power Charger: DSTPPR Proximity Card Reader (PROX) Multi Format ready Programmable output Supports HID standard Prox cards Indala and Motorola also available Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 39 (scanner models only). • Stylus pocket. • Serial & DC power connectors remain accessible for user convenience. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 40: Service & Support

    For parts, supplies and accessories, place your order through your authorized Datastrip reseller, or by contacting Datastrip Limited or Datastrip, Inc. Datastrip thanks you for purchasing our equipment. If you have any comments, suggestions, questions, or concerns, we would like to hear from you.

  • Page 41: Appendix A: Docking Station

    Turbo The connector in the bottom endcap of the pins DSV2+ provide external power and one serial port for interfacing to a host computer or other external equipment via the Datastrip Docking Station. 15.1.1 Adjusting the Docking Station Backrest The docking station backrest has two positions. It is important to adjust the backrest correctly to insure proper operation (i.e.

  • Page 42: Appendix B: Active Sync

    • ActiveSync version 3.7.1 or later installed on the host PC (Version 4.5 recommended) • A DSV2+ terminal with USB 2.0 enabled. • USB 2.0 to Mini B Cable – Datastrip sales code – DSVOSCAUSB. • Datastrip DSV2+_Turbo_USB Sync Setup utility found on the DSV2+ User Manual CD.

  • Page 43: Activesync Via The Docking Station

    16.2.1 Software/Hardware Requirements and Setup • ActiveSync version 3.7.1 or later installed on the host PC. • Docking station, docking station serial cable and Datastrip power adapter. • Connect the DB9 end of the Docking station serial cable to the PC COM1.
  • Page 44 • ActiveSync version 3.7.1 or later installed on the host PC (Version 4.5 recommended) • A DSV2+ terminal with USB 2.0 enabled. • USB 2.0 to Mini B Cable – Datastrip sales code – DSVOSCAUSB. • Datastrip DSV2+_Turbo_USB Sync Setup utility found on the DSV2+ User Manual CD.

  • Page 45: Pc Configuration For Bluetooth

    • ActiveSync version 3.7.1 or later installed on the host PC (Version 4.5 recommended) • A DSV2+ terminal with USB 2.0 enabled. • USB 2.0 to Mini B Cable – Datastrip sales code – DSVOSCAUSB. • Datastrip DSV2+_Turbo_USB Sync Setup utility found on the DSV2+ User Manual CD.
  • Page 46 PC Connection screen. Re-insert your USB cable to get connected. If you did not see the option for “USB on COM3” your terminal is not USB 2.0 enabled. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 47: Dsv2+ Configuration

    “Disconnect” or do nothing and the session will timeout after one minute. Both ends of the connection must be disconnected before you can reconnect the cable and start another ActiveSync session. • Troubleshooting the Connection” Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.

  • Page 48: Appendix C: Scanner Information

    17.1 Scanner Settings Listed below are the user configurable scanner settings. These configuration options can be adjusted programmatically by calling API functions or by using a Datastrip supplied sample application such as DsVerifyScanTestAsync.exe which is located in the \Storage Card\DSVII directory.
  • Page 49 Resolution: When scanning OCRB documents the scanner resolution can be set for 200, 300 or 600 DPI. When scanning Datastrip symbologies the resolution should be set for 600 DPI. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 50 The Wait Timeout is the time, in seconds, that the scanner subsystem will wait for a document to be scanned before restarting the scanner subsystem. Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
  • Page 51 (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Markings: CE, TÜV NRTL (Canada &US) Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited.
