Ildvr Digital Technology USA SC series User Manual

Hide thumbs

Advertisement

Table of Contents

Thank you for using ILDVR
Series speed dome camera, please read it thoroughly and carefully.

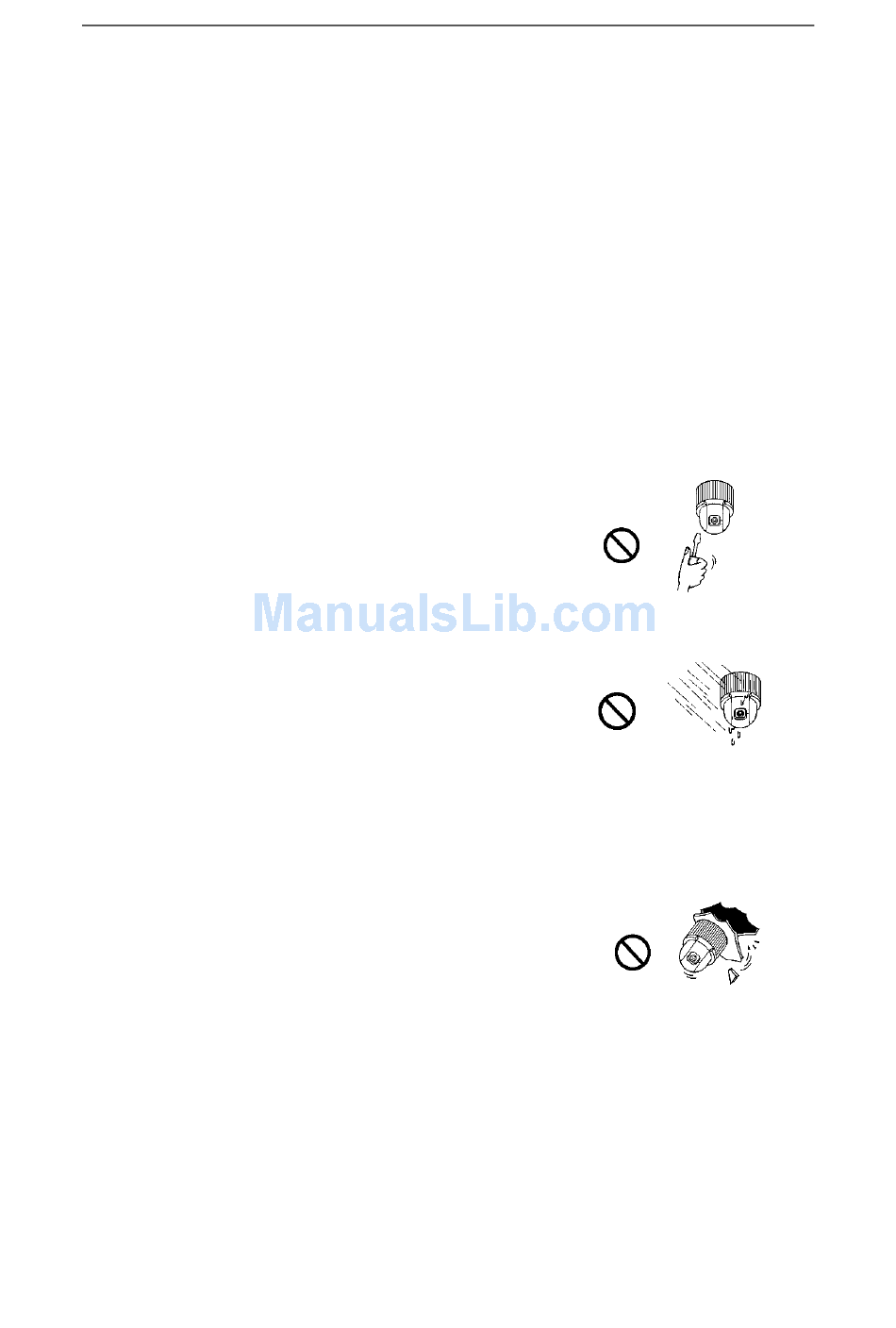

1. Precautions:
1.1
This manual provides information on features, installation, configuration and applications.
Please read this manual carefully and use the product correctly. Also please refer to the detail
information if you have any inquiries.
1.2
Either DC15V/1A or AC24v power supply. Before using, to confirm power Supply.
1.3
This product should be protected against extremes of pressure, vibration or dampness
during transportation. It should be shipped in parts as original packing. Damage caused by not
obeying said above is not in the warranty.
1.4
Do not attempt to disassemble the camera. In order to prevent electric shock, do not remove
screws or covers. There are no user serviceable parts inside and only qualified personnel are to
service the unit.
1.5
Do not install this product to outdoor environment alone and do not put the camera to shoot
the sun directly.
1.6
Do not use strong or abrasive detergents when cleaning the camera body. Do use a dry cloth
to clean the camera when dirty. In case the dirt is hard to remove, use mild detergent and wipe
gently.
1.7
If necessary, use a professional lens' cleaning paper to clear the lens' glass.
1.8
Never mount the unit on a ceiling that cannot support its weight.
Intelligence Speed Ddome SC&SE Series User Manual
®
product, this manual will guide you install and operate SC/SE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ildvr Digital Technology USA SC series

  • Page 1 Intelligence Speed Ddome SC&SE Series User Manual ® Thank you for using ILDVR product, this manual will guide you install and operate SC/SE Series speed dome camera, please read it thoroughly and carefully. 1. Precautions: This manual provides information on features, installation, configuration and applications. Please read this manual carefully and use the product correctly.
  • Page 2 Intelligence Speed Ddome SC&SE Series User Manual 2. Function The multi-protocol interface transfer inside. a. The multi-protocol cable can integrate 16 kinds of protocol, the baud rate can be adjusted, by setting the 1~10 bits of the DIP Switch. The dome is compatible with the most of systems. b.
  • Page 3 Intelligence Speed Ddome SC&SE Series User Manual (6) Shutter: When turn on the camera the shutter default is 1/50sec,this time the screen display 50, user can turn on the manual shutter function the adjust range :1/3sec～1/10000sec. (7) Set the Image Effect: User can set the image effect by personal fancy. There are 8 kinds of image effect can be chosen.

  • Page 4: Dome Setting

    Intelligence Speed Ddome SC&SE Series User Manual Attention: these symbol only displays when turn on the On Screen Display function. Turn Off it the screen would only display the image. 3. Dome Setting Factory default setting Factory default protocol is Pelco-D, Baud Rate is 2400, Address is 1. Connection: Before install the dome please confirm the protocol, baud rate of the control system, then setting the SW2 to fit for the controller.

  • Page 5: Protocol Type

    Intelligence Speed Ddome SC&SE Series User Manual SW1 Setting Dome Address: Address Table2 Note: 1. The dome address is binary digit, ON equal “1” OFF equal “0”. 2. The range of ID from 1 to 511. 3. The 10 bit of SW1 is a switch to a resistance on the connection line for the last camera to the daisy chain.
  • Page 6 Intelligence Speed Ddome SC&SE Series User Manual VICON ○ Molynx ○ KALATE ○ ○ DAIWA ○ ALIC ● Ultrak ● Table3 Note: 1. Setting Dome Protocol (bit1~bit4 of SW2) and Baud Rate (bit6~bit7 of SW2). If the default protocol or baud rate is not fit for the given system please set the protocol and baud rate to consist with the matrix.
  • Page 7 Intelligence Speed Ddome SC&SE Series User Manual 6. If the dome being provided with Updatable English Character function, we can modify the caption by next step: First, open the OSD (if OSD OFF). Second, call the present position which you want to modify the caption by using call preset positions command. Third, set the 64 positions present by using setting preset number command.
  • Page 8 Intelligence Speed Ddome SC&SE Series User Manual b: out-line mode.(According to the customer Request) 15V DC + RS 485 + RS 485 - VIDEO - VIDEO + Socket mode (default) 5. Set speed dome address: a. Remove the clip b.The dome address is 9 bits binary digit, the range is from 1 to 511, refer to the table 2. c.

  • Page 9: Technical Data Table

    Intelligence Speed Ddome SC&SE Series User Manual Fig 4 5. Reference of installation: Take off the bottom board; put the connection line through the center hole on the bottom board. Refer to the following fig 5, use 3 bolts to fix the bottom board on the ceiling, and then connect the dome with the external connection line.

  • Page 10: Troubleshooting Table

    There are some reason cause to the familiar problem, and it's resolve method, it is just list to be consulted. If you have different requirements or problems, please contact us directly to ask the technical support. Copyright Reserved Manufacturer: ILDVR Digital Technology USA Inc Website: www.ildvr.com Tech-support:...
