Summit LE5835 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

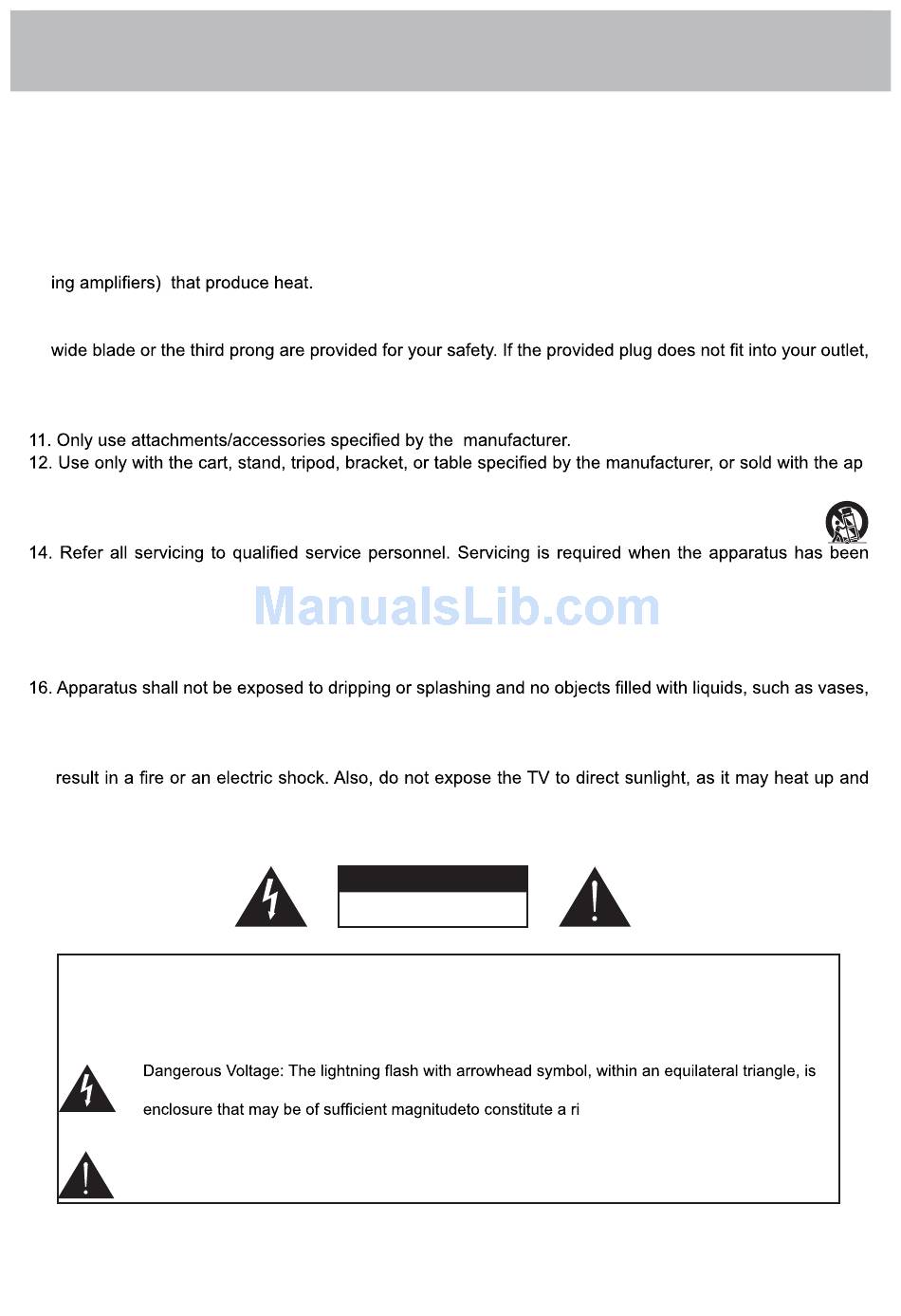

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

paratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

15. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or

Moisture.

shall be palced on the apparatus

17. The mains plug or appliance coupler shall remain readily opeable.

18. Use in outdoor: This TV is not designed for outdoors installation. Do not expose the TV to rain, as it may

become damaged.

Safety:

TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLEPARTS ARE INSIDE. REFER TO QUALIFIED

PERSONNEL ONLY.

intended to alert the user to thepresence of uninsulated "dangerous voltage" within the product's

Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and servicing instructions in the literature accompanying the

appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

sk of electric shock to persons.

Table of Contents

Need help?

Do you have a question about the LE5835 and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit LE5835

Page 1: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
Page 2: Safety Instructions
Safety Instructions Important safeguards for you and your new TV Observing the simple precautions discussed in this booklet will provide you with many years of enjoyment and safe operation. This product complies with all applicable US Federal safety requirements, and those of the Canadian Standards Association.
Page 3 Safety Instructions 13. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting struc- ture, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna- discharge unit, connect on to grounding electrodes, and requirements for the grounding electrode.
Page 4 Safety Instructions 19. Replacement Parts When replacement parts are required, be sure that only an authorized service technician has used replacement parts speciﬁed by Apex Digital or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards and void any warranty.
Page 5: Table Of Contents
Table of Contents Important Safety Instructions ............................1 Table of Contents ................................5 Introduction ..................................6 Remote Control Battery Install .................................7 Overview ..................................8 TV Overview Front Panel ................................10 Rear Panel & Pedestal Removal ..........................11 Installation Connection to Antenna & Cable / Satellite Box ......................12 Connection to HDMI Input ............................13 Connection to Component YPbPr Input ........................14 Connection to Composite Input ...........................15...
Page 6: Introduction
Introduction What’s In The Box Thank you for purchasing the energy efﬁcient LE5835 t elevision. It has been designed to enjoy today’s high deﬁnition you are assured of one of the ﬁnest quality televisions television experience. With a display resolution of 58”1920 X 1080...
Page 7: Remote Control
Remote Control Battery Install Your remote control handset is powered by two (2) AAA type batteries • To insert the batteries, turn the • Place two (2) “AAA” batteries into the • Replace the cover battery compartment with the “+” and “- remote control over and remove “...
Page 8: Overview
Remote Control Overview Notes: 1. If direct sunlight shine directly on the remote sensor, the remote control’s operation may be unstable, and the effective range will be reduced. 2. Do not hit or violently shake the remote control. 3. Never expose the remote control to high temperature or humidity. 4.
Page 9 Remote Control Overview User > Standard > Music > Movie > Sports. Dynamic > Standard > Soft > Power Saving > User. 29. NUMBER KEYS Press number keys to enter channel numbers.
Page 10: Tv Overview
TV Overview Front Panel INPUT MENU VOL+ VOL- POWER IR Receiver A soft blue light illuminates when the television power is on. Input - After connecting your DVD, cable box, etc., select the appropriate input source to view. Press the INPUT button to display the input options. Press the CH- / CH+ buttons to highlight the input source and press the VOL+ button to select.
Page 11: Rear Panel & Pedestal Removal
TV Overview Rear Panel & Pedestal Removal AUDIO OUT HDMI1 HDMI2 HDMI3 PC AUDIO SPDIF RF IN (ARC) (MHL) Wall Mounting It is recommended that you consult a professional before mounting this TV a wall. Use VESA 400 x 400 wall mount hardware. NOTE: You must remove the pedestal before wall mounting.
Page 12: Installation
Connection to Antenna & Cable / Installation Satellite Box It is strongly recommended that the installation of a high quality roof top antenna, digital cable, or satel- lite set top box be used in conjunction with your television for best broadcast reception. For indoor use, we recommend an Apex Digital ampliﬁed HDTV antenna.
Page 13: Connection To Hdmi Input
Installation Connection to HDMI Input Digital Cable / Satellite Set Top Box Optional HDMI cable ( not included ) HDMI1 HDMI3 PC AUDIO SPDIF HDMI2 (ARC) (MHL) Cable / Satellite set top box Coaxial / RF Cable (not included) How to connect with Digital Cable / Satellite Set Top Box •...
Page 14: Connection To Component Ypbpr Input
Connection to Component Installation YPbPr Input Connecting External Equipment to Component Video IN (Y Pb Pr) AUDIO OUT RF IN Optional Component cables (not included) Digital set top box, gaming console or DVD For BETTER video performance Connect to external equipment that features component video output jacks for better performance.
Page 15: Connection To Composite Input
Installation Connection to Composite Input Connecting External Equipment to AV Composite IN on your television AUDIO OUT RF IN Audio Video Cable (included) Digital set top box, gaming console or DVD For GOOD video performance Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satel- lite boxes and DVD players.
Page 16: Connection To A Personal Computer
Installation Connection to a Personal Computer Connecting a Personal Computer with VGA to your television HDMI1 HDMI2 HDMI3 PC AUDIO SPDIF (ARC) (MHL) VGA & Audio Cable (not included) Recommended computer display resolution:1920x1080@60 Hz How to Connect a PC • Connect using an optional male to male VGA cable (not included) from your PC to the VGA input on the TV’s panel.
Page 17: Connection To A Home Theater System
Connection to a Home Installation Theater System Connection to a Home Theater Audio System Optional digital cable (not included) PC AUDIO HDMI3 SPDIF For BEST audio performance Connecting to a Home Theater System Digital audio can deliver optimal 2 - channel stereo or 5.1 surround sound with Five discrete full range channels plus a separate channel for a subwoofer.
Page 18 TV Setup Initial Setup Wizard Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory.
Page 19 TV Provider Setup TV Settings & Channel Auto Scan After the Setup Wizard has been completed, please skip this page as your Cable/Antenna is already set up. The following instructions on this page are provided if you need to make changes at a later time.
Page 20: Picture Setting
Menu Adjustments Picture Setting The Picture menu offers options to enhance and reﬁne the picture displayed on your TV based on ambient room light and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature. How to Navigate: Press the MENU button on the remote control.
Page 21: Audio Settings
Menu Adjustments Audio Settings The Audio menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the MENU button on the remote control.
Page 22: Time Settings
Menu Adjustments Date & Time Settings The Time menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 19 for TV Setup).
Page 23: Setup Settings
Menu Adjustments Setup Settings In the Setup menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring,closed captions, enhancement of black detail in the picture and resetting your TV back to its fac- tory default status.
Page 24: Menu Adjustments
Menu Adjustments Closed Captions The Setup menu includes adjustments for activating the Closed Caption text feature for display on-screen and customiz- ing CC display types and font styles. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup.
Page 25: Parental Control
Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control.
Page 26 Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on Canadian TV and movie rating guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control.
Page 27: Tv Setting
Menu Adjustments TV Settings The Channel provides the setup / changes of your television to receive broadcast channels, store your favorite chan- nels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 19.) How to Navigate: Press the MENU button on the remote control.
Page 28: Zoom Modes
ZOOM Modes The ZOOM function offers several viewing display options on the 16:9 screen. Press the ZOOM button to cycle through the following widescreen settings. Press ZOOM to cycle through the following widescreen settings. 1. NORMAL Recommended for viewing native widescreen content and undistorted 4:3 images (with black bars).
Page 29: Usb Modes
USB Modes 1. Press the INPUT button on the remote control to display the Input Menu. 2. Press the ▲▼ buttons to select USB in the Source menu, and then press Component / AV the ENTER button. HDMI1 HDMI2 HDMI3 To view Photos on the TV: Photo Music...
Page 30: Mhl Setting
MHL Setting Connecting an MHL-enabled device You can connect an MHL-enabled device, such as a cell phone, and view your device’s screen on your TV. To connect an MHL-enabled device: 1 Press INPUT to open the Input Source list. 2 Press to select HDMI2,then press ENTER.
Page 31 MHL Setting The mobile phone match with MHL model list: Mobile Devices Samsung Huawei Asus Fujitsu Sharp Sony Xiaomi Pantech Meizu Panasonic Acer OPPO Kyocera...
Page 32 Speciﬁcations Display Size (inch) Aspect Ratio 16:9 Digital Compatibility 480i / 480p / 720p /1080i /1080p Resolution 1920x1080 Brightness (cd / m2) Dynamic Contrast Ratio 3000:1 Vertical Viewing Angle (degrees) 160° Horizontal Viewing Angle (degrees) 170° Maximum Colors (millions) 16.7M Power Consumption 110Watts Audio Power...
Page 33: Troubleshooting
Troubleshooting Check for a possible solution to a symptom before contacting a customer service representative. Symptom Possible Solutions Cannot receive certain • Perform Channel Scan to add channels into the TV tuner memory. channels through the See page 19. antenna •...
