Summary of Contents for Hilka PDC200

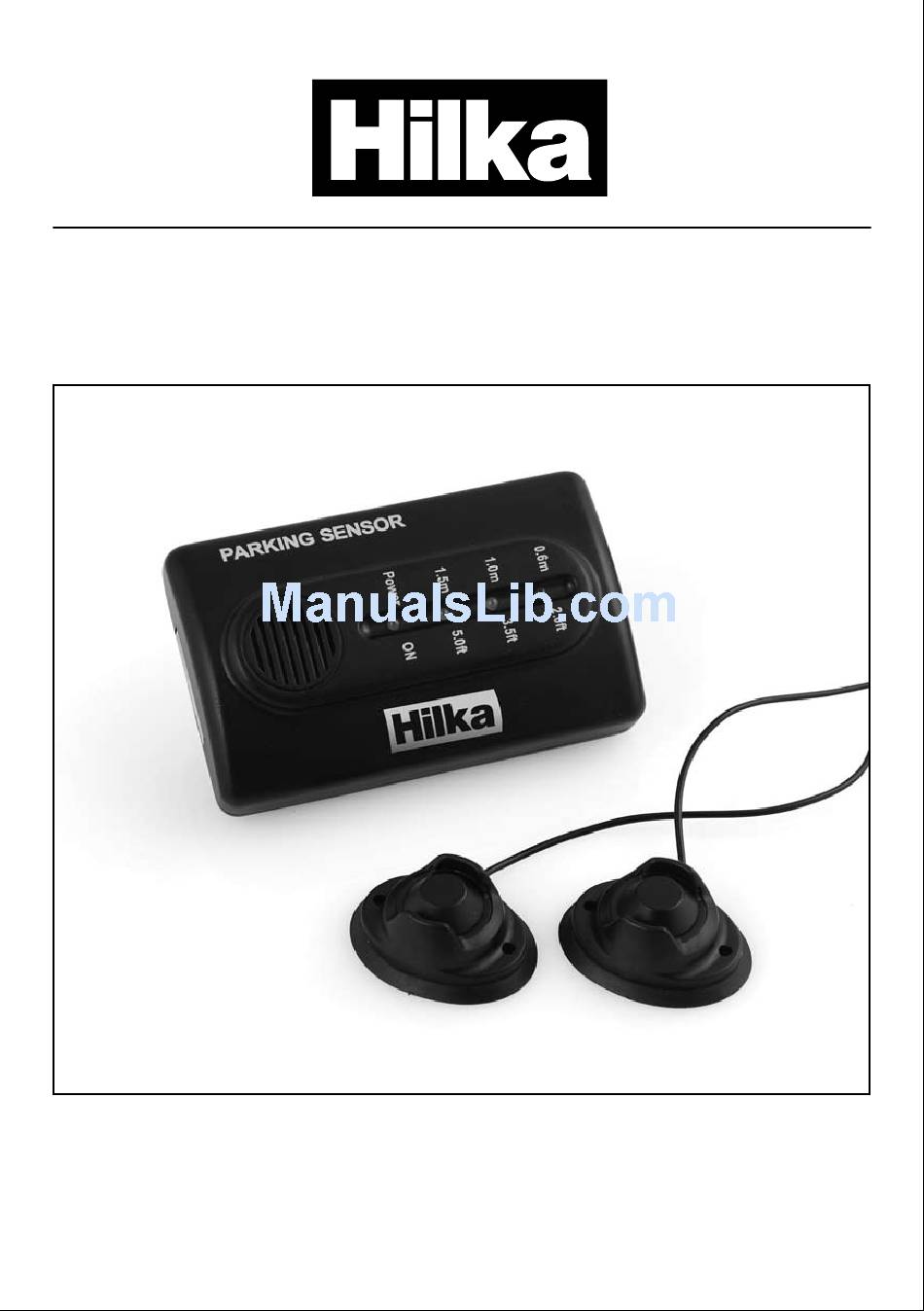

- Page 1 Wired Parking Aid 2 Sensors PDC200...
- Page 2 COMPONENTS Component List 1. Main unit x 1 2. Ultrasonic sensor 3. Snap-on connectors x 2 4. Cable ties x 4 5. Screw for sensor x 4 6. Power wire x 1 7. Adhesive tape...
- Page 3 40cm up to ca. 1,50 meters behind the future reference vehicle. • Less risk for parking damage from unseen The PDC200 is an automatic reversing alert objects. system. It gives a safety warning which tells • Distance between vehicle and object by...
-
Page 4: Wiring Diagram
During the installation your vehicle must be in neutral and the ignition switched OFF. Wiring diagram: Below is a wiring diagram for the PDC200 showing the necessary connections. Please follow the instructions step by step in order to install your Reversing Sensors. - Page 5 Operation When you select reverse gear, you will hear a beep. This indicates that the PDC200 is Connecting the Sensor and Power working and has been activated (it does not wires to your PDC200 necessarily mean that there is something behind you.)
- Page 6 SHOULD STOP IMMEDIATELY, EVEN IF THERE IS NO OBVIOUS OBSTACLE BEHIND YOU. Your PDC200 may work slightly differently to what is shown in the table above depend- ing on circumstance and also on how your sensors are positioned. You should practice using your set up in a known area before us- ing it in earnest on a day to day basis.
- Page 7 Fault Finding FAULT DESCRIPTION PROBABLE CAUSE False or no response Steep slopes or thin bars. Bushes or other foliage could absorb the signals. Electricity wires nearby could interfere with the signal. (See diagram below) Sensors covered with snow, mud or ice etc. Power light does not come on when reverse Check that the power wires are properly gear has been chosen.
- Page 8 If faults cannot be remedied, contact the Helpline on 020 8391 6767 helpline@hilka.co.uk www.hilka.co.uk HILKA TOOLS 1 ROEBUCK PLACE, ROEBUCK ROAD, CHESSINGTON, SURREY KT9 1EU PDC200 - Issue1 - R.W. 14-07-08...
