User Guide

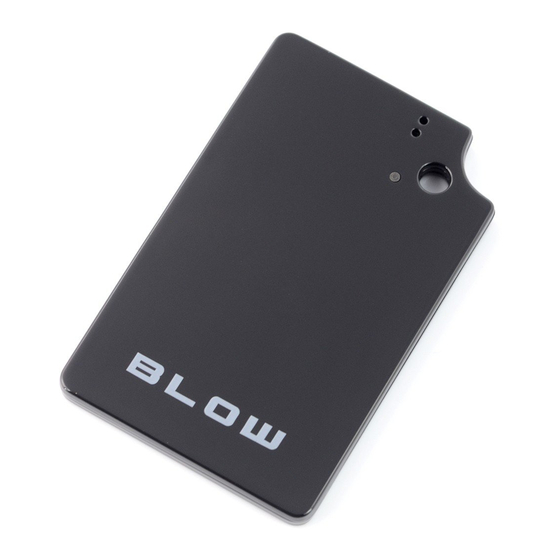

GPS Tracking Device
Product Overview
Thank you for purchasing portable GPS tracker.It's for monitoring and protecting people
and property with built-in U-blox GPS and GSM/GPRS technology.It also with 1200mAh
backup rechargeable battery.
Accessories:
1X Device
1X USB charge cable
1X User Guide
1X Guarantee Card
Advertisement
Related Manuals for Blow BL012
Summary of Contents for Blow BL012
-

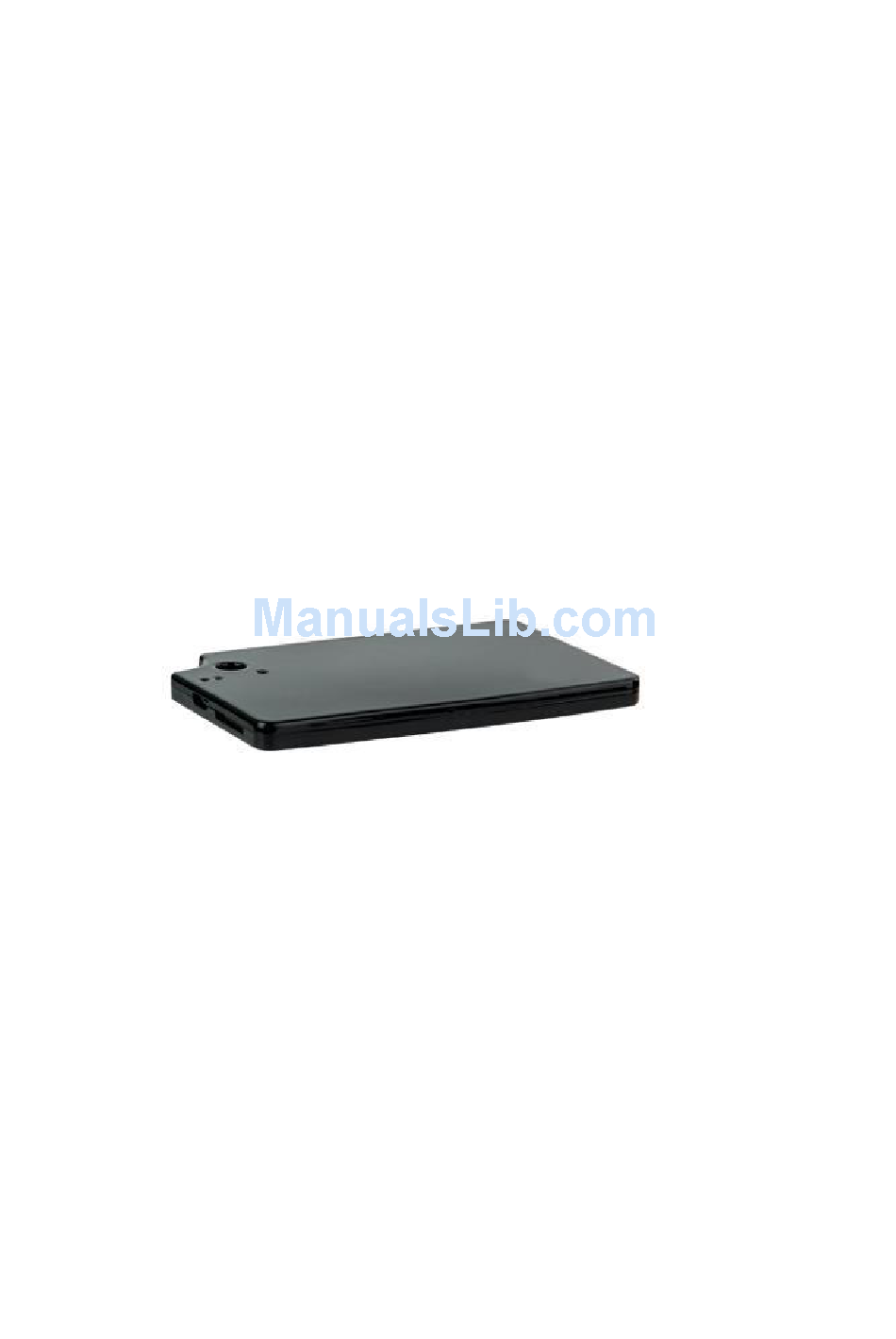

Page 1: User Guide
User Guide GPS Tracking Device Product Overview Thank you for purchasing portable GPS tracker.It’s for monitoring and protecting people and property with built-in U-blox GPS and GSM/GPRS technology.It also with 1200mAh backup rechargeable battery. Accessories: 1X Device 1X USB charge cable 1X User Guide 1X Guarantee Card... - Page 2 Hardware Specification: Content Specs. Mainframe Dimension 86*55*6mm Net weight GSM frequencies 850/900/1800/1900Mhz GPRS Class12,TCP/IP GPS chip UBLOX G7020 Voltage range 3.6-4.2VDC ≤2mAh Standby Current GPS locating time cold start=38s warm start=32s hot start=2s ≤ 10m GPS Accuracy GPS sensitivity -159DB Work environment temperature -40℃+80℃...
- Page 3 SIM Card Installation ※Micro SIM card ( 12*15mm) ※The SIM card is not included in the package, Any SIM card which support GSM 2G can work and be available from the user’s local operator. ※Before installing the SIM card,please check if the SIM card has PIN code or not,if yes,please use a cell-phone to unlock the card’s PIN code.
-
Page 4: Configuration And Operation By Sms
Led indicator : SIM card inserted wrongly S olid blu e S earching GPS signa l F lashing blu e B lue of f S tart to work C harging th e batter Red on Red of f F ull charging Configuration and Operation by SMS 1.To Set the Center Number Command... -
Page 5: Location Request
3.Set up the SMS Language Command :LANG,0# (English) LANG,1# (Chinese) ※The default language is Chinese. ※This is to set up the language of SMS reply content. ※after sending the command,it will reply:LANG OK! 4.Location request 4.1 Reply with coordinates and web link Command :URL# The device will reply:the IMEI No,the date,the time,the map link,the longitude and latitude... - Page 6 7.Change the way of alarm Command: MC,1# (alarm by sms) Command: MC,2# (alarm by calling) Command: MC,3# (alarm by sms and calling) Command: MC,0# (turn off all the way of alarm) ※this is used to change the way of alarm of vibration and over-speed. 8.Listen-in (Voice Monitoring) ※...
- Page 7 10.Reboot device Command :RESET# ※The device will restart itself without changing any settings. 11.Initialization Command :RFS# ※This is to make all settings back to the factory default,except the IP. ※Only the center number has the right to operate. ※please caution to use. 12.Working Modes Command :WKMD,2#...
- Page 8 Check through PC Web Platform : www.gps903.net (International) Account: Device IMEI (at the back of the device cover)))) Original passwords: 123456 Operations of APP in a Cellular Phone APP NAME: GPSONE ※please search it in the IOS app store or Google play store or scan the QR code from the web platform ※please login the app as following:...
- Page 9 More functions are available after log - in The remaining battery (FYR)
- Page 11 Click to get the device’s location Click to get the Cellular’s location Note:Only when there is a certain distance between the phone and the GPS device,the location will show up respectively.
-
Page 12: Geo-Fence
Geo Fence An electronic fence can be set up after log-in APP or PC. Then you can check the messages from the device messages. - Page 13 Cautions: Please comply with the instructions to extend the unit life: 1.Don’t use & store the unit in dusty places. 2.Don’t put the unit in overheated or over cooled places. 3.Clear the unit with a piece of dry cloth. Don’t Clean in chemicals,detergent. 4.Don’t disassemble or refit the unit.
