- Page 1 ElleTENS2InstructionManual2017_Layout 1 12/09/2017 16:59 Page 1 Instructions for use...
- Page 2 It has been cleverly crafted by Babycare TENS specifically for home use for mums-to-be, for the management of pain for labour and beyond. The Elle TENS 2 contains all of the award winning features of its predecessor, the Elle TENS, plus a built-in contraction timer, updated user interface and backlight.
- Page 3 2. The Elle TENS 2 can be used for many chronic and acute pain conditions such as back pain, shoulder pain, arthritis, sciatica, sports injuries, migraine, period pain and post-...
-
Page 4: Table Of Contents
- preparation is essential. Babycare TENS has become the most popular choice for mums-to-be as it is specifically designed to combat pain during childbirth. This is a safe, effective drug-free method of pain... -
Page 5: Controls On Your Elle Tens 2

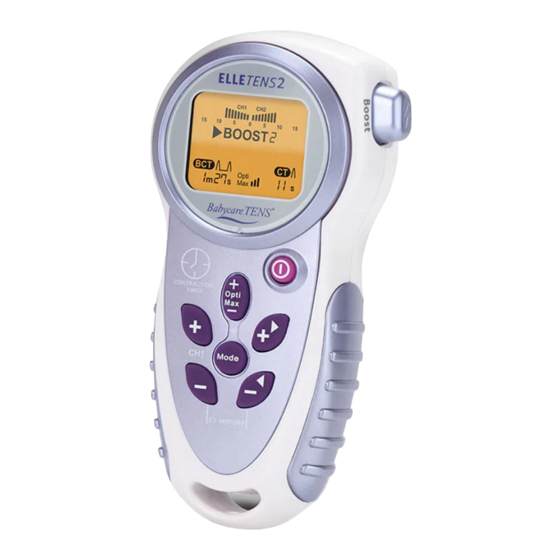

ElleTENS2InstructionManual2017_Layout 1 12/09/2017 16:59 Page 5 Controls on your Elle TENS 2 Boost/Timer Button Used for an extra surge of The Elle TENS 2 is very simple to use. power during contractions and However, it is essential to read these also activates Contraction instructions to obtain the most out of Timer. -
Page 6: Display Symbols And Their Meanings
ElleTENS2InstructionManual2017_Layout 1 12/09/2017 16:59 Page 6 Display symbols and their meanings Mode 1 and 2 Low Battery Indicator BURST This sign will start flashing if the There are two mode ranges available This function is used at the onset batteries run low. If this is the case, of labour and in between each with a Burst and Boost function change both batteries. -
Page 7: Setting Up Your Elle Tens 2
ElleTENS2InstructionManual2017_Layout 1 12/09/2017 16:59 Page 7 Setting up your Elle TENS 2 Press Check the following contents: The Assembly Stage a) Press and rotate the belt • 1 x Elle TENS 2 Unit Rotate clip at the back of the Elle •... - Page 8 ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 8 Setting up your Elle TENS 2 c) Take two of the purple d) Now insert the pins If you wish, attach the easy- leadwires and insert (at the other end of the release neck cord:...
-
Page 9: Suggested Electrode Placement Diagram
ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 9 Suggested electrode placement diagram The sticky electrode pads need to be placed in the correct position for maximum pain relief. It is preferable to obtain assistance from either your birthing partner or medical adviser when positioning the pads. Please read the following instructions carefully: 1. -
Page 10: Using The Elle Tens 2
ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 10 Using the Elle TENS 2 Press Display Turn your Elle TENS 2 on Press the on/off button to power up the unit. The unit is in BURST BURST 1 mode. Adjusting intensity for pain relief during labour Begin by pressing the CH1+ key. - Page 11 You do not need to hold the button in. Once the contraction has passed, release the Boost Button by lightly pressing it. The Elle TENS 2 will return to the original BURST 1 mode. Continue this cycle BURST during the early stages of labour.
-
Page 12: Using The Contraction Timer
Using the contraction timer BOOST The first time you press the Boost Button, the Elle TENS 2 will automatically trigger the Contraction Timer (CT). This can be seen in the bottom right of the display. This measures the duration of your contractions in seconds. -
Page 13: The Mode Button
CH1- and CH2- buttons together again. The Mode Button There are two mode ranges available on the Elle TENS 2, each with a Burst and Boost function. BURST Mode 1 (BURST 1 and BOOST 1), which has been described above, is primarily used for the earlier stages of labour. -
Page 14: The Opti-Max Key
Using the Elle TENS 2 Display The Opti-Max Key This provides extra versatility to your Elle TENS 2. Increasing or decreasing BURST the Opti-Max Key will allow you to either heighten or lessen the level of pulse power transmitted to the electrode pads. -
Page 15: Questions, Answers And Troubleshooting
Q Why does the pulse sensation feel strong but ineffective? Q Can I use the Elle TENS 2 if I am considering a water birth? A Yes, but not in the water itself. A You may need to reposition the electrode pads (don’t forget to switch the Elle TENS 2 off before doing so). -
Page 16: Technical Specification
ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 16 Specifications General Technical Specifications Programme Display Output Frequency / Duration Pulse Frequency (16Hz) Pulse Width (150 s) Burst Burst 1 1 burst per second, 8 pulses per burst* Pulse Frequency (32Hz) Pulse Width (150 s) Burst Burst 2 2 bursts per second, 8 pulses per burst*... - Page 17 7. The device shall not be serviced or maintained while in use with a patient. equipment to avoid instability in the stimulator output. 8. The Elle TENS 2 is not user repairable and must be returned to the manufacturer if it 11. Do NOT use adjacent to or stacked with other equipment.
-
Page 18: Maintenance And Care
The Elle TENS 2 and applied parts are NOT made with latex. Please check carefully before 6. Do not attempt to open or dismantle this device at any time to undertake any other choosing to use any other third party accessories other than those provided by the repairs or maintenance. - Page 19 ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 19...
- Page 20 ElleTENS2InstructionManual2017_Layout 1 12/09/2017 17:00 Page 20 Guarantee The Elle TENS 2 is guaranteed for 2 years against manufacturer’s defects excluding consumables such as leads, electrodes and batteries. www.babycaretens.com Body Clock Health Care Ltd 108 George Lane, South Woodford, London E18 1AD...
