RIAREX RBR-SB-KTZ001 User Manual

Stand-alone controller with 125 khz proxy reader
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
RBR-SB-KTZ001
LAR 2
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBR-SB-KTZ001 and is the answer not in the manual?

Questions and answers

Summary of Contents for RIAREX RBR-SB-KTZ001

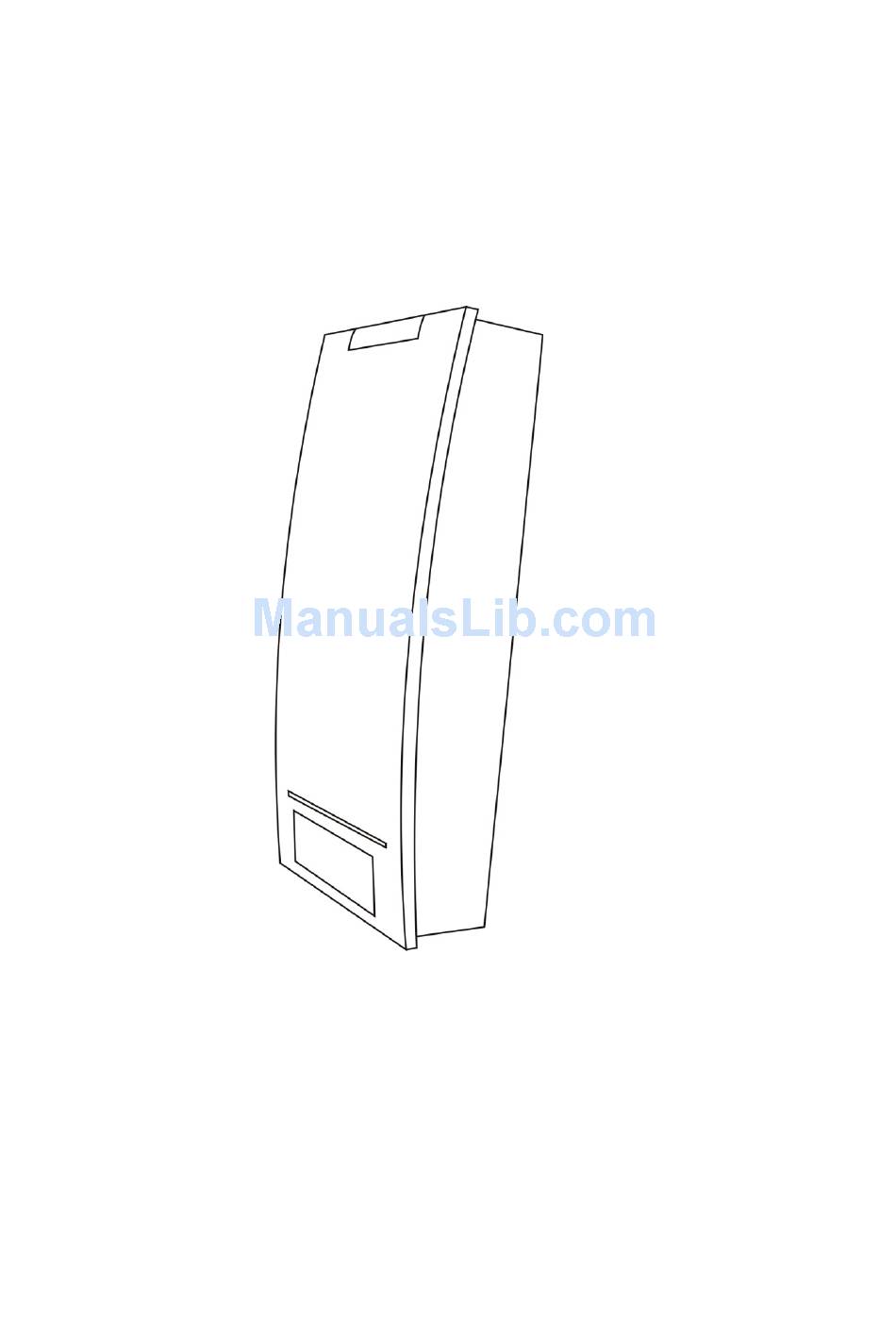

  • Page 1 RBR-SB-KTZ001 LAR 2 User Manual...

  • Page 2: Specifications

    INTRODUCTION KTZ001 is a compact, waterproof stand-alone programmable access control system that provides proximity entry for up to 2000 users. Read both EM and HID card. It uses Atmel microcontroller that assures maximum performance in any environment, and the low-power circuit makes its service life prolonged.

  • Page 3: Carton Inventory

    Carton Inventory: 1 x RBR-SB-KTZ Reader 1 x Infrared Remote Control 1 x Diode IN4004 (for relay circuit protection) 2 x Self tapping Screws：Φ3*25mm 2 x Wall Anchors 1 x Screw Driver INSTALLATION Remove the back cover from the unit Drill 2 holes (A, C) on the wall for the screws and one hole for the cable.

  • Page 4: Connection Diagram

    Wiring Colour Function Notes Power + 12~24 V DC Regulated Power Input Black Ground White Normaly Open relay Brown Common for relay output Green Normaly Closed relay Request to exit Input (REX) Yellow OPEN Connection Diagram Common power suplly: Attention: Install a 1N4004 or equivalent diode is needed when use a common power suplly, or the reader might be damaged.
  • Page 5 PROGRAMMING Programming will vary depending on access configuration. Follow the instructions according to your access configuration. General Programming Information Remote Control: Please use the Infrared Remote Control to program the Reader. The infrared receiver head is near LED, so when program the reader, direct the Remote Control to the LED. User ID number: Assign a user ID to the access card in order to track it.
  • Page 6 2. Add Card: Block Learn 1 ( User ID number) # (Card quantity) (Allows manager to add up to 2000 cards #(The first card number) # to the Reader in a single step.) Takes 3 Cards’ number must be consecutive; minutes to program.

  • Page 7: Users Operation

    Set Audible and Visual Response Programming Step Keystroke Combination ﹡ ﹡ ﹡ ﹡ (Master Code) # 1. Enter Program Mode 2. Control LED OFF = 6 1 # ON = 6 2 # 2. Control Sounds OFF = 6 3 # ON = 6 4 # (Factory defaults are ON) ﹡...
  • Page 8 KTZ001- Simplified Instruction Function description Choose from the relevant functions below and input Enter the programming mode *- 123456 - # then you can do the programming (123456 is the default factory master code) change the master code 0 – new code - # - repeat the new code - # (code: 6 digits) Add card user 1- Read Card - #...

This manual is also suitable for:

Ktz001
